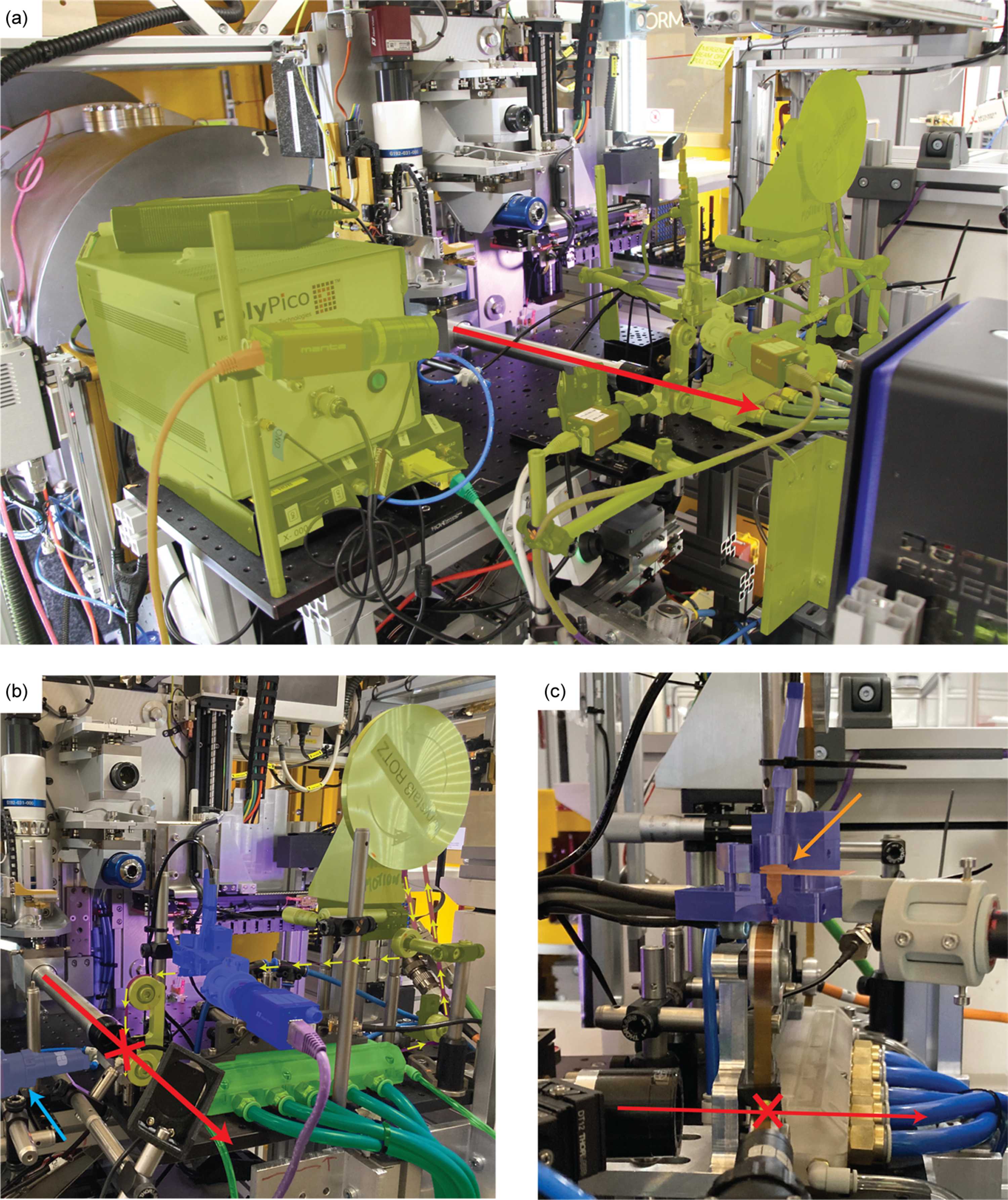

Figure 1
Tape drive prototype on VMXi. (a) Overall view of the installation of the tape drive prototype on the VMXi beamline. All the tape drive components are highlighted in yellow. The beam direction is given by the red arrow. (b) Focus on the tape drive prototype: mechanical components of the tape drive (motor and pulleys) are highlighted in yellow, the Kapton tape is highlighted in pink (with yellow arrows indicating the direction), the clean/dry unit highlighted in green, the piezoelectric injector (PEI) unit (camera, PolyPico mini-head and LED) highlighted in blue and orthogonal view camera highlighted in light blue (blue arrow). (c) Close-up view of the PolyPico mini-head highlighted in purple. The cartridge is highlighted in orange (orange arrow). The microcrystal slurry droplets are ejected onto the broad face and near the downstream edge of the Kapton tape, and are aligned to the X-ray interaction region (red cross) wherein the X-ray photon path is nearly parallel to the tape face.
