Droplet-on-demand tape drive and X-ray emission spectroscopy prototypes for time-resolved serial crystallography on VMXi at Diamond Light Source

Aller, P.; Sanchez-Weatherby, J.; Telfer, A.; Bosman, R.; Devenish, N.; Hinchliffe, P.; Horrell, S.; Ip, J.; Littlewood, R.; Male, A.; Gimenez Navarro, E.; Neuman, U.; Kamps, J.J.A.G.; Omar, D.; Parkinson, L.; Pandi, M.; Rubies, N.; Sandy, J.; Shilova, A.; Spencer, J.; Spiers, J.; Sutter, J.P.; Thompson, A.J.; Tooke, C.L.; Williams, B.; Zhou, T.; Hough, M.A.; Orville, A.M.

doi:10.1107/S2052252526005658

Figure 3

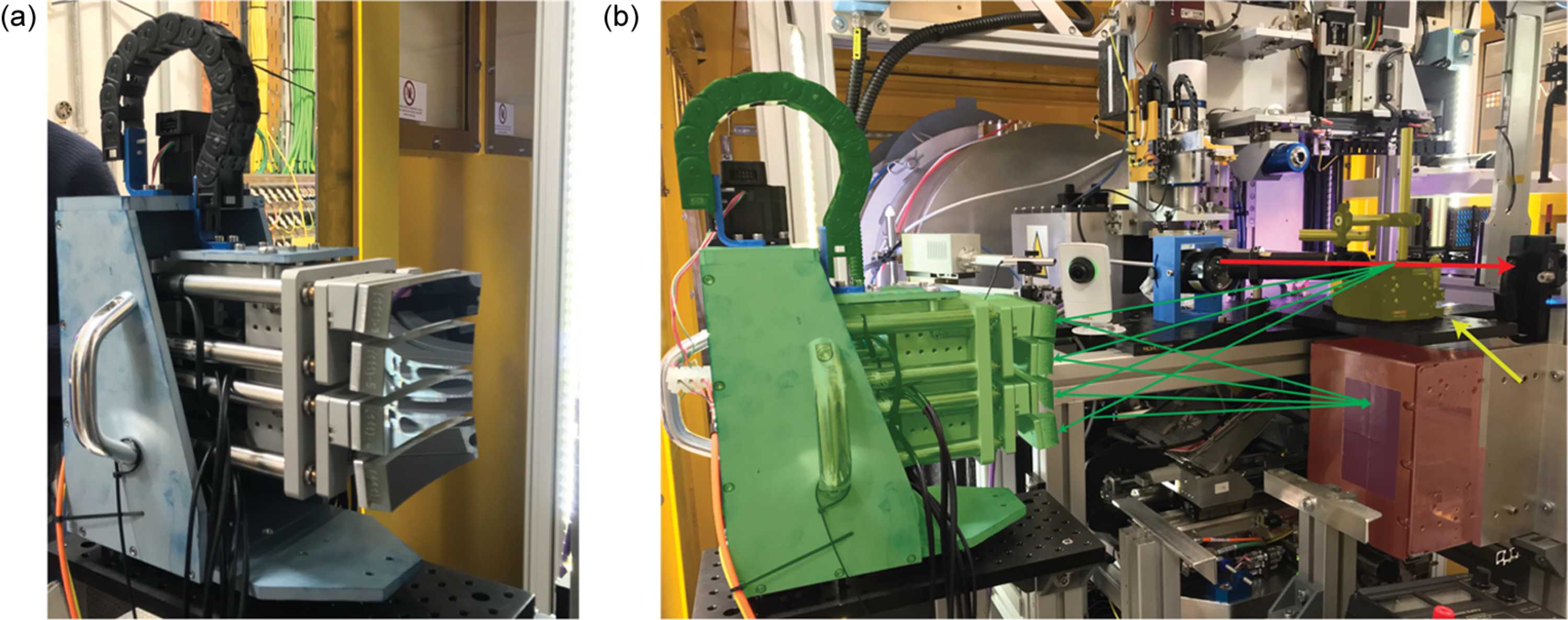

von Hamos XES spectrometer prototype installation on VMXi for Cu Kα_1,2 measurements. (a) A 4×1 bank of Si(111) analyser crystals with a 400 mm focal radius used to measure Cu Kα_1,2 XES data with the Si(444) reflection. (b) The setup without the helium cone and lead shielding. The XES detector (Tristan 1M) is highlighted in red, the analyser crystals bank is highlighted in green and the sample delivery system is highlighted in yellow (yellow arrow). The X-ray beam is indicated by the red arrow and the emitted photon path is shown with green arrows.
