Figure 14

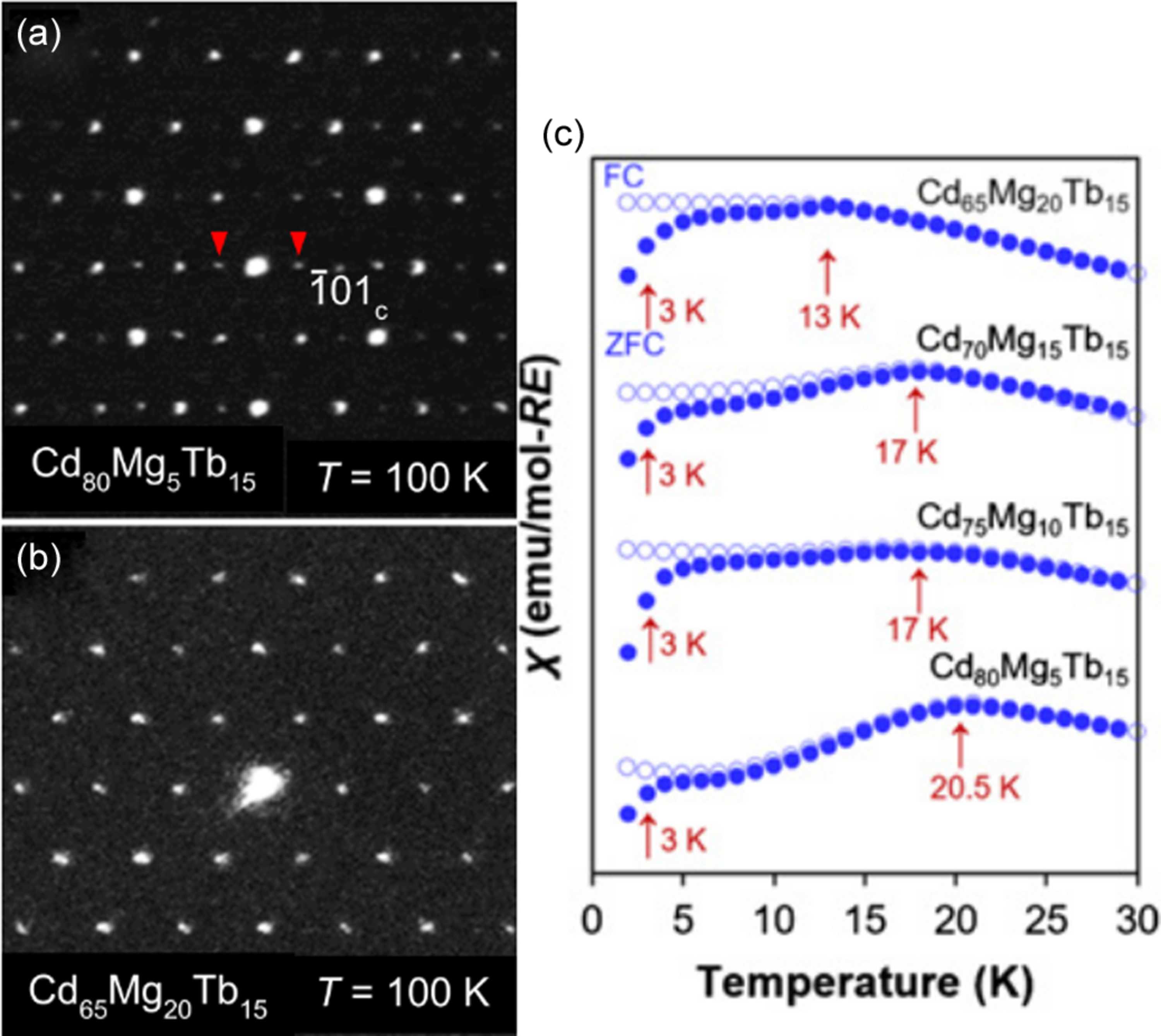

(a, b) Selected-area electron diffraction patterns taken along the [111] incidence for Cd80Mg5Tb15 and Cd65Mg20Tb15 at 100 K. Superlattice reflections are observed in Cd80Mg5Tb15, as indicated by arrowheads. (c) Magnified low-temperature direct current magnetic susceptibilities of the 1/1 PAs containing 5, 10, 15 and 20 at.% Mg in the Cd–Mg–Tb system. Adapted from Labib et al. (2020bView full citation).

IUCrJ
Volume 13| Part 5| September 2026| Pages 552-579
ISSN: 2052-2525
https://doi.org/10.1107/S2052252526006263
