Figure 19

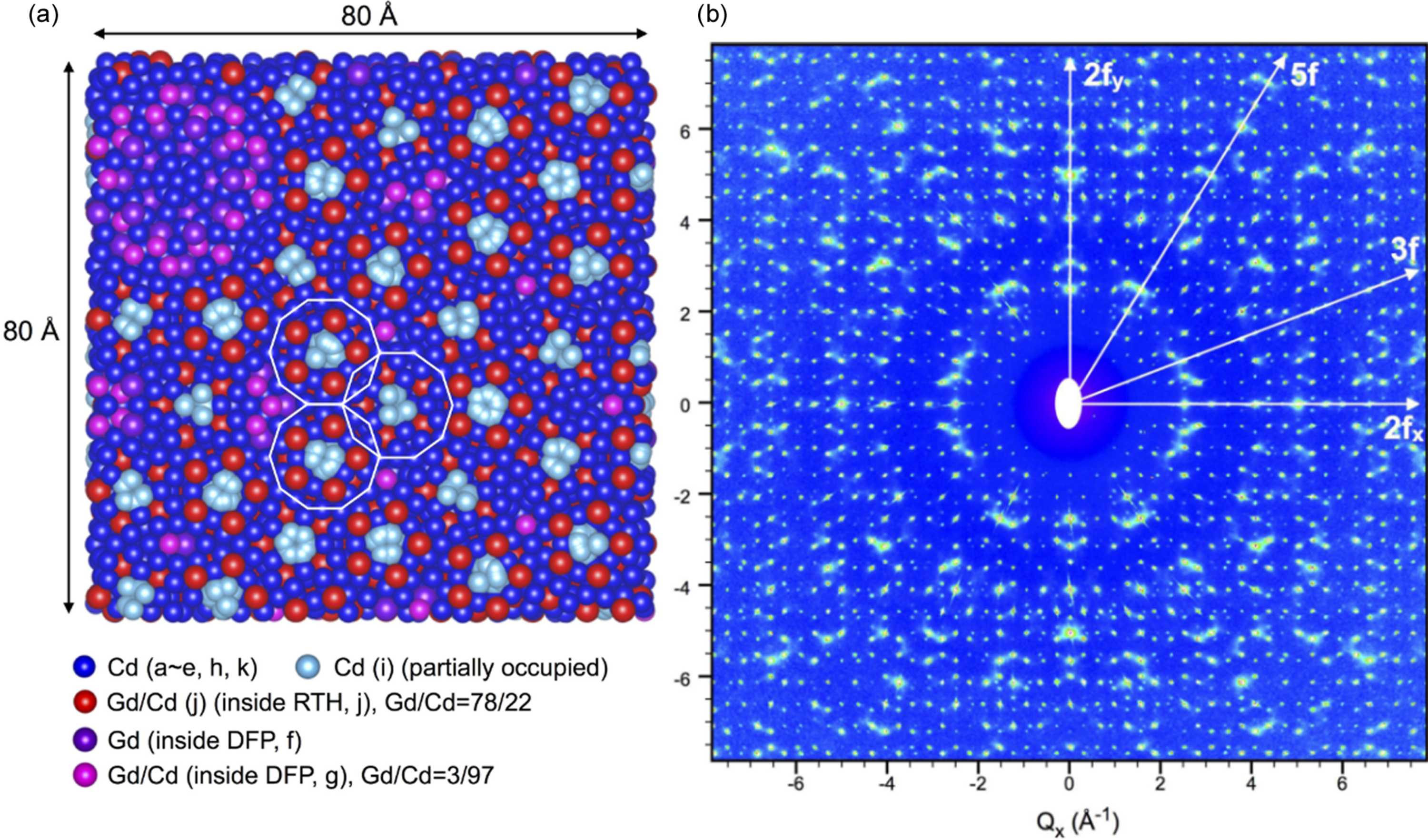

(a) A region of the refined structure of icosahedral Cd7.88Gd in the physical space normal to the fivefold direction. The white lines outline the positions of some of the Tsai-type clusters in the refined structure. (b) Reciprocal layer reconstruction from single-crystal X-ray diffraction of the Cd7.88Gd QC, showing a twofold plane up to Q = 7.85 Å−1 where streaks of diffuse scattering along the threefold direction are evident. Reprinted with permission from Yamada et al. (2016bView full citation). Copyright (2016) by the American Physical Society.

IUCrJ
Volume 13| Part 5| September 2026| Pages 552-579
ISSN: 2052-2525
https://doi.org/10.1107/S2052252526006263
