Figure 9

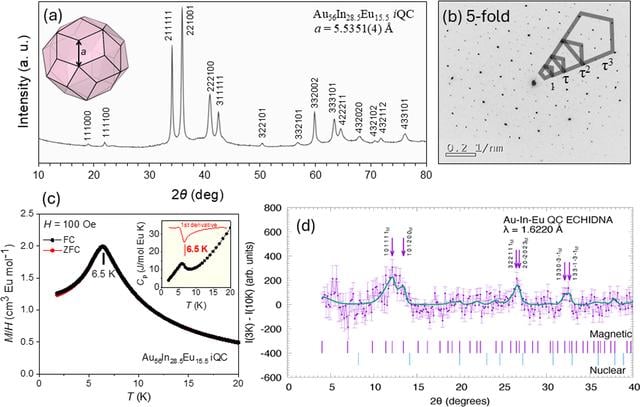

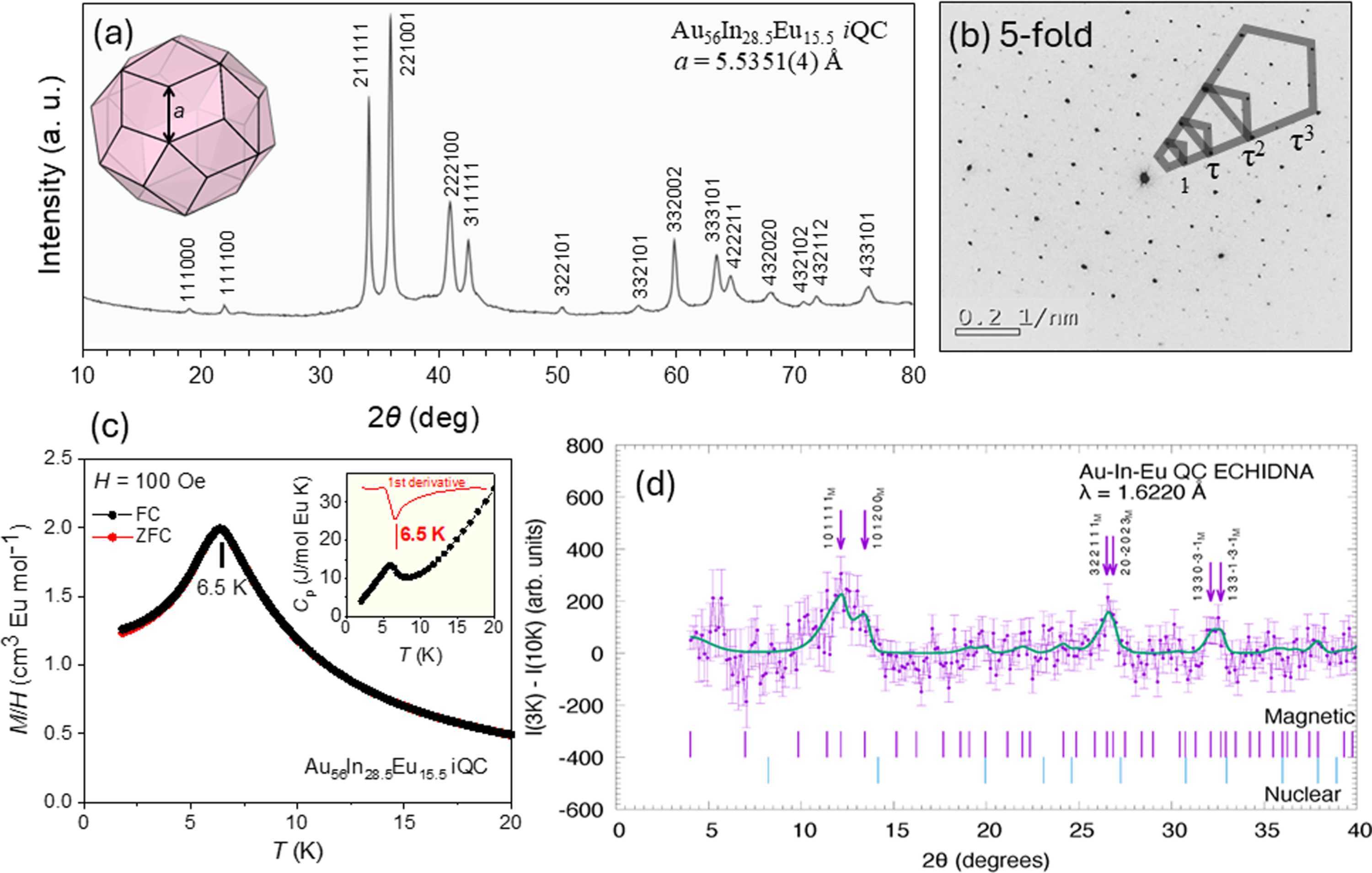

(a) The powder X-ray diffraction pattern of the Au56In28.5Eu15.5 iQC. (b) The selected-area electron diffraction pattern taken along the fivefold axis. The τ-scaling rule observed for the intense Bragg reflections confirms the formation of a primitive iQC. (c) The temperature dependence of the magnetic susceptibility (M/H) of Au56In28.5Eu15.5 below 20 K under ZFC and FC conditions. The inset shows the specific heat Cp of the same compound as a function of temperature, together with its temperature derivative dCp/dT. (d) The difference profile I(T = 3 K) − I(T = 10 K) in the low-angle region (2θ < 40°) of the neutron powder diffraction patterns. The blue vertical solid lines at the bottom indicate the positions of nuclear Bragg reflections expected for the icosahedral phase, indexed using 6D indices with |Q⊥| < 0.74 Å−1. The lattice constant (edge length of the 3D Penrose lattice) is a = 5.5351 (4) Å at T = 10 K. Violet solid lines represent the 6D indices with a doubled (magnetic) unit cell (|Q⊥| < 0.36 Å−1), both with a = 5.5351 Å. In total, three magnetic peaks (indicated by the arrows) were detected.
