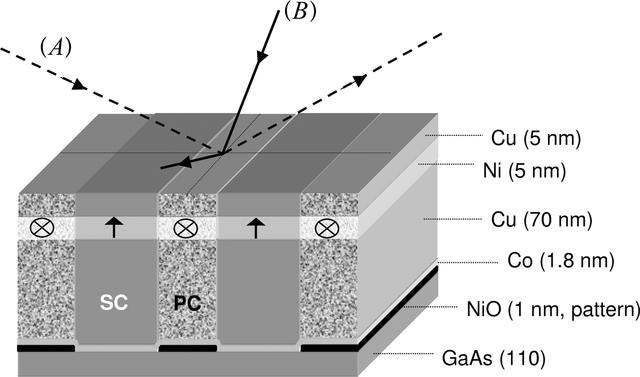

Figure 1
Schematic of the measured sample Cu (5 nm)/Ni (5 nm)/Cu (70 nm)/Co (1.8 nm)/NiO (1 nm)/GaAs(110). The thickness of the layers is given according to the characterization by Li et al. (2002BB20). Polycrystalline and single-crystalline regions of the sample are indicated by PC and SC, respectively. Also shown are the experimental scattering geometries for (A) X-rays perpendicular to the wires and (B) X-rays parallel to the wires.
