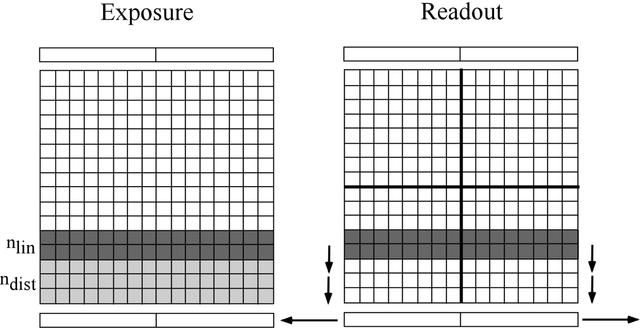

Figure 3
Pipeline mode. The image size is reduced to nlin lines at ndist (in the figure, nlin = 2 and ndist = 3) from the nearest output channels. This image is then sequentially treated as in the full frame mode, but only two channels on one side of the CCD are used for the readout.
