Figure 2

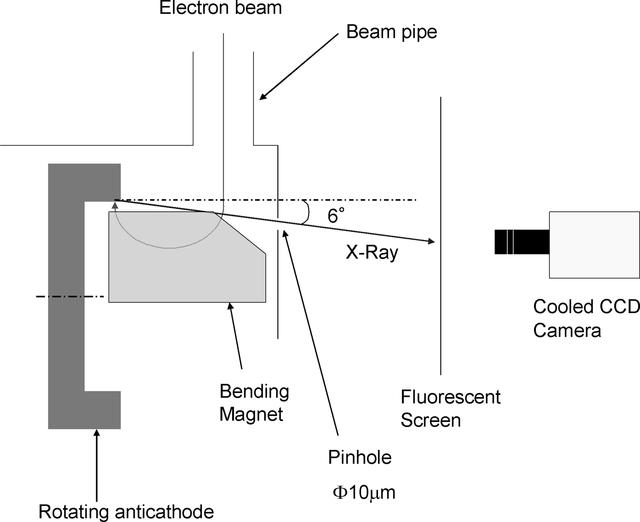

Schematic view of the X-ray measurement system. X-rays from the anticathode are projected through a pinhole to a fluorescent screen, which is positioned at an angle of 6° against the anticathode surface. Visible light from the fluorescent screen is recorded by a cooled CCD camera.
