Protein crystallization in a 100 nl solution with new stirring equipment

Maki, S.; Murai, R.; Yoshikawa, H.Y.; Kitatani, T.; Nakata, S.; Kawahara, H.; Hasenaka, H.; Kobayashi, A.; Okada, S.; Sugiyama, S.; Adachi, H.; Matsumura, H.; Takano, K.; Murakami, S.; Inoue, T.; Sasaki, T.; Mori, Y.

doi:10.1107/S0909049508001842

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

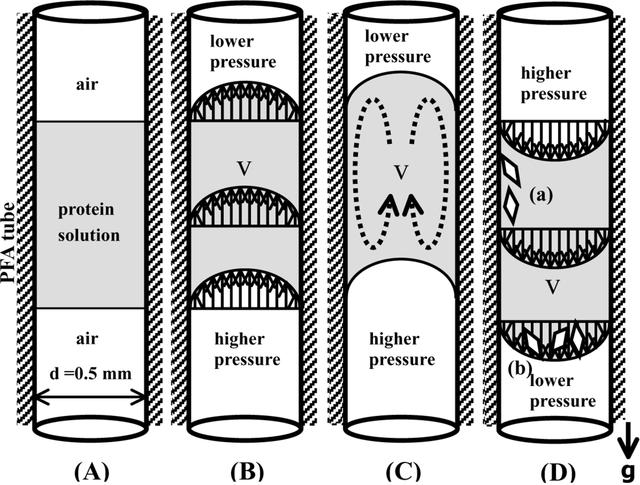

Figure 1
Schematic illustrations of the stirring mechanism. (A) Initial state of the protein solution, (B) the Hagen–Poiseuille flow when the droplet is compressed from downward, (C) the axisymmetric rolls when the droplet is moving upward in the tube, and (D) the Hagen–Poiseuille flow in the reverse direction. The stirring is carried out by periodically repeating the processes from (A) to (D). The crystals precipitate (a) on the tube wall or (b) on the air–liquid interface.
