Figure 8

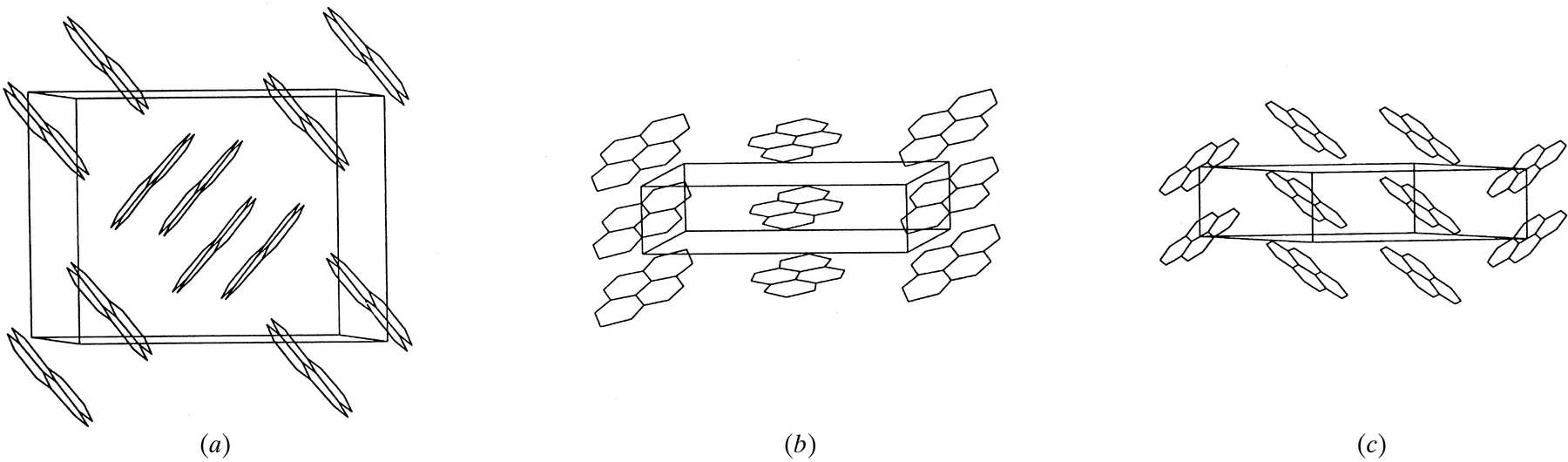

Crystal-packing types: (a) sandwich-herringbone (SH) motif of decadeuteropyrene (Knight et al., 1996); (b) β type, naphtho[1,8-c,d:4,5-c′d′]bis[1,2,6]selenadiazine (Gieren et al., 1980); (c) γ type, 1,3,6,8-tetrafluoro-2,4,5,7,9,10-hexachloropyrene (Hazell & Weigelt, 1975) (F and Cl atoms omitted for clarity). |
