Figure 9

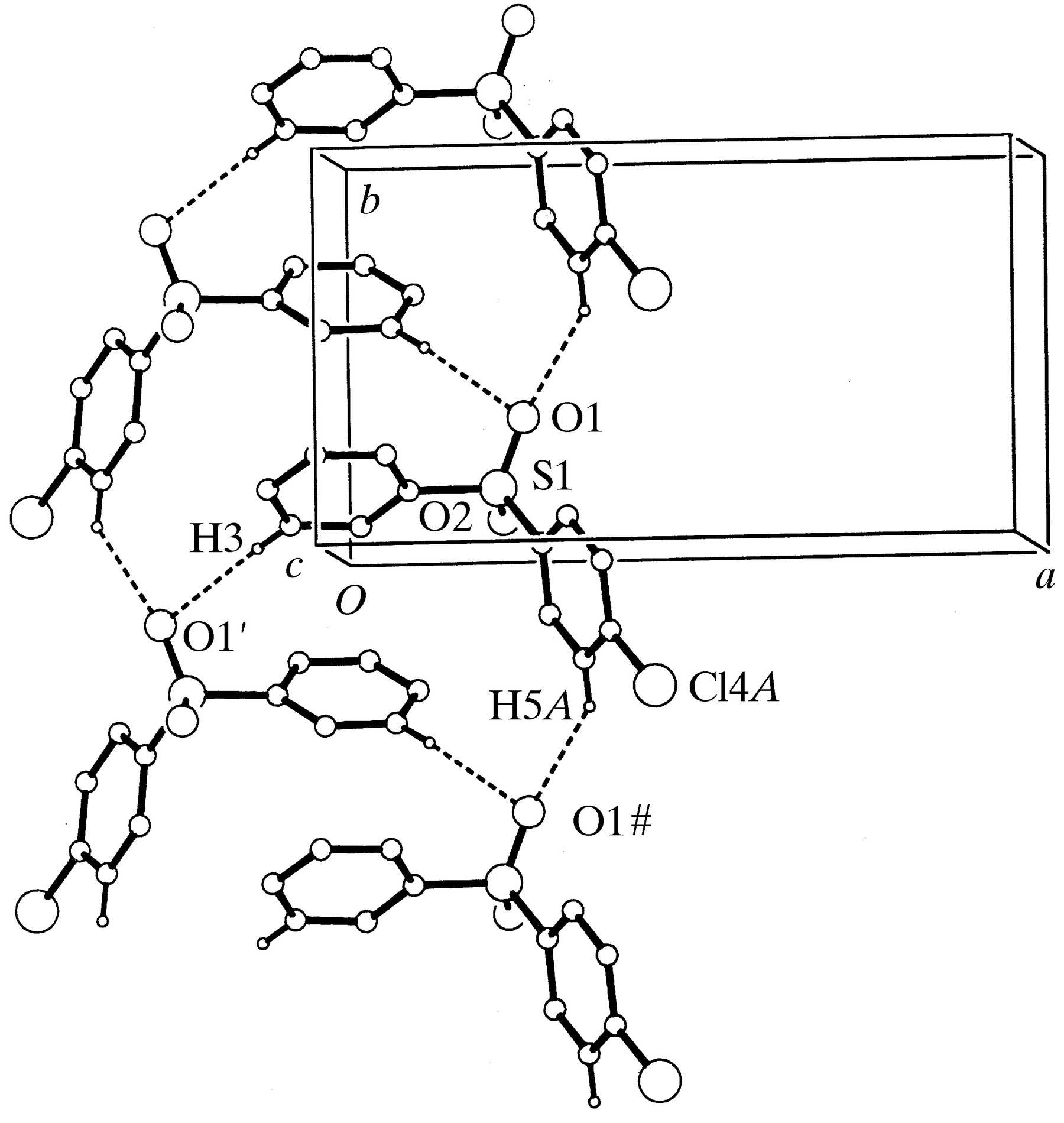

Part of the crystal structure of (3), showing the formation of a chain of fused R23(16) rings running parallel to [010]. Atoms are depicted as in Fig. 6. The atoms marked with a prime (′) or a hash (#) are at the symmetry positions () and (x, -1 + y, z), respectively. |
