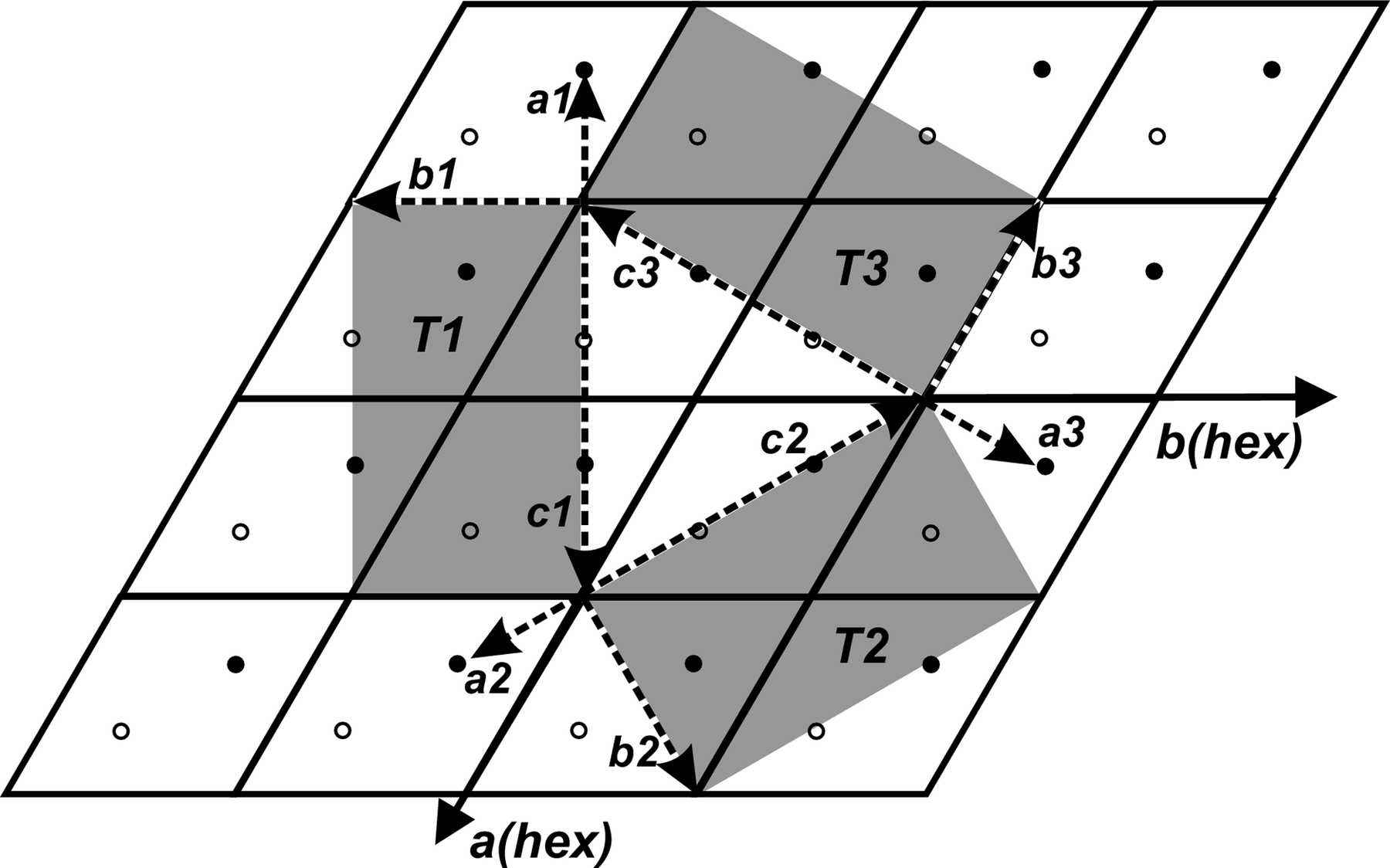

Figure 1
The relationship between the three settings of the monoclinic unit cell with respect to that of the trigonal phase of lead phosphate drawn out on the hexagonal R lattice. The circles are lattice points of the R lattice; empty circles at z = 1/3, filled circles at z = 2/3. The three shaded rectangles are the (100) faces of the monoclinic cells and are labelled to correspond to the transformation matrices given in the text. |
