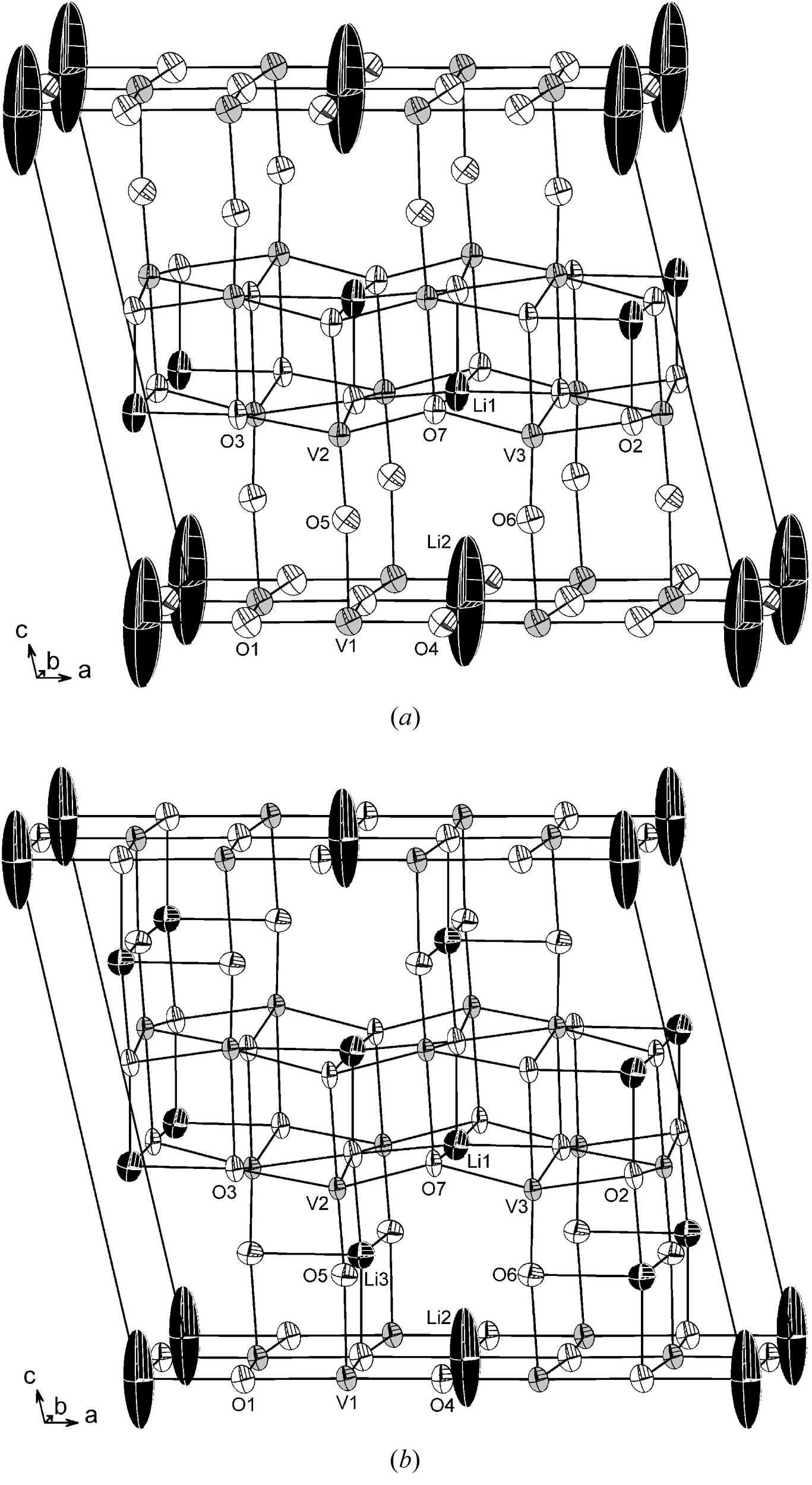

Figure 2
The structures of (a) Li3V6O13 and (b) Li3.24V6O13. The white, grey and black atoms are oxygen, vanadium and lithium, respectively. The Li2 displacement ellipsoid describes two equivalent sites above and below an inversion centre, and their partial overlap. Displacement ellipsoids are drawn at the 90% probability level. |
