Figure 5

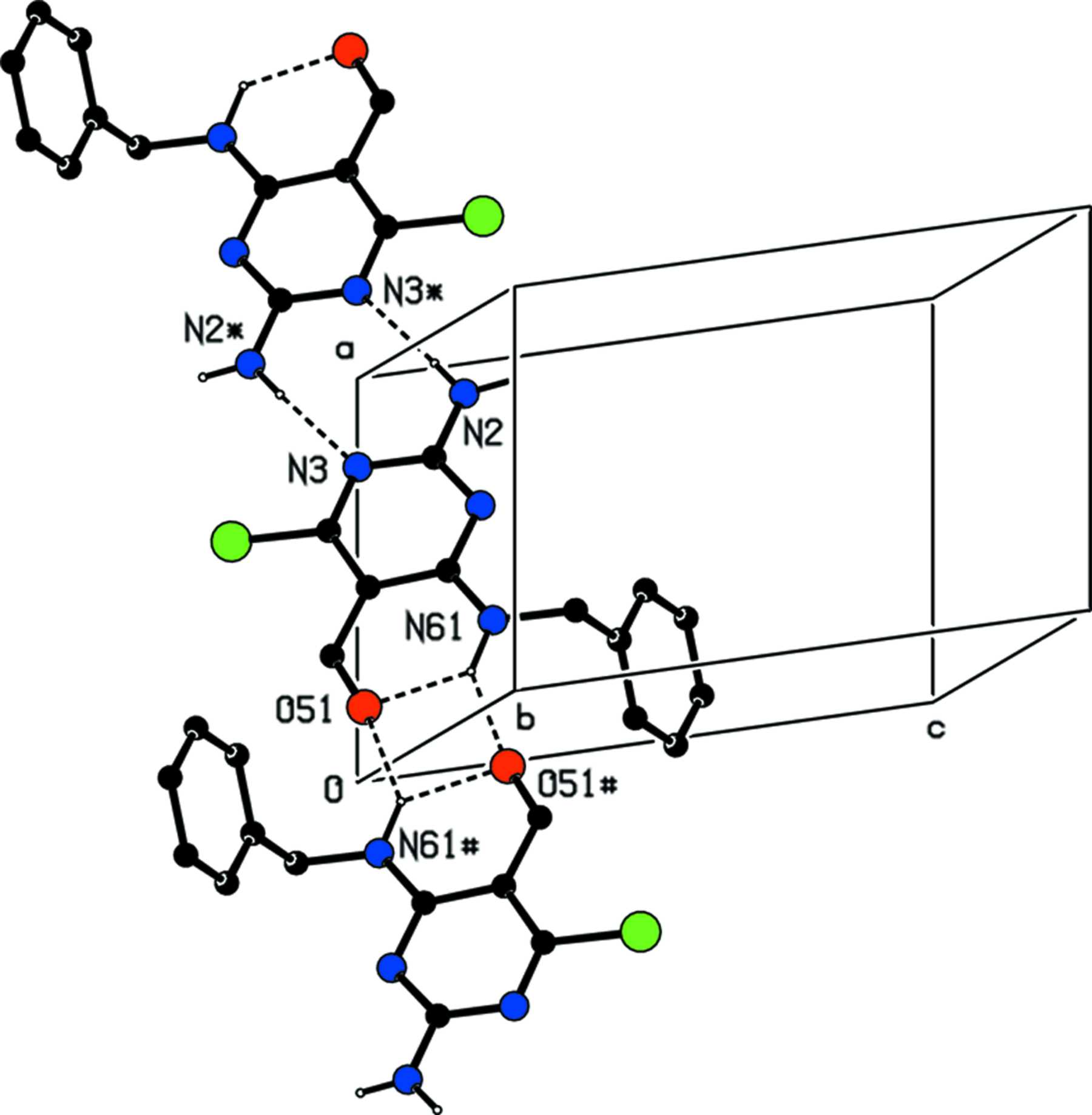

Part of the crystal structure of (VII) showing the formation of a chain of hydrogen-bonded S(6), R22(4) and rings along [20]. For the sake of clarity the H atoms bonded to C atoms have been omitted. The atoms marked with an asterisk (*) or a hash (#) are at the symmetry positions (2 - x, -y, -z) and (-x, 1 - y, -z), respectively. |
