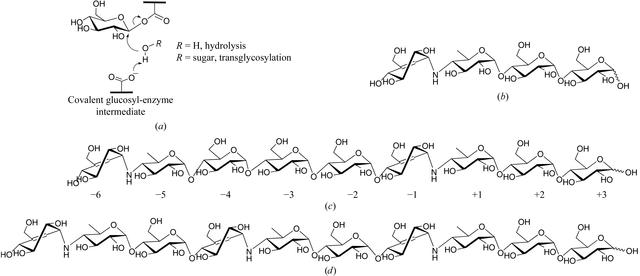

Figure 1
(a) The covalent glycosyl-enzyme intermediate of a retaining glycosidase is normally intercepted by water. Under some circumstances, it is instead intercepted by another sugar in a transglycosylation reaction; such a mechanism gives rise to the many elongated forms of acarbose seen in amylase structures. (b) The structure of the pseudo-tetrasaccharide inhibitor acarbose. (c) The nonasaccharide observed in BHA (this work) and (d) that previously observed on the BA2 α-amylase (Brzozowski et al., 2000  ). |
