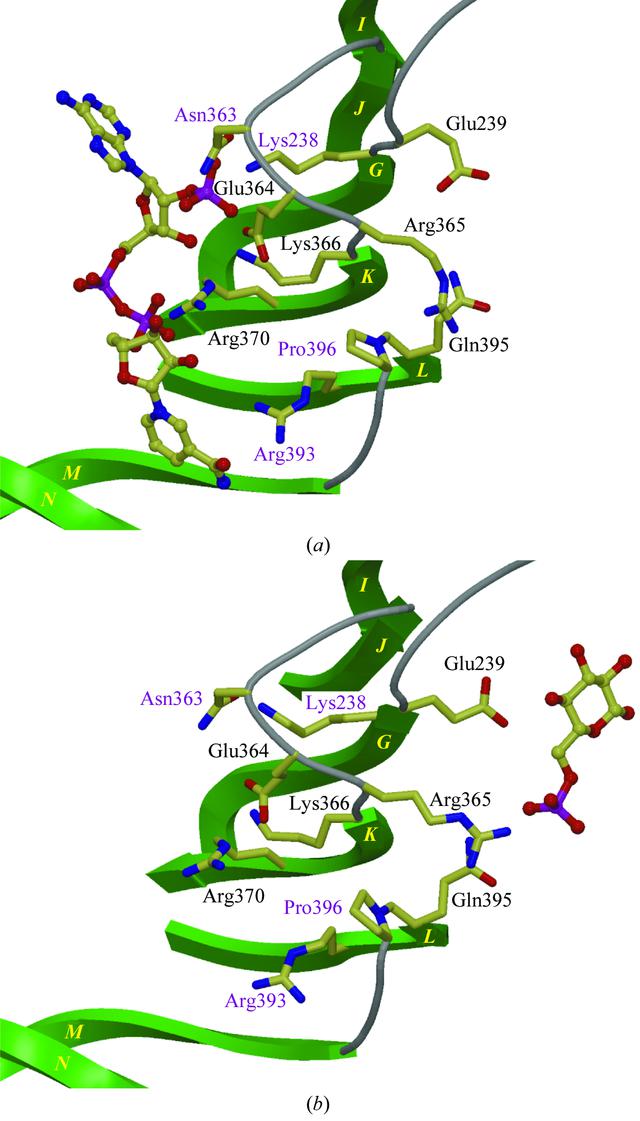

Figure 8 Residues bridging from the G6P site to the structural NADP+ site The same view is used to allow comparison of this region in (a) G6PD-G6P and (b) G6PD-NADP+. Sheet strands are drawn in green and identified as in Fig. 1. Class I variants arise on mutation of those residues labelled in magenta.
