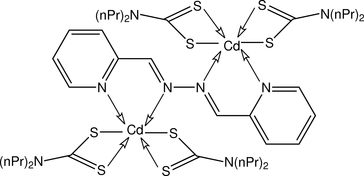

ng2485 scheme

Acta Cryst. (2008). E64, m1176    [ doi:10.1107/S1600536808025889 ]

([mu]-2-Pyridinealdazine-[kappa]4N,N':N'',N''')bis[bis(N,N-di-n-propyldithiocarbamato-[kappa]2S,S')cadmium(II)]

P. Poplaukhin and E. R. T. Tiekink

Abstract top

The dinuclear centrosymmetric title compound, [Cd2(C7H14NS2)4(C12H10N4)], features a tetradentate 2-pyridinealdazine ligand that chelates two Cd centres. The coordination geometry for Cd is distorted octahedral based on a cis-N2S4 donor set. In the crystal structure, molecules are connected into a supramolecular chain aligned along the a direction via C-H...S and C-H...[pi] contacts, and by [pi]-[pi] contacts [centroid-to-centroid distance 3.5708 (15) Å]. The n-propyl groups are each disordered, one equally over two sites and the other with a site-occupancy factor of 0.618 (8) for the major component.

Comment top

Metal dithiocarbamates have recently been applied in crystal engineering studies (e.g. Tiekink, 2006; Benson et al., 2007). The title compound, {[(nPr)2NCS2]2Cd(2-C5H4N—C(H)═N—N═C(H)C5H4N-2)- Cd[S2CN(nPr)2]2} (I), features a centrosymmetric tetradentate 2-pyridinealdazine ligand coordinating to two Cd centres each of which is chelated by two dithiocarbamate ligands, Fig. 1. The molecule is centrosymmetric about the central N—N bond. The range of Cd—S bond distances is relatively narrow at 2.6124 (8) to 2.7165 (7) Å, but the Cd—N bond formed by the pyridine-N of 2.377 (2) Å is significantly shorter than the Cd—N bond distance of 2.6211 (19) Å formed with the azo-N atom. The coordination geometry is based on an octahedron within a cis-N2S4 donor set. The structure reported here for (I) resembles closely the dithiophosphate analogue (Lai & Tiekink, 2006). In the crystal structure, molecules are connected into a supramolecular chain, aligned along the a-direction and illustrated in Fig. 2, via C—H···S3 and π–π contacts. The latter occur between centrosymmetically related N3,C15—C19 rings with Cg···Cg = 3.5708 (15) Å. These are consolidated into the crystal structure via additional C—H···S4 contacts and C—H···π interactions, Table 1 and Fig. 3.

Related literature top

For background literature, see: Tiekink (2006); Benson et al. (2007). For a related structure, see: Lai & Tiekink (2006).

Experimental top

Compound (I) was prepared by standard methods (Benson et al., 2007) and red crystals were grown by the slow evaporation of a methanol–ethanol (1/1) solution of (I), m.p. 441-443 K. IR (cm-1): 1474 (s, C═N), 1171 (s, C—S). TGA: One broad step with onset = 625 K, midpoint = 662 K, and endset = 711 K which corresponds to decomposition leading to CdS (mass loss 79.4% cf. theoretical mass loss = 74.4%).

Refinement top

The H atoms were geometrically placed (C—H = 0.95–0.99 Å) and refined as riding with Uiso(H) = 1.2Ueq(C) or 1.5Ueq(methyl-C). The N1-bound n-propyl groups were each found to be disordered. The C6—C7 residue was disordered over two positions, each with 50% site occupancy factors (from anisotropic refinement). The C3 atom of the C2—C4 residue was disordered over two positions with the major component having a site occupancy factor = 0.618 (8) (from anisotropic refinement).

Computing details top

Data collection: CrystalClear (Rigaku/MSC, 2005); cell refinement: CrystalClear (Rigaku/MSC, 2005); data reduction: CrystalClear (Rigaku/MSC, 2005); program(s) used to solve structure: SIR92 (Altomare et al., 1994); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: ORTEPII (Johnson, 1976) and DIAMOND (Brandenburg, 2006); software used to prepare material for publication: SHELXL97 (Sheldrick, 2008).

Figures top
[Figure 1] Fig. 1. Molecular structure of (I) showing the crystallographic numbering scheme. Displacement ellipsoids are shown at the 50% probability level. Unlabelled atoms are related by the symmetry operation i: -x, 1 - y, 1 - z. The minor components of the disordered n-propyl groups omitted for clarity.
[Figure 2] Fig. 2. View of a supramolecular chain in (I) highlighting the overlap of the aromatic rings to allow the formation of the π–π interactions. The C—H···S3 interactions are shown as orange dashed lines. Colour code: Cd (orange), S (yellow), O (red), N (blue), C (grey) & H (green).
[Figure 3] Fig. 3. View in projection of the crystal packing in (I). Colour code as for Fig. 2.
