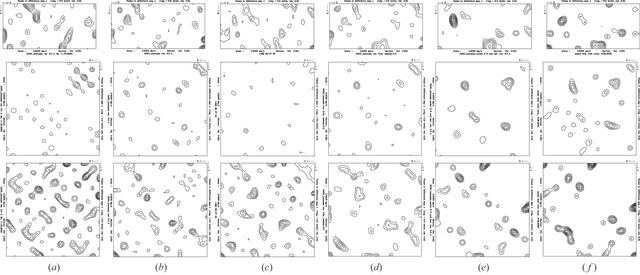

Figure 2 Anomalous difference Patterson Harker sections for lysozyme at room temperature. Columns: (a) Mo K wavelength; (b) Cu K wavelength; (c) SRS with 1.488  Å wavelength; (d) SRS with 2  Å wavelength, 486 images; (e) calculated Patterson Harker sections for coordinates output by Shake `n' Bake (2  Å wavelength, 486-image run); (f) calculated Patterson Harker sections for the deposited coordinates of the tetragonal lysozyme (PDB code 1LZ8; Dauter et al., 1999). First row: section v = 0.5; second row: w = 0.25; third row: w = 0.5.
