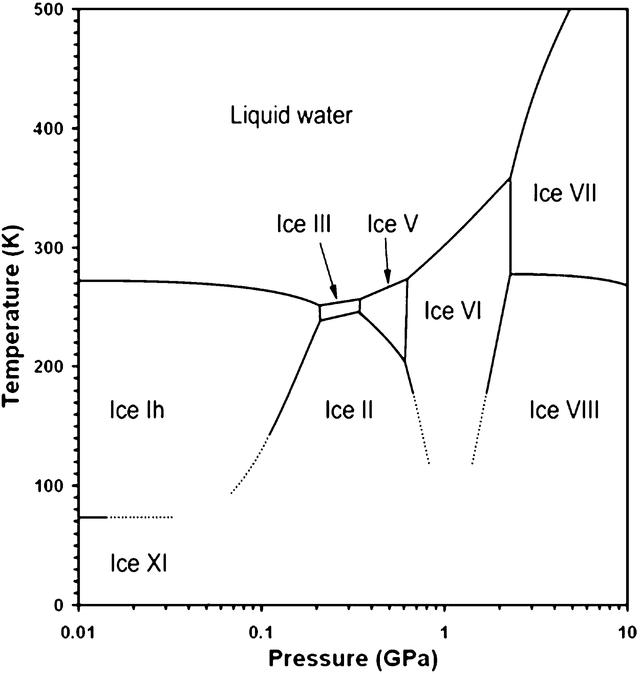

Figure 1 P-T phase diagram of water ice. Observed equilibrium phase boundaries are depicted by solid lines, extrapolated equilibrium boundaries by dashed lines. Note that below 100 K, ice II can persist metastably up to 5 GPa (Song et al., 2003).
