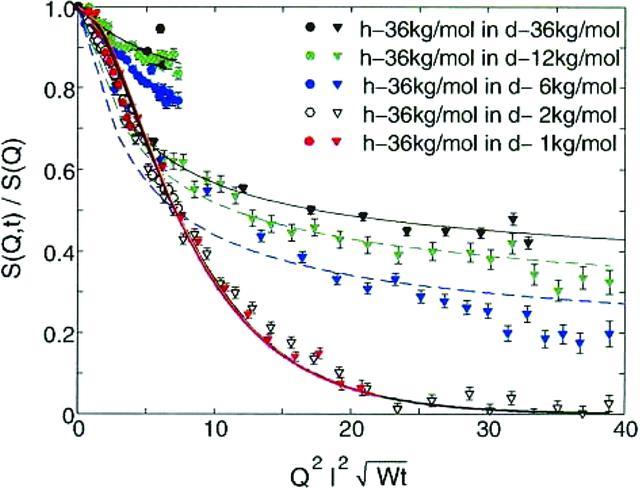

Figure 6 Dynamic structure factor of a long labelled chain (Mw= 36 kg mol-1) in different shorter matrix chains (Mw= 36, 12, 6, 2 and 1 kg mol-1 as indicated in the plot) in a Rouse scaling representation for two different Q values (circles 0.5 nm-1, triangles 1.15 nm-1). The lines correspond to fits with equation (2) (reptation) or equation (1) (Rouse), respectively.
