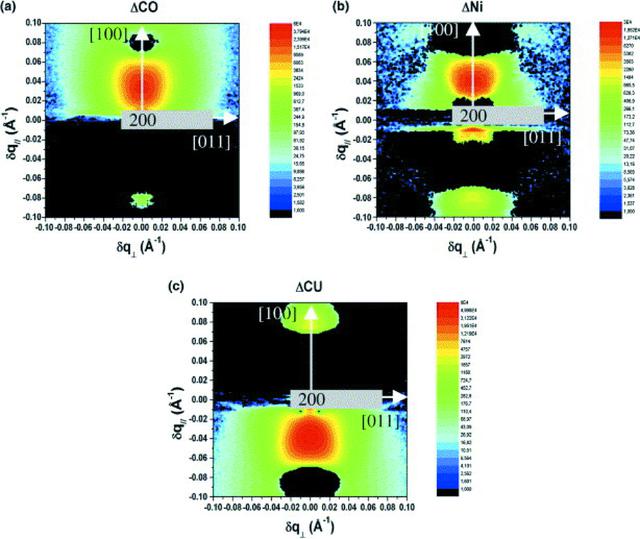

Figure 9 Two-dimensional maps showing I versus q [equation (6)] in the [100] direction of the precipitate alignment and in the [011] orthogonal direction for (a) the Co, (b) the Ni and (c) the Cu partial displacements for a Cu70Ni23Co7 (at.%) single crystal aged for 12 h at 823 K (from Guillon et al., 2005; courtesy Elsevier).
