Figure 7

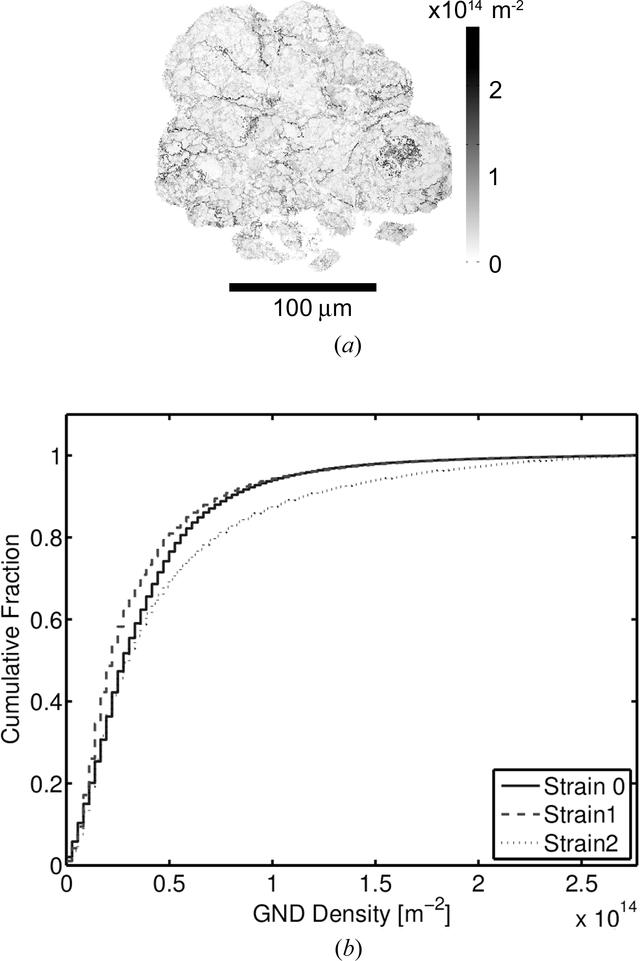

(a) Map of geometrically necessary dislocation density in the S1 state. The gray scale saturates at 1014 m-2. Corresponding maps in S0 and S2 are qualitatively similar. (b) The cumulative geometrically necessary dislocation density distribution in each of the three strain states.  [article HTML]
