Figure 8

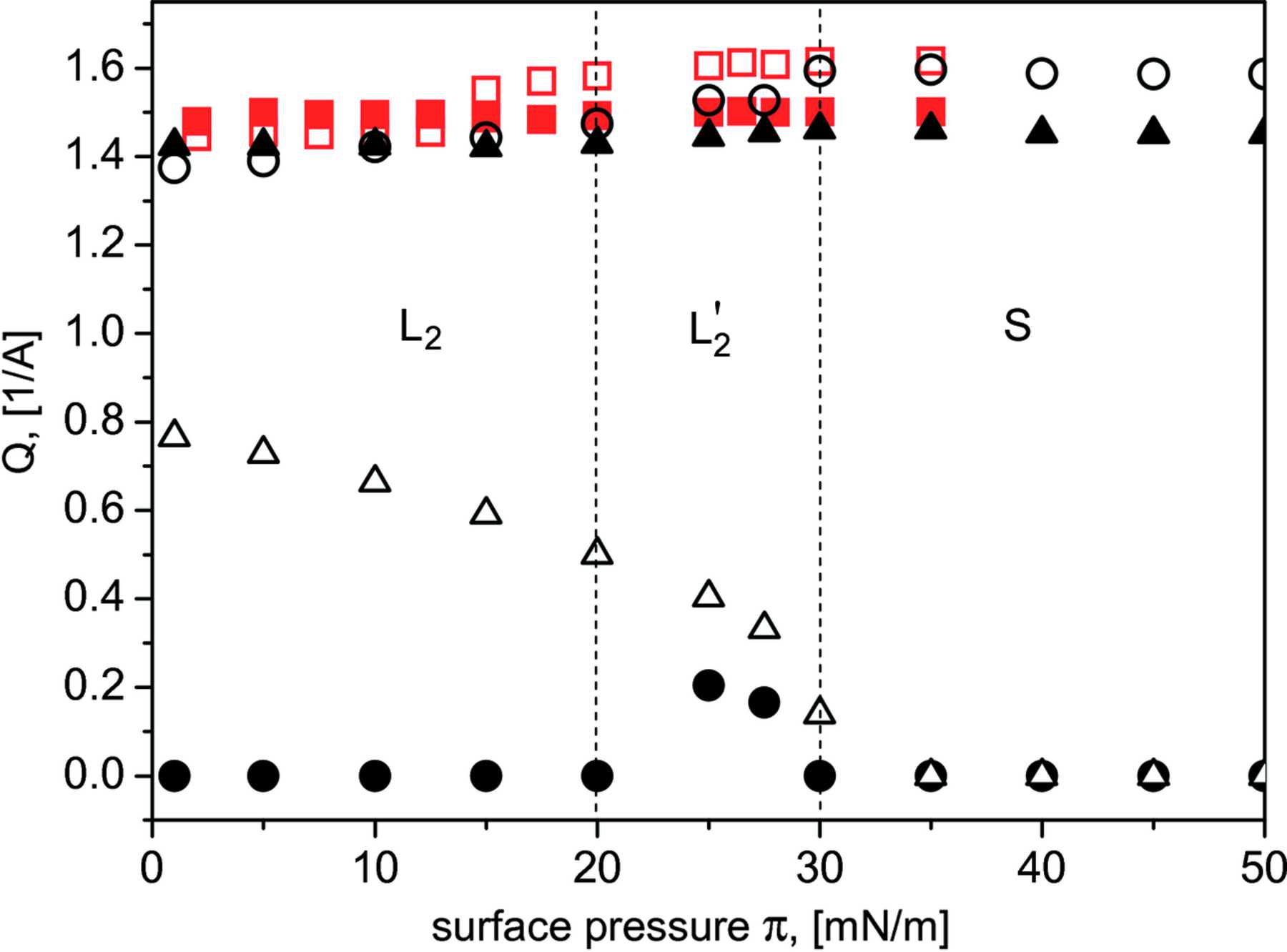

Variation of the Bragg peak position with surface pressure. Black symbols correspond to the data from the present study: solid circles - Qz components of the 02 peak; open circles - Qxy components of the 02 peak; open triangles - Qz components of the 11 peak; solid triangles - Qxy components of the 11 peak. Red symbols represent data from Dupres et al. (2003BB3): open squares - Qxy components of the 02 peak; solid squares - Qxy components of the 11 peak.  [article HTML]
