AB2X4 spinel structures: similarity and differences between the centrosymmetric, Fd3m, and non-centrosymmetric, F4132, space groups

Arakcheeva, A.; Magrez, A.; Chapuis, G.

doi:10.1107/S2052520626004361

Acta Crystallographica Section B
Acta Crystallographica
Section B STRUCTURAL SCIENCE, CRYSTAL ENGINEERING AND MATERIALS

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

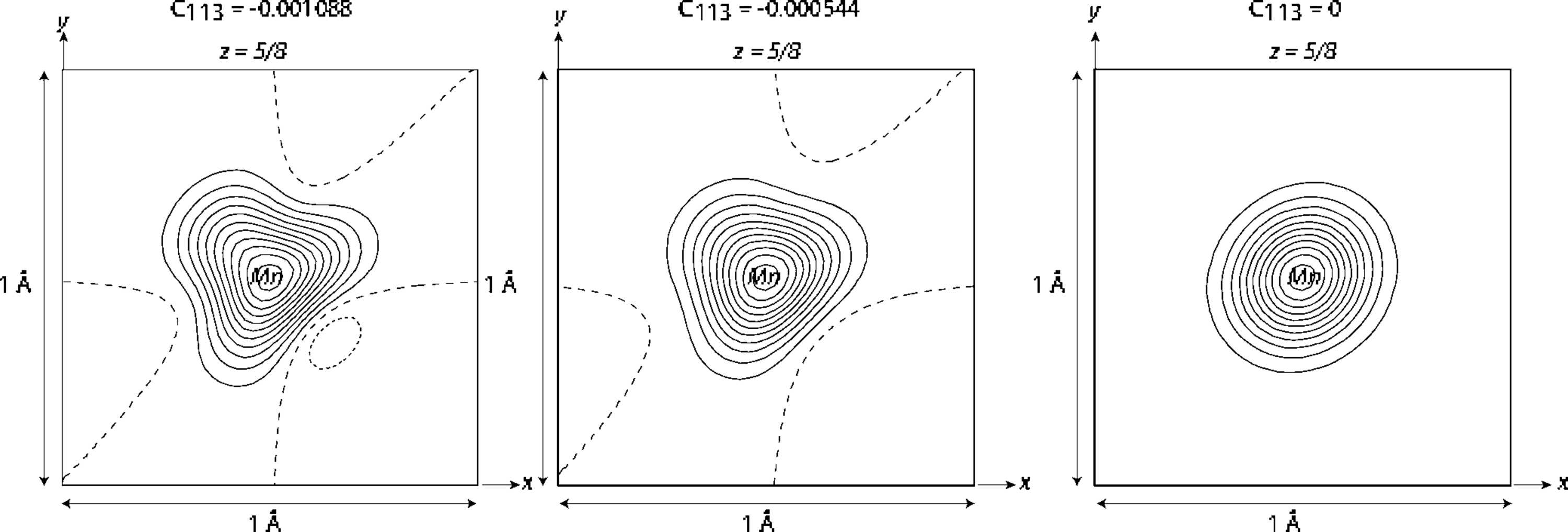

Figure 2
Illustration of the probability distribution function (p.d.f.) obtained using the C₁₁₃ term of the third-order ADP tensor for Mn in the simulated spinel structure LiMn₂O₄ using Co radiation. The same scale is used for all maps.

STRUCTURAL SCIENCE
CRYSTAL ENGINEERING
MATERIALS

ISSN: 2052-5206

Volume 82| Part 3| June 2026| Pages 360-366

https://doi.org/10.1107/S2052520626004361
