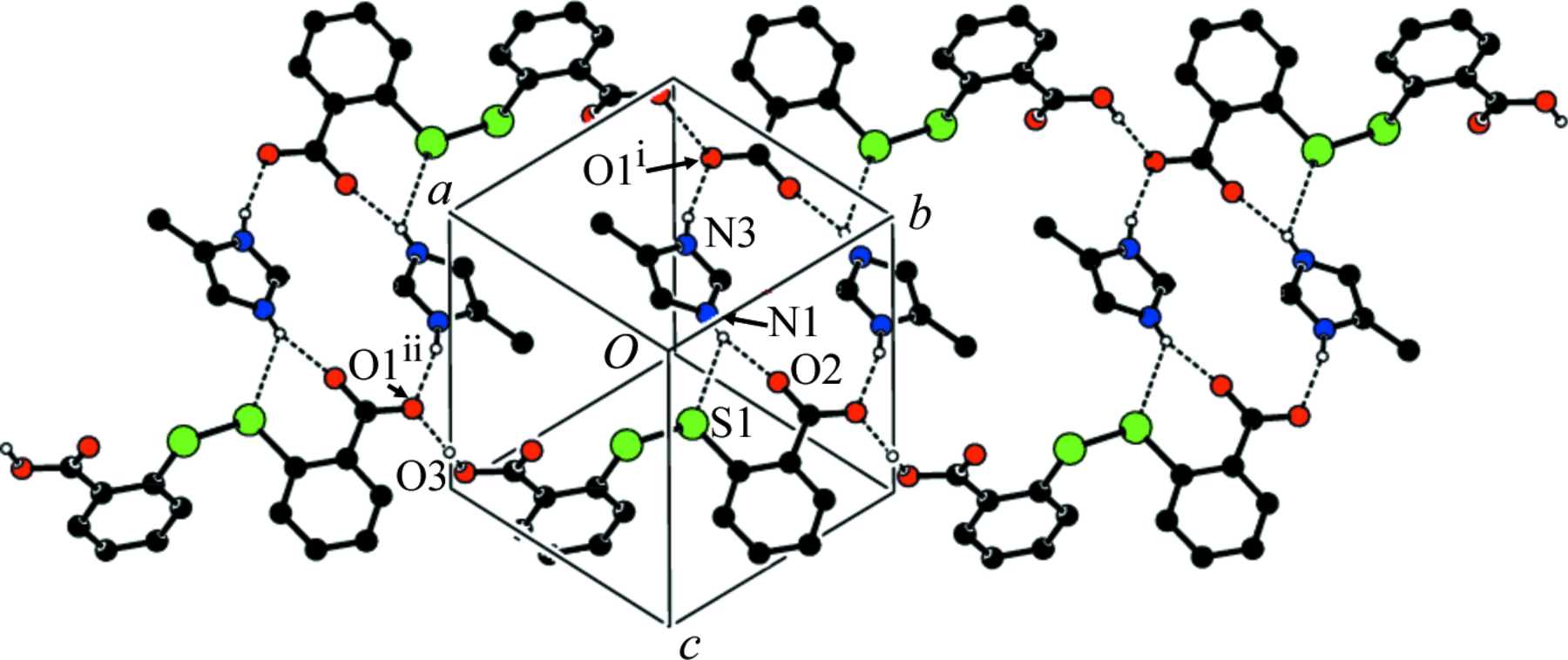

Figure 4
Part of the crystal structure of (II), showing the formation of the one-dimensional tape running parallel to the [10] direction. Hydrogen bonds are shown as dashed lines. For the sake of clarity, H atoms not involved in the motif have been omitted. See Table 2 for symmetry codes. |
