Solvent-free thallium(I) tetra­kis­[3,5-bis­(tri­fluoro­meth­yl)phen­yl]borate: crystal structure, supra­molecular inter­actions and anisotropic thermal expansion

Stephan, J.; Schröck, L.; Petersen, E.E.; Ettlinger, R.L.; Pöthig, A.

doi:10.1107/S2053229626008454

Figure 6

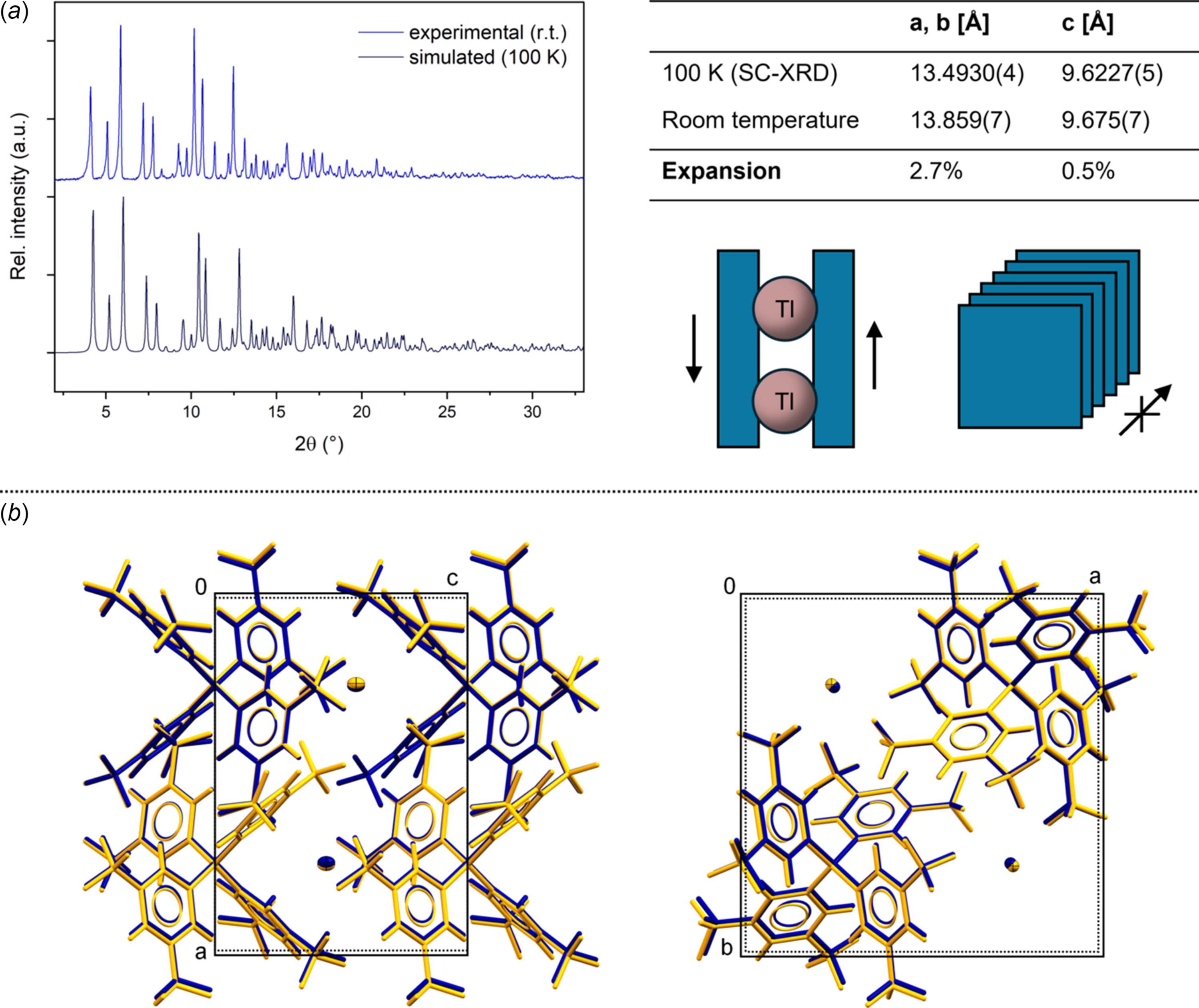

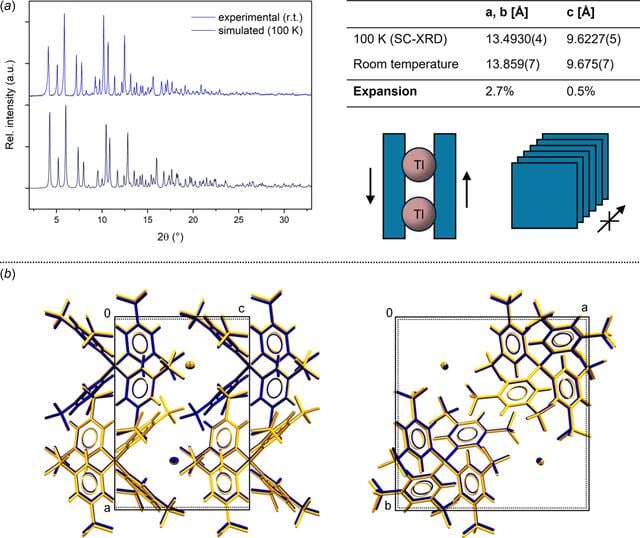

(a) Comparison of the powder X-ray diffractogram of Tl(BAr^F) recorded at room temperature (top left trace, blue) and its simulated diffractogram based on the SC-XRD structure at 100 K (bottom left trace, dark blue). Anisotropic thermal expansion occurs along the a and b axes, with layers `gliding' against each other along a and b, while the c axis does not expand significantly because both layer-like arrangements within the structure are perpendicular to it. (b) Overlay of the SC-XRD structure at 100 K (dark blue, dotted unit-cell box) and the simulated room-temperature structure (orange, solid unit-cell box), as viewed along the b axis (bottom left) and the c axis (bottom right).
