Biochemical and structural characterization of a tail-spike protein with depolymerase activity identified in a marine podovirus

Sirigu, S.; Roret, T.; Mocaër, P.-Y.; Larocque, R.; Jouanneau, D.; Legrand, P.; Baudoux, A.-C.; Czjzek, M.

doi:10.1107/S2059798326005425

Acta Crystallographica Section D
Acta Crystallographica
Section D STRUCTURAL BIOLOGY

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

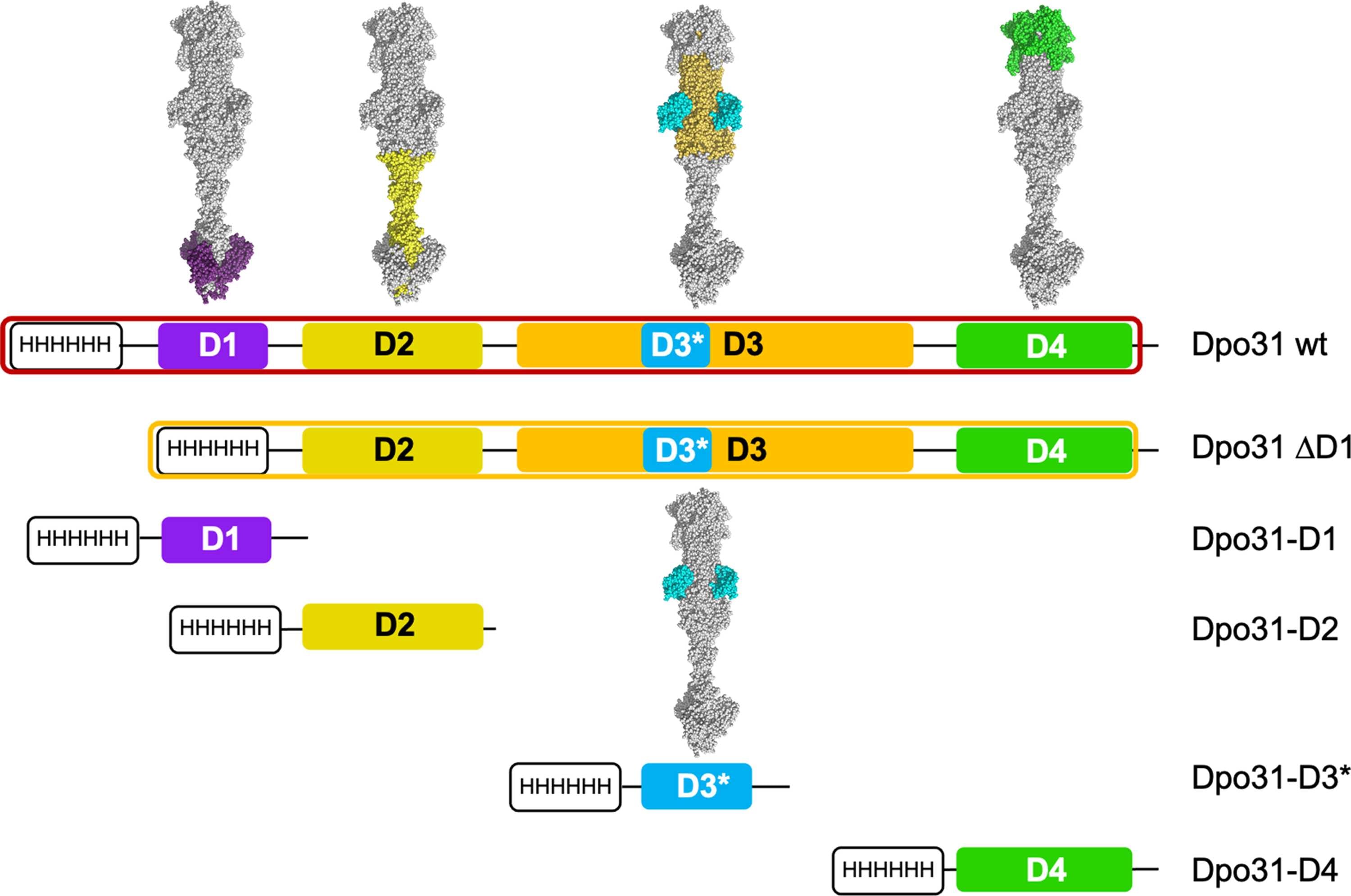

Figure 3
Schematic representation of the domain structure of Dpo31. Colored boxes in the linear diagram denote individual domains: D1 (purple), D2 (yellow), D3 (orange), D3* (cyan) and D4 (green). Above the diagram, representative surface renderings of the assembled particle are shown with the corresponding domain densities colored as in the schematic. In all cases, the mature form does not include domain D4.
