Crystal structure and characterization of a new chain-like polyrotaxane zinc(II) coordination polymer with mixed pyridine-2,6-dicarboxylate and 1,4-bis(1H-imidazol-1-ylmethyl)benzene ligands

Chanikarn Kummuang,^a Kittipong Chainok ^b and Nanthawat Wannarit ^a,^b ^*

^aDepartment of Chemistry, Faculty of Science and Technology, Thammasat University, Pathum Thani 12121, Thailand, and ^bThammasat University Research Unit in Multifunctional Crystalline Materials and Applications (TU-MCMA), Faculty of Science and Technology, Thammasat University, Pathum Thani 12121, Thailand
^*Correspondence e-mail: [email protected]

Edited by M. Weil, Vienna University of Technology, Austria (Received 7 April 2025; accepted 22 May 2025; online 30 May 2025)

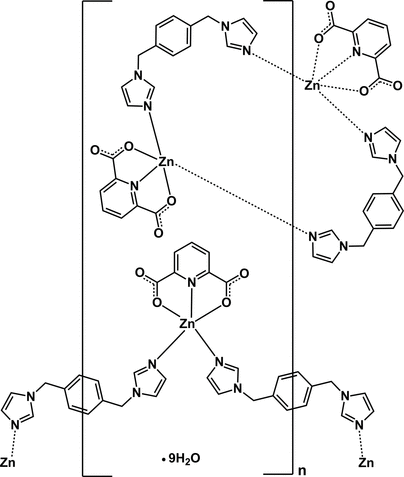

A new chain-like polyrotaxane Zn^II coordination polymer, catena-poly[[[[(pyridine-2,6-dicarboxylato-κ³O,N,O′)zinc(II)]-μ-1,4-bis(1H-imidazol-1-ylmethyl)benzene-κ²N¹:N^1′] hemi{bis[μ-1,4-bis(1H-imidazol-1-ylmethyl)benzene-κ²N¹:N^1′]bis[(pyridine-2,6-dicarboxylato-κ³O,N,O′)zinc(II)]}] nonahydrate], {[Zn(C₇H₃NO₄)(C₁₄H₁₄N₄)][Zn₂(C₇H₃NO₄)₂(C₁₄H₁₄N₄)₂]_0.5·9H₂O}_n or {[Zn₂(2,6-PDC)₂(bix)₂]·9H₂O}_n [where 2,6-PDC = pyridine-2,6-dicarboxylate, C₇H₃NO₄, and bix = 1,4-bis(1H-imidazol-1-ylmethyl)benzene, C₁₄H₁₄N₄], was synthesized and characterized. The molecular structure comprises two Zn^II units. Both Zn^II ions are fivefold coordinated, with the coordination sphere intermediate between trigonal-bipyramidal and square-pyramidal, as defined by two bix ligands and one 2,6-PDC tridentate chelating ligand. For one of the units, two Zn^II ions are bridged by gauche-bix ligands, providing a dinuclear [Zn₂(2,6-PDC)₂(bix)₂] macrocycle. The other unit is built by trans-bix bridging ligands, leading to a zigzag chain-like structure. Interestingly, these two entities are interweaved, leading to a polyrotaxane structure extending parallel to [101]. The crystal structure is consolidated by hydrogen-bonding, π–π and C—H⋯π intermolecular interactions.

Keywords: Zn^II; chain structure; polyrotaxane; 1,4-bis(imidazol-1-ylmethyl)benzene; pyridine-2,6-dicarboxylate; crystal structure.

CCDC reference: 2453300

1. Chemical context

Coordination polymers (CPs) are inorganic–organic materials composed of metal ions linked by organic ligands through coordinate-covalent bonds into structural units with different periodicity (Robin & Fromm, 2006 ; Batten et al., 2012 ). These materials possess potential for applications in various fields, such as gas storage, separation, luminescence, magnetism, catalysis, and drug delivery (Fromm et al., 2009 ; Batten et al., 2016 ; Kothawade & Shende, 2024 ; Dragutan et al., 2024 ). Among these materials, CPs of Zn^II are very attractive due to their varieties of structural arrangements and also their properties. The Zn^II atom has an [Ar]3d¹⁰ closed-shell electron configuration, and corresponding structure–property relationships are studied for applications like luminescence (Parmar et al., 2020 ; Diana et al., 2021 ; Li et al., 2023 ). To create novel Zn^II CPs with interesting structures and properties, mixed O- and N-donor ligands can be utilized (Robin et al., 2006; Du et al., 2013 ). Bridging O-donor ligands, in particular heterocyclic aromatic dicarboxylic acid ligands such as pyridinedicarboxylate (PDC), can provide a variety of coordination modes with central metal ions, yielding a variety of framework periodicities and topologies (Gao et al., 2006 ). Furthermore, the selection of ligands with carboxylate groups and aromatic rings can promote hydrogen-bonding and π–π intermolecular interactions, respectively, thus contributing to the stabilization of the crystal structure. For N-donor bridging ligands, the incorporation of flexible diimidazole ligands such as 1,4-bis(imidazol-1-ylmethyl)benzene (bix), which consists of two imidazole rings linked by a methylene group to a benzene ring, can result in two possible coordination conformations with the central metal ion, gauche and trans, and consequently leads to a variety of extended CP periodicities and topologies (Tripuramallu et al., 2012 ; Adarsh et al., 2016 ; Li et al., 2018 ). Zn^II CPs containing mixed PDC and trans-bix derivatives have been reported, for instance in the form of a grid structure [Zn(2,3-PDCO)(bix)·H₂O]_n (2,3-PDCOH₂ = pyridine-2,3-dicarboxylic acid N-oxide) (Wen et al., 2009 ), a corrugated network [Zn(2,6-PDC)(bmix)_0.5]_n [2,6-PDCH₂ = pyridine-2,6-dicarboxylic acid and bmix = 1,4-bis(2-methylimidazole-1-ylmethyl)benzene; Liu et al., 2011 ], and a zigzag chain [Zn(3,4-PDC)(bix)]_n (3,4-PDCH₂ = pyridine-3,4-dicarboxylic acid) (Voda et al., 2017 ). Notably, the flexibility of the bix ligand with both gauche- and trans-conformations can facilitate the formation of interesting Zn^II CP topologies, for example a mono-periodic polyrotaxane, {[Zn(Or)(bix)(H₂O)]₂·6H₂O}_n (OrK = potassium orotate) (Somnath et al., 2022 ).

The current report is part of a study aimed at the synthesis of new Zn^II CPs using pyridine-2,6-dicarboxylate (2,6-PDC) and 1,4-bis(imidazol-1-ylmethyl)benzene (bix) by investigation of various synthetic conditions, including compositions, solvents, and methods, leading to a new chain-like polyrotaxane Zn^II CP, {[Zn₂(2,6-PDC)₂(bix)₂]·9H₂O}_n.

2. Structural commentary

The asymmetric unit of the title compound consists of two Zn^II atoms, one bix and two half-bix ligands, which sit across a twofold rotation axis, two 2,6-PDC ligands and nine non-coordinating water molecules (Fig. 1). Selected bond lengths and angles are listed in Table 1. The coordination number of both the Zn1 and Zn2 atoms is 5 (Fig. 2). The environment of Zn1 is defined by two N-donor atoms from two bix ligands and one N and two O atoms from a terminal 2,6-PDC tridentate chelating ligand. The Zn1—N distances range from 1.984 (3) to 2.014 (3) Å, and the Zn1—O distances are 2.151 (3) and 2.208 (3) Å. The structural parameter τ₅ of Zn1 is 0.46 (Fig. S1 in the electronic supporting information, ESI), and thus the coordination environment is intermediate between a square pyramid and a trigonal bipyramid (τ = 0 for an ideal square pyramid and τ = 1 for an ideal trigonal bipyramid; Addison et al., 1984 ). Two Zn1 ions are linked by two gauche-bix bridging ligands with μ-κ²N:N′-coordination mode, forming a dinuclear [Zn₂(2,6-PDC)₂(bix)₂] macrocyclic unit (Fig. 3a). The Zn1⋯Zn1ⁱ distance across the dinuclear unit is 11.262 (1) Å [symmetry code: (i) −x + $[{1\over 2}]$ , −y − $[{1\over 2}]$ , −z + 1). The environment around Zn2 is defined by two N-donor atoms from two bix ligands and one N- and two O-donor atoms from a terminal 2,6-PDC tridentate chelating ligand. The Zn2—N distances are in the range 1.984 (3) to 2.010 (3) Å and the Zn2—O distances are 2.172 (3) and 2.209 (3) Å. The value of τ₅ is 0.42 (Fig. S1 in the ESI), indicating an intermediate five-coordinate environment similar to the degree of distortion found around Zn1. The Zn2 atoms are linked by the trans-bix bridging ligand with μ-κ²N:N′-coordination modes, leading to a zigzag chain-like structure extending parallel to [101] (Fig. 3b and Fig. S1 in the ESI). The Zn2⋯Zn2ⁱⁱ and Zn2⋯Zn2ⁱⁱⁱ distances are 15.099 (3) and 12.728 (2) Å, respectively [symmetry codes: (ii) −x + $[{1\over 2}]$ , −y + $[{1\over 2}]$ , −z + 2; (iii) = −x, y, −z + $[{3\over 2}]$ ]. Interestingly, the zigzag chains involving Zn2 represent the threading into the dinuclear [Zn₂(2,6-PDC)₂(bix)₂] macrocyclic units, providing an extended mono-periodic polyrotaxane structure parallel to [101], as shown in Fig. 4 and Fig. S2 in the ESI.

Table 1
Selected geometric parameters (Å, °)

Zn1—O1	2.208 (3)	Zn2—O5	2.172 (3)
Zn1—O3	2.151 (3)	Zn2—O7	2.209 (3)
Zn1—N1	2.014 (3)	Zn2—N6	2.010 (3)
Zn1—N2	1.984 (3)	Zn2—N7	1.984 (3)
Zn1—N5ⁱ	1.990 (3)	Zn2—N9	1.992 (3)

O3—Zn1—O1	152.50 (13)	O5—Zn2—O7	153.06 (10)
N1—Zn1—O1	75.70 (13)	N6—Zn2—O5	76.93 (11)
N1—Zn1—O3	77.05 (11)	N6—Zn2—O7	76.35 (11)
N2—Zn1—O1	98.27 (14)	N7—Zn2—O5	101.49 (12)
N2—Zn1—O3	94.35 (13)	N7—Zn2—O7	93.77 (11)
N2—Zn1—N1	125.19 (12)	N7—Zn2—N6	117.44 (11)
N2—Zn1—N5ⁱ	114.81 (12)	N7—Zn2—N9	114.82 (12)
N5ⁱ—Zn1—O1	97.97 (12)	N9—Zn2—O5	96.62 (12)
N5ⁱ—Zn1—O3	98.73 (11)	N9—Zn2—O7	96.92 (11)
N5ⁱ—Zn1—N1	119.99 (12)	N9—Zn2—N6	127.60 (11)
Symmetry code: (i) $[-x+{\script{1\over 2}}, -y-{\script{1\over 2}}, -z+1]$ .

Figure 1
The asymmetric unit of the title compound. Zn1 is located in the center of inversion symmetry positions and two half-bix ligands sit across a twofold rotation axis. Displacement ellipsoids are drawn at the 30% probability level.

Figure 2
The coordination environment of the central Zn^II atoms in the title compound.

Figure 3
Two independent units: (a) the dinuclear Zn1 macrocyclic unit and (b) the zigzag coordination polymeric chain-like structure of the Zn2 unit of the title compound.

Figure 4
(a) Top, (b) side views and (c) schematic representation of the mono-periodic polyrotaxane structure of the title compound. The 2,6-DPC, hydrogen atoms and non-coordinating water molecules are omitted for clarity.

The bix ligands, crucial for the polyrotaxane structure of the title compound, exhibit three distinct conformations, as shown in Fig. 5 and Figs. S2–S4 in the ESI. Geometrical parameters characterizing these conformations are summarized in Table S1 in the ESI. In the bix ligand within the Zn1 unit, the imidazole rings {N2N3;N4N5} display a synperiplanar conformation, characterized by a torsion angle (τ₃) of 7.90° (through N3—C11—C18—N4). The imidazole rings are twisted with respect to the phenyl ring with torsion angles (τ₁) of 67.4 (6)° (through C9—N3—C11—C12) and (τ₂) of −83.8 (5)° (through C21—N4—C18—C15), indicating a gauche conformation. The two independent bix ligands in the Zn2 unit, related by twofold rotation symmetry, show different conformations. For the {N7N8;N8′N7′} rings, an antiperiplanar twist is observed, with a torsion angle (τ₃) of 180.00° (through N8—C39—C39′—N8′). The twist relative to the phenyl ring is defined by torsion angles (τ₁) and (τ₂) of −48.90 and 48.90°, respectively. For the {N9N10;N10′N9′} rings, the imidazole rings show a near antiperiplanar conformation, with a torsion angle (τ₃) of 160.10° (through N10—C32—C32′—N10′), and the twist relative to the phenyl ring defined by a torsion angles (τ₁ and τ₂) of 78.7 (5)°. These parameters correspond to a trans-conformation for the Zn2 unit. Consequently, the difference of these bix conformations also affect the metal–metal separation (Tripuramallu et al., 2012) in the title compound.

Figure 5
Views of (a) conformations, (b) overlay and (c) Newmann projection representation of three different bix ligands in the title compound. [Symmetry codes: (i) −x + $[{1\over 2}]$ , −y − $[{1\over 2}]$ , −z + 1; (ii) −x + $[{1\over 2}]$ , −y + $[{1\over 2}]$ , −z + 2; (iii) = −x, y, −z + $[{3\over 2}]$ .]

3. Supramolecular features

The crystal structure of the title compound is consolidated by the presence of a variety of intermolecular interactions, namely hydrogen-bonding, π–π and C —H⋯π interactions, as detailed in Tables 2 and 3. It is noted that the hydrogen atoms bonded to the oxygen atoms of non-coordinating water molecules were not assigned in the structure, but the O⋯O separations [O11⋯O12 = 3.096 (14) Å, O12⋯O13 = 3.214 (16) Å, O13⋯O14 = 2.882 (9) Å, O10⋯O17 = 3.120 (16) Å, O17⋯O18 = 2.862 (14) Å, O16⋯O18 = 3.206 (19) Å, O9⋯O18 = 2.876 (9) Å] suggest the presence of medium-to-weak hydrogen-bonding interactions between them. Non-classical intermolecular hydrogen-bonding C—H⋯O interactions are found between (i) the C—H group of the imidazole ring on the bix ligands and the oxygen atoms of the carboxylate group of the 2,6-PDC ligands (Fig. S5 in the ESI), and (ii) between the C—H groups of both the imidazole ring and the –CH₂ group on the bix ligands and the non-coordinating water molecules (Fig. S6 in the ESI). The π–π interactions are observed between the pyridine rings of 2,6-PDC ligands in adjacent zigzag chains with a centroid-to-centroid distance Cg5⋯Cg5ⁱ of 3.646 (2) Å and a slippage of 1.434 Å [Cg5 is the centroid of the N6/C23–C27 ring; symmetry code: (i) −x + $[{1\over 2}]$ , −y + $[{1\over 2}]$ , −z + 1]. Additionally, π–π interactions are found between the pyridine rings of 2,6-PDC ligands in the adjacent zigzag chains and the dinuclear units with a centroid-to-centroid distance Cg5⋯Cg12ⁱ of 3.729 (3) Å and a slippage of 0.782 and 0.686 Å (Cg5 and Cg12 are the centroids of the N6/C23–C27 and N1/C2–C6 rings), as shown in Fig. S7 in the ESI. Furthermore, C—H⋯π interactions are observed between the C—H groups of 2,6-PDC in the dinuclear units and the imidazole ring of the bix ligand in the zigzag chains, C5—H5⋯Cg3^v and C26—H26⋯Cg10^v [symmetry code: (v) −x + $[{1\over 2}]$ , −y + $[{1\over 2}]$ , −z + 1]. Additional interactions occur between a C—H group of the benzene ring of a bix ligand in the zigzag chains and the imidazole ring of the bix ligand in the dinuclear units, namely C42— H42⋯Cg11^iv [where Cg3, Cg10 and Cg11 are the centroids of the five-membered N7/C36–C38, N2/C8–C10 and N4/C19–C21 rings, respectively; symmetry code: (iv) x, −y, z + $[{1\over 2}]$ ], as shown in Fig. S8 in the ESI. The crystal packing of the title compound is shown in Fig. 6 and Fig. S9 in the ESI.

Table 2
Hydrogen-bond geometry (Å, °)

Cg3, Cg10 and Cg11 are the centroids of the N7/C36/C37/N8/C38/N2/C8/C9/N3/C10 and N4/C20/C21/N5/C19 rings, respectively.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C18—H18A⋯O19ⁱⁱ	0.97	2.45	3.421 (7)	174
C19—H19⋯O9ⁱ	0.93	2.44	3.328 (5)	160
C21—H21⋯O15ⁱⁱⁱ	0.93	2.50	3.394 (10)	162
C21—H21⋯O16ⁱⁱⁱ	0.93	2.41	3.278 (18)	154
C29—H29⋯O19	0.93	2.47	3.213 (6)	137
C30—H30⋯O4^iv	0.93	2.53	3.149 (5)	124
C38—H38⋯O4^v	0.93	2.58	2.988 (5)	107
C5—H5⋯Cg3^v	0.93	2.81	3.624 (5)	146
C26—H26⋯Cg10^v	0.93	2.61	3.443 (4)	150
C42—H42⋯Cg11^iv	0.93	2.93	3.818 (5)	161
Symmetry codes: (i) $[-x+{\script{1\over 2}}, -y-{\script{1\over 2}}, -z+1]$ ; (ii) $[x+{\script{1\over 2}}, y-{\script{1\over 2}}, z]$ ; (iii) $[-x+{\script{1\over 2}}, y-{\script{1\over 2}}, -z+{\script{3\over 2}}]$ ; (iv) $[x, -y, z+{\script{1\over 2}}]$ ; (v) $[-x+{\script{1\over 2}}, -y+{\script{1\over 2}}, -z+1]$ .

Table 3
Analysis of short ring interactions (Å)

Cg(I) and Cg(J) are the centroids of rings I and J; CgI_Perp is the perpendicular distance of Cg(I) on ring J, and slippage is the distance between Cg(I) and the perpendicular projection of Cg(J) on ring I. Cg5, and Cg12 are the centroids of the N6/C23–C27 and N1/C2–C6 rings, respectively.

Cg(I)	Cg(J)	Symmetry_Cg(J)	Cg(I)⋯Cg(J)	CgI_Perp	CgJ_Perp	Slippage
Cg5	Cg5	-x + $[{1\over 2}]$ , −y + $[{1\over 2}]$ , −z + 1	3.646 (2)	3.3521 (15)	3.3521 (15)	1.434
Cg5	Cg12	-x + $[{1\over 2}]$ , −y + $[{1\over 2}]$ , −z + 1	3.729 (3)	3.6648 (15)	3.6455 (19)	0.782
Cg12	Cg5	-x + $[{1\over 2}]$ , −y + $[{1\over 2}]$ , −z + 1	3.728 (3)	3.6453 (19)	3.6648 (15)	0.686

Figure 6
The crystal packing of the title compound. The water molecules are omitted for clarity.

4. Spectroscopic, powder X-ray diffraction (PXRD) and thermal properties

The FT-IR spectrum of the title compound (Fig. S10 in the ESI) shows a strong broad band centered at 3434 cm⁻¹, assigned to the O—H stretching of water molecules. A band at 3127 cm⁻¹ is assigned to the C—H stretching of aromatic rings for both ligands. The characteristic bands found at 1639 and 1421 cm⁻¹ can be assigned to be the asymmetric and symmetric stretching vibrations of the carboxylate group of the 2,6-PDC ligand. Bands appearing at 1533 and 1097 cm⁻¹ could be assigned to the C=N and C—N stretching, respectively, and the bands in the range of 700–500 cm⁻¹ to C—H bending vibration of bix ligands (Tripuramallu et al., 2012; Somnath et al., 2022).

The PXRD patterns of the title compound are shown in Fig. S11 in the ESI, revealing a good match between the calculated pattern from single-crystal data and the experimental data of the as-synthesized compound, indicating that it was synthesized in a phase-pure manner.

To study the thermal stability of the title compound, thermogravimetric analysis (TGA) was performed in the temperature range of 303–1073 K under nitrogen atmosphere. From the TGA curve shown in Fig. S12 in the ESI, the first degradation step in the range of 303–403 K represents a mass loss of 17.30%, corresponding to the loss of the nine water molecules (calculated 17.45%). Then the resulting compound remained stable up to 573 K. The degradation steps observed in the temperature range of 573–833 K represents a mass loss of 51.59%, indicating the release of two bix and two 2,6-PDC ligands (calculated 50.74%). The remaining residue at high temperature could be assigned to ZnO.

5. Database survey

A search of the Cambridge Structural Database (CSD, version 5.44, last update April 2023; Groom et al., 2016 ) using the ConQuest software (Bruno et al., 2002 ) for structures of mixed 2,6-PDC and bix ligand-based Zn^II polyrotaxane CPs yielded no hits. To the best of our knowledge, only one relevant Zn^II CP containing mixed dicarboxylate, orotate (Or), and bix ligands, {[Zn(Or)(bix)(H₂O)]₂·6H₂O}_n (PEFHAN; Somnath et al., 2022), exhibiting a chain-like polyrotaxane structure, has been reported. Although the crystal structure of this compound exhibits both gauche and trans conformations of the bix ligand (like in the title compound), differences in moieties such as the orotate ligand and the number of water molecules, as well as variations in the degree of bix molecule flexibility and supramolecular interactions, make a direct comparison difficult.

6. Synthesis and crystallization

All chemicals purchased were reagent-grade and used without further purification. The bix ligand was prepared according to a literature procedure (Hoskins et al., 1997 ). A dimethyl formamide solution (10 ml) of bix·2H₂O (0.2383 g, 1 mmol) was added to an aqueous solution (10 ml) of Zn(NO₃)₂·6H₂O (0.2975 g, 1 mmol) and stirred for 10 min at 333 K. Subsequently, a mixture of an aqueous solution (10 ml) of 2,6-PDCH₂ (0.1671 g, 1 mmol) and NaOH (0.0845 g, 2 mmol) was added, and the resulting mixture was stirred for 20 min, giving a colorless precipitate. Then, a mixed solution of DMF (10 ml) and deionized water (10 ml) was slowly added, and the mixture was stirred for 40 min. The solution became clear and colorless. This solution was filtered and allowed to slowly evaporate at room temperature. Colorless, block-shaped crystals of the title compound were obtained within one week (17.6% yield, based on the Zn^II salt).

7. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 4. Hydrogen atoms bonded to carbon atoms were placed at calculation positions and refined isotropically using a riding model with C—H = 0.93 Å and U_iso(H) = 1.2U_eq(C) for aromatic hydrogen atoms, and C—H = 0.97 Å, U_iso(H) = 1.2U_eq(C) for methylene hydrogen atoms. The hydrogen atoms bonded to the oxygen atoms of the non-coordinating water molecules (O9–O19) could not be located reliably and thus were not included in the model, but were taken into account in the overall formula. Some of non-coordinating water molecules were refined with site occupancies of 0.75 for O10 and O12 and 0.5 for O17, while other water molecules (O15 and O16) were found to be disordered with site occupancies of 0.5.

Table 4
Experimental details

Crystal data
Chemical formula	[Zn(C₇H₃NO₄)(C₁₄H₁₄N₄)][Zn₂(C₇H₃NO₄)₂(C₁₄H₁₄N₄)₂]_0.5·9H₂O
M_r	1099.70
Crystal system, space group	Monoclinic, C2/c
Temperature (K)	296
a, b, c (Å)	25.577 (4), 18.632 (3), 22.463 (4)
β (°)	94.335 (6)
V (Å³)	10674 (3)
Z	8
Radiation type	Mo Kα
μ (mm⁻¹)	0.97
Crystal size (mm)	0.24 × 0.2 × 0.2

Data collection
Diffractometer	Bruker D8 QUEST CMOS PHOTON II
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.685, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	129120, 9915, 8159
R_int	0.058
(sin θ/λ)_max (Å⁻¹)	0.606

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.055, 0.185, 1.05
No. of reflections	9915
No. of parameters	658
No. of restraints	18
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	1.20, −0.56
Computer programs: APEX3 and SAINT (Bruker, 2016 ), OLEX2.solve (Bourhis et al., 2015 ), SHELXL (Sheldrick, 2015 ), OLEX2 (Dolomanov et al., 2009 ) and publCIF (Westrip, 2010 ).

Supporting information

CCDC reference: 2453300

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989025004608/wm5758sup1.cif

Supporting Information. DOI: https://doi.org/10.1107/S2056989025004608/wm5758sup4.pdf

checkCIF report

Computing details top

catena-Poly[[[[(pyridine-2,6-dicarboxylato-κ³O,N,O')zinc(II)]-µ-1,4-bis(1H-imidazol-1-ylmethyl)benzene-κ²N¹:N^1'] hemi{bis[µ-1,4-bis(1H-imidazol-1-ylmethyl)benzene-κ²N¹:N^1']bis[(pyridine-2,6-dicarboxylato-κ³O,N,O')zinc(II)]}] nonahydrate] top

Crystal data top

[Zn(C₇H₃NO₄)(C₁₄H₁₄N₄)][Zn₂(C₇H₃NO₄)₂(C₁₄H₁₄N₄)₂]_0.5·9H₂O	F(000) = 4416
M_r = 1099.70	D_x = 1.369 Mg m⁻³
Monoclinic, C2/c	Mo Kα radiation, λ = 0.71073 Å
a = 25.577 (4) Å	Cell parameters from 9980 reflections
b = 18.632 (3) Å	θ = 2.6–25.9°
c = 22.463 (4) Å	µ = 0.97 mm⁻¹
β = 94.335 (6)°	T = 296 K
V = 10674 (3) Å³	Block, clear colourless
Z = 8	0.24 × 0.2 × 0.2 mm

Data collection top

Bruker D8 QUEST CMOS PHOTON II diffractometer	9915 independent reflections
Radiation source: sealed x-ray tube, Mo	8159 reflections with I > 2σ(I)
Graphite monochromator	R_int = 0.058
Detector resolution: 7.39 pixels mm^-1	θ_max = 25.5°, θ_min = 2.6°
ω and φ scans	h = −30→30
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	k = −22→22
T_min = 0.685, T_max = 0.746	l = −27→27
129120 measured reflections

Refinement top

Refinement on F²	Primary atom site location: iterative
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.055	H-atom parameters constrained
wR(F²) = 0.185	w = 1/[σ²(F_o²) + (0.1223P)² + 11.6285P] where P = (F_o² + 2F_c²)/3
S = 1.05	(Δ/σ)_max < 0.001
9915 reflections	Δρ_max = 1.20 e Å⁻³
658 parameters	Δρ_min = −0.56 e Å⁻³
18 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq	Occ. (<1)
Zn1	0.15753 (2)	−0.00657 (2)	0.38691 (2)	0.05507 (16)
O1	0.09238 (14)	0.02720 (19)	0.43969 (15)	0.0806 (9)
O2	0.03170 (16)	0.1129 (2)	0.4428 (2)	0.1164 (15)
O3	0.21169 (11)	0.01072 (15)	0.31956 (12)	0.0617 (7)
O4	0.23136 (13)	0.08944 (16)	0.24967 (14)	0.0762 (8)
N1	0.13180 (11)	0.08573 (16)	0.34825 (13)	0.0519 (7)
N2	0.21307 (14)	−0.01413 (17)	0.45320 (14)	0.0575 (8)
N3	0.29250 (14)	−0.01172 (17)	0.49653 (14)	0.0590 (8)
N4	0.41613 (12)	−0.30010 (16)	0.64954 (15)	0.0534 (7)
N5	0.37235 (12)	−0.40007 (15)	0.64217 (12)	0.0502 (7)
C1	0.06868 (18)	0.0836 (3)	0.4211 (2)	0.0782 (13)
C2	0.08967 (15)	0.1181 (2)	0.3671 (2)	0.0646 (10)
C3	0.0693 (2)	0.1792 (3)	0.3373 (3)	0.0839 (15)
H3	0.039789	0.202290	0.349763	0.101*
C4	0.0940 (2)	0.2043 (3)	0.2890 (3)	0.0919 (16)
H4	0.081031	0.244602	0.268468	0.110*
C5	0.1378 (2)	0.1700 (2)	0.2710 (2)	0.0756 (12)
H5	0.154709	0.186772	0.238462	0.091*
C6	0.15605 (15)	0.11016 (19)	0.30231 (16)	0.0558 (9)
C7	0.20415 (15)	0.0669 (2)	0.28917 (16)	0.0565 (9)
C8	0.21003 (19)	−0.0091 (2)	0.51427 (18)	0.0644 (10)
H8	0.179265	−0.007743	0.533826	0.077*
C9	0.25897 (19)	−0.0067 (2)	0.54066 (18)	0.0662 (11)
H9	0.268183	−0.002293	0.581348	0.079*
C10	0.26350 (17)	−0.0158 (2)	0.44476 (17)	0.0581 (9)
H10	0.277066	−0.019253	0.407606	0.070*
C11	0.35050 (18)	−0.0073 (2)	0.5032 (2)	0.0710 (12)
H11A	0.360660	0.036798	0.524015	0.085*
H11B	0.363770	−0.005252	0.463943	0.085*
C12	0.37511 (16)	−0.0696 (2)	0.53687 (18)	0.0604 (9)
C13	0.3928 (2)	−0.1296 (3)	0.5080 (2)	0.0829 (13)
H13	0.388063	−0.132804	0.466656	0.100*
C14	0.4176 (2)	−0.1847 (3)	0.5403 (3)	0.0843 (14)
H14	0.429743	−0.224224	0.520210	0.101*
C15	0.42455 (16)	−0.1821 (2)	0.6010 (2)	0.0620 (10)
C16	0.4063 (2)	−0.1235 (2)	0.6298 (2)	0.0773 (12)
H16	0.410162	−0.121374	0.671218	0.093*
C17	0.3820 (2)	−0.0670 (2)	0.5978 (2)	0.0796 (13)
H17	0.370417	−0.027233	0.618107	0.096*
C18	0.45194 (16)	−0.2418 (2)	0.6356 (2)	0.0744 (12)
H18A	0.479324	−0.261119	0.612580	0.089*
H18B	0.468461	−0.222714	0.672509	0.089*
C19	0.40708 (14)	−0.35973 (19)	0.61840 (16)	0.0505 (8)
H19	0.423336	−0.371444	0.584038	0.061*
C20	0.35866 (16)	−0.3641 (2)	0.69164 (17)	0.0583 (9)
H20	0.334635	−0.380078	0.717741	0.070*
C21	0.38503 (17)	−0.3025 (2)	0.69669 (19)	0.0633 (10)
H21	0.382814	−0.267919	0.726282	0.076*
Zn2	0.23262 (2)	0.18410 (2)	0.66749 (2)	0.04854 (15)
O5	0.18119 (10)	0.27391 (15)	0.64324 (13)	0.0624 (7)
O6	0.17376 (13)	0.36649 (18)	0.57972 (18)	0.0891 (10)
O7	0.30164 (10)	0.11551 (14)	0.65641 (12)	0.0589 (6)
O8	0.37881 (13)	0.1195 (2)	0.61729 (18)	0.0929 (11)
N6	0.27084 (11)	0.23577 (15)	0.60529 (12)	0.0458 (6)
N7	0.25360 (12)	0.20574 (16)	0.75245 (12)	0.0497 (6)
N8	0.26478 (13)	0.26157 (16)	0.83817 (12)	0.0542 (7)
N9	0.17862 (11)	0.10751 (16)	0.65458 (12)	0.0479 (6)
N10	0.10343 (12)	0.05191 (17)	0.64355 (13)	0.0539 (7)
C22	0.33432 (14)	0.1431 (2)	0.62393 (18)	0.0576 (9)
C23	0.31678 (13)	0.2106 (2)	0.59068 (15)	0.0510 (8)
C24	0.34381 (17)	0.2462 (2)	0.54755 (18)	0.0656 (10)
H24	0.376133	0.229334	0.537248	0.079*
C25	0.32230 (19)	0.3054 (2)	0.52109 (19)	0.0700 (12)
H25	0.339874	0.329162	0.492167	0.084*
C26	0.27363 (17)	0.3315 (2)	0.53678 (17)	0.0621 (10)
H26	0.258501	0.372057	0.518605	0.075*
C27	0.24907 (14)	0.29458 (19)	0.58017 (15)	0.0499 (8)
C28	0.19711 (15)	0.3142 (2)	0.60235 (18)	0.0569 (9)
C29	0.12779 (14)	0.1150 (2)	0.64023 (15)	0.0514 (8)
H29	0.111361	0.158047	0.629381	0.062*
C30	0.18651 (14)	0.0363 (2)	0.66720 (16)	0.0543 (8)
H30	0.218791	0.015381	0.678283	0.065*
C31	0.14062 (17)	0.0014 (2)	0.66114 (19)	0.0599 (9)
H31	0.135051	−0.047228	0.667554	0.072*
C32	0.04643 (15)	0.0392 (3)	0.63624 (18)	0.0688 (11)
H32A	0.039803	−0.006586	0.616551	0.083*
H32B	0.030095	0.076346	0.610917	0.083*
C33	0.01114 (16)	−0.0248 (2)	0.7231 (2)	0.0631 (10)
H33	0.018907	−0.068264	0.705432	0.076*
C34	0.02224 (13)	0.0390 (2)	0.69482 (16)	0.0532 (8)
C35	0.01116 (14)	0.1028 (2)	0.72289 (18)	0.0582 (9)
H35	0.018815	0.146225	0.705061	0.070*
C36	0.2890 (2)	0.1678 (2)	0.78884 (18)	0.0718 (12)
H36	0.305162	0.125229	0.778689	0.086*
C37	0.2967 (2)	0.2017 (3)	0.84139 (18)	0.0782 (13)
H37	0.319121	0.187619	0.873780	0.094*
C38	0.23986 (14)	0.26132 (19)	0.78391 (15)	0.0484 (7)
H38	0.215809	0.296024	0.770015	0.058*
C39	0.2614 (2)	0.3162 (2)	0.88439 (17)	0.0656 (11)
H39A	0.231811	0.347461	0.873945	0.079*
H39B	0.292994	0.345273	0.886662	0.079*
C40	0.29225 (19)	0.2940 (3)	0.99184 (18)	0.0733 (12)
H40	0.320993	0.323274	0.986653	0.088*
C41	0.25504 (16)	0.2821 (2)	0.94459 (15)	0.0555 (9)
C42	0.21347 (19)	0.2377 (3)	0.95350 (18)	0.0760 (13)
H42	0.188596	0.228885	0.921985	0.091*
O9	0.06430 (16)	−0.0822 (2)	0.51541 (17)	0.1048 (12)
O10	0.4733 (3)	0.1303 (7)	0.5644 (4)	0.190 (4)	0.75
O11	0.3252 (3)	−0.0187 (4)	0.7401 (5)	0.231 (4)
O12	0.3802 (4)	0.0481 (8)	0.8545 (4)	0.218 (5)	0.75
O13	0.4461 (3)	0.1951 (4)	0.8617 (4)	0.205 (3)
O14	0.3995 (2)	0.3330 (3)	0.8817 (3)	0.149 (2)
O15	0.1232 (4)	0.3500 (5)	0.7219 (4)	0.110 (3)	0.5
O16	0.0825 (7)	0.3073 (9)	0.6926 (8)	0.201 (6)	0.5
O17	0.0290 (4)	0.4871 (6)	0.6036 (6)	0.142 (4)	0.5
O18	0.0628 (2)	0.3542 (4)	0.5554 (3)	0.164 (2)
O19	0.0481 (2)	0.2013 (3)	0.5488 (2)	0.1211 (14)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Zn1	0.0652 (3)	0.0520 (3)	0.0485 (3)	−0.00767 (18)	0.0080 (2)	0.00127 (17)
O1	0.092 (2)	0.080 (2)	0.074 (2)	−0.0086 (18)	0.0374 (17)	−0.0050 (17)
O2	0.089 (3)	0.118 (3)	0.151 (4)	0.000 (2)	0.065 (3)	−0.027 (3)
O3	0.0668 (16)	0.0660 (17)	0.0540 (15)	0.0016 (13)	0.0156 (12)	0.0096 (12)
O4	0.095 (2)	0.0632 (17)	0.0742 (18)	−0.0235 (16)	0.0323 (16)	0.0026 (14)
N1	0.0531 (16)	0.0471 (15)	0.0553 (16)	−0.0076 (13)	0.0033 (13)	−0.0075 (13)
N2	0.073 (2)	0.0519 (17)	0.0481 (16)	−0.0067 (15)	0.0067 (14)	0.0044 (13)
N3	0.071 (2)	0.0533 (17)	0.0516 (17)	−0.0054 (15)	0.0004 (15)	0.0099 (13)
N4	0.0487 (15)	0.0421 (15)	0.0691 (19)	0.0052 (12)	0.0017 (14)	0.0068 (14)
N5	0.0580 (16)	0.0483 (15)	0.0453 (15)	0.0024 (13)	0.0115 (12)	0.0017 (12)
C1	0.065 (3)	0.083 (3)	0.090 (3)	−0.012 (2)	0.022 (2)	−0.032 (3)
C2	0.054 (2)	0.060 (2)	0.079 (3)	−0.0112 (18)	0.0023 (19)	−0.018 (2)
C3	0.068 (3)	0.064 (3)	0.118 (4)	0.008 (2)	−0.007 (3)	−0.018 (3)
C4	0.097 (4)	0.069 (3)	0.107 (4)	0.000 (3)	−0.011 (3)	0.014 (3)
C5	0.086 (3)	0.063 (3)	0.077 (3)	−0.010 (2)	−0.004 (2)	0.010 (2)
C6	0.067 (2)	0.0461 (19)	0.054 (2)	−0.0180 (16)	−0.0021 (16)	−0.0033 (15)
C7	0.065 (2)	0.054 (2)	0.0505 (19)	−0.0202 (17)	0.0068 (16)	−0.0048 (16)
C8	0.081 (3)	0.066 (2)	0.047 (2)	−0.007 (2)	0.0101 (19)	0.0053 (17)
C9	0.088 (3)	0.065 (2)	0.045 (2)	−0.009 (2)	0.001 (2)	0.0118 (17)
C10	0.073 (3)	0.054 (2)	0.047 (2)	−0.0024 (18)	0.0080 (17)	0.0044 (16)
C11	0.070 (3)	0.065 (3)	0.077 (3)	−0.003 (2)	−0.003 (2)	0.022 (2)
C12	0.066 (2)	0.049 (2)	0.065 (2)	−0.0064 (17)	0.0008 (18)	0.0106 (17)
C13	0.108 (4)	0.077 (3)	0.063 (3)	0.003 (3)	0.006 (2)	0.001 (2)
C14	0.105 (4)	0.062 (3)	0.088 (3)	0.018 (2)	0.021 (3)	−0.002 (2)
C15	0.054 (2)	0.048 (2)	0.083 (3)	−0.0074 (16)	0.0026 (19)	0.0085 (18)
C16	0.101 (3)	0.062 (3)	0.066 (3)	0.013 (2)	−0.013 (2)	0.004 (2)
C17	0.117 (4)	0.053 (2)	0.066 (3)	0.021 (2)	−0.012 (2)	−0.0015 (19)
C18	0.054 (2)	0.055 (2)	0.113 (4)	−0.0036 (18)	0.001 (2)	0.020 (2)
C19	0.0528 (19)	0.0494 (19)	0.0506 (18)	0.0053 (15)	0.0117 (15)	0.0042 (15)
C20	0.064 (2)	0.060 (2)	0.053 (2)	0.0032 (18)	0.0183 (17)	−0.0019 (17)
C21	0.068 (2)	0.059 (2)	0.064 (2)	0.0043 (19)	0.0114 (19)	−0.0105 (18)
Zn2	0.0533 (3)	0.0526 (3)	0.0404 (2)	−0.00723 (17)	0.00812 (17)	0.00025 (15)
O5	0.0595 (15)	0.0591 (16)	0.0701 (17)	0.0074 (12)	0.0144 (12)	0.0094 (13)
O6	0.083 (2)	0.0679 (19)	0.117 (3)	0.0150 (17)	0.0103 (19)	0.0342 (19)
O7	0.0580 (15)	0.0609 (15)	0.0586 (15)	0.0035 (12)	0.0091 (12)	−0.0005 (12)
O8	0.0667 (19)	0.095 (2)	0.121 (3)	0.0198 (18)	0.0283 (19)	0.004 (2)
N6	0.0493 (15)	0.0478 (15)	0.0405 (14)	−0.0089 (12)	0.0044 (11)	−0.0062 (11)
N7	0.0589 (16)	0.0487 (15)	0.0420 (14)	−0.0023 (13)	0.0083 (12)	−0.0009 (12)
N8	0.076 (2)	0.0500 (17)	0.0369 (14)	0.0002 (14)	0.0074 (13)	−0.0006 (12)
N9	0.0486 (15)	0.0531 (16)	0.0429 (14)	−0.0039 (12)	0.0095 (11)	0.0039 (12)
N10	0.0503 (16)	0.0661 (19)	0.0460 (15)	−0.0104 (14)	0.0077 (12)	0.0019 (13)
C22	0.050 (2)	0.061 (2)	0.062 (2)	0.0030 (17)	0.0084 (16)	−0.0160 (18)
C23	0.0468 (18)	0.060 (2)	0.0471 (18)	−0.0108 (15)	0.0092 (14)	−0.0131 (16)
C24	0.062 (2)	0.076 (3)	0.061 (2)	−0.020 (2)	0.0190 (18)	−0.010 (2)
C25	0.087 (3)	0.074 (3)	0.052 (2)	−0.035 (2)	0.022 (2)	−0.0064 (19)
C26	0.082 (3)	0.051 (2)	0.054 (2)	−0.0253 (19)	0.0054 (19)	0.0018 (16)
C27	0.062 (2)	0.0435 (17)	0.0433 (17)	−0.0111 (15)	−0.0006 (15)	−0.0045 (14)
C28	0.057 (2)	0.049 (2)	0.065 (2)	−0.0018 (16)	0.0048 (17)	0.0013 (17)
C29	0.0517 (19)	0.055 (2)	0.0476 (18)	−0.0014 (16)	0.0043 (14)	0.0060 (15)
C30	0.053 (2)	0.055 (2)	0.056 (2)	0.0025 (16)	0.0131 (16)	0.0075 (16)
C31	0.066 (2)	0.053 (2)	0.063 (2)	−0.0064 (17)	0.0173 (19)	0.0013 (17)
C32	0.047 (2)	0.100 (3)	0.058 (2)	−0.018 (2)	−0.0008 (16)	−0.003 (2)
C33	0.057 (2)	0.057 (2)	0.077 (3)	−0.0044 (17)	0.0147 (18)	−0.0129 (19)
C34	0.0375 (16)	0.065 (2)	0.057 (2)	−0.0077 (15)	−0.0007 (14)	0.0008 (17)
C35	0.0463 (18)	0.056 (2)	0.072 (2)	−0.0033 (16)	−0.0017 (16)	0.0110 (18)
C36	0.100 (3)	0.063 (2)	0.052 (2)	0.024 (2)	0.000 (2)	−0.0046 (18)
C37	0.109 (4)	0.078 (3)	0.045 (2)	0.030 (3)	−0.009 (2)	−0.001 (2)
C38	0.0548 (19)	0.0474 (18)	0.0437 (17)	−0.0054 (15)	0.0078 (14)	0.0071 (14)
C39	0.098 (3)	0.052 (2)	0.047 (2)	−0.008 (2)	0.0097 (19)	−0.0062 (16)
C40	0.082 (3)	0.086 (3)	0.052 (2)	−0.033 (2)	0.007 (2)	−0.005 (2)
C41	0.075 (2)	0.052 (2)	0.0404 (17)	−0.0023 (17)	0.0066 (16)	−0.0087 (15)
C42	0.082 (3)	0.099 (3)	0.045 (2)	−0.027 (3)	−0.0087 (19)	−0.003 (2)
O9	0.106 (3)	0.128 (3)	0.085 (2)	0.007 (2)	0.036 (2)	0.011 (2)
O10	0.076 (4)	0.329 (11)	0.168 (7)	−0.017 (6)	0.033 (4)	−0.016 (7)
O11	0.139 (6)	0.194 (7)	0.376 (14)	0.006 (5)	0.116 (7)	−0.021 (7)
O12	0.197 (9)	0.324 (15)	0.133 (7)	0.067 (10)	0.018 (6)	−0.005 (8)
O13	0.211 (7)	0.167 (6)	0.234 (9)	0.048 (5)	0.006 (6)	0.035 (6)
O14	0.157 (5)	0.133 (4)	0.147 (5)	0.014 (4)	−0.047 (4)	−0.015 (3)
O15	0.143 (7)	0.091 (5)	0.102 (6)	0.039 (5)	0.059 (5)	0.024 (4)
O16	0.215 (13)	0.217 (13)	0.176 (11)	0.022 (11)	0.040 (10)	0.081 (10)
O17	0.094 (6)	0.137 (8)	0.197 (12)	0.008 (6)	0.013 (7)	−0.024 (8)
O18	0.114 (4)	0.163 (5)	0.217 (7)	−0.007 (4)	0.029 (4)	0.004 (5)
O19	0.134 (4)	0.116 (3)	0.113 (3)	0.020 (3)	0.005 (3)	0.005 (3)

Geometric parameters (Å, º) top

Zn1—O1	2.208 (3)	Zn2—O7	2.209 (3)
Zn1—O3	2.151 (3)	Zn2—N6	2.010 (3)
Zn1—N1	2.014 (3)	Zn2—N7	1.984 (3)
Zn1—N2	1.984 (3)	Zn2—N9	1.992 (3)
Zn1—N5ⁱ	1.990 (3)	O5—C28	1.277 (5)
O1—C1	1.267 (6)	O6—C28	1.232 (5)
O2—C1	1.225 (6)	O7—C22	1.260 (5)
O3—C7	1.257 (5)	O8—C22	1.239 (5)
O4—C7	1.241 (4)	N6—C23	1.329 (4)
N1—C2	1.332 (5)	N6—C27	1.335 (5)
N1—C6	1.324 (5)	N7—C36	1.370 (5)
N2—C8	1.383 (5)	N7—C38	1.316 (5)
N2—C10	1.318 (5)	N8—C37	1.380 (5)
N3—C9	1.362 (6)	N8—C38	1.332 (4)
N3—C10	1.333 (5)	N8—C39	1.461 (5)
N3—C11	1.482 (6)	N9—C29	1.323 (5)
N4—C18	1.470 (5)	N9—C30	1.368 (5)
N4—C19	1.324 (5)	N10—C29	1.335 (5)
N4—C21	1.373 (5)	N10—C31	1.375 (5)
N5—C19	1.308 (4)	N10—C32	1.474 (5)
N5—C20	1.366 (5)	C22—C23	1.514 (6)
C1—C2	1.506 (7)	C23—C24	1.399 (5)
C2—C3	1.401 (7)	C24—H24	0.9300
C3—H3	0.9300	C24—C25	1.350 (7)
C3—C4	1.377 (8)	C25—H25	0.9300
C4—H4	0.9300	C25—C26	1.406 (7)
C4—C5	1.377 (8)	C26—H26	0.9300
C5—H5	0.9300	C26—C27	1.382 (5)
C5—C6	1.381 (6)	C27—C28	1.500 (5)
C6—C7	1.518 (6)	C29—H29	0.9300
C8—H8	0.9300	C30—H30	0.9300
C8—C9	1.345 (7)	C30—C31	1.340 (6)
C9—H9	0.9300	C31—H31	0.9300
C10—H10	0.9300	C32—H32A	0.9700
C11—H11A	0.9700	C32—H32B	0.9700
C11—H11B	0.9700	C32—C34	1.496 (6)
C11—C12	1.498 (5)	C33—C33ⁱⁱ	1.373 (8)
C12—C13	1.385 (6)	C33—H33	0.9300
C12—C17	1.368 (6)	C33—C34	1.388 (6)
C13—H13	0.9300	C34—C35	1.385 (6)
C13—C14	1.382 (7)	C35—C35ⁱⁱ	1.383 (8)
C14—H14	0.9300	C35—H35	0.9300
C14—C15	1.362 (7)	C36—H36	0.9300
C15—C16	1.369 (6)	C36—C37	1.340 (6)
C15—C18	1.500 (6)	C37—H37	0.9300
C16—H16	0.9300	C38—H38	0.9300
C16—C17	1.393 (6)	C39—H39A	0.9700
C17—H17	0.9300	C39—H39B	0.9700
C18—H18A	0.9700	C39—C41	1.515 (5)
C18—H18B	0.9700	C40—H40	0.9300
C19—H19	0.9300	C40—C41	1.389 (6)
C20—H20	0.9300	C40—C42ⁱⁱⁱ	1.380 (6)
C20—C21	1.332 (6)	C41—C42	1.373 (6)
C21—H21	0.9300	C42—H42	0.9300
Zn2—O5	2.172 (3)

O3—Zn1—O1	152.50 (13)	O5—Zn2—O7	153.06 (10)
N1—Zn1—O1	75.70 (13)	N6—Zn2—O5	76.93 (11)
N1—Zn1—O3	77.05 (11)	N6—Zn2—O7	76.35 (11)
N2—Zn1—O1	98.27 (14)	N7—Zn2—O5	101.49 (12)
N2—Zn1—O3	94.35 (13)	N7—Zn2—O7	93.77 (11)
N2—Zn1—N1	125.19 (12)	N7—Zn2—N6	117.44 (11)
N2—Zn1—N5ⁱ	114.81 (12)	N7—Zn2—N9	114.82 (12)
N5ⁱ—Zn1—O1	97.97 (12)	N9—Zn2—O5	96.62 (12)
N5ⁱ—Zn1—O3	98.73 (11)	N9—Zn2—O7	96.92 (11)
N5ⁱ—Zn1—N1	119.99 (12)	N9—Zn2—N6	127.60 (11)
C1—O1—Zn1	114.9 (3)	C28—O5—Zn2	114.4 (2)
C7—O3—Zn1	115.2 (2)	C22—O7—Zn2	113.6 (2)
C2—N1—Zn1	119.7 (3)	C23—N6—Zn2	119.2 (2)
C6—N1—Zn1	118.2 (3)	C23—N6—C27	122.3 (3)
C6—N1—C2	122.0 (4)	C27—N6—Zn2	118.5 (2)
C8—N2—Zn1	130.5 (3)	C36—N7—Zn2	126.0 (3)
C10—N2—Zn1	123.1 (3)	C38—N7—Zn2	127.8 (2)
C10—N2—C8	105.9 (3)	C38—N7—C36	106.1 (3)
C9—N3—C11	127.1 (4)	C37—N8—C39	126.3 (3)
C10—N3—C9	107.4 (4)	C38—N8—C37	106.6 (3)
C10—N3—C11	125.3 (4)	C38—N8—C39	127.1 (3)
C19—N4—C18	126.4 (4)	C29—N9—Zn2	128.2 (3)
C19—N4—C21	107.0 (3)	C29—N9—C30	106.2 (3)
C21—N4—C18	126.5 (4)	C30—N9—Zn2	125.1 (2)
C19—N5—Zn1ⁱ	128.6 (2)	C29—N10—C31	107.6 (3)
C19—N5—C20	105.9 (3)	C29—N10—C32	126.7 (4)
C20—N5—Zn1ⁱ	125.5 (2)	C31—N10—C32	125.4 (3)
O1—C1—C2	115.4 (4)	O7—C22—C23	116.1 (3)
O2—C1—O1	127.0 (5)	O8—C22—O7	125.6 (4)
O2—C1—C2	117.5 (5)	O8—C22—C23	118.4 (4)
N1—C2—C1	114.1 (4)	N6—C23—C22	114.0 (3)
N1—C2—C3	119.7 (4)	N6—C23—C24	119.7 (4)
C3—C2—C1	126.2 (4)	C24—C23—C22	126.3 (3)
C2—C3—H3	120.8	C23—C24—H24	120.5
C4—C3—C2	118.4 (5)	C25—C24—C23	119.1 (4)
C4—C3—H3	120.8	C25—C24—H24	120.5
C3—C4—H4	119.8	C24—C25—H25	119.6
C5—C4—C3	120.5 (5)	C24—C25—C26	120.7 (4)
C5—C4—H4	119.8	C26—C25—H25	119.6
C4—C5—H5	120.8	C25—C26—H26	121.2
C4—C5—C6	118.4 (5)	C27—C26—C25	117.6 (4)
C6—C5—H5	120.8	C27—C26—H26	121.2
N1—C6—C5	121.0 (4)	N6—C27—C26	120.6 (4)
N1—C6—C7	113.8 (3)	N6—C27—C28	114.3 (3)
C5—C6—C7	125.2 (4)	C26—C27—C28	125.1 (4)
O3—C7—C6	115.5 (3)	O5—C28—C27	115.7 (3)
O4—C7—O3	126.8 (4)	O6—C28—O5	126.2 (4)
O4—C7—C6	117.8 (4)	O6—C28—C27	118.1 (4)
N2—C8—H8	125.7	N9—C29—N10	110.4 (3)
C9—C8—N2	108.6 (4)	N9—C29—H29	124.8
C9—C8—H8	125.7	N10—C29—H29	124.8
N3—C9—H9	126.5	N9—C30—H30	125.2
C8—C9—N3	107.0 (4)	C31—C30—N9	109.6 (3)
C8—C9—H9	126.5	C31—C30—H30	125.2
N2—C10—N3	111.0 (4)	N10—C31—H31	126.9
N2—C10—H10	124.5	C30—C31—N10	106.2 (3)
N3—C10—H10	124.5	C30—C31—H31	126.9
N3—C11—H11A	109.0	N10—C32—H32A	109.2
N3—C11—H11B	109.0	N10—C32—H32B	109.2
N3—C11—C12	112.8 (3)	N10—C32—C34	112.0 (3)
H11A—C11—H11B	107.8	H32A—C32—H32B	107.9
C12—C11—H11A	109.0	C34—C32—H32A	109.2
C12—C11—H11B	109.0	C34—C32—H32B	109.2
C13—C12—C11	122.0 (4)	C33ⁱⁱ—C33—H33	119.5
C17—C12—C11	119.7 (4)	C33ⁱⁱ—C33—C34	121.0 (2)
C17—C12—C13	118.3 (4)	C34—C33—H33	119.5
C12—C13—H13	119.8	C33—C34—C32	121.2 (4)
C14—C13—C12	120.5 (5)	C35—C34—C32	120.7 (4)
C14—C13—H13	119.8	C35—C34—C33	118.1 (4)
C13—C14—H14	119.4	C34—C35—H35	119.6
C15—C14—C13	121.3 (4)	C35ⁱⁱ—C35—C34	120.9 (2)
C15—C14—H14	119.4	C35ⁱⁱ—C35—H35	119.6
C14—C15—C16	118.5 (4)	N7—C36—H36	125.4
C14—C15—C18	120.9 (4)	C37—C36—N7	109.1 (4)
C16—C15—C18	120.6 (4)	C37—C36—H36	125.4
C15—C16—H16	119.5	N8—C37—H37	126.6
C15—C16—C17	121.0 (4)	C36—C37—N8	106.8 (4)
C17—C16—H16	119.5	C36—C37—H37	126.6
C12—C17—C16	120.5 (4)	N7—C38—N8	111.4 (3)
C12—C17—H17	119.8	N7—C38—H38	124.3
C16—C17—H17	119.8	N8—C38—H38	124.3
N4—C18—C15	112.6 (3)	N8—C39—H39A	109.4
N4—C18—H18A	109.1	N8—C39—H39B	109.4
N4—C18—H18B	109.1	N8—C39—C41	110.9 (3)
C15—C18—H18A	109.1	H39A—C39—H39B	108.0
C15—C18—H18B	109.1	C41—C39—H39A	109.4
H18A—C18—H18B	107.8	C41—C39—H39B	109.4
N4—C19—H19	124.3	C41—C40—H40	120.0
N5—C19—N4	111.3 (3)	C42ⁱⁱⁱ—C40—H40	120.0
N5—C19—H19	124.3	C42ⁱⁱⁱ—C40—C41	119.9 (4)
N5—C20—H20	125.3	C40—C41—C39	120.1 (4)
C21—C20—N5	109.5 (3)	C42—C41—C39	121.3 (4)
C21—C20—H20	125.3	C42—C41—C40	118.6 (4)
N4—C21—H21	126.8	C40ⁱⁱⁱ—C42—H42	119.3
C20—C21—N4	106.3 (3)	C41—C42—C40ⁱⁱⁱ	121.5 (4)
C20—C21—H21	126.8	C41—C42—H42	119.3

Zn1—O1—C1—O2	−179.6 (4)	C21—N4—C19—N5	0.1 (4)
Zn1—O1—C1—C2	−1.1 (5)	Zn2—O5—C28—O6	177.0 (4)
Zn1—O3—C7—O4	177.0 (3)	Zn2—O5—C28—C27	−2.4 (4)
Zn1—O3—C7—C6	−4.0 (4)	Zn2—O7—C22—O8	170.2 (4)
Zn1—N1—C2—C1	5.5 (4)	Zn2—O7—C22—C23	−9.8 (4)
Zn1—N1—C2—C3	−175.0 (3)	Zn2—N6—C23—C22	0.7 (4)
Zn1—N1—C6—C5	174.9 (3)	Zn2—N6—C23—C24	−179.9 (3)
Zn1—N1—C6—C7	−5.5 (4)	Zn2—N6—C27—C26	−179.3 (3)
Zn1—N2—C8—C9	−170.5 (3)	Zn2—N6—C27—C28	−0.4 (4)
Zn1—N2—C10—N3	172.0 (2)	Zn2—N7—C36—C37	174.6 (3)
Zn1ⁱ—N5—C19—N4	177.9 (2)	Zn2—N7—C38—N8	−174.8 (2)
Zn1ⁱ—N5—C20—C21	−177.9 (3)	Zn2—N9—C29—N10	−171.5 (2)
O1—C1—C2—N1	−2.6 (5)	Zn2—N9—C30—C31	171.4 (3)
O1—C1—C2—C3	177.9 (4)	O7—C22—C23—N6	6.6 (5)
O2—C1—C2—N1	176.1 (4)	O7—C22—C23—C24	−172.8 (3)
O2—C1—C2—C3	−3.4 (7)	O8—C22—C23—N6	−173.4 (4)
N1—C2—C3—C4	−0.4 (7)	O8—C22—C23—C24	7.2 (6)
N1—C6—C7—O3	6.3 (5)	N6—C23—C24—C25	−0.6 (5)
N1—C6—C7—O4	−174.7 (3)	N6—C27—C28—O5	2.0 (5)
N2—C8—C9—N3	−1.4 (5)	N6—C27—C28—O6	−177.5 (4)
N3—C11—C12—C13	94.6 (5)	N7—C36—C37—N8	0.9 (6)
N3—C11—C12—C17	−87.5 (5)	N8—C39—C41—C40	119.8 (4)
N5—C20—C21—N4	−0.4 (5)	N8—C39—C41—C42	−58.7 (6)
C1—C2—C3—C4	179.0 (5)	N9—C30—C31—N10	0.8 (4)
C2—N1—C6—C5	−1.4 (5)	N10—C32—C34—C33	−99.3 (4)
C2—N1—C6—C7	178.2 (3)	N10—C32—C34—C35	79.5 (5)
C2—C3—C4—C5	−0.3 (8)	C22—C23—C24—C25	178.8 (4)
C3—C4—C5—C6	0.2 (8)	C23—N6—C27—C26	0.9 (5)
C4—C5—C6—N1	0.7 (6)	C23—N6—C27—C28	179.8 (3)
C4—C5—C6—C7	−178.9 (4)	C23—C24—C25—C26	0.5 (6)
C5—C6—C7—O3	−174.2 (4)	C24—C25—C26—C27	0.3 (6)
C5—C6—C7—O4	4.9 (5)	C25—C26—C27—N6	−1.0 (5)
C6—N1—C2—C1	−178.3 (3)	C25—C26—C27—C28	−179.7 (3)
C6—N1—C2—C3	1.2 (6)	C26—C27—C28—O5	−179.2 (3)
C8—N2—C10—N3	−0.3 (4)	C26—C27—C28—O6	1.3 (6)
C9—N3—C10—N2	−0.5 (4)	C27—N6—C23—C22	−179.5 (3)
C9—N3—C11—C12	67.4 (6)	C27—N6—C23—C24	−0.1 (5)
C10—N2—C8—C9	1.1 (4)	C29—N9—C30—C31	−0.7 (4)
C10—N3—C9—C8	1.1 (4)	C29—N10—C31—C30	−0.6 (4)
C10—N3—C11—C12	−118.4 (4)	C29—N10—C32—C34	−94.2 (5)
C11—N3—C9—C8	176.2 (4)	C30—N9—C29—N10	0.3 (4)
C11—N3—C10—N2	−175.7 (3)	C31—N10—C29—N9	0.2 (4)
C11—C12—C13—C14	176.9 (5)	C31—N10—C32—C34	78.7 (5)
C11—C12—C17—C16	−178.0 (5)	C32—N10—C29—N9	174.1 (3)
C12—C13—C14—C15	1.0 (8)	C32—N10—C31—C30	−174.6 (3)
C13—C12—C17—C16	0.0 (7)	C32—C34—C35—C35ⁱⁱ	−179.9 (4)
C13—C14—C15—C16	0.1 (8)	C33ⁱⁱ—C33—C34—C32	−179.9 (5)
C13—C14—C15—C18	−179.4 (5)	C33ⁱⁱ—C33—C34—C35	1.3 (7)
C14—C15—C16—C17	−1.2 (7)	C33—C34—C35—C35ⁱⁱ	−1.1 (6)
C14—C15—C18—N4	−86.7 (6)	C36—N7—C38—N8	0.6 (4)
C15—C16—C17—C12	1.1 (8)	C37—N8—C38—N7	0.0 (4)
C16—C15—C18—N4	93.8 (5)	C37—N8—C39—C41	−48.9 (6)
C17—C12—C13—C14	−1.0 (8)	C38—N7—C36—C37	−0.9 (5)
C18—N4—C19—N5	−178.8 (3)	C38—N8—C37—C36	−0.5 (5)
C18—N4—C21—C20	179.1 (4)	C38—N8—C39—C41	134.6 (4)
C18—C15—C16—C17	178.3 (4)	C39—N8—C37—C36	−177.6 (4)
C19—N4—C18—C15	95.0 (5)	C39—N8—C38—N7	177.0 (3)
C19—N4—C21—C20	0.2 (4)	C39—C41—C42—C40ⁱⁱⁱ	179.4 (5)
C19—N5—C20—C21	0.4 (4)	C40—C41—C42—C40ⁱⁱⁱ	0.9 (8)
C20—N5—C19—N4	−0.3 (4)	C42ⁱⁱⁱ—C40—C41—C39	−179.5 (4)
C21—N4—C18—C15	−83.8 (5)	C42ⁱⁱⁱ—C40—C41—C42	−0.9 (8)

Symmetry codes: (i) −x+1/2, −y−1/2, −z+1; (ii) −x, y, −z+3/2; (iii) −x+1/2, −y+1/2, −z+2.

Hydrogen-bond geometry (Å, º) top

Cg3, Cg10 and Cg11 are the centroids of the N7/C36/C37/N8/C38,N2/C8/C9/N3/C10 and N4/C20/C21/N5/C19 rings, respectively.

D—H···A	D—H	H···A	D···A	D—H···A
C18—H18A···O19^iv	0.97	2.45	3.421 (7)	174
C19—H19···O9ⁱ	0.93	2.44	3.328 (5)	160
C21—H21···O15^v	0.93	2.50	3.394 (10)	162
C21—H21···O16^v	0.93	2.41	3.278 (18)	154
C29—H29···O19	0.93	2.47	3.213 (6)	137
C30—H30···O4^vi	0.93	2.53	3.149 (5)	124
C38—H38···O4^vii	0.93	2.58	2.988 (5)	107
C5—H5···Cg3^vii	0.93	2.81	3.624 (5)	146
C26—H26···Cg10^vii	0.93	2.61	3.443 (4)	150
C42—H42···Cg11^vi	0.93	2.93	3.818 (5)	161

Symmetry codes: (i) −x+1/2, −y−1/2, −z+1; (iv) x+1/2, y−1/2, z; (v) −x+1/2, y−1/2, −z+3/2; (vi) x, −y, z+1/2; (vii) −x+1/2, −y+1/2, −z+1.

Analysis of short ring interactions (Å). top

Cg(I) and Cg(J) are the centroids of rings I and J; CgI_Perp is the perpendicular distance of Cg(I) on ring J, and slippage is the distance between Cg(I) and the perpendicular projection of Cg(J) on ring I. Cg5, and Cg12 are the centroids of the N6/C23–C27 and N1/C2–C6 rings, respectively.

Cg(I)	Cg(J)	Symmetry_Cg(J)	Cg(I)···Cg(J)	CgI_Perp	CgJ_Perp	Slippage
Cg5	Cg5	-x + 1/2, -y + 1/2, -z + 1	3.646 (2)	3.3521 (15)	3.3521 (15)	1.434
Cg5	Cg12	-x + 1/2, -y + 1/2, -z + 1	3.729 (3)	3.6648 (15)	3.6455 (19)	0.782
Cg12	Cg5	-x + 1/2, -y + 1/2, -z + 1	3.728 (3)	3.6453 (19)	3.6648 (15)	0.686

Acknowledgements

We are thankful for the support from the Department of Chemistry, Faculty of Science and Technology, Thammasat University, and the Thammasat University Research Unit in Multifunctional Crystalline Materials and Applications (TU-MCMA), Thammasat University.

Funding information

Funding for this research was provided by: Thammasat University Research Fund, Thammasat University. (contract No. TUFT 80/2564 to N. Wannarit).

References

Adarsh, N. N., Novio, F. & Ruiz-Molina, D. (2016). Dalton Trans. 45, 11233–11255. Web of Science CrossRef CAS PubMed Google Scholar
Addison, A. W., Rao, N. T., Reedijk, J., van Rijn, J. & Verschoor, G. C. (1984). J. Chem. Soc. Dalton Trans. pp. 1349–1356. CSD CrossRef Web of Science Google Scholar
Batten, S. R., Champness, N. R., Chen, X.-M., Garcia-Martinez, J., Kitagawa, S., Öhrström, L., O'Keeffe, M., Suh, M. P. & Reedijk, J. (2012). CrystEngComm 14, 3001–3004. CrossRef CAS Google Scholar
Batten, S. R., Chen, B. & Vittal, J. J. (2016). ChemPlusChem 81, 669–670. CrossRef CAS PubMed Google Scholar
Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2015). Acta Cryst. A71, 59–75. Web of Science CrossRef IUCr Journals Google Scholar
Bruker (2016). APEX3 and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Bruno, I. J., Cole, J. C., Edgington, P. R., Kessler, M., Macrae, C. F., McCabe, P., Pearson, J. & Taylor, R. (2002). Acta Cryst. B58, 389–397. Web of Science CrossRef CAS IUCr Journals Google Scholar
Diana, R., Caruso, U. & Panunzi, B. (2021). Polymers 13, 3712. CrossRef PubMed Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Dragutan, I., Ding, F., Sun, Y. & Dragutan, V. (2024). Crystals 14, 301. CrossRef Google Scholar
Du, M., Li, C.-P., Liu, C.-S. & Fang, S.-M. (2013). Coord. Chem. Rev. 257, 1282–1305. Web of Science CrossRef CAS Google Scholar
Fromm, K. M., Batten, V. S. S., Neville, S. M. & Turner, D. R. (2009). Angew. Chem. 121, 4986–4987. CrossRef Google Scholar
Gao, H.-L., Yi, L., Zhao, B., Zhao, X.-Q., Cheng, P., Liao, D.-Z. & Yan, S.-P. (2006). Inorg. Chem. 45, 5980–5988. Web of Science CSD CrossRef PubMed CAS Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Hoskins, B. F., Robson, R. & Slizys, D. A. (1997). J. Am. Chem. Soc. 119, 2952–2953. CSD CrossRef CAS Web of Science Google Scholar
Kothawade, S. & Shende, P. (2024). Coord. Chem. Rev. 510, 215851. CrossRef Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Li, N., Feng, R., Zhu, J., Chang, Z. & Bu, X.-H. (2018). Coord. Chem. Rev. 375, 558–586. CrossRef CAS Google Scholar
Li, Q., Ghosh, M. K., Wang, J., Lu, L., Sakiyama, H., Ghorai, T. K., Kushwaha, A., Prakash, O., Afzal, M. & Alarifi, A. (2023). J. Mol. Struct. 1284, 135430. CrossRef Google Scholar
Liu, T. F., Wu, W. F., Zhang, W. G. & Cui, G. H. (2011). Z. Anorg. Allg. Chem. 637, 148–153. CrossRef CAS Google Scholar
Parmar, B., Bisht, K. K., Rachuri, Y. & Suresh, E. (2020). Inorg. Chem. Front. 7, 1082–1107. Web of Science CrossRef CAS Google Scholar
Robin, A. Y. & Fromm, K. M. (2006). Coord. Chem. Rev. 250, 2127–2157. Web of Science CrossRef CAS Google Scholar
Sheldrick, G. M. (2015). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Somnath, S., Ahmad, M. & Ahmad Siddiqui, K. (2022). Polyhedron 215, 115693. CrossRef Google Scholar
Tripuramallu, B. K., Manna, P., Nagaprasad Reddy, S. & Das, S. K. (2012). Cryst. Growth Des. 12, 777–792. Web of Science CSD CrossRef CAS Google Scholar
Voda, I., Makhloufi, G., Lozan, V., Shova, S., Heering, C. & Janiak, C. (2017). Inorg. Chim. Acta 455, 118–131. CrossRef CAS Google Scholar
Wen, L.-L., Lu, Z.-D., Ren, X.-M., Duan, C.-Y., Meng, Q.-J. & Gao, S. (2009). Cryst. Growth Des. 9, 227–238. CrossRef CAS Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
