Crystal structure, computational study, and Hirshfeld analysis of exo-1,2,3,5-tetraphenyl-1a',9b'-dihydrospiro[bicyclo[3.1.0]hexane-6,1′-cyclopropa[l]phenanthren]-2-en-4-one

Alexander D. Roth ^a and Dasan M. Thamattoor ^a ^*

^aDepartment of Chemistry, Colby College, Waterville, ME 04901, USA
^*Correspondence e-mail: [email protected]

Edited by D. R. Manke, University of Massachusetts Dartmouth, USA (Received 10 April 2025; accepted 15 May 2025; online 30 May 2025)

The reaction of dibenzonorcarynyliden(e/oid) with phencyclone was recently reported to give a congested spiropentane with endo stereochemistry. Herein we report that, in sharp contrast, an analogous reaction using tetracyclone, instead of phencyclone, gives the highly crowded title spiropentane but with exo stereochemistry as determined by X-ray crystallography. This new tetracyclone adduct (C₄₄H₃₀O) crystallizes upon slow evaporation from hexanes/ethyl acetate in the monoclinic crystal system and P2₁/n (No. 14) space group. It has one molecule in the asymmetric unit and four molecules per unit cell. DLPNO-CCSD(T)/def2-TZVP//B3LYP/def2-SVP calculations indicate that the endo spiropentane diastereomers from phencyclone and tetracyclone are both more stable than the corresponding exo forms by 6.68 and 5.35 kcal mol⁻¹, respectively. As noted previously in the phencyclone system, favorable π-stacking interactions between the two flat biphenyl moieties in the product and transition state may lead to the preferential formation of the endo diastereomer. However, the ability of the phenyl rings in the 3,4-position of the tetracyclone component to rotate could introduce destabilizing steric interactions in the transition state that hinder formation of the endo diastereomer in favor of the less thermodynamically stable exo isomer.

Keywords: crystal structure; Spiropentane; Stereochemistry; Hirshfeld analysis.

CCDC reference: 2357704

1. Chemical context

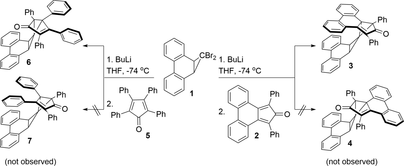

Recently, we disclosed that the treatment of 1,1-dibromo-1a,9b-dihydro-1H-cyclopropa[l]phenanthrene (1) with butyllithium at low temperatures followed by quenching with phencyclone (2) gave the congested spiropentane 3 as the endo diastereomer (Roth & Thamattoor, 2024 ). Compound 3 presumably issues from trapping the carben(e/oid) derived from 1 with 2. Conspicuously, the exo diastereomer of 3, the spiropentane 4, was not observed in the reaction. Herein, we report the curious finding that when the trapping agent 2 is replaced by tetracyclone (5), a decidedly different outcome is observed. In this case, it is the exo diastereomer of 1,2,3,5-tetraphenyl-1a′,9b′-dihydrospiro[bicyclo[3.1.0]hexane-6,1′-cyclopropa[l]phenanthren]-2-en-4-one (6) that is found in the reaction mixture. (An alcohol, which is likely produced by addition of the initially formed lithioanion to 5 followed by work up, is also formed as a byproduct.) Interestingly, we did not observe 7, the endo diastereomer of 6, in the reaction mixture. The scheme below shows the synthesis of endo- and exo-spiropentanes 3 and 6, respectively.

Calculations at the DLPNO-CCSD(T)/def2-TZVP//B3LYP/def2-SVP level of theory (Neese et al., 2020 ; Weigend & Ahlrichs, 2005 ; Weigend, 2006 ; Becke, 1988 ; Becke, 1993 ; Riplinger & Neese, 2013 ; Riplinger et al., 2016 ; Riplinger et al., 2013 ) indicated that the endo spiropentane adduct 7 is 5.35 kcal mol⁻¹ more stable than its exo isomer 6. To compare, our previous calculations indicated that 3 is more stable than 4 by 6.68 kcal mol⁻¹. Thus, the endo diastereomer is calculated to be the more thermodynamically stable product in both cases, although the difference is slightly less for the 6/7 pair. We reasoned that the favorable π-stacking interactions between the two flat biphenyl moieties in the transition state leading up to the endo diastereomer, was likely why 3 was preferred over 4. In other words, 3 was both the thermodynamic and kinetic product. In the reaction using 5 as the trapping agent, however, the ability of the phenyl rings in the 3,4-position of the dienone component to rotate could introduce destabilizing steric interactions that hinder formation of endo diastereomer 7 and favor the less thermodynamically stable exo isomer 6.

2. Structural commentary

The crystal structure of 6 is shown in Fig. 1. The crystal system is monoclinic and belongs to the P2₁/n (14) space group with one molecule in the asymmetric unit. The carbonyl group is perched over the erstwhile phenanthrene framework with the oxygen at a distance of 3.472 (2) Å to the centroid marked A in Fig. 1 (purple line). Four intramolecular short contacts between atoms (sum of vdW radii − 0.3 Å) were also identified (Table 1) and are designated by the cyan lines in Fig. 1. The four phenyl rings attached to the cyclopentenone moiety are all non-coplanar with the five-membered ring as listed in Table 2. The blue ring shows the largest twist [73.67 (10)°] and the magenta ring has the smallest [35.06 (9)°].

Table 1
Intramolecular short contacts (Å) in 6 (see Fig. 1)

Entry number	Site 1	Site 2	Distance
1	O1	Centroid A	3.472 (2)
2	O1	C40	2.905 (3)
3	C2	H26	2.562 (2)
4	O1	H40	2.4051 (18)
5	H6	H9	2.05002 (4)

Table 2
Normal-to-normal plane angles (°) between the cyclopentenone ring and its phenyl substituents in 6 (see Fig. 1)

Entry number	Color of ring	Angle
1	Green	57.29 (9)
2	Blue	73.67 (10)
3	Magenta	35.06 (9)
4	Orange	39.71 (9)

Figure 1
Single-crystal X-ray structure of 6. Displacement ellipsoids are shown at the 50% probability level.

3. Supramolecular features

The monoclinic unit cell of 6, with its four molecules, is shown in Fig. 2. The packing of 6 within a 2×2×2 range of cells, with a slightly offset view along the b axis, is displayed in Fig. 3.

Figure 2
The monoclinic unit cell of 6 contains four molecules.

Figure 3
The packing motif of 6 in a 2×2×2 range of cells as viewed with a slight offset along the b axis.

Short intermolecular contacts within the crystal structure of 6 were also investigated via a Hirshfeld surface analysis (Fig. 4; CrystalExplorer 21; Spackman et al., 2021 ). The red, grey, and blue regions of the d_norm surface signify the presence of neighboring atoms at distances less than, approximately equal to, and larger than than the sum of the vdW radii, respectively. Remarkably, as shown in Table 3, only four such contacts were located (sum of vdW radii − 0.1 Å). Two of these are reciprocal contacts between the carbonyl oxygen and two hydrogen atoms (H6 and H9) in the bay area of the phenanthrene framework of a neighboring molecule to form a dimer. Additional, somewhat weaker, intermolecular contacts are between C40 and H1, as well as C41 and H24 involving two different and separate neighbors.

Table 3
Intramolecular short contacts (Å) in the supramolecular crystal structure of 6 (see Fig. 4)

Entry number	Site 1	Site 2	Symmetry operation	Distance
1	O1	H6	2 − x, 1 − y, 1 − z	2.3977 (16)
2	O1	H9	2 − x, 1 − y, 1 − z	2.5362 (18)
3	C40	H1	$[{3\over 2}]$ − x, − $[{1\over 2}]$ + y, $[{1\over 2}]$ − z	2.782 (3)
4	H24	C41	− $[{1\over 2}]$ + x, $[{1\over 2}]$ − y, $[{1\over 2}]$ + z	2.790 (3)

Figure 4
Hirshfield d_norm surface showing intermolecular short contacts made by the asymmetric unit in the crystal structure of 6.

The shape-index map of the Hirshfeld surface is shown in Fig. 5a. The map does not show significant red and blue triangles that are conjoined in bow-tie shapes, which are typical of π–π interactions. The map does reveal a number of C—H⋯π interactions, as evident from the bright-red patches within some of the aryl rings that are complementary to the blue regions of the specific C—H bonds. The curvedness map of the Hirshfeld surface (Fig. 5b) shows numerous smaller planar regions (green) twisted away from one another by ridges (blue). This lack of an extensive planar region on the molecular surface may provide a clue as to why π–π interactions are not dominant in the crystal structure of 6.

Figure 5
The Hirshfeld surface plotted over (a) shape-index and (b) curvedness.

The observations noted above are consistent with the reciprocal 2D fingerprint plot of d_e vs d_i (where d_e and d_i are distances from a given point on the surface to the nearest external and internal atom, respectively), which are shown in Fig. 6 for specific types of interactions such as (a) H⋯H, (b) C⋯H/H⋯C, (c) O⋯H/H⋯O, and (d) C⋯C. These maps show that 62% of all interactions come from H⋯H which is unsurprising given the large number of hydrogens in the molecule. The C⋯H/H⋯C interactions are the second largest contributors (33.6%) followed by O⋯H/H⋯O (3.7%) and C⋯C (0.7%).

Figure 6
The reciprocal two-dimensional fingerprint plot of d_e versus d_i for the different types of interactions coded by color.

4. Database survey

A survey of the Cambridge Structural Database (Groom et al., 2016 ) using WebCSD (version 1.9.61; accessed April 6, 2025) revealed no previous report of the title compound 6. The only entry similar to 6 is the phencyclone adduct 3, which we have recently reported (REFCODE HOJLIF; Roth & Thamattoor, 2024). To our knowledge these are the only examples in the database in which the central atom of a spiropentane moiety is attached to the edges of two separate ring systems.

5. Synthesis and crystallization

Synthesis of exo-1,2,3,5-tetraphenyl-1a′,9b′-dihydrospiro[bicyclo[3.1.0]hexane-6,1′-cyclopropa[l]phenanthren]-2-en-4-one (6):

The dibromo derivative 1 (Nguyen & Thamattoor, 2007 ; 0.856 g, 2.45 mmol) was dissolved in THF (30 mL) in a 100 mL three-necked flask under argon atmosphere and stirred with a magnetic stir bar. The solution was cooled to 203 K, and n-BuLi (1.2 mL, 2.5 M in hexanes, 3.0 mmol) was added to the solution. The reaction was allowed to stir in a dry ice/acetone bath for 20 min, and tetracyclone (5, 0.940 g, 2.44 mmol) in THF (30 mL) was added to the solution slowly over 10 minutes. The solution was kept at 203 K for 2 h, and then allowed to warm to room temperature, where it stirred for the next 14 h. The reaction was quenched with H₂O (30 mL), the organic layer separated, and the aqueous layer extracted with CH₂Cl₂ (3 × 30 mL). The combined organic layers were washed with brine (3 × 30 mL) and dried over anhydrous sodium sulfate. Adduct 6 was isolated as a yellow solid using silica-gel flash-column chromatography (0:100 →15:85 ethyl acetate:hexanes). The yield was 189 mg (13%); m.p.: decomposes at 492 K. 6: ¹H NMR (500 MHz, CDCl₃) δ: 8.02 (dd, J = 8.2, 1.3 Hz, 1H), 7.97 (dd, J = 8.2, 1.1 Hz, 1H), 7.49 (dd, J = 7.5, 1.4 Hz, 1H), 7.37–7.26 (m, 7H), 7.26–7.20 (m, 3H), 7.16 (ddd, J = 8.1, 7.2, 1.4 Hz, 1H), 7.13–7.03 (m, 8H), 6.89–6.80 (m, 2H), 6.72–6.67 (m, 2H), 6.37–6.28 (m, 2H), 4.00 (d, J = 8.5 Hz, 1H), 3.29 (d, J = 8.5 Hz, 1H). ¹³C NMR (126 MHz, CDCl₃) δ: 200.1, 166.3, 135.3, 134.9, 134.4, 131.7 (2 carbon resonances), 131.3, 131.1, 131.0, 130.2 (2 carbon resonances), 129.8, 129.4, 129.2, 129.1, 128.8, 128.5, 128.1, 127.9, 127.8, 127.7 (2 carbon resonances), 127.4, 127.1, 127.0, 126.4, 126.1, 123.8, 123.3, 52.1, 49.0, 47.8, 29.5, 24.4. FTIR: ν 3064, 3031, 2987, 2924, 1697, 1597, 1489, 1446 cm⁻¹.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 4. H atoms were positioned geometrically (C—H = 0.95 Å) and refined as riding with U_iso(H) = 1.2U_eq(C).

Table 4
Experimental details

Crystal data
Chemical formula	C₄₄H₃₀O
M_r	574.68
Crystal system, space group	Monoclinic, P2₁/n
Temperature (K)	173
a, b, c (Å)	12.9873 (3), 13.2021 (3), 17.9100 (4)
β (°)	95.796 (1)
V (Å³)	3055.14 (12)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.07
Crystal size (mm)	0.28 × 0.13 × 0.09

Data collection
Diffractometer	Bruker D8 Quest Eco
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.676, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	67135, 6997, 4365
R_int	0.059
(sin θ/λ)_max (Å⁻¹)	0.650

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.066, 0.208, 1.05
No. of reflections	6997
No. of parameters	406
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.22, −0.26
Computer programs: APEX4 and SAINT-Plus (Bruker, 2021 ), SHELXT (Sheldrick, 2015a ), SHELXL (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Supporting information

CCDC reference: 2357704

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989025004414/yy2017sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025004414/yy2017Isup2.hkl

checkCIF report

Computing details top

exo-1,2,3,5-Tetraphenyl-1a',9b'-dihydrospiro[bicyclo[3.1.0]hexane-6,1'-cyclopropa[l]phenanthren]-2-en-4-one top

Crystal data top

C₄₄H₃₀O	F(000) = 1208
M_r = 574.68	D_x = 1.249 Mg m⁻³
Monoclinic, P2₁/n	Mo Kα radiation, λ = 0.71073 Å
a = 12.9873 (3) Å	Cell parameters from 9968 reflections
b = 13.2021 (3) Å	θ = 2.4–27.2°
c = 17.9100 (4) Å	µ = 0.07 mm⁻¹
β = 95.796 (1)°	T = 173 K
V = 3055.14 (12) Å³	Prism, yellow
Z = 4	0.28 × 0.13 × 0.09 mm

Data collection top

Bruker D8 Quest Eco diffractometer	4365 reflections with I > 2σ(I)
φ and ω scans	R_int = 0.059
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	θ_max = 27.5°, θ_min = 2.2°
T_min = 0.676, T_max = 0.746	h = −16→16
67135 measured reflections	k = −17→17
6997 independent reflections	l = −23→23

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.066	H-atom parameters constrained
wR(F²) = 0.208	w = 1/[σ²(F_o²) + (0.0864P)² + 2.5665P] where P = (F_o² + 2F_c²)/3
S = 1.05	(Δ/σ)_max < 0.001
6997 reflections	Δρ_max = 0.22 e Å⁻³
406 parameters	Δρ_min = −0.26 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. A Bruker D8 Quest Eco diffractometer equipped with a graphite monochromated Mo Kα radiation (λ = 0.71073 Å) and PHOTON 50^TM CMOS (complementary metal-oxide semiconductor) detector was used to collect X-ray diffraction data at 173 K with the Bruker Apex 4 suite of programs (Bruker, 2021a). Frames were integrated with a narrow-frame algorithm using the Bruker data reduction software package SAINT+ (Bruker, 2021b) and absorption effects were corrected with the multi-scan method SADABS (Krause et al., 2015). The Olex2 suite of programs (Dolomanov et al., 2009) was used to process data along with the Bruker SHELXTL software package (Sheldrick, 2015a; Sheldrick, 2015b) that was used to perform structure solution by direct methods, and refinement by full-matrix least-squares on F². All nonhydrogen atoms were refined anisotropically with suggested weighting factors and the hydrogens were calculated on a riding model. All cif files were validated with the checkCIF/Platon facility of IUCr that was implemented through Olex 2 (Dolomanov et al., 2009). Hirshfeld surface analysis of the crystal structure was performed with CrystalExplorer 21 (Spackman et al., 2021).

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
O001	0.90530 (13)	0.39534 (14)	0.34553 (10)	0.0470 (5)
C002	0.82721 (17)	0.46242 (18)	0.22785 (13)	0.0360 (5)
C003	0.73177 (17)	0.50140 (17)	0.20571 (13)	0.0349 (5)
C004	0.67134 (17)	0.52277 (17)	0.27182 (13)	0.0342 (5)
C005	0.68714 (17)	0.52698 (19)	0.12910 (13)	0.0373 (5)
C006	0.74121 (17)	0.48192 (18)	0.34187 (13)	0.0347 (5)
C007	0.93075 (17)	0.64488 (18)	0.43201 (14)	0.0367 (5)
C008	0.55671 (18)	0.50796 (18)	0.26580 (13)	0.0360 (5)
C009	0.83527 (17)	0.44040 (18)	0.30974 (13)	0.0361 (5)
C00A	0.91279 (18)	0.65875 (18)	0.35427 (14)	0.0372 (5)
C00B	0.72863 (17)	0.59389 (18)	0.32690 (13)	0.0348 (5)
C00C	0.69744 (17)	0.42527 (18)	0.40306 (13)	0.0363 (5)
C00D	0.84858 (18)	0.66656 (19)	0.48151 (14)	0.0392 (5)
C00E	0.91861 (18)	0.45177 (19)	0.18569 (14)	0.0389 (5)
C00F	0.74928 (18)	0.69608 (18)	0.45090 (14)	0.0397 (6)
C00G	0.71984 (18)	0.69096 (18)	0.36894 (14)	0.0394 (6)
H00G	0.662510	0.737146	0.349010	0.047*
C00H	0.80606 (18)	0.67516 (18)	0.31804 (14)	0.0382 (5)
H00H	0.799329	0.712636	0.269267	0.046*
C00I	0.99332 (19)	0.6500 (2)	0.30910 (15)	0.0443 (6)
H00I	0.980666	0.662551	0.256753	0.053*
C00J	0.62300 (19)	0.6107 (2)	0.11655 (16)	0.0455 (6)
H00J	0.607619	0.651789	0.157530	0.055*
C00K	0.99086 (19)	0.3744 (2)	0.20261 (15)	0.0443 (6)
H00K	0.978384	0.324605	0.238898	0.053*
C00L	0.51446 (19)	0.4207 (2)	0.23360 (16)	0.0469 (6)
H00L	0.558399	0.371015	0.215207	0.056*
C00M	1.03093 (19)	0.61667 (19)	0.46143 (15)	0.0435 (6)
H00M	1.044917	0.605358	0.513853	0.052*
C00N	0.7123 (2)	0.3207 (2)	0.40888 (15)	0.0455 (6)
H00N	0.750444	0.286924	0.373801	0.055*
C00O	0.7062 (2)	0.4662 (2)	0.06886 (15)	0.0471 (6)
H00O	0.749142	0.408185	0.076928	0.057*
C00P	1.1094 (2)	0.6051 (2)	0.41576 (17)	0.0495 (7)
H00P	1.176145	0.584513	0.436884	0.059*
C00Q	0.9405 (2)	0.5246 (2)	0.13299 (15)	0.0471 (6)
H00Q	0.893362	0.578618	0.121319	0.057*
C00R	0.8679 (2)	0.6652 (2)	0.56008 (15)	0.0501 (7)
H00R	0.933771	0.643692	0.582441	0.060*
C00S	0.6167 (2)	0.3136 (2)	0.51637 (17)	0.0531 (7)
H00S	0.589290	0.275912	0.554995	0.064*
C00T	1.0806 (2)	0.3700 (3)	0.16678 (17)	0.0546 (8)
H00T	1.128716	0.316743	0.178461	0.066*
C00U	0.6763 (2)	0.7292 (2)	0.49753 (16)	0.0508 (7)
H00U	0.610890	0.752952	0.475946	0.061*
C00V	1.0918 (2)	0.6230 (2)	0.33956 (17)	0.0503 (7)
H00V	1.146582	0.617041	0.308443	0.060*
C00W	0.6723 (2)	0.2657 (2)	0.46498 (16)	0.0518 (7)
H00W	0.683118	0.194603	0.468139	0.062*
C00X	0.3432 (2)	0.4758 (2)	0.25384 (17)	0.0546 (7)
H00X	0.270578	0.464929	0.249516	0.065*
C00Y	0.6408 (2)	0.4715 (2)	0.45488 (17)	0.0503 (7)
H00Y	0.628858	0.542474	0.451848	0.060*
C00Z	1.0307 (2)	0.5188 (3)	0.09744 (16)	0.0579 (8)
H00Z	1.044074	0.568314	0.061157	0.069*
C010	0.49143 (19)	0.5786 (2)	0.29232 (18)	0.0546 (7)
H010	0.519450	0.638848	0.315118	0.066*
C011	0.4082 (2)	0.4046 (2)	0.22776 (18)	0.0562 (7)
H011	0.380162	0.343944	0.205575	0.067*
C012	0.5814 (2)	0.6344 (3)	0.04445 (18)	0.0600 (8)
H012	0.538405	0.692357	0.036096	0.072*
C013	0.6020 (2)	0.5748 (3)	−0.01504 (17)	0.0641 (9)
H013	0.574255	0.592251	−0.064486	0.077*
C014	0.6013 (2)	0.4161 (2)	0.51114 (18)	0.0596 (8)
H014	0.563129	0.449474	0.546430	0.072*
C015	1.1006 (2)	0.4419 (3)	0.11442 (18)	0.0631 (9)
H015	1.162277	0.438423	0.090210	0.076*
C016	0.6629 (2)	0.4895 (3)	−0.00313 (17)	0.0605 (8)
H016	0.675212	0.446933	−0.044060	0.073*
C017	0.7935 (2)	0.6942 (3)	0.60555 (17)	0.0597 (8)
H017	0.808196	0.691085	0.658545	0.072*
C018	0.6978 (2)	0.7279 (3)	0.57477 (17)	0.0620 (8)
H018	0.647520	0.749834	0.606197	0.074*
C019	0.3849 (2)	0.5628 (3)	0.2862 (2)	0.0664 (9)
H019	0.340823	0.612518	0.304495	0.080*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
O001	0.0373 (9)	0.0563 (11)	0.0461 (10)	0.0146 (8)	−0.0020 (8)	0.0044 (9)
C002	0.0304 (11)	0.0369 (12)	0.0402 (13)	−0.0005 (10)	0.0010 (9)	−0.0003 (10)
C003	0.0314 (11)	0.0352 (12)	0.0373 (12)	−0.0014 (9)	0.0001 (9)	0.0014 (10)
C004	0.0310 (11)	0.0353 (12)	0.0356 (12)	0.0042 (9)	−0.0009 (9)	0.0029 (10)
C005	0.0304 (11)	0.0418 (13)	0.0390 (13)	−0.0037 (10)	0.0002 (9)	0.0032 (11)
C006	0.0286 (11)	0.0377 (12)	0.0370 (12)	0.0014 (9)	0.0000 (9)	0.0027 (10)
C007	0.0319 (12)	0.0330 (12)	0.0441 (13)	−0.0017 (9)	−0.0022 (10)	0.0012 (10)
C008	0.0323 (12)	0.0382 (12)	0.0371 (12)	0.0015 (10)	0.0012 (9)	0.0046 (10)
C009	0.0317 (11)	0.0357 (12)	0.0399 (13)	0.0020 (10)	−0.0015 (10)	−0.0014 (10)
C00A	0.0342 (12)	0.0330 (12)	0.0430 (13)	−0.0026 (10)	−0.0022 (10)	0.0012 (10)
C00B	0.0281 (11)	0.0357 (12)	0.0399 (13)	0.0014 (9)	0.0001 (9)	0.0033 (10)
C00C	0.0295 (11)	0.0384 (12)	0.0402 (13)	0.0009 (10)	0.0001 (9)	0.0044 (10)
C00D	0.0359 (12)	0.0382 (13)	0.0427 (13)	0.0010 (10)	−0.0003 (10)	0.0012 (11)
C00E	0.0326 (12)	0.0439 (13)	0.0399 (13)	−0.0033 (10)	0.0028 (10)	−0.0065 (11)
C00F	0.0365 (12)	0.0375 (12)	0.0442 (13)	0.0018 (10)	0.0004 (10)	−0.0032 (11)
C00G	0.0336 (12)	0.0363 (12)	0.0467 (14)	0.0038 (10)	−0.0040 (10)	−0.0002 (11)
C00H	0.0354 (12)	0.0374 (12)	0.0406 (13)	−0.0023 (10)	−0.0026 (10)	0.0037 (10)
C00I	0.0372 (13)	0.0483 (15)	0.0476 (15)	−0.0062 (11)	0.0051 (11)	−0.0003 (12)
C00J	0.0386 (13)	0.0461 (14)	0.0511 (15)	0.0003 (11)	0.0013 (11)	0.0094 (12)
C00K	0.0366 (13)	0.0476 (14)	0.0475 (14)	−0.0002 (11)	−0.0017 (11)	−0.0115 (12)
C00L	0.0348 (13)	0.0476 (15)	0.0581 (17)	−0.0007 (11)	0.0039 (11)	−0.0070 (13)
C00M	0.0363 (13)	0.0430 (14)	0.0484 (15)	0.0015 (11)	−0.0085 (11)	−0.0030 (11)
C00N	0.0510 (15)	0.0408 (14)	0.0443 (14)	0.0008 (12)	0.0030 (12)	0.0018 (12)
C00O	0.0433 (14)	0.0518 (15)	0.0456 (15)	−0.0032 (12)	0.0010 (11)	−0.0044 (12)
C00P	0.0329 (13)	0.0477 (15)	0.0666 (18)	0.0032 (11)	−0.0019 (12)	−0.0044 (13)
C00Q	0.0429 (14)	0.0548 (16)	0.0435 (14)	−0.0061 (12)	0.0041 (11)	−0.0009 (12)
C00R	0.0454 (15)	0.0606 (17)	0.0427 (14)	0.0011 (13)	−0.0034 (12)	0.0000 (13)
C00S	0.0442 (15)	0.0543 (17)	0.0613 (18)	−0.0015 (13)	0.0073 (13)	0.0221 (14)
C00T	0.0361 (14)	0.0714 (19)	0.0563 (17)	0.0047 (13)	0.0047 (12)	−0.0231 (16)
C00U	0.0416 (14)	0.0568 (17)	0.0541 (16)	0.0062 (13)	0.0045 (12)	−0.0035 (14)
C00V	0.0352 (13)	0.0530 (16)	0.0631 (18)	−0.0025 (12)	0.0072 (12)	−0.0046 (14)
C00W	0.0558 (16)	0.0410 (14)	0.0572 (17)	−0.0044 (13)	−0.0013 (13)	0.0092 (13)
C00X	0.0299 (13)	0.0693 (19)	0.0636 (18)	−0.0053 (13)	0.0003 (12)	−0.0051 (15)
C00Y	0.0439 (14)	0.0451 (15)	0.0647 (18)	0.0092 (12)	0.0189 (13)	0.0135 (13)
C00Z	0.0545 (17)	0.077 (2)	0.0432 (15)	−0.0217 (16)	0.0113 (13)	−0.0096 (15)
C010	0.0306 (13)	0.0502 (16)	0.083 (2)	0.0004 (12)	0.0042 (13)	−0.0159 (15)
C011	0.0453 (15)	0.0571 (17)	0.0655 (19)	−0.0134 (13)	0.0019 (13)	−0.0142 (15)
C012	0.0457 (16)	0.070 (2)	0.0627 (19)	0.0026 (14)	−0.0038 (14)	0.0263 (16)
C013	0.0500 (17)	0.096 (3)	0.0447 (16)	−0.0146 (17)	−0.0056 (13)	0.0216 (17)
C014	0.0509 (16)	0.0635 (19)	0.069 (2)	0.0114 (14)	0.0278 (14)	0.0161 (16)
C015	0.0399 (15)	0.095 (3)	0.0559 (18)	−0.0099 (16)	0.0126 (13)	−0.0251 (18)
C016	0.0504 (16)	0.087 (2)	0.0432 (16)	−0.0170 (16)	0.0014 (13)	−0.0077 (16)
C017	0.0592 (18)	0.077 (2)	0.0427 (15)	0.0018 (16)	0.0020 (13)	−0.0034 (15)
C018	0.0576 (18)	0.077 (2)	0.0524 (17)	0.0048 (16)	0.0122 (14)	−0.0103 (16)
C019	0.0315 (14)	0.067 (2)	0.101 (3)	0.0034 (13)	0.0082 (15)	−0.0238 (19)

Geometric parameters (Å, º) top

O001—C009	1.214 (3)	C00M—H00M	0.9500
C002—C003	1.364 (3)	C00M—C00P	1.378 (4)
C002—C009	1.489 (3)	C00N—H00N	0.9500
C002—C00E	1.476 (3)	C00N—C00W	1.383 (4)
C003—C004	1.512 (3)	C00O—H00O	0.9500
C003—C005	1.474 (3)	C00O—C016	1.388 (4)
C004—C006	1.568 (3)	C00P—H00P	0.9500
C004—C008	1.495 (3)	C00P—C00V	1.381 (4)
C004—C00B	1.503 (3)	C00Q—H00Q	0.9500
C005—C00J	1.389 (4)	C00Q—C00Z	1.390 (4)
C005—C00O	1.387 (4)	C00R—H00R	0.9500
C006—C009	1.505 (3)	C00R—C017	1.380 (4)
C006—C00B	1.508 (3)	C00S—H00S	0.9500
C006—C00C	1.486 (3)	C00S—C00W	1.380 (4)
C007—C00A	1.400 (3)	C00S—C014	1.369 (4)
C007—C00D	1.482 (3)	C00T—H00T	0.9500
C007—C00M	1.404 (3)	C00T—C015	1.378 (5)
C008—C00L	1.377 (4)	C00U—H00U	0.9500
C008—C010	1.376 (4)	C00U—C018	1.384 (4)
C00A—C00H	1.486 (3)	C00V—H00V	0.9500
C00A—C00I	1.390 (3)	C00W—H00W	0.9500
C00B—C00G	1.496 (3)	C00X—H00X	0.9500
C00B—C00H	1.490 (3)	C00X—C011	1.376 (4)
C00C—C00N	1.396 (3)	C00X—C019	1.373 (4)
C00C—C00Y	1.383 (4)	C00Y—H00Y	0.9500
C00D—C00F	1.405 (3)	C00Y—C014	1.385 (4)
C00D—C00R	1.404 (4)	C00Z—H00Z	0.9500
C00E—C00K	1.399 (4)	C00Z—C015	1.375 (5)
C00E—C00Q	1.396 (4)	C010—H010	0.9500
C00F—C00G	1.481 (3)	C010—C019	1.393 (4)
C00F—C00U	1.396 (4)	C011—H011	0.9500
C00G—H00G	1.0000	C012—H012	0.9500
C00G—C00H	1.528 (3)	C012—C013	1.373 (5)
C00H—H00H	1.0000	C013—H013	0.9500
C00I—H00I	0.9500	C013—C016	1.380 (5)
C00I—C00V	1.385 (4)	C014—H014	0.9500
C00J—H00J	0.9500	C015—H015	0.9500
C00J—C012	1.384 (4)	C016—H016	0.9500
C00K—H00K	0.9500	C017—H017	0.9500
C00K—C00T	1.387 (4)	C017—C018	1.380 (4)
C00L—H00L	0.9500	C018—H018	0.9500
C00L—C011	1.390 (4)	C019—H019	0.9500

C003—C002—C009	109.4 (2)	C011—C00L—H00L	119.7
C003—C002—C00E	129.9 (2)	C007—C00M—H00M	119.3
C00E—C002—C009	120.3 (2)	C00P—C00M—C007	121.3 (2)
C002—C003—C004	111.8 (2)	C00P—C00M—H00M	119.3
C002—C003—C005	128.2 (2)	C00C—C00N—H00N	119.5
C005—C003—C004	120.0 (2)	C00W—C00N—C00C	121.0 (3)
C003—C004—C006	104.97 (18)	C00W—C00N—H00N	119.5
C008—C004—C003	120.7 (2)	C005—C00O—H00O	119.8
C008—C004—C006	120.30 (19)	C005—C00O—C016	120.5 (3)
C008—C004—C00B	123.5 (2)	C016—C00O—H00O	119.8
C00B—C004—C003	111.65 (19)	C00M—C00P—H00P	119.7
C00B—C004—C006	58.78 (15)	C00M—C00P—C00V	120.6 (2)
C00J—C005—C003	120.4 (2)	C00V—C00P—H00P	119.7
C00O—C005—C003	120.5 (2)	C00E—C00Q—H00Q	119.6
C00O—C005—C00J	119.1 (2)	C00Z—C00Q—C00E	120.7 (3)
C009—C006—C004	104.23 (18)	C00Z—C00Q—H00Q	119.6
C009—C006—C00B	111.50 (19)	C00D—C00R—H00R	119.3
C00B—C006—C004	58.47 (14)	C017—C00R—C00D	121.5 (3)
C00C—C006—C004	121.97 (19)	C017—C00R—H00R	119.3
C00C—C006—C009	119.0 (2)	C00W—C00S—H00S	120.3
C00C—C006—C00B	125.6 (2)	C014—C00S—H00S	120.3
C00A—C007—C00D	120.8 (2)	C014—C00S—C00W	119.3 (3)
C00A—C007—C00M	117.6 (2)	C00K—C00T—H00T	119.6
C00M—C007—C00D	121.5 (2)	C015—C00T—C00K	120.7 (3)
C00L—C008—C004	119.4 (2)	C015—C00T—H00T	119.6
C010—C008—C004	122.0 (2)	C00F—C00U—H00U	119.6
C010—C008—C00L	118.5 (2)	C018—C00U—C00F	120.9 (3)
O001—C009—C002	126.2 (2)	C018—C00U—H00U	119.6
O001—C009—C006	124.8 (2)	C00I—C00V—H00V	120.4
C002—C009—C006	109.06 (19)	C00P—C00V—C00I	119.1 (3)
C007—C00A—C00H	120.5 (2)	C00P—C00V—H00V	120.4
C00I—C00A—C007	120.5 (2)	C00N—C00W—H00W	119.9
C00I—C00A—C00H	118.8 (2)	C00S—C00W—C00N	120.3 (3)
C004—C00B—C006	62.75 (15)	C00S—C00W—H00W	119.9
C00G—C00B—C004	143.8 (2)	C011—C00X—H00X	120.4
C00G—C00B—C006	139.7 (2)	C019—C00X—H00X	120.4
C00H—C00B—C004	132.4 (2)	C019—C00X—C011	119.1 (2)
C00H—C00B—C006	131.5 (2)	C00C—C00Y—H00Y	119.5
C00H—C00B—C00G	61.54 (16)	C00C—C00Y—C014	121.1 (3)
C00N—C00C—C006	119.5 (2)	C014—C00Y—H00Y	119.5
C00Y—C00C—C006	122.8 (2)	C00Q—C00Z—H00Z	119.8
C00Y—C00C—C00N	117.7 (2)	C015—C00Z—C00Q	120.4 (3)
C00F—C00D—C007	120.5 (2)	C015—C00Z—H00Z	119.8
C00R—C00D—C007	122.0 (2)	C008—C010—H010	119.5
C00R—C00D—C00F	117.3 (2)	C008—C010—C019	120.9 (3)
C00K—C00E—C002	121.0 (2)	C019—C010—H010	119.5
C00Q—C00E—C002	120.6 (2)	C00L—C011—H011	119.7
C00Q—C00E—C00K	118.1 (2)	C00X—C011—C00L	120.5 (3)
C00D—C00F—C00G	120.6 (2)	C00X—C011—H011	119.7
C00U—C00F—C00D	120.4 (2)	C00J—C012—H012	119.8
C00U—C00F—C00G	119.0 (2)	C013—C012—C00J	120.4 (3)
C00B—C00G—H00G	115.7	C013—C012—H012	119.8
C00B—C00G—C00H	59.01 (16)	C012—C013—H013	120.0
C00F—C00G—C00B	120.8 (2)	C012—C013—C016	120.1 (3)
C00F—C00G—H00G	115.7	C016—C013—H013	120.0
C00F—C00G—C00H	117.8 (2)	C00S—C014—C00Y	120.6 (3)
C00H—C00G—H00G	115.7	C00S—C014—H014	119.7
C00A—C00H—C00B	117.3 (2)	C00Y—C014—H014	119.7
C00A—C00H—C00G	117.8 (2)	C00T—C015—H015	120.2
C00A—C00H—H00H	116.7	C00Z—C015—C00T	119.6 (3)
C00B—C00H—C00G	59.44 (16)	C00Z—C015—H015	120.2
C00B—C00H—H00H	116.7	C00O—C016—H016	120.1
C00G—C00H—H00H	116.7	C013—C016—C00O	119.8 (3)
C00A—C00I—H00I	119.6	C013—C016—H016	120.1
C00V—C00I—C00A	120.8 (3)	C00R—C017—H017	119.7
C00V—C00I—H00I	119.6	C00R—C017—C018	120.6 (3)
C005—C00J—H00J	119.9	C018—C017—H017	119.7
C012—C00J—C005	120.2 (3)	C00U—C018—H018	120.4
C012—C00J—H00J	119.9	C017—C018—C00U	119.1 (3)
C00E—C00K—H00K	119.8	C017—C018—H018	120.4
C00T—C00K—C00E	120.5 (3)	C00X—C019—C010	120.2 (3)
C00T—C00K—H00K	119.8	C00X—C019—H019	119.9
C008—C00L—H00L	119.7	C010—C019—H019	119.9
C008—C00L—C011	120.7 (3)

C002—C003—C004—C006	−4.7 (3)	C009—C006—C00C—C00N	−26.6 (3)
C002—C003—C004—C008	−144.7 (2)	C009—C006—C00C—C00Y	154.2 (2)
C002—C003—C004—C00B	57.2 (3)	C00A—C007—C00D—C00F	3.5 (4)
C002—C003—C005—C00J	−143.8 (3)	C00A—C007—C00D—C00R	−172.2 (2)
C002—C003—C005—C00O	38.0 (4)	C00A—C007—C00M—C00P	1.3 (4)
C002—C00E—C00K—C00T	−174.8 (2)	C00A—C00I—C00V—C00P	−0.1 (4)
C002—C00E—C00Q—C00Z	175.0 (2)	C00B—C004—C006—C009	−106.7 (2)
C003—C002—C009—O001	171.5 (2)	C00B—C004—C006—C00C	114.9 (3)
C003—C002—C009—C006	−7.7 (3)	C00B—C004—C008—C00L	−158.5 (2)
C003—C002—C00E—C00K	−151.5 (3)	C00B—C004—C008—C010	20.7 (4)
C003—C002—C00E—C00Q	34.9 (4)	C00B—C006—C009—O001	124.0 (3)
C003—C004—C006—C009	−0.2 (2)	C00B—C006—C009—C002	−56.8 (2)
C003—C004—C006—C00B	106.5 (2)	C00B—C006—C00C—C00N	177.9 (2)
C003—C004—C006—C00C	−138.6 (2)	C00B—C006—C00C—C00Y	−1.4 (4)
C003—C004—C008—C00L	46.1 (3)	C00B—C00G—C00H—C00A	−106.9 (2)
C003—C004—C008—C010	−134.7 (3)	C00C—C006—C009—O001	−34.8 (3)
C003—C004—C00B—C006	−94.8 (2)	C00C—C006—C009—C002	144.4 (2)
C003—C004—C00B—C00G	126.7 (3)	C00C—C006—C00B—C004	−109.0 (2)
C003—C004—C00B—C00H	27.8 (3)	C00C—C006—C00B—C00G	33.8 (4)
C003—C005—C00J—C012	179.9 (2)	C00C—C006—C00B—C00H	127.2 (3)
C003—C005—C00O—C016	179.1 (2)	C00C—C00N—C00W—C00S	0.0 (4)
C004—C003—C005—C00J	33.2 (3)	C00C—C00Y—C014—C00S	−0.6 (5)
C004—C003—C005—C00O	−145.0 (2)	C00D—C007—C00A—C00H	−12.4 (3)
C004—C006—C009—O001	−174.7 (2)	C00D—C007—C00A—C00I	172.3 (2)
C004—C006—C009—C002	4.5 (2)	C00D—C007—C00M—C00P	−174.4 (2)
C004—C006—C00B—C00G	142.8 (3)	C00D—C00F—C00G—C00B	55.7 (3)
C004—C006—C00B—C00H	−123.9 (3)	C00D—C00F—C00G—C00H	−13.0 (3)
C004—C006—C00C—C00N	106.0 (3)	C00D—C00F—C00U—C018	−3.9 (4)
C004—C006—C00C—C00Y	−73.2 (3)	C00D—C00R—C017—C018	−1.4 (5)
C004—C008—C00L—C011	179.5 (3)	C00E—C002—C003—C004	−165.0 (2)
C004—C008—C010—C019	−179.8 (3)	C00E—C002—C003—C005	12.2 (4)
C004—C00B—C00G—C00F	130.1 (3)	C00E—C002—C009—O001	−15.0 (4)
C004—C00B—C00G—C00H	−124.0 (4)	C00E—C002—C009—C006	165.8 (2)
C004—C00B—C00H—C00A	−113.8 (3)	C00E—C00K—C00T—C015	0.5 (4)
C004—C00B—C00H—C00G	138.5 (3)	C00E—C00Q—C00Z—C015	−0.9 (4)
C005—C003—C004—C006	177.9 (2)	C00F—C00D—C00R—C017	−1.7 (4)
C005—C003—C004—C008	37.8 (3)	C00F—C00G—C00H—C00A	4.2 (3)
C005—C003—C004—C00B	−120.2 (2)	C00F—C00G—C00H—C00B	111.1 (2)
C005—C00J—C012—C013	0.9 (4)	C00F—C00U—C018—C017	0.7 (5)
C005—C00O—C016—C013	1.1 (4)	C00G—C00B—C00H—C00A	107.8 (2)
C006—C004—C008—C00L	−88.0 (3)	C00G—C00F—C00U—C018	175.1 (3)
C006—C004—C008—C010	91.3 (3)	C00H—C00A—C00I—C00V	−172.5 (2)
C006—C004—C00B—C00G	−138.4 (4)	C00H—C00B—C00G—C00F	−106.0 (2)
C006—C004—C00B—C00H	122.6 (3)	C00I—C00A—C00H—C00B	115.6 (3)
C006—C00B—C00G—C00F	15.8 (4)	C00I—C00A—C00H—C00G	−176.4 (2)
C006—C00B—C00G—C00H	121.7 (3)	C00J—C005—C00O—C016	0.9 (4)
C006—C00B—C00H—C00A	−24.9 (4)	C00J—C012—C013—C016	1.2 (5)
C006—C00B—C00H—C00G	−132.7 (3)	C00K—C00E—C00Q—C00Z	1.3 (4)
C006—C00C—C00N—C00W	−179.8 (2)	C00K—C00T—C015—C00Z	−0.1 (4)
C006—C00C—C00Y—C014	180.0 (3)	C00L—C008—C010—C019	−0.6 (5)
C007—C00A—C00H—C00B	−59.7 (3)	C00M—C007—C00A—C00H	171.9 (2)
C007—C00A—C00H—C00G	8.3 (3)	C00M—C007—C00A—C00I	−3.4 (4)
C007—C00A—C00I—C00V	2.8 (4)	C00M—C007—C00D—C00F	179.1 (2)
C007—C00D—C00F—C00G	9.5 (4)	C00M—C007—C00D—C00R	3.4 (4)
C007—C00D—C00F—C00U	−171.6 (2)	C00M—C00P—C00V—C00I	−2.0 (4)
C007—C00D—C00R—C017	174.1 (3)	C00N—C00C—C00Y—C014	0.7 (4)
C007—C00M—C00P—C00V	1.3 (4)	C00O—C005—C00J—C012	−1.9 (4)
C008—C004—C006—C009	140.1 (2)	C00Q—C00E—C00K—C00T	−1.1 (4)
C008—C004—C006—C00B	−113.2 (2)	C00Q—C00Z—C015—C00T	0.3 (4)
C008—C004—C006—C00C	1.7 (3)	C00R—C00D—C00F—C00G	−174.6 (2)
C008—C004—C00B—C006	107.8 (2)	C00R—C00D—C00F—C00U	4.4 (4)
C008—C004—C00B—C00G	−30.6 (5)	C00R—C017—C018—C00U	2.0 (5)
C008—C004—C00B—C00H	−129.6 (3)	C00U—C00F—C00G—C00B	−123.3 (3)
C008—C00L—C011—C00X	0.2 (5)	C00U—C00F—C00G—C00H	168.0 (2)
C008—C010—C019—C00X	0.4 (5)	C00W—C00S—C014—C00Y	0.1 (5)
C009—C002—C003—C004	7.7 (3)	C00Y—C00C—C00N—C00W	−0.5 (4)
C009—C002—C003—C005	−175.1 (2)	C010—C008—C00L—C011	0.3 (4)
C009—C002—C00E—C00K	36.5 (3)	C011—C00X—C019—C010	0.1 (5)
C009—C002—C00E—C00Q	−137.1 (2)	C012—C013—C016—C00O	−2.2 (5)
C009—C006—C00B—C004	93.9 (2)	C014—C00S—C00W—C00N	0.2 (4)
C009—C006—C00B—C00G	−123.3 (3)	C019—C00X—C011—C00L	−0.4 (5)
C009—C006—C00B—C00H	−30.0 (3)

Intramolecular short contacts (Å) in 6 (see Figure 2) top

Entry number	Site 1	Site 2	Distance
1	O1	Centroid A	3.472 (2)
2	O1	C40	2.905 (3)
3	C2	H26	2.562 (2)
4	O1	H40	2.4051 (18)
5	H6	H9	2.05002 (4)

Normal-to-normal plane angles (°) between the cyclopentenone ring and its phenyl substituents in 6 (see Figure 2) top

Entry number	Color of ring	Angle
1	Green	57.29 (9)
2	Blue	73.67 (10)
3	Magenta	35.06 (9)
4	Orange	39.71 (9)

Intramolecular short contacts (Å) in the supramolecular crystal structure of 6 (see Figure 5) top

Entry number	Site 1	Site 2	Symmetry operation	Distance
1	O1	H6	2 - x, 1 - y, 1 - z	2.3977 (16)
2	O1	H9	2 - x, 1 - y, 1 - z	2.5362 (18)
3	C40	H1	3/2 - x, -1/2 + y, 1/2 - z	2.782 (3)
4	H24	C41	-1/2 + x, 1/2 - y, 1/2 + z	2.790 (3)

Acknowledgements

The authors thank Drs Steven Kelley and Joseph Riebenspies for helpful discussions regarding manuscript preparation and formatting of the CIF file. Dr Maksym Seredyuk is gratefully acknowledged for his advice regarding the presentation of Fig. 6. The authors declare no competing financial interest. All authors have given approval to the final version of the manuscript.

Funding information

Funding for this research was provided by: National Science Foundation, Directorate for Mathematical and Physical Sciences (grant No. CHE-2400007 to DMT).

References

Becke, A. D. (1988). Phys. Rev. A 38, 3098–3100. CrossRef CAS Google Scholar
Becke, A. D. (1993). J. Chem. Phys. 98, 5648–5652. CrossRef CAS Web of Science Google Scholar
Bruker (2021). APEX4 and SAINT-Plus. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Neese, F., Wennmohs, F., Becker, U. & Riplinger, C. (2020). J. Chem. Phys. 152, 224108. Web of Science CrossRef PubMed Google Scholar
Nguyen, J. M. & Thamattoor, D. M. (2007). Synthesis, pp. 2093–2094. Google Scholar
Riplinger, C. & Neese, F. (2013). J. Chem. Phys. 138, 034106. Web of Science CrossRef PubMed Google Scholar
Riplinger, C., Pinski, P., Becker, U., Valeev, E. F. & Neese, F. (2016). J. Chem. Phys. 144, 024109. Web of Science CrossRef PubMed Google Scholar
Riplinger, C., Sandhoefer, B., Hansen, A. & Neese, F. (2013). J. Chem. Phys. 139, 134101. Web of Science CrossRef PubMed Google Scholar
Roth, A. D. & Thamattoor, D. M. (2024). Org. Lett. 26, 3840–3843. Web of Science CSD CrossRef CAS PubMed Google Scholar
Sheldrick, G. M. (2015). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Weigend, F. (2006). Phys. Chem. Chem. Phys. 8, 1057–1065. Web of Science CrossRef PubMed CAS Google Scholar
Weigend, F. & Ahlrichs, R. (2005). Phys. Chem. Chem. Phys. 7, 3297–3305. Web of Science CrossRef PubMed CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
