Crystal structures of three 4-methyl­piperidinium salts (one as three polymorphs) with tetrahalogenidoaurate(III), halide and (in one case) di­chloro­iodate(I) counter-anions

Döring, C.; Jones, P.G.

doi:10.1107/S2056989025004918

Acta Crystallographica Section E
Acta Crystallographica
Section E CRYSTALLOGRAPHIC COMMUNICATIONS

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

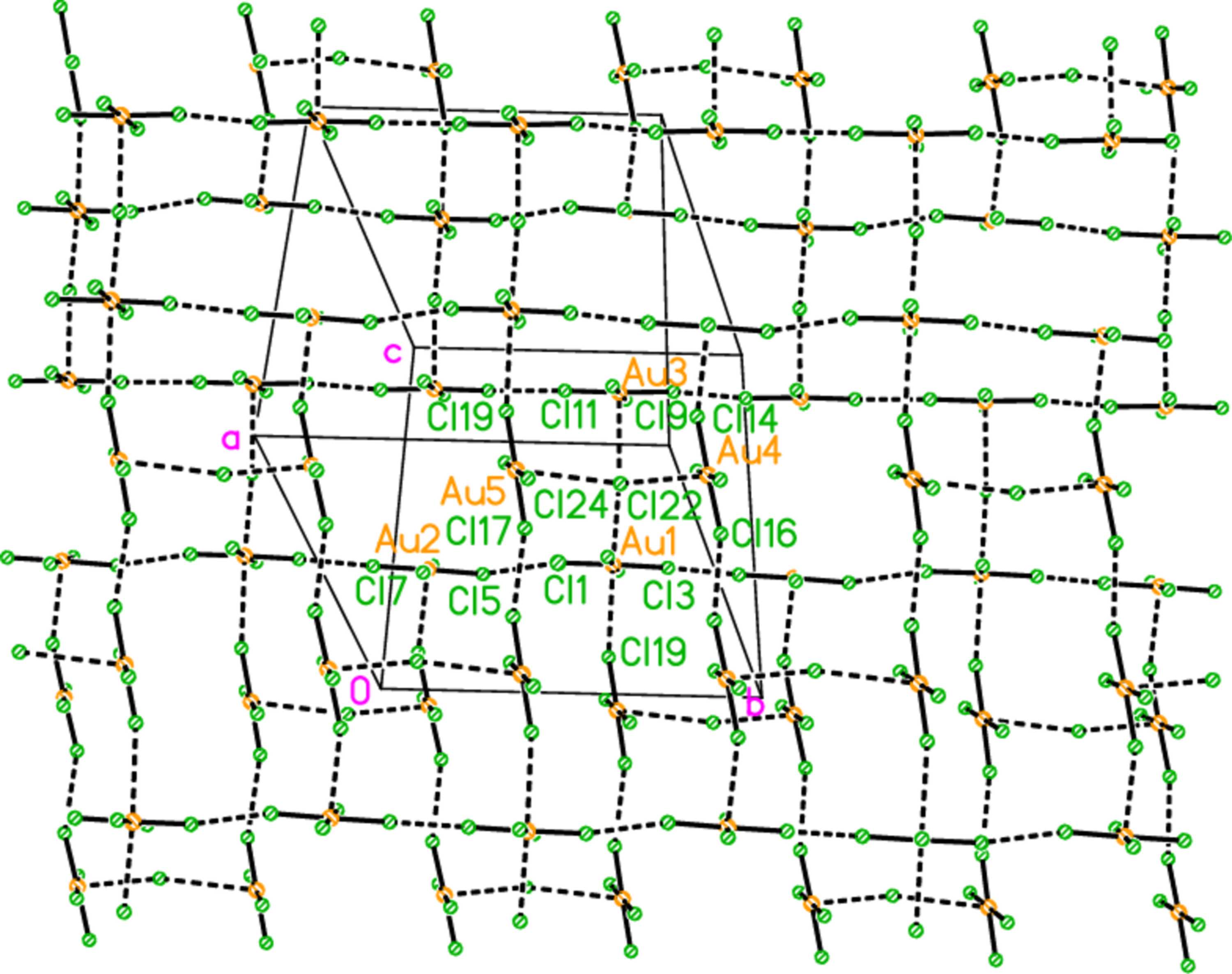

Figure 19
The tetrachloridoaurate/chloride substructure of compound 2, polymorph 2c, viewed perpendicular to ( $[\overline{1}]$ 0 2). Dashed lines indicate Au⋯Cl or Cl⋯Cl contacts. In this view direction, the labelled free chlorides Cl22 (bridging Au4 and Au5) and Cl24 (bridging Au1 and Au3) exactly overlap in the centre of the diagram. Further out, towards the edges, they can be distinguished clearly. The atoms Au2, Cl5 and Cl7 are transformed by (−x, 1 − y, 1 − z) from the asymmetric unit.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 7| July 2025| Pages 600-612

https://doi.org/10.1107/S2056989025004918
