Figure 24

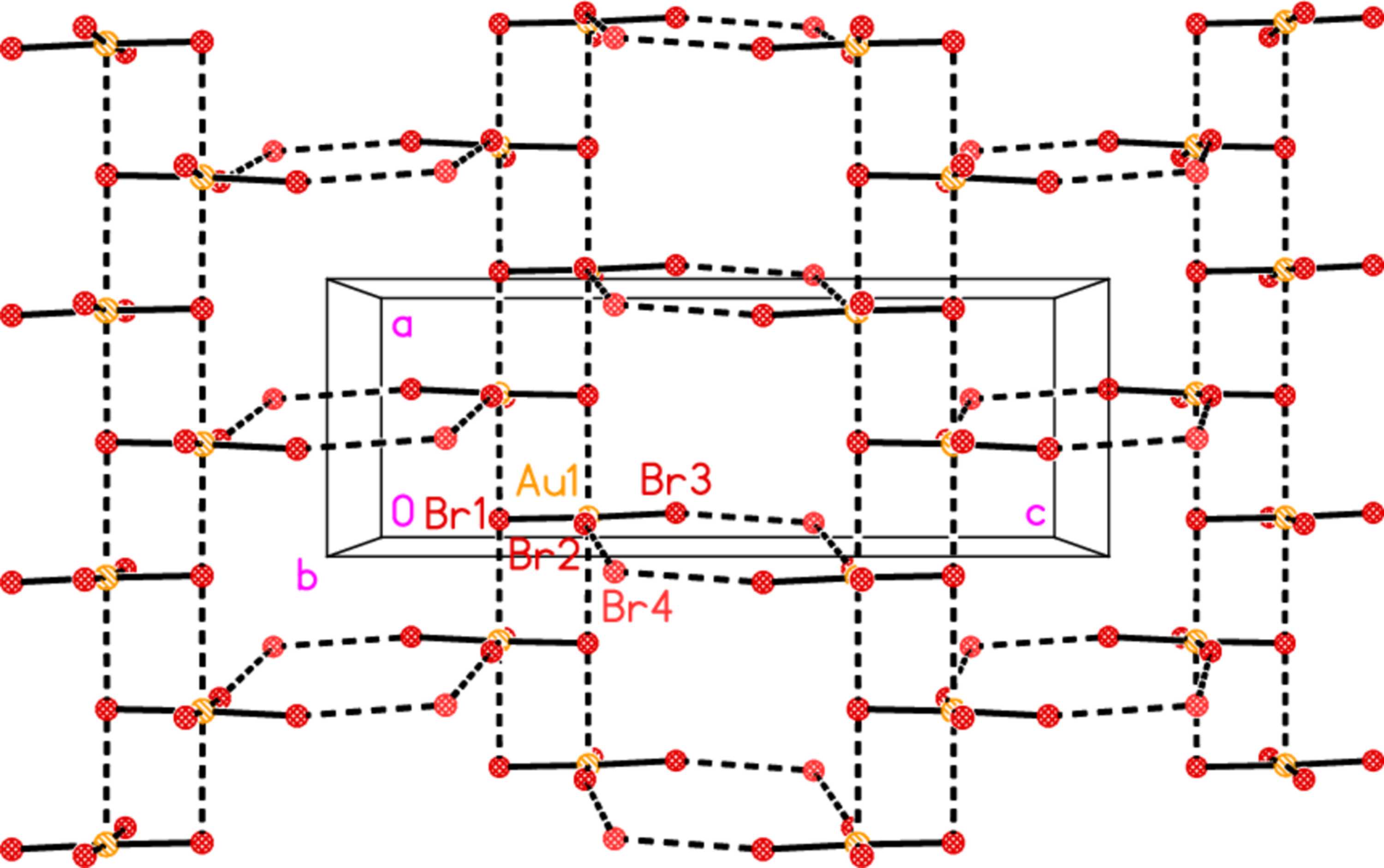

A section of the three-dimensional packing of GEVHAR (Rajeswaran et al., 2007BB18), drawn from the coordinates stored in the CSD. Dashed lines indicate Br⋯Br contacts. The space group is Pnma and the view direction is parallel to the b axis. Atoms Au1, Br1 and Br3 lie in the mirror planes at y = 0.25; Br4, the free bromide, lies in the mirror plane at y = 0.75. Further Br4⋯Br2 and Br4⋯Br3 contacts (3.588 and 3.818 Å respectively) connect the `ladder' substructures, extending the structure in the view direction.

Journal logoCRYSTALLOGRAPHIC
COMMUNICATIONS
ISSN: 2056-9890
Volume 81| Part 7| July 2025| Pages 600-612
https://doi.org/10.1107/S2056989025004918
