catena-Poly[[(5,5′-dimethyl-2,2′-bi­pyridine)nickel(II)]-μ2-azido-κ2N:N-μ2-azido-κ2N:N′]: synthesis, crystal structure, Hirshfeld surface analysis and DFT calculations

Setifi, Z.; Setifi, F.; Geiger, D.K.; Maris, T.; Aljerf, L.; Glidewell, C.

doi:10.1107/S2056989025008151

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 10| October 2025| Pages 977-981

https://doi.org/10.1107/S2056989025008151

Open

access

catena-Poly[[(5,5′-dimethyl-2,2′-bipyridine)nickel(II)]-μ₂-azido-κ²N:N-μ₂-azido-κ²N:N′]: synthesis, crystal structure, Hirshfeld surface analysis and DFT calculations

Zouaoui Setifi,^a,^b Fatima Setifi,^b ^* David K. Geiger,^c Thierry Maris,^d Loai Aljerf ^e ^* and Christopher Glidewell ^f

^aDépartement de Technologie, Faculté de Technologie, Université 20 Août 1955-Skikda, BP 26, Route d'El-Hadaiek, Skikda 21000, Algeria, ^bLaboratoire de Chimie, Ingénierie Moléculaire et Nanostructures (LCIMN), Université Ferhat Abbas Sétif 1, Sétif 19000, Algeria, ^cDepartment of Chemistry, SUNY-College at Geneseo, Geneseo, NY 14454, USA, ^dDepartment of Chemistry, Université de Montréal, Campus MIL, 1375 Avenue Thérèse Lavoie-Roux, Montréal (Québec) H2V 0B3, Canada, ^eLaboratory of Organic Industries, Department of Chemistry, Faculty of Sciences, Damascus University, Damascus, Syrian Arab Republic, and ^fSchool of Chemistry, University of St Andrews, St Andrews, Fife KY16 9ST, United Kingdom
^*Correspondence e-mail: [email protected], [email protected]

Edited by T. Akitsu, Tokyo University of Science, Japan (Received 11 September 2025; accepted 13 September 2025; online 23 September 2025)

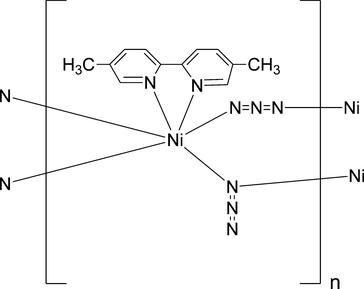

The title compound, [Ni(N₃)₂(C₁₂H₁₂N₂)]_n, was synthesized solvothermally and characterized crystallographically. The compound forms a one-dimensional coordination polymer containing alternating spiro-fused four- and eight-membered rings, in which both ring types are centrosymmetric. Adjacent polymer chains are linked into sheets by means of a single C—H⋯N hydrogen bond. Hirshfeld surface analysis was used to investigate the intermolecular interactions. DFT calculations were used to explore the conformation of the bridging azides and to compare the stability of this compound with those previously reported [Setifi et al. (2022 ). Acta Cryst. C78, 449–454].

Keywords: solvothermal synthesis; nickel complex; azido ligand; crystal structure; coordination polymer; Hirshfeld surface analysis; DFT calculations.

CCDC reference: 2487940

1. Chemical context

Coordination polymers (CPs) have received significant attention due to their interesting and diverse topologies, and potential applications in various fields including magnetism (Setifi et al., 2009 ; Yuste et al., 2009 ; Merabet et al., 2022 ; He et al., 2018 ). Various coordination polymers from 1D to 3D networks along with their magnetic studies have been reported (Atmani et al., 2008 ; Benmansour et al., 2008 , 2010 ). The structural flexibility and electronic characteristics of the organic ligand, and also the nature of the metal ion are important factors for the construction of CPs (He et al., 2014 ). In addition, the dimensionality of CPs could be enhanced by selection of suitable linkers. Cyanocarbanions and pseudohalides are interesting bridging ligands because of their structural versatility in coordination chemistry (Benmansour et al., 2007 ; Mautner et al., 2019 ; Dmitrienko et al., 2020 ). In particular, the azide ion is a highly symmetric anion that has small size and linear shape. Hence, it has a high ability to propagate magnetic interactions between paramagnetic centres, leading to CPs with interesting magnetic properties (Setifi et al., 2016 ; Setifi, Setifi et al., 2022). Additionally, the coordinated azide has two N—N bonds, which are less symmetric compared to the free one where the degree of asymmetry depends on the azide bonding mode. Among the pool of bonding modes of azide ions, the end-on (EO) and end-to-end (EE) are the most prevalent. These bridging modes are responsible for the construction of coordination compounds with varying nuclearity and dimensionality (Benamara et al., 2021 ; Merabet et al., 2023 ).

In the light of the exciting coordination chemistry of the azide ion as a linker, the current work aimed to synthesize new azido CPs comprising 5,5′-dimethyl-2,2′-dipyridine as co-ligand and the azide anion as ligand. The crystal and molecular structures of the title compound (I) are described, a study complemented by an analysis of the molecular packing by calculating the Hirshfeld surfaces as well as a computational chemistry study.

2. Structural commentary

The structure consists of a bidentate 5,5′-dimethyl-2,2′-dipyridine ligand coordinated to the nickel(II) centre along with two azido ligands (Fig. 1). Each of the anionic ligands acts a bridge between two metal centres, but they act in different ways. For one of the azido ligands, the two terminal atoms N31 and N33 (Fig. 1) coordinate to two inversion-related Ni centres, so forming a centrosymmetric eight-membered ring (Fig. 2). In the other azido ligand, one of the terminal atoms, N41, coordinates to a different pair of inversion-related Ni centres, so forming a centrosymmetric four-membered ring (Fig. 2), but the other terminal atom, N43, plays no part in the coordination. The resulting polymeric structure is thus a chain of spiro-fused rings running parallel to the [100] direction, in which four-membered rings centred at (n + 0.5, 0.5, 0.5) alternate with eight-membered rings centred at (n, 0.5, 0.5), where n represents an integer in each case (Fig. 2). Regardless of the coordination modes, the N—N distances (Table 1) are all closely grouped within the range 2.045 (5) to 2.171 (7) Å and the N—N distances within the two independent azido ligands are all quite similar. Within the dipyridine ligand, the two independent rings are not quite coplanar, the dihedral angle between the rings being 3.9 (3) °.

Table 1
Selected bond lengths (Å)

Ni1—N11	2.045 (5)	Ni1—N41ⁱⁱ	2.165 (6)
Ni1—N21	2.074 (5)	N31—N32	1.167 (7)
Ni1—N31	2.096 (5)	N32—N33	1.175 (8)
Ni1—N41	2.090 (6)	N41—N42	1.217 (7)
Ni1—N33ⁱ	2.171 (7)	N42—N43	1.141 (8)
Symmetry codes: (i) ; (ii) .

Figure 1
The selected asymmetric unit in compound (I)

showing the atom-labelling scheme. Displacement ellipsoids are drawn at the 30% probability level.

Figure 2
Part of the crystal structure of compound (I)

showing the formation of a chain of alternating four- and eight-membered rings running parallel to the [100] direction. For the sake of clarity, the H atoms have all been omitted. For symmetry codes, see Tables 1

–3

Within the selected asymmetric unit (Fig. 1), the metallacyclic ring is effectively planar, while the centrosymmetric four-membered ring in the coordination polymer is necessarily planar. The eight-membered ring in the polymer adopts a chair form: the six N atoms within this ring are almost coplanar, with an r.m.s. deviation from the mean plane of only 0.100 Å, but the inversion-related Ni atoms are displaced from this plane by 0.702 (10) Å.

3. Supramolecular features

There is only one significant hydrogen bond in the structure of compound (I) (Table 2), and this gives rise to a chain of rings running parallel to the [101] direction (Fig. 3). Within this chain, hydrogen bonded rings of the R₂²(18) type (Etter, 1990 ; Etter et al., 1990 ; Bernstein et al., 1995 ) are centred at (n, 0.5, n), where n represents an integer, and these rings alternate with four-membered metallacyclic rings centred at (n + 0.5, 0.5, n + 0.5), where n again represents an integer. The combination of chains of this type parallel to [101] and the coordination polymer chains parallel to [100] gives rise to a complex sheet lying parallel to (001), where the reference chain lies in the domain 0.25 < y < 0.75 (Fig. 4). A second sheet, related to the reference sheet by the translational symmetry elements, lies in the domain 0.75 < y < 1.25.

Table 2
Hydrogen-bond and short intermolecular contact parameters (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C14—H14⋯N43ⁱⁱⁱ	0.95	2.50	3.334 (9)	147
C17—H17C⋯N43^iv	0.98	2.55	3.492 (11)	162
Symmetry codes: (iii) ; (iv) $[x+{\script{1\over 2}}, -y+{\script{3\over 2}}, z+{\script{1\over 2}}]$ .

Figure 3
Part of the crystal structure of compound (I)

showing the formation of a chain of rings running parallel to the [101] direction. Hydrogen bonds are drawn as dashed lines, and the H atoms which are not involved in the motif shown have been omitted. For symmetry codes, see Tables 2

–4

Figure 4
Part of the crystal structure of compound (I)

showing the formation of a sheet parallel to (010) formed by hydrogen bonding between adjacent coordination polymer chains. Hydrogen bonds are drawn as dashed lines, and the H atoms which are not involved in the motif shown have been omitted. For symmetry codes (i) to (iv), see Tables 1

–3

. Symmetry code: (v) 2 − x, 1 − y, 2 − z.

The only other short C—H⋯N contact involves one of the methyl groups (Table 2), but this contact is unlikely to be of structural significance, not only because methyl C—H bonds are of low acidity, but because such methyl groups are usually undergoing very rapid rotation about the adjacent C—C bond (Riddell & Rogerson, 1996 , 1997 ), while sixfold rotational barriers, of the type found in methyl arenes, are particularly small (Tannenbaum et al., 1956 ; Naylor & Wilson, 1957 ).

There is a single anion⋯π interaction (Table 3), which lies within the reference coordination polymer chain; there is also a short π–π contact [centroid–centroid distance = 3.889 '(3) Å] lying in the hydrogen-bonded sheet. Thus neither of these interactions has any effect on the overall dimensionality of the supramolecular assembly.

Table 3
Parameters (Å, °) for the short anion⋯π contact

Cg1 represents the centroid of the N21/C22–C26 ring.

N42—N43⋯Cg1	N42—N43	N43⋯Cg	N42⋯Cg	N42—N43⋯Cg
N42—N43⋯Cg1ⁱⁱ	1.141 (8)	3.967 (8)	3.917 (6)	79.2 (5)
Symmetry code: (ii) 1 − x, 1 − y, 1 − z.

4. Database survey

A search of the Cambridge Structural Database [Version 6.00 with one update (August 2025); Groom et al., 2016 ] returned about 162 structures with nickel linked to at least one azido ligand. Among them, 31 structures have an eight-membered ring as found in the title compound, while the four-membered rings involving a pendant azido ligand is found in 98 structures. Two structures only involve both rings: HISLEB (Song et al., 2007 ) and ZIJFUT01 (Monfort et al., 2000 ). A search for compounds with nickel linked to 5,5′-dimethyl-2,2′-bipyridine ligand returned 26 hits. Only two structures include both the azido ion and the 5,5′-dimethyl-2,2′-bipyridine ligand, MUBWEM (Phatchimkun et al., 2009 ) and POMFAZ (Hou et al., 2008 ), the later featuring a four-membered ring.

5. Hirshfeld surface analysis and interaction energy calculations

The Hirshfeld surface analyses were performed using the program CrystalExplorer17 (Spackman et al., 2021 ; Turner et al., 2017 ). All energy calculations were performed on molecules in the gas phase using SPARTAN'20 (Wavefunction, 2020 ). DFT calculations using the M06-2X (Zhao & Truhlar, 2008 ) functionals with a 6-31G(d,p) basis set were employed. Atomic coordinates obtained from the crystallographic analysis were used for all non-H atoms. As the bond lengths obtained for H atoms from X-ray crystallographic analyses are inaccurate, the positions of the H atoms were adjusted based on normalized values determined by neutron diffraction results.

The Hirshfeld surface and fingerprint plots are displayed in Fig. 5. Calculations were performed on the asymmetric unit. The closeness of interactions is indicated on a diminishing scale from red to blue. Thus, the reddest regions of the surface correspond to the Ni—N(azide) bonds (see the Ni–N inset in Fig. 5). The weak π–π interaction is responsible for the blue patch observed in the C⋯C inset. Finally, the C—H⋯N hydrogen bond is represented in the N⋯H inset. Surface coverage corresponds to 31.9% H⋯H, 14.5% C⋯H, 31.0% N⋯H, 9.9% N⋯N and 4.3% C⋯C.

Figure 5
Hirshfeld surface and fingerprint plots.

We recently reported the structures of dimorphic forms of an iron(II) complex (Setifi, Bernès et al., 2022). A significant structural difference between the two forms (one P $[\overline{1}]$ and the other P2₁/c) is the conformation of the eight-membered Fe(μ-1,3-N₃)₂ ring. Although the ring in both structures exhibits a chair conformation, the angle δ, defined as the angle formed by the (N₃)₂ mean plane and the plane formed by the metal and the bonded N(azide) atoms, is 8.2° in the triclinic form and 25.6° in the monoclinic form. DFT calculations revealed that the monoclinic form is more stable than the triclinic form by ca 30.5 kJ mol⁻¹. In the nickel(II) complex, δ = 27.6°. DFT calculations show that this structure is ca 20.83 kJ mol⁻¹ more stable than a hypothetical structure in which δ is reduced to 8.2°.

6. Synthesis and crystallization

A mixture of nickel(II) nitrate hexahydrate (58 mg, 0.2 mmol), 5,5′-dimethyl-2,2′-bipyridine (37 mg, 0.2 mmol), sodium azide (26 mg, 0.4 mmol), N,N-dimethylformamide (12 ml) and water (6 ml) was sonicated for 30 min. Then the reaction mixture was transferred to a Teflon-lined stainless steel reactor and placed in the oven. Subsequently, the temperature was kept 403 K for 2 days. After cooling to room temperature at a rate of 10 Kh⁻¹, green block-shaped crystals of (I) were obtained.

7. Refinement

Crystal data, data collection and refinement details are summarized in Table 4. The refinement was handled as a two-component twin, with twin matrix (1,0,0/0,-1,0/-1,0,-1) and with refined twin fractions 0.486 (3) and 0.514 (3). All H atoms were located in difference maps and then treated as riding atoms in geometrically idealized positions with C—H distances of 0.95 Å (pyridine) or 0.98 Å (methyl) and with U_iso(H) = kU_eq(C), where k = 1.5 for the methyl groups, which were permitted to rotate but not to tilt, and 1.2 for the pyridine H atoms.

Table 4
Experimental details

Crystal data
Chemical formula	[Ni(N₃)₂(C₁₂H₁₂N₂)]
M_r	327.01
Crystal system, space group	Monoclinic, P2₁/n
Temperature (K)	150
a, b, c (Å)	7.2641 (9), 18.395 (2), 10.5001 (12)
β (°)	110.223 (7)
V (Å³)	1316.6 (3)
Z	4
Radiation type	Ga Kα, λ = 1.34139 Å
μ (mm⁻¹)	8.09
Crystal size (mm)	0.25 × 0.10 × 0.03

Data collection
Diffractometer	Bruker Venture Metaljet
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.415, 0.752
No. of measured, independent and observed [I > 2σ(I)] reflections	14498, 2532, 2381
R_int	0.0741
(sin θ/λ)_max (Å⁻¹)	0.611

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.063, 0.167, 1.08
No. of reflections	2532
No. of parameters	193
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	1.20, −0.60
Computer programs: APEX2 (Bruker, 2013 ), SAINT (Bruker, 2017 ), SHELXT (Sheldrick, 2015a ), SHELXL2014 (Sheldrick, 2015b ) and PLATON (Spek, 2020 ).

Supporting information

CCDC reference: 2487940

Crystal structure: contains datablocks global, I. DOI: https://doi.org/10.1107/S2056989025008151/jp2019sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025008151/jp2019Isup2.hkl

checkCIF report

Computing details top

catena-Poly[[(5,5'-dimethyl-2,2'-bipyridine)nickel(II)]-µ₂-azido-κ²N:N-µ₂-azido-κ²N:N'] top

Crystal data top

[Ni(N₃)₂(C₁₂H₁₂N₂)]	F(000) = 672
M_r = 327.01	D_x = 1.650 Mg m⁻³
Monoclinic, P2₁/n	Ga Kα radiation, λ = 1.34139 Å
a = 7.2641 (9) Å	Cell parameters from 3083 reflections
b = 18.395 (2) Å	θ = 4.2–61.0°
c = 10.5001 (12) Å	µ = 8.09 mm⁻¹
β = 110.223 (7)°	T = 150 K
V = 1316.6 (3) Å³	Block, green
Z = 4	0.25 × 0.10 × 0.03 mm

Data collection top

Bruker Venture Metaljet diffractometer	2532 independent reflections
Radiation source: Gallium Liquid Metal Jet Source	2381 reflections with I > 2σ(I)
Helios MX Mirror Optics monochromator	R_int = 0.074
φ and ω scans	θ_max = 55.0°, θ_min = 4.2°
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	h = −8→8
T_min = 0.415, T_max = 0.752	k = −22→22
14498 measured reflections	l = −12→12

Refinement top

Refinement on F²	Primary atom site location: difference Fourier map
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.063	H-atom parameters constrained
wR(F²) = 0.167	w = 1/[σ²(F_o²) + (0.0872P)² + 3.9821P] where P = (F_o² + 2F_c²)/3
S = 1.08	(Δ/σ)_max < 0.001
2532 reflections	Δρ_max = 1.20 e Å⁻³
193 parameters	Δρ_min = −0.60 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refined as a 2-component twin.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Ni1	0.38091 (13)	0.48792 (5)	0.60721 (8)	0.0330 (3)
N11	0.5941 (8)	0.5401 (3)	0.7604 (5)	0.0313 (11)
C12	0.6594 (8)	0.5047 (4)	0.8810 (6)	0.0330 (14)
C13	0.8008 (9)	0.5363 (4)	0.9928 (6)	0.0333 (13)
H13	0.8445	0.5117	1.0776	0.040*
C14	0.8764 (9)	0.6028 (4)	0.9801 (6)	0.0390 (15)
H14	0.9721	0.6247	1.0565	0.047*
C15	0.8130 (10)	0.6389 (4)	0.8544 (7)	0.0400 (16)
C16	0.6708 (10)	0.6051 (4)	0.7497 (6)	0.0364 (14)
H16	0.6239	0.6291	0.6644	0.044*
N21	0.4256 (7)	0.4145 (3)	0.7650 (5)	0.0307 (11)
C22	0.5683 (9)	0.4329 (3)	0.8828 (6)	0.0322 (13)
C23	0.6190 (9)	0.3871 (4)	0.9939 (6)	0.0364 (15)
H23	0.7206	0.4006	1.0755	0.044*
C24	0.5233 (10)	0.3222 (4)	0.9869 (6)	0.0385 (15)
H24	0.5608	0.2903	1.0627	0.046*
C25	0.3711 (10)	0.3031 (3)	0.8687 (6)	0.0368 (14)
C26	0.3320 (10)	0.3517 (3)	0.7603 (6)	0.0344 (14)
H26	0.2318	0.3391	0.6774	0.041*
C17	0.8958 (12)	0.7117 (4)	0.8324 (8)	0.0517 (19)
H17A	0.9306	0.7095	0.7503	0.077*
H17B	1.0131	0.7229	0.9107	0.077*
H17C	0.7972	0.7497	0.8221	0.077*
C27	0.2533 (13)	0.2357 (4)	0.8602 (7)	0.0492 (18)
H27A	0.2860	0.2002	0.8017	0.074*
H27B	0.1133	0.2475	0.8220	0.074*
H27C	0.2832	0.2151	0.9512	0.074*
N31	0.1551 (8)	0.4250 (3)	0.4743 (5)	0.0380 (12)
N32	−0.0029 (8)	0.4410 (3)	0.4041 (5)	0.0332 (11)
N33	−0.1640 (9)	0.4538 (3)	0.3329 (5)	0.0426 (14)
N41	0.3989 (8)	0.5617 (3)	0.4606 (5)	0.0385 (12)
N42	0.2591 (8)	0.5944 (3)	0.3833 (5)	0.0375 (12)
N43	0.1340 (9)	0.6266 (4)	0.3084 (7)	0.0562 (18)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Ni1	0.0330 (5)	0.0389 (4)	0.0192 (4)	−0.0003 (4)	−0.0008 (4)	0.0018 (4)
N11	0.032 (3)	0.036 (3)	0.023 (2)	0.004 (2)	0.005 (2)	0.002 (2)
C12	0.025 (3)	0.051 (4)	0.021 (3)	0.009 (2)	0.005 (2)	0.001 (3)
C13	0.031 (3)	0.045 (3)	0.024 (3)	0.005 (3)	0.009 (2)	−0.003 (2)
C14	0.028 (3)	0.050 (4)	0.032 (3)	0.006 (3)	0.002 (3)	−0.008 (3)
C15	0.033 (3)	0.047 (4)	0.039 (4)	0.002 (3)	0.012 (3)	−0.002 (3)
C16	0.037 (3)	0.040 (3)	0.027 (3)	0.007 (3)	0.004 (3)	0.000 (3)
N21	0.029 (2)	0.037 (3)	0.023 (2)	0.002 (2)	0.005 (2)	0.002 (2)
C22	0.032 (3)	0.038 (3)	0.021 (3)	0.014 (2)	0.003 (2)	−0.001 (2)
C23	0.033 (3)	0.049 (4)	0.020 (3)	0.005 (3)	0.001 (2)	0.002 (3)
C24	0.045 (4)	0.041 (4)	0.026 (3)	0.012 (3)	0.007 (3)	0.010 (3)
C25	0.045 (4)	0.035 (3)	0.029 (3)	0.002 (3)	0.011 (3)	−0.001 (2)
C26	0.038 (3)	0.039 (3)	0.021 (3)	0.000 (3)	0.004 (3)	0.001 (2)
C17	0.049 (4)	0.049 (4)	0.050 (4)	−0.010 (3)	0.008 (3)	−0.002 (3)
C27	0.067 (5)	0.038 (3)	0.039 (4)	−0.002 (4)	0.013 (4)	0.000 (3)
N31	0.027 (3)	0.053 (3)	0.030 (3)	0.002 (3)	0.005 (3)	−0.003 (2)
N32	0.040 (3)	0.030 (2)	0.022 (2)	0.003 (2)	0.002 (3)	−0.0008 (19)
N33	0.041 (3)	0.045 (3)	0.030 (3)	0.006 (3)	−0.003 (3)	0.002 (2)
N41	0.037 (3)	0.043 (3)	0.026 (2)	0.010 (3)	−0.001 (2)	0.004 (2)
N42	0.036 (3)	0.041 (3)	0.030 (2)	−0.006 (3)	0.005 (3)	0.003 (2)
N43	0.036 (3)	0.077 (5)	0.045 (3)	0.017 (3)	0.001 (3)	0.021 (3)

Geometric parameters (Å, º) top

Ni1—N11	2.045 (5)	C23—C24	1.370 (10)
Ni1—N21	2.074 (5)	C23—H23	0.9500
Ni1—N31	2.096 (5)	C24—C25	1.392 (9)
Ni1—N41	2.090 (6)	C24—H24	0.9500
Ni1—N33ⁱ	2.171 (7)	C25—C26	1.397 (9)
Ni1—N41ⁱⁱ	2.165 (6)	C25—C27	1.491 (10)
N11—C16	1.340 (9)	C26—H26	0.9500
N11—C12	1.354 (7)	C17—H17A	0.9800
C12—C13	1.392 (8)	C17—H17B	0.9800
C12—C22	1.482 (9)	C17—H17C	0.9800
C13—C14	1.366 (10)	C27—H27A	0.9800
C13—H13	0.9500	C27—H27B	0.9800
C14—C15	1.406 (9)	C27—H27C	0.9800
C14—H14	0.9500	N31—N32	1.167 (7)
C15—C16	1.371 (9)	N32—N33	1.175 (8)
C15—C17	1.517 (11)	N33—Ni1ⁱ	2.171 (7)
C16—H16	0.9500	N41—N42	1.217 (7)
N21—C26	1.332 (8)	N41—Ni1ⁱⁱ	2.165 (6)
N21—C22	1.354 (7)	N42—N43	1.141 (8)
C22—C23	1.382 (8)

N11—Ni1—N21	79.1 (2)	C22—N21—Ni1	115.2 (4)
N11—Ni1—N41	93.0 (2)	N21—C22—C23	121.1 (6)
N21—Ni1—N41	168.2 (2)	N21—C22—C12	114.5 (5)
N11—Ni1—N31	171.1 (2)	C23—C22—C12	124.4 (5)
N21—Ni1—N31	92.4 (2)	C24—C23—C22	120.2 (6)
N41—Ni1—N31	95.8 (2)	C24—C23—H23	119.9
N11—Ni1—N41ⁱⁱ	90.7 (2)	C22—C23—H23	119.9
N21—Ni1—N41ⁱⁱ	93.4 (2)	C23—C24—C25	120.0 (6)
N41—Ni1—N41ⁱⁱ	77.9 (2)	C23—C24—H24	120.0
N31—Ni1—N41ⁱⁱ	92.6 (2)	C25—C24—H24	120.0
N11—Ni1—N33ⁱ	88.2 (2)	C24—C25—C26	116.1 (6)
N21—Ni1—N33ⁱ	91.1 (2)	C24—C25—C27	121.7 (6)
N41—Ni1—N33ⁱ	97.4 (2)	C26—C25—C27	122.1 (6)
N31—Ni1—N33ⁱ	89.2 (2)	N21—C26—C25	124.5 (6)
N41ⁱⁱ—Ni1—N33ⁱ	175.1 (2)	N21—C26—H26	117.7
C16—N11—C12	119.0 (5)	C25—C26—H26	117.7
C16—N11—Ni1	125.2 (4)	C15—C17—H17A	109.5
C12—N11—Ni1	115.8 (4)	C15—C17—H17B	109.5
N11—C12—C13	120.4 (6)	H17A—C17—H17B	109.5
N11—C12—C22	115.2 (5)	C15—C17—H17C	109.5
C13—C12—C22	124.3 (5)	H17A—C17—H17C	109.5
C14—C13—C12	119.7 (6)	H17B—C17—H17C	109.5
C14—C13—H13	120.1	C25—C27—H27A	109.5
C12—C13—H13	120.1	C25—C27—H27B	109.5
C13—C14—C15	120.2 (6)	H27A—C27—H27B	109.5
C13—C14—H14	119.9	C25—C27—H27C	109.5
C15—C14—H14	119.9	H27A—C27—H27C	109.5
C16—C15—C14	116.7 (6)	H27B—C27—H27C	109.5
C16—C15—C17	120.5 (6)	N32—N31—Ni1	130.8 (5)
C14—C15—C17	122.8 (6)	N31—N32—N33	177.0 (7)
N11—C16—C15	123.9 (6)	N32—N33—Ni1ⁱ	125.3 (5)
N11—C16—H16	118.0	N42—N41—Ni1	124.2 (5)
C15—C16—H16	118.0	N42—N41—Ni1ⁱⁱ	122.0 (4)
C26—N21—C22	118.0 (5)	Ni1—N41—Ni1ⁱⁱ	102.1 (2)
C26—N21—Ni1	126.7 (4)	N43—N42—N41	176.7 (7)

C16—N11—C12—C13	1.5 (9)	C26—N21—C22—C12	−177.8 (5)
Ni1—N11—C12—C13	−178.4 (5)	Ni1—N21—C22—C12	3.7 (7)
C16—N11—C12—C22	−179.2 (5)	N11—C12—C22—N21	−3.1 (8)
Ni1—N11—C12—C22	1.0 (7)	C13—C12—C22—N21	176.2 (6)
N11—C12—C13—C14	−1.1 (10)	N11—C12—C22—C23	177.6 (6)
C22—C12—C13—C14	179.6 (6)	C13—C12—C22—C23	−3.1 (10)
C12—C13—C14—C15	−0.5 (10)	N21—C22—C23—C24	−0.7 (10)
C13—C14—C15—C16	1.7 (10)	C12—C22—C23—C24	178.6 (6)
C13—C14—C15—C17	−178.0 (7)	C22—C23—C24—C25	−1.6 (10)
C12—N11—C16—C15	−0.2 (10)	C23—C24—C25—C26	2.9 (10)
Ni1—N11—C16—C15	179.6 (5)	C23—C24—C25—C27	−175.4 (7)
C14—C15—C16—N11	−1.4 (11)	C22—N21—C26—C25	−0.1 (9)
C17—C15—C16—N11	178.3 (7)	Ni1—N21—C26—C25	178.2 (5)
C26—N21—C22—C23	1.6 (9)	C24—C25—C26—N21	−2.1 (10)
Ni1—N21—C22—C23	−177.0 (5)	C27—C25—C26—N21	176.2 (7)

Symmetry codes: (i) −x, −y+1, −z+1; (ii) −x+1, −y+1, −z+1.

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
C14—H14···N43ⁱⁱⁱ	0.95	2.50	3.334 (9)	147
C17—H17C···N43^iv	0.98	2.55	3.492 (11)	162

Symmetry codes: (iii) x+1, y, z+1; (iv) x+1/2, −y+3/2, z+1/2.

Parameters (Å, °) for the short anion···π contact top

Cg1 represents the centroid of the N21/C22–C26 ring.

N42—N43···Cg1	N42—N43	N43···Cg	N42···Cg	N42—N43···Cg
N42—N43···Cg1ⁱⁱ	1.141 (8)	3.967 (8)	3.917 (6)	79.2 (5)

Symmetry code: (ii) 1 - x, 1 - y, 1 - z.

Selected bond distances (Å) top

Ni1—N11	2.045 (5)	Ni1—N41	2.090 (6)
Ni1—N21	2.074 (5)	Ni1—N33ⁱ	2.171 (7)
Ni1—N31	2.096 (5)	Ni1—N41ⁱⁱ	2.165 (6)
N31—N32	1.167 (7)	N41—N42	1.217 (7)
N32—N33	1.175 (8)	N42—N43	1.141 (8)

Symmetry codes: (i) -x, 1 - y, 1 - z; (ii) 1 - x, 1 - y, 1 - z.

Hydrogen bond and short intermolecular contact parameters (Å, °) top

D-H···A	D-H	H···A	D···A	D-H···A
C14-H14···N43ⁱⁱⁱ	0.95	2.50	3.334 (9)	147
C17-H17C···N43^iv	0.98	2.55	3.492 (11)	162

Symmetry codes: (iii) 1 + x, y, 1 + z; (iv) 0.5 + x, 1.5 - y, 0.5 + z.

Funding information

Funding for this research was provided by: the Algerian MESRS (Ministry of Higher Education and Scientific Research); the Algerian DGRSDT (Directorate General for Scientific Research and Technological Development); and the PRFU project (grant No. B00L01UN190120230003).

References

Atmani, C., Setifi, F., Benmansour, S., Triki, S., Marchivie, M., Salaün, J.-Y. & Gómez-García, C. J. (2008). Inorg. Chem. Commun. 11, 921–924. Web of Science CSD CrossRef CAS Google Scholar
Benamara, N., Setifi, Z., Yang, C.-I., Bernès, S., Geiger, D. K., Kürkçüoğlu, G. S., Setifi, F. & Reedijk, J. (2021). Magnetochemistry 7, 50. Google Scholar
Benmansour, S., Atmani, C., Setifi, F., Triki, S., Marchivie, M. & Gómez-García, C. J. (2010). Coord. Chem. Rev. 254, 1468–1478. Web of Science CrossRef CAS Google Scholar
Benmansour, S., Setifi, F., Gómez-García, C. J., Triki, S., Coronado, E. & Salaün, J.-Y. (2008). J. Mol. Struct. 890, 255–262. Web of Science CSD CrossRef CAS Google Scholar
Benmansour, S., Setifi, F., Triki, S., Salaün, J.-Y., Vandevelde, F., Sala-Pala, J., Gómez-García, C. J. & Roisnel, T. (2007). Eur. J. Inorg. Chem. pp. 186–194. Web of Science CSD CrossRef Google Scholar
Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl. 34, 1555–1573. CrossRef CAS Web of Science Google Scholar
Bruker (2013). APEX2. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Bruker (2017). SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Dmitrienko, A. O., Buzin, M. I., Setifi, Z., Setifi, F., Alexandrov, E. V., Voronova, E. D. & Vologzhanina, A. V. (2020). Dalton Trans. 49, 7084–7092. Web of Science CSD CrossRef CAS PubMed Google Scholar
Etter, M. C. (1990). Acc. Chem. Res. 23, 120–126. CrossRef CAS Web of Science Google Scholar
Etter, M. C., MacDonald, J. C. & Bernstein, J. (1990). Acta Cryst. B46, 256–262. CrossRef ICSD CAS Web of Science IUCr Journals Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
He, Y., Chen, F., Li, B., Qian, G., Zhou, W. & Chen, B. (2018). Coord. Chem. Rev. 373, 167–198. Web of Science CrossRef CAS Google Scholar
He, Y., Li, B., O'Keeffe, M. & Chen, B. (2014). Chem. Soc. Rev. 43, 5618–5656. Web of Science CrossRef CAS PubMed Google Scholar
Hou, J. (2008). Acta Cryst. E64, m1571. Web of Science CSD CrossRef IUCr Journals Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Mautner, F. A., Fischer, R. C., Reichmann, K., Gullett, E., Ashkar, K. & Massoud, S. S. (2019). J. Mol. Struct. 1175, 797–803. Web of Science CSD CrossRef CAS Google Scholar
Merabet, L., Setifi, Z., Ferjani, H., Geiger, D. K., Glidewell, C., Kanmazalp, S. D., Setifi, F. & Kaboub, L. (2023). J. Chem. Crystallogr. 53, 209–216. Web of Science CSD CrossRef CAS Google Scholar
Merabet, L., Vologzhanina, A. V., Setifi, Z., Kaboub, L. & Setifi, F. (2022). CrystEngComm 24, 4740–4747. CSD CrossRef CAS Google Scholar
Monfort, M., Resino, I., Ribas, J., Solans, X., Font-Bardia, M., Rabu, P. & Drillon, M. (2000). Inorg. Chem. 39, 2572–2576. Web of Science CSD CrossRef PubMed CAS Google Scholar
Naylor, R. E. & Wilson, E. B. (1957). J. Chem. Phys. 26, 1057–1060. CrossRef CAS Web of Science Google Scholar
Phatchimkun, J., Kongsaeree, P., Suchaichit, N. & Chaichit, N. (2009). Acta Cryst. E65, m1020–m1021. Web of Science CSD CrossRef IUCr Journals Google Scholar
Riddell, F. G. & Rogerson, M. (1996). J. Chem. Soc. Perkin Trans. 2, pp. 493–504. CrossRef Web of Science Google Scholar
Riddell, F. G. & Rogerson, M. (1997). J. Chem. Soc. Perkin Trans. 2 pp. 249–256. Google Scholar
Setifi, F., Benmansour, S., Marchivie, M., Dupouy, G., Triki, S., Sala-Pala, J., Salaün, J.-Y., Gómez-García, C. J., Pillet, S., Lecomte, C. & Ruiz, E. (2009). Inorg. Chem. 48, 1269–1271. Web of Science CSD CrossRef PubMed CAS Google Scholar
Setifi, Z., Bernès, S., Geiger, D. K., Setifi, F. & Reedijk, J. (2022). Acta Cryst. C78, 449–454. Web of Science CSD CrossRef IUCr Journals Google Scholar
Setifi, Z., Ghazzali, M., Glidewell, C., Pérez, O., Setifi, F., Gómez-García, C. J. & Reedijk, J. (2016). Polyhedron 117, 244–248. CSD CrossRef CAS Google Scholar
Setifi, Z., Setifi, F., Benmansour, S., Liu, X., Mague, J. T., Gómez-García, C. J., Konieczny, P. & Reedijk, J. (2022). Dalton Trans. 51, 5617–5623. Web of Science CSD CrossRef CAS PubMed Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Song, W.-C., Zhang, M.-J., Tao, Y. & Li, J.-R. (2007). Acta Cryst. E63, m3062. Web of Science CSD CrossRef IUCr Journals Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Spek, A. L. (2020). Acta Cryst. E76, 1–11. Web of Science CrossRef IUCr Journals Google Scholar
Tannenbaum, E., Myers, R. J. & Gwinn, W. D. (1956). J. Chem. Phys. 25, 42–47. CrossRef CAS Web of Science Google Scholar
Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Spackman, P. R., Jayatilaka, D. & Spackman, M. A. (2017). CrystalExplorer17. University of Western Australia. https://crystalexplorer. scb. uwa. edu. au Google Scholar
Wavefunction (2020). Spartan '20. Wavefunction Inc., Irvine, CA, USA. Google Scholar
Yuste, C., Bentama, A., Marino, N., Armentano, D., Setifi, F., Triki, S., Lloret, F. & Julve, M. (2009). Polyhedron 28, 1287–1294. CSD CrossRef CAS Google Scholar
Zhao, Y. & Truhlar, D. G. (2008). Theor. Chem. Acc. 120, 215–241. Web of Science CrossRef CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
