Crystal structure and Hirshfeld surface analysis of 3-(3,5-di­meth­oxy­phen­yl)-5-[6-(1H-pyrazol-1-yl)pyridin-2-yl]-1H-1,2,4-triazole

Seredyuk, M.; Shova, S.; Kariaka, N.S.; Moroz, Y.S.; Panov, D.M.; Tananaiko, O.; Znovjyak, K.

doi:10.1107/S2056989025010977

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 1| January 2026| Pages 67-71

https://doi.org/10.1107/S2056989025010977

Open

access

Crystal structure and Hirshfeld surface analysis of 3-(3,5-dimethoxyphenyl)-5-[6-(1H-pyrazol-1-yl)pyridin-2-yl]-1H-1,2,4-triazole

Maksym Seredyuk,^a ^* Sergiu Shova,^b Nataliia S. Kariaka,^a Yurii S. Moroz,^a Dmitriy M. Panov,^c Oksana Tananaiko ^a and Kateryna Znovjyak ^a

^aDepartment of Chemistry, Taras Shevchenko National University of Kyiv, Volodymyrska Street 64, Kyiv, 01601, Ukraine, ^bDepartment of Inorganic Polymers, "Petru Poni" Institute of Macromolecular Chemistry, Romanian Academy of Science, Aleea Grigore Ghica Voda 41-A, Iasi, 700487, Romania, and ^cChemBioCenter, Kyiv National Taras Shevchenko University, Kyiv 02094, 61 Winston Churchill Street, Ukraine
^*Correspondence e-mail: [email protected]

Edited by G. Diaz de Delgado, Universidad de Los Andes Mérida, Venezuela (Received 23 September 2025; accepted 4 December 2025; online 1 January 2026)

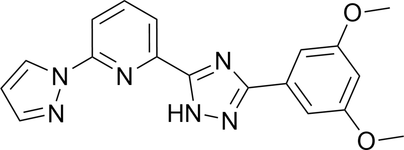

The title bisazolepyridine compound, C₁₈H₁₆N₆O₂, crystallizes in the triclinic space group P1 (No. 2) with two independent molecules in the asymmetric unit. The molecular structure was analyzed using crystallographic techniques, confirming the expected configuration and bonding scheme. Hirshfeld surface analysis revealed key non-covalent interactions such as C—H⋯N/C/O and π–π stacking, which consolidate the crystal structure. The study provides valuable insights into the structural features and intermolecular interactions of this polydentate compound, which may have potential applications as a transition-metal ligand.

Keywords: crystal structure; tridentate ligands; triazole; pyridine; pyrazole.

CCDC reference: 2513428

1. Chemical context

Bisazolepyridines, particularly tridentate ligands, are a highly versatile class of compounds with significant potential in functional materials, finding applications in biochemistry (Fares et al., 2020 ), catalysis (Wei et al., 2015 ), and molecular magnetism (Halcrow, 2024 ). The strategic incorporation of substituents on their aromatic rings enables precise tuning of electronic, optical, and chemical properties, enhancing their utility while maintaining synthetic accessibility (Lu et al., 2016 ). In molecules featuring asymmetric architectures, such as those with an NH-bearing azole moiety, the formation of supramolecular hydrogen-bonded networks of varying dimensionality is observed. The nature of peripheral substituents significantly influences intermolecular interactions, thereby governing crystal packing, network connectivity, and the topology of these supramolecular assemblies. Given the established importance of bisazolepyridines in coordination chemistry and our ongoing exploration of 3d-metal complexes with polydentate ligands (Piñeiro-López et al., 2018 ; Seredyuk et al., 2022 , 2025 ), we herein report the crystal structure of an asymmetric tridentate ligand, 3-(3,5-dimethoxyphenyl)-5-[6-(1H-pyrazol-1-yl)pyridin-2-yl]-1H-1,2,4-triazole.

2. Structural commentary

The title compound crystallizes in the triclinic system with space group P $[\overline{1}]$ (No. 2), with two molecules in the asymmetric unit (Z = 4). The molecules, labeled A and B, have slightly different conformations and are labeled correlatively (Fig. 1a). The pyridine-triazole (py-trz) fragments in each molecule are almost coplanar (r.m.s. deviation for A/B = 0.045/0.032 Å), except for the pyrazole (pz) and 3,5-dimethoxyphenyl (ph) moieties in both cases. The dihedral angles between the py-trz and pz fragments are of 11.0 (3) and 17.8 (3)° for molecules A and B, respectively. The ph fragment is rotated by 10.5 (3)° in molecule A, whereas in molecule B it is bent at an angle of 7.5 (3)° with respect to the py-trz plane. In both molecules, the pz-py fragments exhibit an anti conformation, resulting in maximal spatial separation between the nitrogen atoms N1A/B and N3A/B (Bessel et al., 1992 ). Fig. 1b shows an overlay of molecules A and B in two projections, visualizing the differences in their conformations.

Figure 1
(a) The molecular structure of molecules A and B in the title compound with displacement ellipsoids drawn at the 40% probability level. The strong N—H⋯N and weak C—H⋯N hydrogen bonds are shown with the nearest neighbors. (b) Minimized overlay of the molecules in two projections.

3. Supramolecular features

In the crystal, two pairs of molecules, A and B, form a cyclic supramolecular tetramolecular unit. They are joined through strong N—H⋯N′ hydrogen bonds, weak C—H⋯N′ bonds, and parallel, displaced π–π stacking between the trz rings of the neighbor molecule B [Cg⋯Cg' distance is 3.469 (4) Å] (Fig. 2a). Neighboring tetramolecular units are united into supramolecular chains along the b axis (Fig. 2b) via π–π stacking interactions between the coplanar trz and py rings of neighboring molecules A [Cg(trz)⋯Cg(py)' distance is 3.883 (4) Å], and weak C—H⋯N/C hydrogen bonds. At the highest level of organization, the supramolecular chains are linked into a three-dimensional network through C—H⋯O/N and C⋯C intermolecular contacts. All relevant intermolecular contacts are collected in Table 1.

Table 1
Hydrogen-bond and short contact geometry (Å, °)

Contact	H⋯A	D⋯A	D—H⋯A
C7A—H⋯C6Bⁱ	2.89	3.820 (3)	171
C7A—H⋯C7Bⁱ	2.87	3.761 (3)	160
N6B—H⋯N5A	1.88 (3)	2.841 (3)	162 (2)
C18A—H⋯N2B	2.82	3.591 (3)	137
C14Bⁱⁱ—Hⁱⁱ⋯O1A	2.64	3.559 (3)	168
C1A—H⋯N5Bⁱⁱⁱ	2.47	3.314 (3)	150
C1A—H⋯N6Bⁱⁱⁱ	2.77	3.402 (3)	126
C17B^iv—H^iv⋯O2A^iv	2.66	3.371 (4)	131
C6A—H⋯N5B^v	2.62	3.524 (3)	165
C17A^v—H^v⋯C1A	2.79	3.490 (3)	131
C7A⋯C9A^v	–	3.537 (2)	–
C7B—H⋯N3A^vi	2.67	3.602 (3)	177
C3A^vi—H^vi⋯N4B	2.76	3.624 (3)	155
N6A^vi—H^vi⋯N4B	2.04 (3)	2.922 (3)	164 (2)
N5B⋯C9B^vi	–	3.281 (3)	–
N6B⋯C9B^vi	–	3.350 (3)	–
C1B—H⋯N4A^vii	2.69	3.599 (3)	165
C14A⋯C5A^viii	–	3.437 (2)	–
C5A^ix—H^ix⋯N1A	2.52	3.407 (3)	159
C5B^x—H^x⋯N1B	2.62	3.434 (2)	147
Symmetry codes: (i) x, 1 + y, z; (ii) x, y, 1 + z; (iii) −1 + x, y, z; (iv) −x, 1 − y, 1 − z; (v) 1 − x, −y, 1 − z; (vi) 1 − x, 1 − y, 1 − z; (vii) 1 − x, 1 − y, 2 − z; (viii) −1 + x, y, z; (ix) 2 − x, −y, 1 − z; (x) 1 − x, 2 − y, 2 − z.

Figure 2
(a) Two pairs of molecules A and B forming a circular fragment through strong N—H⋯N hydrogen bonds (blue dashed lines), weak C—H⋯N hydrogen bonds (black dashed lines) and π–π stacking of triazole rings (contact between centroids (orange globes) shown as dashed orange line). (b) A supramolecular chain composed of tetramolecular units. Only π–π stacking is shown for clarity. (c) A projection of the supramolecular chains along the b axis. The intermolecular contacts are shown as black dashed lines. For clarity, the central chain is shown with a space-filling model, while the surrounding chains are shown in capped-stick mode and colored differently.

Hirshfeld surface analysis was conducted on each molecule individually to gain a deeper understanding of intermolecular interactions (Spackman et al., 2021 ). The interactions are visualized as red (d_norm < vdW radii), white (d_norm = vdW radii), and blue (d_norm > vdW radii) spots on the d_norm surfaces for all compounds, alongside with fingerprint plots mapped with d_norm (where d_norm = d_i + d_e) (Fig. 3a). Two-dimensional fingerprint plots, with the relative contributions of individual contacts to the Hirshfeld surface mapped over d_norm, are shown in Fig. 3b. At ca. 40%, the largest contribution to the overall crystal packing is from H⋯H interactions, which are in the middle region of the fingerprint plot. C⋯H/H⋯C contacts contribute ca. 24%, and N⋯H/H⋯N ca. 19%, resulting in pairs of characteristic sharp spikes. The O⋯H/H⋯O contacts, represented by a pair of wings in the inner part of the fingerprint plot, make ca. 8% contribution to the surface. Fig. 3c shows a comparison of the percentage contribution of contacts to the Hirshfeld surface for the two molecules.

Figure 3
(a) Overall Hirshfeld surface for molecules A and B and (b) their respective two-dimensional fingerprint plots decomposed into specific interactions. (c) Comparison of the contributions in molecules A and B.

4. Database survey

A search of the Cambridge Structural Database (CSD, Version 5.42, last update April 2025; Groom et al., 2016 ) reveals 360 free bisazolepyridine ligands. For pyrazole- and 1,2,3-triazole-based molecules, the anti-conformation of the azole-pyridine fragment is observed, reducing steric hindrance due to hydrogen crowding [KALXIG (Roberts et al., 2012 ); IJOJAU (Byrne et al., 2016 )]. Various supramolecular networks formed by strong hydrogen bonding have been identified for azoles with an unsubstituted NH group, including clusters (ABUFIP and ABUGIQ; Rajnak et al., 2017 ) and one-dimensional supramolecular chains [ABUGEM (Rájnak et al., 2017); PUWZAJ (Craig et al., 2010 ); QETVEQ (Pleier et al., 2001 ); WEJGAU (Demir et al., 2006 ), and XOMJIW (Le-Hoang et al., 2024 )] found in asymmetrically substituted bisbenzimidazolepyridines and symmetric bispyrazolylpyridines. Additionally, a three-dimensional network, supported by strong hydrogen bonding, has been described for a compact molecule bisdihydroimidazolepyridine (BIHLAH; Geden et al., 2013 ).

5. Synthesis and crystallization

The ligand was synthesized by a modified procedure reported earlier (Seredyuk et al., 2022). All chemicals were purchased from commercial suppliers and used without further purification (Merck, Enamine Ltd).

A Schlenk flask with inert atmosphere was charged with 6-(1H-pyrazol-1-yl)pyridin-2-ylboronic acid (1.00 g, 5.3 mmol), 5-bromo-3-(3,5-dimethoxyphenyl)-1-(tetrahydro-2H-pyran-2-yl)-1H-1,2,4-triazole (1.37 g, 4.8 mmol), [Pd(PPh₃)₄] (0.61 g, 0.53 mmol) and Na₂CO₃ (1.65 g, 15.6 mmol). Degassed 1,4-dioxane (20 mL) and degassed water (10 mL) were added, and the reaction mixture was heated to 373 K under vigorous stirring for 16 h. After filtering through a Celite pad, to the obtained solution 5 ml of HCl_aq (37%) was added dropwise and the obtained solution was stirred for 10 min. Thereafter the pH of the solution was brought to neutral with an aqueous solution of NaOH (10%). The resulting suspension was evaporated to dryness and resuspended in water, the precipitate was collected by filtration, washed with water and recrystallized from chloroform-acetone (1:1). After drying in vacuo, the final compound was isolated as an analytically pure white crystalline material. Yield: 1.24 g, 67%. Elemental analysis calculated for C₁₈H₁₆N₆O₂: C, 62.06; H, 4.63; N, 24.12. Found: C, 62.24; H, 4.54; N, 24.01. ¹H NMR (300 MHz, 298 K, DMSO-d⁶): δ (ppm) 14.92 (1H, s, trzH), 9.01 (1H, s, pzH), 8.11–8.02 (3H, m, pyH), 7.80 (1H, s, pzH), 7.64 (3H, m, pzH, phH), 6.60 (1H, s, pzH), 6.38 (1H, s, phH), 3.85 (6H, s, CH₃). ¹³C NMR (100 MHz, DMSO-d⁶): δ (ppm) 161.1, 154.9, 154.1, 149.2, 148.0, 141.4, 129.4, 126.3, 126.5, 118.6, 110.6, 107.6, 107.2, 99.7, 55.3.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. H atoms were refined as riding [C—H = 0.93–0.96 Å with U_iso(H) = 1.2–1.5U_eq(C)]. The hydrogen atoms H6A and H6B were refined freely.

Table 2
Experimental details

Crystal data
Chemical formula	C₁₈H₁₆N₆O₂
M_r	348.37
Crystal system, space group	Triclinic, P $[\overline{1}]$
Temperature (K)	293
a, b, c (Å)	11.4607 (7), 12.0769 (7), 14.6724 (6)
α, β, γ (°)	114.104 (5), 98.689 (4), 104.469 (5)
V (Å³)	1719.76 (18)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.09
Crystal size (mm)	0.2 × 0.1 × 0.05

Data collection
Diffractometer	Xcalibur, Eos
Absorption correction	Multi-scan (CrysAlis PRO; Rigaku OD, 2024 )
T_min, T_max	0.898, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	16576, 6091, 4491
R_int	0.036
(sin θ/λ)_max (Å⁻¹)	0.595

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.049, 0.115, 1.02
No. of reflections	6091
No. of parameters	486
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.20, −0.19
Computer programs: CrysAlis PRO (Rigaku OD, 2024), SHELXT2018/2 (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Supporting information

CCDC reference: 2513428

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989025010977/dj2085sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025010977/dj2085Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2056989025010977/dj2085Isup3.cdx

Supporting information file. DOI: https://doi.org/10.1107/S2056989025010977/dj2085Isup4.cml

checkCIF report

Computing details top

3-(3,5-Dimethoxyphenyl)-5-[6-(1H-pyrazol-1-yl)pyridin-2-yl]-1H-1,2,4-triazole top

Crystal data top

C₁₈H₁₆N₆O₂	Z = 4
M_r = 348.37	F(000) = 728
Triclinic, P1	D_x = 1.345 Mg m⁻³
a = 11.4607 (7) Å	Mo Kα radiation, λ = 0.71073 Å
b = 12.0769 (7) Å	Cell parameters from 4514 reflections
c = 14.6724 (6) Å	θ = 1.9–25.9°
α = 114.104 (5)°	µ = 0.09 mm⁻¹
β = 98.689 (4)°	T = 293 K
γ = 104.469 (5)°	Prism, clear colourless
V = 1719.76 (18) Å³	0.2 × 0.1 × 0.05 mm

Data collection top

Xcalibur, Eos diffractometer	6091 independent reflections
Radiation source: fine-focus sealed X-ray tube, Enhance (Mo) X-ray Source	4491 reflections with I > 2σ(I)
Graphite monochromator	R_int = 0.036
Detector resolution: 16.1593 pixels mm^-1	θ_max = 25.0°, θ_min = 1.9°
ω scans	h = −12→13
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2024)	k = −14→14
T_min = 0.898, T_max = 1.000	l = −17→16
16576 measured reflections

Refinement top

Refinement on F²	Hydrogen site location: mixed
Least-squares matrix: full	H atoms treated by a mixture of independent and constrained refinement
R[F² > 2σ(F²)] = 0.049	w = 1/[σ²(F_o²) + (0.0486P)² + 0.1128P] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.115	(Δ/σ)_max < 0.001
S = 1.02	Δρ_max = 0.20 e Å⁻³
6091 reflections	Δρ_min = −0.19 e Å⁻³
486 parameters	Extinction correction: SHELXL-2018/3 (Sheldrick, 2015b), Fc^*=kFc[1+0.001xFc²λ³/sin(2θ)]^-1/4
0 restraints	Extinction coefficient: 0.0110 (11)
Primary atom site location: dual

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
O1B	0.1147 (2)	0.4019 (2)	0.05223 (12)	0.0876 (6)
O2B	0.16741 (19)	0.02591 (16)	0.03701 (12)	0.0839 (6)
N1B	0.4802 (2)	0.81432 (17)	0.99412 (12)	0.0626 (6)
N2B	0.48491 (16)	0.73258 (15)	0.89884 (11)	0.0410 (4)
N3B	0.42372 (14)	0.65010 (13)	0.72014 (10)	0.0317 (4)
N4B	0.31820 (14)	0.53416 (13)	0.44042 (10)	0.0299 (4)
N5B	0.33490 (15)	0.34712 (14)	0.42911 (11)	0.0327 (4)
N6B	0.37109 (15)	0.43949 (14)	0.53020 (11)	0.0296 (4)
C1B	0.5221 (3)	0.7683 (2)	1.05491 (17)	0.0702 (8)
H1B	0.529704	0.804356	1.125876	0.084*
C2B	0.5536 (2)	0.6608 (2)	1.00199 (17)	0.0633 (7)
H2B	0.585488	0.613603	1.029255	0.076*
C3B	0.5281 (2)	0.6395 (2)	0.90235 (16)	0.0481 (6)
C4B	0.44583 (18)	0.75091 (17)	0.81179 (13)	0.0339 (5)
C5B	0.4332 (2)	0.86710 (18)	0.82482 (14)	0.0434 (5)
H5B	0.449034	0.934871	0.890762	0.052*
C6B	0.3963 (2)	0.87811 (18)	0.73608 (14)	0.0441 (5)
H6BA	0.387234	0.954708	0.741347	0.053*
C7B	0.37285 (19)	0.77551 (17)	0.63930 (14)	0.0371 (5)
H7B	0.347924	0.781626	0.578705	0.045*
C8B	0.38729 (17)	0.66440 (17)	0.63500 (13)	0.0288 (4)
C9B	0.36058 (17)	0.54910 (16)	0.53603 (13)	0.0264 (4)
C10B	0.30287 (17)	0.40805 (17)	0.37766 (13)	0.0295 (4)
C11B	0.25053 (18)	0.34309 (18)	0.26363 (13)	0.0355 (5)
C12B	0.2098 (2)	0.4096 (2)	0.21513 (14)	0.0445 (5)
H12B	0.217610	0.495589	0.253788	0.053*
C13B	0.1569 (2)	0.3453 (2)	0.10762 (16)	0.0554 (6)
C14B	0.1431 (2)	0.2171 (2)	0.05117 (17)	0.0630 (7)
H14B	0.106114	0.174400	−0.020526	0.076*
C15B	0.1836 (2)	0.1516 (2)	0.10019 (16)	0.0547 (6)
C16B	0.2384 (2)	0.21444 (18)	0.20684 (14)	0.0431 (5)
H16B	0.266878	0.171052	0.240084	0.052*
C17B	0.1646 (3)	0.5366 (3)	0.0948 (2)	0.0842 (9)
H17A	0.132522	0.562432	0.045319	0.126*
H17B	0.254655	0.563892	0.111143	0.126*
H17C	0.140921	0.575891	0.157215	0.126*
C18B	0.2030 (3)	−0.0481 (2)	0.0822 (2)	0.0863 (9)
H18A	0.182870	−0.135033	0.028885	0.130*
H18B	0.158482	−0.048627	0.132528	0.130*
H18C	0.291857	−0.010911	0.115975	0.130*
H6B	0.395 (2)	0.4149 (19)	0.5855 (15)	0.061 (6)*
O1A	0.03689 (14)	0.02853 (15)	0.77513 (11)	0.0559 (4)
O2A	0.08246 (15)	0.43797 (15)	0.80954 (13)	0.0641 (5)
N1A	0.99881 (17)	0.16289 (17)	0.50128 (13)	0.0488 (5)
N2A	0.91260 (15)	0.21320 (15)	0.53939 (12)	0.0370 (4)
N3A	0.73110 (14)	0.19317 (14)	0.59038 (11)	0.0324 (4)
N4A	0.44916 (15)	0.15161 (15)	0.67608 (11)	0.0340 (4)
N5A	0.44406 (15)	0.32577 (14)	0.65448 (11)	0.0337 (4)
N6A	0.54281 (16)	0.29073 (15)	0.62779 (11)	0.0330 (4)
C1A	1.0711 (2)	0.2539 (2)	0.48690 (19)	0.0608 (7)
H1A	1.139375	0.246934	0.460693	0.073*
C2A	1.0346 (2)	0.3612 (2)	0.51495 (19)	0.0612 (7)
H2A	1.072018	0.436654	0.511611	0.073*
C3A	0.9329 (2)	0.3327 (2)	0.54827 (17)	0.0511 (6)
H3A	0.885887	0.385297	0.572625	0.061*
C4A	0.81869 (18)	0.14176 (17)	0.56613 (13)	0.0312 (4)
C5A	0.82266 (19)	0.02839 (18)	0.56628 (14)	0.0372 (5)
H5A	0.885761	−0.004117	0.547796	0.045*
C6A	0.7294 (2)	−0.03389 (19)	0.59488 (15)	0.0441 (5)
H6AA	0.728504	−0.110383	0.596316	0.053*
C7A	0.6366 (2)	0.01680 (18)	0.62167 (15)	0.0409 (5)
H7A	0.573135	−0.024349	0.641693	0.049*
C8A	0.64055 (18)	0.12961 (17)	0.61790 (13)	0.0321 (4)
C9A	0.54420 (17)	0.18829 (17)	0.64107 (13)	0.0299 (4)
C10A	0.39036 (18)	0.23937 (17)	0.68339 (13)	0.0303 (4)
C11A	0.27718 (18)	0.23807 (18)	0.72001 (13)	0.0329 (5)
C12A	0.21221 (19)	0.13060 (19)	0.72727 (13)	0.0370 (5)
H12A	0.238919	0.059782	0.708326	0.044*
C13A	0.10663 (19)	0.12898 (19)	0.76308 (14)	0.0396 (5)
C14A	0.0666 (2)	0.2336 (2)	0.78920 (15)	0.0457 (5)
H14A	−0.004613	0.232059	0.812416	0.055*
C15A	0.1314 (2)	0.3404 (2)	0.78118 (15)	0.0428 (5)
C16A	0.23827 (19)	0.34472 (19)	0.74742 (14)	0.0394 (5)
H16A	0.283019	0.417301	0.743175	0.047*
C17A	0.0922 (3)	−0.0640 (2)	0.77716 (19)	0.0647 (7)
H17D	0.102934	−0.110880	0.710027	0.097*
H17E	0.038350	−0.123174	0.793991	0.097*
H17F	0.172604	−0.020493	0.828837	0.097*
C18A	0.1532 (3)	0.5582 (2)	0.8185 (2)	0.0809 (9)
H18D	0.164849	0.546260	0.752116	0.121*
H18E	0.233705	0.592066	0.868743	0.121*
H18F	0.108984	0.617809	0.840737	0.121*
H6A	0.598 (2)	0.3392 (19)	0.6086 (14)	0.049 (6)*
H3B	0.5344 (19)	0.5742 (19)	0.8403 (15)	0.056 (6)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
O1B	0.1199 (18)	0.0981 (15)	0.0450 (10)	0.0487 (14)	−0.0009 (10)	0.0354 (10)
O2B	0.1142 (17)	0.0526 (11)	0.0466 (10)	0.0201 (11)	0.0101 (10)	−0.0028 (8)
N1B	0.1075 (18)	0.0449 (11)	0.0275 (10)	0.0269 (12)	0.0149 (10)	0.0107 (9)
N2B	0.0568 (12)	0.0340 (9)	0.0261 (9)	0.0133 (9)	0.0070 (8)	0.0114 (7)
N3B	0.0375 (10)	0.0280 (8)	0.0288 (8)	0.0112 (8)	0.0085 (7)	0.0130 (7)
N4B	0.0353 (10)	0.0305 (8)	0.0277 (8)	0.0123 (8)	0.0100 (7)	0.0163 (7)
N5B	0.0381 (10)	0.0281 (8)	0.0309 (8)	0.0099 (8)	0.0110 (7)	0.0135 (7)
N6B	0.0364 (10)	0.0266 (8)	0.0277 (8)	0.0115 (7)	0.0094 (7)	0.0140 (7)
C1B	0.112 (2)	0.0558 (15)	0.0302 (12)	0.0194 (16)	0.0058 (13)	0.0191 (11)
C2B	0.086 (2)	0.0533 (15)	0.0462 (13)	0.0188 (14)	0.0000 (13)	0.0282 (12)
C3B	0.0594 (16)	0.0453 (13)	0.0384 (12)	0.0191 (12)	0.0056 (11)	0.0207 (11)
C4B	0.0397 (12)	0.0313 (10)	0.0295 (10)	0.0112 (9)	0.0096 (9)	0.0138 (9)
C5B	0.0595 (15)	0.0328 (11)	0.0336 (11)	0.0179 (11)	0.0131 (10)	0.0106 (9)
C6B	0.0584 (15)	0.0308 (11)	0.0476 (12)	0.0225 (11)	0.0163 (11)	0.0181 (10)
C7B	0.0459 (13)	0.0359 (11)	0.0358 (10)	0.0170 (10)	0.0116 (9)	0.0207 (9)
C8B	0.0288 (11)	0.0304 (10)	0.0295 (10)	0.0103 (9)	0.0092 (8)	0.0159 (8)
C9B	0.0271 (11)	0.0264 (9)	0.0299 (10)	0.0093 (8)	0.0103 (8)	0.0162 (8)
C10B	0.0274 (11)	0.0313 (10)	0.0307 (10)	0.0085 (9)	0.0104 (8)	0.0155 (8)
C11B	0.0313 (12)	0.0401 (11)	0.0292 (10)	0.0080 (10)	0.0079 (8)	0.0136 (9)
C12B	0.0496 (14)	0.0500 (13)	0.0311 (11)	0.0177 (11)	0.0083 (10)	0.0171 (10)
C13B	0.0565 (16)	0.0734 (17)	0.0371 (12)	0.0248 (14)	0.0075 (11)	0.0270 (12)
C14B	0.0656 (18)	0.0712 (17)	0.0305 (12)	0.0165 (15)	0.0050 (11)	0.0108 (12)
C15B	0.0560 (16)	0.0461 (13)	0.0388 (13)	0.0086 (12)	0.0112 (11)	0.0046 (11)
C16B	0.0475 (14)	0.0387 (11)	0.0363 (11)	0.0117 (11)	0.0125 (10)	0.0127 (10)
C17B	0.095 (2)	0.114 (3)	0.0806 (19)	0.052 (2)	0.0272 (17)	0.0696 (19)
C18B	0.095 (2)	0.0458 (15)	0.0837 (19)	0.0199 (16)	0.0171 (17)	0.0042 (14)
O1A	0.0510 (10)	0.0606 (10)	0.0693 (10)	0.0177 (9)	0.0311 (8)	0.0387 (8)
O2A	0.0587 (11)	0.0578 (10)	0.0918 (12)	0.0338 (9)	0.0443 (10)	0.0339 (9)
N1A	0.0402 (11)	0.0499 (11)	0.0694 (12)	0.0243 (10)	0.0304 (9)	0.0299 (10)
N2A	0.0329 (10)	0.0375 (9)	0.0518 (10)	0.0178 (8)	0.0192 (8)	0.0255 (8)
N3A	0.0322 (10)	0.0343 (9)	0.0408 (9)	0.0154 (8)	0.0160 (7)	0.0226 (7)
N4A	0.0359 (10)	0.0400 (9)	0.0397 (9)	0.0186 (8)	0.0186 (8)	0.0251 (8)
N5A	0.0378 (10)	0.0381 (9)	0.0395 (9)	0.0208 (8)	0.0190 (8)	0.0242 (8)
N6A	0.0361 (10)	0.0356 (9)	0.0417 (9)	0.0179 (8)	0.0199 (8)	0.0252 (8)
C1A	0.0424 (15)	0.0655 (16)	0.0958 (18)	0.0223 (13)	0.0405 (14)	0.0481 (15)
C2A	0.0481 (16)	0.0561 (15)	0.1067 (19)	0.0204 (13)	0.0396 (14)	0.0556 (15)
C3A	0.0449 (15)	0.0448 (13)	0.0844 (16)	0.0237 (12)	0.0311 (12)	0.0403 (12)
C4A	0.0306 (12)	0.0332 (10)	0.0326 (10)	0.0134 (9)	0.0103 (8)	0.0160 (8)
C5A	0.0384 (13)	0.0354 (11)	0.0472 (11)	0.0214 (10)	0.0162 (10)	0.0218 (9)
C6A	0.0504 (15)	0.0371 (11)	0.0619 (13)	0.0241 (11)	0.0231 (11)	0.0310 (10)
C7A	0.0430 (13)	0.0382 (11)	0.0580 (13)	0.0186 (10)	0.0236 (10)	0.0317 (10)
C8A	0.0338 (12)	0.0331 (10)	0.0357 (10)	0.0146 (9)	0.0118 (9)	0.0195 (9)
C9A	0.0343 (12)	0.0318 (10)	0.0328 (10)	0.0153 (9)	0.0140 (9)	0.0198 (8)
C10A	0.0331 (11)	0.0355 (10)	0.0299 (10)	0.0151 (9)	0.0116 (8)	0.0195 (8)
C11A	0.0304 (12)	0.0426 (11)	0.0298 (10)	0.0137 (10)	0.0107 (8)	0.0193 (9)
C12A	0.0380 (13)	0.0443 (12)	0.0377 (11)	0.0193 (10)	0.0169 (9)	0.0223 (9)
C13A	0.0385 (13)	0.0451 (12)	0.0353 (11)	0.0101 (11)	0.0126 (9)	0.0206 (10)
C14A	0.0357 (13)	0.0598 (14)	0.0455 (12)	0.0194 (12)	0.0210 (10)	0.0232 (11)
C15A	0.0408 (13)	0.0472 (12)	0.0429 (12)	0.0214 (11)	0.0182 (10)	0.0178 (10)
C16A	0.0399 (13)	0.0433 (12)	0.0410 (11)	0.0171 (10)	0.0167 (10)	0.0219 (9)
C17A	0.0735 (19)	0.0612 (16)	0.0781 (17)	0.0233 (15)	0.0376 (14)	0.0441 (14)
C18A	0.078 (2)	0.0544 (16)	0.122 (2)	0.0366 (16)	0.0506 (18)	0.0363 (16)

Geometric parameters (Å, º) top

O1B—C13B	1.365 (3)	O1A—C13A	1.369 (2)
O1B—C17B	1.400 (3)	O1A—C17A	1.424 (3)
O2B—C15B	1.362 (3)	O2A—C15A	1.370 (2)
O2B—C18B	1.410 (3)	O2A—C18A	1.417 (3)
N1B—N2B	1.362 (2)	N1A—N2A	1.359 (2)
N1B—C1B	1.321 (3)	N1A—C1A	1.314 (3)
N2B—C3B	1.352 (2)	N2A—C3A	1.350 (2)
N2B—C4B	1.410 (2)	N2A—C4A	1.413 (2)
N3B—C4B	1.327 (2)	N3A—C4A	1.326 (2)
N3B—C8B	1.349 (2)	N3A—C8A	1.346 (2)
N4B—C9B	1.334 (2)	N4A—C9A	1.327 (2)
N4B—C10B	1.368 (2)	N4A—C10A	1.369 (2)
N5B—N6B	1.3593 (19)	N5A—N6A	1.361 (2)
N5B—C10B	1.323 (2)	N5A—C10A	1.329 (2)
N6B—C9B	1.328 (2)	N6A—C9A	1.332 (2)
N6B—H6B	1.00 (2)	N6A—H6A	0.91 (2)
C1B—H1B	0.9300	C1A—H1A	0.9300
C1B—C2B	1.383 (3)	C1A—C2A	1.381 (3)
C2B—H2B	0.9300	C2A—H2A	0.9300
C2B—C3B	1.347 (3)	C2A—C3A	1.351 (3)
C3B—H3B	0.958 (19)	C3A—H3A	0.9300
C4B—C5B	1.385 (2)	C4A—C5A	1.382 (2)
C5B—H5B	0.9300	C5A—H5A	0.9300
C5B—C6B	1.377 (3)	C5A—C6A	1.369 (3)
C6B—H6BA	0.9300	C6A—H6AA	0.9300
C6B—C7B	1.380 (2)	C6A—C7A	1.385 (3)
C7B—H7B	0.9300	C7A—H7A	0.9300
C7B—C8B	1.370 (2)	C7A—C8A	1.376 (2)
C8B—C9B	1.464 (2)	C8A—C9A	1.465 (2)
C10B—C11B	1.471 (2)	C10A—C11A	1.476 (2)
C11B—C12B	1.387 (3)	C11A—C12A	1.380 (3)
C11B—C16B	1.388 (3)	C11A—C16A	1.392 (2)
C12B—H12B	0.9300	C12A—H12A	0.9300
C12B—C13B	1.391 (3)	C12A—C13A	1.389 (3)
C13B—C14B	1.377 (3)	C13A—C14A	1.378 (3)
C14B—H14B	0.9300	C14A—H14A	0.9300
C14B—C15B	1.381 (3)	C14A—C15A	1.379 (3)
C15B—C16B	1.383 (3)	C15A—C16A	1.386 (3)
C16B—H16B	0.9300	C16A—H16A	0.9300
C17B—H17A	0.9600	C17A—H17D	0.9600
C17B—H17B	0.9600	C17A—H17E	0.9600
C17B—H17C	0.9600	C17A—H17F	0.9600
C18B—H18A	0.9600	C18A—H18D	0.9600
C18B—H18B	0.9600	C18A—H18E	0.9600
C18B—H18C	0.9600	C18A—H18F	0.9600

C13B—O1B—C17B	118.4 (2)	C13A—O1A—C17A	117.68 (17)
C15B—O2B—C18B	118.86 (19)	C15A—O2A—C18A	118.51 (17)
C1B—N1B—N2B	103.16 (18)	C1A—N1A—N2A	103.69 (17)
N1B—N2B—C4B	119.88 (16)	N1A—N2A—C4A	119.92 (16)
C3B—N2B—N1B	111.83 (16)	C3A—N2A—N1A	111.71 (17)
C3B—N2B—C4B	128.29 (16)	C3A—N2A—C4A	128.36 (17)
C4B—N3B—C8B	116.57 (15)	C4A—N3A—C8A	116.75 (16)
C9B—N4B—C10B	103.11 (14)	C9A—N4A—C10A	102.74 (15)
C10B—N5B—N6B	102.76 (14)	C10A—N5A—N6A	102.57 (15)
N5B—N6B—H6B	118.1 (12)	N5A—N6A—H6A	119.6 (12)
C9B—N6B—N5B	110.46 (14)	C9A—N6A—N5A	110.01 (16)
C9B—N6B—H6B	131.3 (11)	C9A—N6A—H6A	130.3 (13)
N1B—C1B—H1B	123.5	N1A—C1A—H1A	123.7
N1B—C1B—C2B	113.0 (2)	N1A—C1A—C2A	112.67 (19)
C2B—C1B—H1B	123.5	C2A—C1A—H1A	123.7
C1B—C2B—H2B	127.5	C1A—C2A—H2A	127.4
C3B—C2B—C1B	105.0 (2)	C3A—C2A—C1A	105.1 (2)
C3B—C2B—H2B	127.5	C3A—C2A—H2A	127.4
N2B—C3B—H3B	120.6 (12)	N2A—C3A—C2A	106.79 (19)
C2B—C3B—N2B	107.09 (19)	N2A—C3A—H3A	126.6
C2B—C3B—H3B	132.3 (12)	C2A—C3A—H3A	126.6
N3B—C4B—N2B	114.84 (16)	N3A—C4A—N2A	114.53 (16)
N3B—C4B—C5B	124.49 (17)	N3A—C4A—C5A	124.92 (18)
C5B—C4B—N2B	120.67 (15)	C5A—C4A—N2A	120.55 (17)
C4B—C5B—H5B	121.4	C4A—C5A—H5A	121.5
C6B—C5B—C4B	117.21 (17)	C6A—C5A—C4A	116.96 (18)
C6B—C5B—H5B	121.4	C6A—C5A—H5A	121.5
C5B—C6B—H6BA	120.0	C5A—C6A—H6AA	119.9
C5B—C6B—C7B	120.02 (18)	C5A—C6A—C7A	120.13 (18)
C7B—C6B—H6BA	120.0	C7A—C6A—H6AA	119.9
C6B—C7B—H7B	120.9	C6A—C7A—H7A	120.9
C8B—C7B—C6B	118.13 (17)	C8A—C7A—C6A	118.28 (19)
C8B—C7B—H7B	120.9	C8A—C7A—H7A	120.9
N3B—C8B—C7B	123.58 (16)	N3A—C8A—C7A	122.96 (18)
N3B—C8B—C9B	114.29 (15)	N3A—C8A—C9A	114.63 (16)
C7B—C8B—C9B	122.11 (15)	C7A—C8A—C9A	122.39 (18)
N4B—C9B—C8B	127.11 (15)	N4A—C9A—N6A	110.59 (16)
N6B—C9B—N4B	109.79 (14)	N4A—C9A—C8A	127.71 (17)
N6B—C9B—C8B	123.04 (15)	N6A—C9A—C8A	121.70 (17)
N4B—C10B—C11B	123.64 (16)	N4A—C10A—C11A	122.97 (16)
N5B—C10B—N4B	113.88 (15)	N5A—C10A—N4A	114.10 (16)
N5B—C10B—C11B	122.44 (16)	N5A—C10A—C11A	122.93 (16)
C12B—C11B—C10B	119.60 (17)	C12A—C11A—C10A	118.97 (17)
C12B—C11B—C16B	121.14 (18)	C12A—C11A—C16A	121.10 (18)
C16B—C11B—C10B	119.22 (18)	C16A—C11A—C10A	119.93 (17)
C11B—C12B—H12B	120.6	C11A—C12A—H12A	120.2
C11B—C12B—C13B	118.7 (2)	C11A—C12A—C13A	119.52 (18)
C13B—C12B—H12B	120.6	C13A—C12A—H12A	120.2
O1B—C13B—C12B	123.5 (2)	O1A—C13A—C12A	124.26 (19)
O1B—C13B—C14B	116.2 (2)	O1A—C13A—C14A	116.01 (18)
C14B—C13B—C12B	120.3 (2)	C14A—C13A—C12A	119.73 (19)
C13B—C14B—H14B	119.7	C13A—C14A—H14A	119.7
C13B—C14B—C15B	120.5 (2)	C13A—C14A—C15A	120.53 (19)
C15B—C14B—H14B	119.7	C15A—C14A—H14A	119.7
O2B—C15B—C14B	115.8 (2)	O2A—C15A—C14A	114.99 (18)
O2B—C15B—C16B	124.1 (2)	O2A—C15A—C16A	124.4 (2)
C14B—C15B—C16B	120.1 (2)	C14A—C15A—C16A	120.56 (19)
C11B—C16B—H16B	120.4	C11A—C16A—H16A	120.7
C15B—C16B—C11B	119.2 (2)	C15A—C16A—C11A	118.55 (19)
C15B—C16B—H16B	120.4	C15A—C16A—H16A	120.7
O1B—C17B—H17A	109.5	O1A—C17A—H17D	109.5
O1B—C17B—H17B	109.5	O1A—C17A—H17E	109.5
O1B—C17B—H17C	109.5	O1A—C17A—H17F	109.5
H17A—C17B—H17B	109.5	H17D—C17A—H17E	109.5
H17A—C17B—H17C	109.5	H17D—C17A—H17F	109.5
H17B—C17B—H17C	109.5	H17E—C17A—H17F	109.5
O2B—C18B—H18A	109.5	O2A—C18A—H18D	109.5
O2B—C18B—H18B	109.5	O2A—C18A—H18E	109.5
O2B—C18B—H18C	109.5	O2A—C18A—H18F	109.5
H18A—C18B—H18B	109.5	H18D—C18A—H18E	109.5
H18A—C18B—H18C	109.5	H18D—C18A—H18F	109.5
H18B—C18B—H18C	109.5	H18E—C18A—H18F	109.5

O1B—C13B—C14B—C15B	179.6 (2)	O1A—C13A—C14A—C15A	179.13 (17)
O2B—C15B—C16B—C11B	179.8 (2)	O2A—C15A—C16A—C11A	−179.40 (17)
N1B—N2B—C3B—C2B	−0.6 (3)	N1A—N2A—C3A—C2A	0.1 (3)
N1B—N2B—C4B—N3B	−163.67 (18)	N1A—N2A—C4A—N3A	−172.23 (15)
N1B—N2B—C4B—C5B	16.5 (3)	N1A—N2A—C4A—C5A	8.1 (3)
N1B—C1B—C2B—C3B	−0.6 (3)	N1A—C1A—C2A—C3A	−0.2 (3)
N2B—N1B—C1B—C2B	0.2 (3)	N2A—N1A—C1A—C2A	0.3 (3)
N2B—C4B—C5B—C6B	179.13 (19)	N2A—C4A—C5A—C6A	178.88 (17)
N3B—C4B—C5B—C6B	−0.6 (3)	N3A—C4A—C5A—C6A	−0.8 (3)
N3B—C8B—C9B—N4B	177.03 (17)	N3A—C8A—C9A—N4A	−175.45 (17)
N3B—C8B—C9B—N6B	0.1 (3)	N3A—C8A—C9A—N6A	4.8 (2)
N4B—C10B—C11B—C12B	−2.3 (3)	N4A—C10A—C11A—C12A	−13.6 (3)
N4B—C10B—C11B—C16B	−179.81 (18)	N4A—C10A—C11A—C16A	165.87 (16)
N5B—N6B—C9B—N4B	−0.3 (2)	N5A—N6A—C9A—N4A	0.0 (2)
N5B—N6B—C9B—C8B	177.14 (16)	N5A—N6A—C9A—C8A	179.81 (15)
N5B—C10B—C11B—C12B	175.01 (18)	N5A—C10A—C11A—C12A	166.35 (17)
N5B—C10B—C11B—C16B	−2.6 (3)	N5A—C10A—C11A—C16A	−14.2 (3)
N6B—N5B—C10B—N4B	0.7 (2)	N6A—N5A—C10A—N4A	−0.25 (19)
N6B—N5B—C10B—C11B	−176.76 (16)	N6A—N5A—C10A—C11A	179.83 (16)
C1B—N1B—N2B—C3B	0.3 (3)	C1A—N1A—N2A—C3A	−0.3 (2)
C1B—N1B—N2B—C4B	179.7 (2)	C1A—N1A—N2A—C4A	−178.99 (18)
C1B—C2B—C3B—N2B	0.7 (3)	C1A—C2A—C3A—N2A	0.0 (3)
C3B—N2B—C4B—N3B	15.6 (3)	C3A—N2A—C4A—N3A	9.3 (3)
C3B—N2B—C4B—C5B	−164.2 (2)	C3A—N2A—C4A—C5A	−170.40 (19)
C4B—N2B—C3B—C2B	−180.0 (2)	C4A—N2A—C3A—C2A	178.73 (19)
C4B—N3B—C8B—C7B	0.1 (3)	C4A—N3A—C8A—C7A	0.1 (3)
C4B—N3B—C8B—C9B	−178.27 (16)	C4A—N3A—C8A—C9A	−178.36 (14)
C4B—C5B—C6B—C7B	0.4 (3)	C4A—C5A—C6A—C7A	0.2 (3)
C5B—C6B—C7B—C8B	0.0 (3)	C5A—C6A—C7A—C8A	0.5 (3)
C6B—C7B—C8B—N3B	−0.3 (3)	C6A—C7A—C8A—N3A	−0.7 (3)
C6B—C7B—C8B—C9B	177.93 (18)	C6A—C7A—C8A—C9A	177.73 (17)
C7B—C8B—C9B—N4B	−1.4 (3)	C7A—C8A—C9A—N4A	6.0 (3)
C7B—C8B—C9B—N6B	−178.34 (18)	C7A—C8A—C9A—N6A	−173.67 (17)
C8B—N3B—C4B—N2B	−179.39 (16)	C8A—N3A—C4A—N2A	−179.06 (15)
C8B—N3B—C4B—C5B	0.4 (3)	C8A—N3A—C4A—C5A	0.6 (3)
C9B—N4B—C10B—N5B	−0.9 (2)	C9A—N4A—C10A—N5A	0.3 (2)
C9B—N4B—C10B—C11B	176.54 (17)	C9A—N4A—C10A—C11A	−179.80 (16)
C10B—N4B—C9B—N6B	0.7 (2)	C10A—N4A—C9A—N6A	−0.19 (19)
C10B—N4B—C9B—C8B	−176.60 (18)	C10A—N4A—C9A—C8A	−179.93 (17)
C10B—N5B—N6B—C9B	−0.27 (19)	C10A—N5A—N6A—C9A	0.12 (19)
C10B—C11B—C12B—C13B	−177.99 (19)	C10A—C11A—C12A—C13A	179.06 (16)
C10B—C11B—C16B—C15B	176.88 (19)	C10A—C11A—C16A—C15A	179.79 (16)
C11B—C12B—C13B—O1B	−179.5 (2)	C11A—C12A—C13A—O1A	−178.72 (17)
C11B—C12B—C13B—C14B	1.4 (3)	C11A—C12A—C13A—C14A	1.1 (3)
C12B—C11B—C16B—C15B	−0.6 (3)	C12A—C11A—C16A—C15A	−0.8 (3)
C12B—C13B—C14B—C15B	−1.3 (4)	C12A—C13A—C14A—C15A	−0.7 (3)
C13B—C14B—C15B—O2B	−178.9 (2)	C13A—C14A—C15A—O2A	−179.91 (17)
C13B—C14B—C15B—C16B	0.1 (4)	C13A—C14A—C15A—C16A	−0.5 (3)
C14B—C15B—C16B—C11B	0.8 (3)	C14A—C15A—C16A—C11A	1.2 (3)
C16B—C11B—C12B—C13B	−0.5 (3)	C16A—C11A—C12A—C13A	−0.4 (3)
C17B—O1B—C13B—C12B	23.7 (4)	C17A—O1A—C13A—C12A	16.8 (3)
C17B—O1B—C13B—C14B	−157.2 (2)	C17A—O1A—C13A—C14A	−163.09 (17)
C18B—O2B—C15B—C14B	−178.0 (2)	C18A—O2A—C15A—C14A	170.7 (2)
C18B—O2B—C15B—C16B	3.0 (4)	C18A—O2A—C15A—C16A	−8.7 (3)

Hydrogen-bond and short contact geometry (Å, °) top

Contact	H···A	D···A	D—H···A
C7A—H···C6Bⁱ	2.89	3.820 (3)	171
C7A—H···C7Bⁱ	2.87	3.761 (3)	160
N6B—H···N5A	1.88 (3)	2.841 (3)	162 (2)
C18A—H···N2B	2.82	3.591 (3)	137
C14Bⁱⁱ—Hⁱⁱ···O1A	2.64	3.559 (3)	168
C1A—H···N5Bⁱⁱⁱ	2.47	3.314 (3)	150
C1A—H···N6Bⁱⁱⁱ	2.77	3.402 (3)	126
C17B^iv—H^iv···O2A^iv	2.66	3.371 (4)	131
C6A—H···N5B^v	2.62	3.524 (3)	165
C17A^v—H^v···C1A	2.79	3.490 (3)	131
C7A···C9A^v	–	3.537 (2)	–
C7B—H···N3A^vi	2.67	3.602 (3)	177
C3A^vi—H^vi···N4B	2.76	3.624 (3)	155
N6A^vi—H^vi···N4B	2.04 (3)	2.922 (3)	164 (2)
N5B···C9B^vi	–	3.281 (3)	–
N6B···C9B^vi	–	3.350 (3)	–
C1B—H···N4A^vii	2.69	3.599 (3)	165
C14A···C5A^viii	–	3.437 (2)	–
C5A^ix—H^ix···N1A	2.52	3.407 (3)	159
C5B^x—H^x···N1B	2.62	3.434 (2)	147

Symmetry codes: (i) x, 1 + y, z; (ii) x, y, 1 + z; (iii) -1 + x, y, z; (iv) -x, 1 - y, 1 - z; (v) 1 - x, -y, 1 - z; (vi) 1 - x, 1 - y, 1 - z; (vii) 1 - x, 1 - y, 2 - z; (viii) -1 + x, y, z; (ix) 2 - x, -y, 1 - z; (x) 1 - x, 2 - y, 2 - z.

Acknowledgements

The authors are grateful to the FAIRE programme provided by the Cambridge Crystallographic Data Centre (CCDC) for the opportunity to use the Cambridge Structural Database (CSD) and associated software. Author contributions are as follows: Conceptualization, MS; methodology, KZ; formal analysis, NSK; synthesis, YSM; single-crystal measurements, SS; writing (original draft), DMP; writing (review and editing of the manuscript), KZ, MS; visualization and calculations, MS, OT; funding acquisition, MS.

Funding information

Funding for this research was provided by: Ministry of Education and Science of Ukraine (grant No. 24BF037-03).

References

Bessel, C. A., See, R. F., Jameson, D. L., Churchill, M. R. & Takeuchi, K. J. (1992). J. Chem. Soc. Dalton Trans. pp. 3223–3228. CSD CrossRef Web of Science Google Scholar
Byrne, J. P., Martínez–Calvo, M., Peacock, R. D. & Gunnlaugsson, T. (2016). Chem. A Eur. J. 22, 486–490. CSD CrossRef CAS Google Scholar
Craig, G. A., Barrios, L. A., Sánchez Costa, J., Roubeau, O., Ruiz, E., Teat, S. J., Wilson, C. C., Thomas, L. & Aromí, G. (2010). Dalton Trans. 39, 4874–4881. CSD CrossRef CAS PubMed Google Scholar
Demir, S., Dinçer, M., Çetin, A., Dayan, O. & Cansız, A. (2006). Acta Cryst. E62, o2198–o2199. Web of Science CSD CrossRef IUCr Journals Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Fares, M., Wu, X., Ramesh, D., Lewis, W., Keller, P. A., Howe, E. N. W., Pérez–Tomás, R. & Gale, P. A. (2020). Angew. Chem. Int. Ed. 59, 17614–17621. Web of Science CSD CrossRef CAS Google Scholar
Geden, J. V., Pancholi, A. K. & Shipman, M. (2013). J. Org. Chem. 78, 4158–4164. CSD CrossRef CAS PubMed Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Halcrow, M. A. (2024). Dalton Trans. 53, 13694–13708. Web of Science CrossRef CAS PubMed Google Scholar
Le-Hoang, G., Guénée, L., Sommer, Q. & Piguet, C. (2024). Inorg. Chem. 63, 3712–3723. CAS PubMed Google Scholar
Lu, C.-W., Wang, Y. & Chi, Y. (2016). Chem. Eur. J. 22, 17892–17908. Web of Science CrossRef CAS PubMed Google Scholar
Piñeiro-López, L., Valverde-Muñoz, F. J., Seredyuk, M., Bartual-Murgui, C., Muñoz, M. C. & Real, J. A. (2018). Eur. J. Inorg. Chem. pp. 289–296. Google Scholar
Pleier, A.-K., Glas, H., Grosche, M., Sirsch, P. & Thiel, W. R. (2001). Synthesis pp. 55–62. Google Scholar
Rajnák, C., Titiš, J., Fuhr, O., Ruben, M. & Boča, R. (2017). Polyhedron 123, 122–131. Google Scholar
Rigaku OD (2024). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Roberts, T. D., Tuna, F., Malkin, T. L., Kilner, A. & Halcrow, M. A. (2012). Chem. Sci. 3, 349–354. CSD CrossRef CAS Google Scholar
Seredyuk, M., Znovjyak, K., Valverde-Muñoz, F. J., da Silva, I., Muñoz, M. C., Moroz, Y. S. & Real, J. A. (2022). J. Am. Chem. Soc. 144, 14297–14309. Web of Science CSD CrossRef CAS PubMed Google Scholar
Seredyuk, M., Znovjyak, K., Valverde-Muñoz, F. J., Muñoz, M. C., Delgado, T., da Silva, I. & Real, J. A. (2025). Inorg. Chem. Front. 12, 4583–4596. CSD CrossRef CAS Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Wei, S. Y., Wang, J. L., Zhang, C. S., Xu, X.-T., Zhang, X. X., Wang, J. X. & Xing, Y.-H. (2015). ChemPlusChem 80, 549-558. Web of Science CSD CrossRef CAS PubMed Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
