Crystal structure, spectroscopic characterization, and Hirshfeld surface analysis of (E)-6-(ferrocenylmethyl­idene)-6,7-di­hydro-5H-indeno­[5,6-d][1,3]dioxol-5-one

Méndez-Román, J.A.; Burgos-Suazo, A.; Santiago-Martoral, L.N.; Piñero Cruz, D.M.; Montes-González, I.

doi:10.1107/S2056989026002628

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 4| April 2026| Pages 408-412

https://doi.org/10.1107/S2056989026002628

Open

access

Crystal structure, spectroscopic characterization, and Hirshfeld surface analysis of (E)-6-(ferrocenylmethylidene)-6,7-dihydro-5H-indeno[5,6-d][1,3]dioxol-5-one

José A. Méndez-Román,^a Alejandro Burgos-Suazo,^a Liz N. Santiago-Martoral,^a Dalice M. Piñero Cruz ^a,^b and Ingrid Montes-González ^a ^*

^aDepartment of Chemistry, University of Puerto Rico at Río Piedras, San Juan, Puerto Rico, 00925-2537, USA, and ^bUniversity of Puerto Rico's Molecular Sciences Research Center, San Juan, Puerto Rico, 00926, USA
^*Correspondence e-mail: [email protected]

Edited by G. Ferrence, Illinois State University, USA (Received 10 October 2025; accepted 11 March 2026; online 24 March 2026)

The title compound, [Fe(C₅H₅)(C₁₆H₁₁O₃)], was synthesized through a Claisen–Schmidt condensation. The title compound crystallizes in the monoclinic space group P2₁/c with four molecules per unit cell. In the crystal, molecules are arranged in pairs with asymmetrical stacking by O⋯H intermolecular interactions. The ferrocenyl indanone derivative is involved in several intermolecular interactions, including C⋯H, C⋯O, C—H⋯O, and H⋯H contacts. The cyclopentadienyl rings of ferrocene exhibit an average torsion angle of approximately −15.418°. The indanone fragment and the substituted cyclopentadienyl ring are nearly coplanar, forming a dihedral angle of 8.18 (14)°. The Hirshfeld surface analysis quantified the contributions from specific interactions involving the carbonyl moiety, π–π stacking, and H⋯H contacts. The two-dimensional fingerprint plots and NMR spectra were also analyzed.

Keywords: indanone; ferrocene; spectroscopic characaterization; crystal structure; Hirshfeld surface.

CCDC reference: 2536986

1. Chemical context

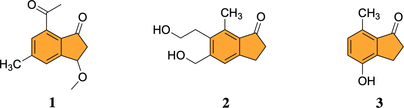

Indanones or 2,3-dihydro-1H-inden-1-ones are well-recognized pharmacophores due to their broad spectrum of biological activities, including antiviral, antibacterial, anticancer, antimalarial, anti-inflammatory, anti-Alzheimer, and cardiovascular properties (Turek et al., 2017 ; Patil et al., 2018 ). Several natural products bearing an indanone core have demonstrated significant bioactivity (Menezes, 2017 ). For example, natural products 1, 2, and 3 exhibit antibacterial, antispasmodic, and cytotoxic effects, underscoring the importance of the indanone scaffold in medicinal chemistry (Menezes, 2017). Given their promising anticancer potential, numerous indanone derivatives have been synthesized to explore structure–activity relationships and enhance therapeutic efficacy.

In parallel, organometallic compounds have garnered increasing interest over the past two decades for their diverse biological applications (Delgado-Rivera et al., 2017 ). Among them, ferrocene – a metallocene compound – has been shown to enhance the biological activity of various pharmacophores (Zubair et al., 2019 ). Owing to its chemical stability, high lipophilicity, and ability to improve anticancer, antimalarial, and antibacterial activity, ferrocene has become a valuable building block in drug design (Zubair et al., 2019; Kraatz et al., 1997 ; Kealy & Pauson, 1951 ).

Ferrocenyl–indanone frameworks have also been explored in fluorescence–electrochemical probe systems for analytical sensing (Song et al., 2024 ; Tian et al., 2024 ); however, the present study focuses on modifying the framework designed for target-oriented functionality rather than signal transduction. As a hybrid structure, the ferrocenyl-indanone scaffold may act through multiple mechanisms, combining the redox properties of ferrocene with interactions associated with the indanone pharmacophore. Herein, we report the crystal structure of a ferrocenyl-indanone hybrid synthesized as a potential bioactive molecule (Fig. 1).

Figure 1
Representation of (E)-6-(ferrocenylmethylidene)-6,7-dihydro-5H-indeno[5,6-d][1,3]dioxol-5-one. (a) Perspective drawing and (b) the molecular structure with non-H atom numbering (displacement ellipsoids are drawn at the 50% probability level).

2. Structural commentary

The title compound is a ferrocene–chalcone derivative with an extended conjugated system (Fig. 2). Two sp³-hybridized carbon atoms are incorporated within a cyclic framework, and their hydrogen atoms are oriented perpendicular to the indanone and cyclopentadienyl cores. The aromatic Csp²—Csp² bond lengths in the benzene ring are about 1.388 (3) Å, while the vinylic C11—C12 bond length of the alkene fragment is 1.333 (3) Å. The CH₂ group of the cyclic ketone shows a C12—C16—C15 angle of 103.2 (1)°, whereas the corresponding 1,3-dioxol CH₂ unit exhibits a O2—C21—O3 angle of 107.7 (2)°, consistent with their bonding environments.

Figure 2
The title compound with the non-H atom numbering. The short contacts are shown as dashed orange (C⋯H interaction) and blue (O⋯H interaction) lines.

The title compound crystallizes in the monoclinic space group P2₁/c with one molecule in the asymmetric unit. The Fe^II center is coordinated by two cyclopentadienyl ligands, one of which bears a 6,7-dihydro-5H-indeno[5,6-d][1,3]dioxol-5-one substituent. The Fe—C distances lie in the range 2.033 (2)–2.048 (2) Å, with variations of less than 0.02 Å. The carbonyl oxygen participates in three short-contact interactions: C2—H2⋯O1, C21—H21B⋯O1, and C21⋯O1.

The cyclopentadienyl rings exhibit an average torsion angle of approximately −15.418°, indicating a deviation from an ideal eclipsed D₅d arrangement. The indanone fragment and the substituted cyclopentadienyl ring are nearly coplanar, forming an interplanar angle of 8.18 (14)°. Several intermolecular contacts are present in the crystal, involving both the ferrocene and indanone moieties.

3. Supramolecular features

The title ferrocenyl indanone derivative exhibits important intermolecular interactions, namely three C⋯H, one C⋯O, two C—H⋯O, and one H⋯H interactions (Fig. 3, Table 1). The ferrocenyl moiety and the aromatic rings are perpendicular, and the molecular packing is arranged in layers extending along the c-axis direction. There are C—H⋯π interactions between a benzene ring's C—H bond and a neighbouring benzene center of gravity with a C—H⋯Cg distance of 2.7662 (7) Å (the centroid was calculated by averaging the six carbon atoms that compose the ring). The CH₂ group of the five-membered ketone ring exhibits C—H⋯O interactions with longer distances. The sheets are linked by out-of-plane C17⋯H20 and H17⋯H20 short contacts, generating stacks along the c axis. Also, there is an extension along the b axis where the ferrocene moieties are slightly perpendicular to each other, linked by C2—H2⋯O1 and C21—H21B⋯O1 contacts. The unit cell exhibits a twofold screw axis along [010] and a glide plane perpendicular to [010], resulting in a chain-fence-like crystal packing array.

Table 1
Selected H⋯C/C⋯H, C⋯O/O⋯C, C—H⋯O, and H⋯H short-contact interactions (Å)

C21⋯H6ⁱ	2.86	C2—H2⋯O1^iv	2.50
C21⋯O1ⁱⁱ	3.053 (3)	C17⋯H20^v	2.85
C21—H21B⋯O1ⁱⁱ	2.38	H17⋯H20^v	2.40
C11⋯H21Aⁱⁱⁱ	2.87
Symmetry codes: (i) 1 − x, $[{1\over 2}]$ + y, $[{1\over 2}]$ − z; (ii) 1 − x, − $[{1\over 2}]$ + y, $[{1\over 2}]$ − z; (iii) 1 − x, 2 − y, 1 − z; (iv) x, $[{3\over 2}]$ − y, $[{1\over 2}]$ + z; (v) x, $[{3\over 2}]$ − y, − $[{1\over 2}]$ + z.

Figure 3
C⋯H (orange), C—H⋯O (blue), and H⋯H (red) short contact interactions viewed along the b axis.

4. Hirshfeld Surface Analysis

The Hirshfeld surface for the title compound was generated using the CrystalExplorer21.5 software, and mapped over d_norm, shape-index, and curvedness. The corresponding two-dimensional fingerprint plot analysis was also carried out (Spackman et al., 2021 ; Spackman & Jayatilaka, 2009 ; Spackman & McKinnon, 2002 ).

The generated surface evaluated over d_norm (−0.2096–1.2772 a.u.) shows several red spots, mostly distributed over the indanone moiety, indicating the short contacts within the crystal packing (Fig. 4). The bright-red spots, having the shortest distances, are principally for H⋯O/O⋯H interactions. Contacts of C⋯H/H⋯C type are also underlined in the surface, but the red spots are of lighter intensity (i.e., longer distances). Likewise, there are many light blue/white colored spots, some of which are representative of H⋯H and C⋯C intermolecular interactions. It should be emphasized that even though H⋯H interactions are displayed as light blue/white regions, this interaction accounts for half the total intermolecular contacts in the crystal packing, evidenced by the two-dimensional fingerprint plots (Fig. 7).

Figure 4
Hirshfeld surface evaluated over d_norm for the title compound with adjacent molecules and short contacts (H⋯O/O⋯H blue and C⋯H/H⋯C orange).

The shape-index surface (Fig. 5) reveals π–π stacking, indicated by adjacent red–yellow and blue–green triangles, located primarily on the indanone aromatic ring and substituted ferrocene ring regions. Furthermore, the observed pattern of hollows and bumps delineates molecular interlocking that gives way to crystallization.

Figure 5
Hirshfeld surface mapped over shape-index for the title compound.

The curvedness feature is shown in Fig. 6, where a combination of flat segments and positive curvatures are seen. In the left part of Fig. 6a, a completely green region is observed, resulting from the planar stacking of molecules, specifically for the indanone scaffold. Moreover, the red box in Fig. 6a, when turned over, perfectly matches the red box in Fig. 6b, outlining the interlocking of neighboring molecules.

Figure 6
Hirshfeld surface evaluated over curvedness for the title compound, viewed from the side (a) and bottom (b) of the molecule.

The two-dimensional fingerprint plots (Fig. 7) are symmetric and include characteristic features for sets of interactions. The C⋯H/H⋯C (22.0%) contact plot contains two pairs of wings, representative of C—H⋯π interactions. H⋯O/O⋯H (19.6%) type contacts occur over a long range of distances and present a pair of peaks characteristic of hydrogen bonding. The H⋯H (50.7%) contacts, which contribute half of all interactions, also cover a broad range of distances and include a large number of points around ∼1.4 Å (d_i = d_e), showing the importance of this short contact for the crystal packing. These last three interactions account for more than 92% of all contacts, whereas C⋯O/O⋯C (3.8%), O⋯O (0.8%), and C⋯C (2.9%) make much smaller percentage contributions to the crystal packing. However, the C⋯C fingerprint plot exhibits a large concentration of interactions around 1.8 Å (d_i = d_e), denoting π–π stacking.

Figure 7
Fingerprint plots showing the intermolecular interactions present in the crystal structure.

5. Database survey

A search of the Cambridge Structural Database (CSD, Version 6.01, November 2025 update; Groom et al., 2016 ; ConQuest Version 2025.3.1; Build 470021) for structures containing a ferrocenyl–indanone fragment returned 17 hits. Closely related structures include POGMOR (Song et al., 2024), POGMUX (Song et al., 2024), and WOZVAM (Tian et al., 2024), which differ only by R-group substituents. POGMOR (R = OCOCH₃) and POGMUX (R = OH) crystallize in the space group P2₁/c like the title compound, with angles β = 94.025 (2) and 103.646 (1)°, respectively, compared to β = 96.553 (1)° for the title compound; WOZVAM (R = OCOOCH₂CH=CH₂) crystallizes in the Pī space group.

For all these structures, the substituents seem to influence the crystal packing with respect to the benzene ring. In the title compound, the heterocyclic substituent promotes an extended planar arrangement that enables π–π stacking between parallel benzene rings. Conversely, in POGMOR, the benzene ring exhibits π–π and C—H⋯π interactions with the ferrocene unit of a neighbouring molecule. In POGMUX, the benzene ring exhibits π–π interactions with the chalcone alkene of an adjacent molecule. In WOZVAM, neighbouring indanone cores are oppositely oriented, allowing π–π contacts involving benzene-ring carbon atoms.

The inter-planar angles between the substituted cyclopentadienyl ring and the indanone core differ among structures (title compound = 8.18°; POGMOR = 8.08°; POGMUX = 2.95°; WOZVAM = 17.68°). Differences are also observed in the torsion angles between the ferrocene cyclopentadienyl rings, where the title compound exhibits the highest deviation from an eclipsed conformation (title compound = −15.418°; POGMOR = 9.148°; POGMUX = −8.808°; WOZVAM = −6.028°).

6. Synthesis and crystallization

All reagents were obtained commercially and used without further purification. 6,7-Dihydro-5H-indeno[5,6-d][1,3]dioxol-5-one (0.25 mmol, 1.0 equiv.) was dissolved in ethanol (6 mL), and a solution of KOH (0.50 mmol) in ethanol was added dropwise. The mixture was stirred for 5 min at room temperature before adding ferrocenyl-carboxaldehyde (0.25 mmol, 1.0 equiv.). The reaction mixture was stirred at room temperature for 2 h, during which a red–orange precipitate formed. The solid was collected by filtration and washed with cold water. Recrystallization was performed with a mixture of acetone and water to purify the compound and obtain single crystals. As a result, a red–orange compound was obtained with an 85% yield. NMR analyses were performed on a Bruker AV-500 spectrometer using deuterated dimethyl sulfoxide as solvent (DMSO-d₆). The solvent signals at δ 2.50 and 3.30 ppm were used as internal standards for proton and δ 40.0 ppm for carbon. ¹H-NMR (500 MHz, DMSO-d₆) δ 3.74 (s, 2H), 4.20 (s, 5H), 4.56 (t, 2H), 4.75 (t, 2H), 6.18 (s, 2H), 7.15 (s, 1H), 7.16 (s, 1H) 7.31 (s, 1H). ¹³C-NMR (125 MHz, DMSO-d₆) δ 32.0, 70.0, 71.2, 71.7, 78.8, 102.4, 102.8, 106.5, 132.6, 133.2, 133.6, 147.1, 148.5, 153.8, 190.7.

7. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. H atoms were treated by a mixture of independent and constrained refinement. H16A and H16B were located in a difference-Fourier map and refined with independent coordinates and isotropic displacement parameters. All other H atoms (secondary C21(H21A, H21B) and aromatic hydrogens) were treated using a constrained riding model with fixed C—H distances and U_iso(H) = 1.2U_eq(C).

Table 2
Experimental details

Crystal data
Chemical formula	[Fe(C₅H₅)(C₁₆H₁₁O₃)]
M_r	372.19
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	300
a, b, c (Å)	18.2411 (2), 7.5076 (1), 11.7029 (1)
β (°)	96.553 (1)
V (Å³)	1592.21 (3)
Z	4
Radiation type	Cu Kα
μ (mm⁻¹)	7.74
Crystal size (mm)	0.30 × 0.10 × 0.03

Data collection
Diffractometer	SuperNova, Single source at offset/far, HyPix3000
Absorption correction	Multi-scan (CrysAlis PRO; Rigaku OD, 2021 )
T_min, T_max	0.430, 0.811
No. of measured, independent and observed [I > 2σ(I)] reflections	26037, 2903, 2669
R_int	0.052
(sin θ/λ)_max (Å⁻¹)	0.603

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.030, 0.077, 1.03
No. of reflections	2903
No. of parameters	235
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.19, −0.23
Computer programs: CrysAlis PRO (Rigaku OD, 2021), SHELXT2014/5 (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Supporting information

CCDC reference: 2536986

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989026002628/ej2018sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989026002628/ej2018Isup2.hkl

checkCIF report

Computing details top

(E)-6-(Ferrocenylmethylidene)-6,7-dihydro-5H-indeno[5,6-d][1,3]dioxol-5-one top

Crystal data top

[Fe(C₅H₅)(C₁₆H₁₁O₃)]	F(000) = 768
M_r = 372.19	D_x = 1.553 Mg m⁻³
Monoclinic, P2₁/c	Cu Kα radiation, λ = 1.54184 Å
a = 18.2411 (2) Å	Cell parameters from 14416 reflections
b = 7.5076 (1) Å	θ = 2.4–68.3°
c = 11.7029 (1) Å	µ = 7.74 mm⁻¹
β = 96.553 (1)°	T = 300 K
V = 1592.21 (3) Å³	Block, clear reddish orange
Z = 4	0.30 × 0.10 × 0.03 mm

Data collection top

SuperNova, Single source at offset/far, HyPix3000 diffractometer	2903 independent reflections
Radiation source: micro-focus sealed X-ray tube, SuperNova (Cu) X-ray Source	2669 reflections with I > 2σ(I)
Mirror monochromator	R_int = 0.052
Detector resolution: 10.0000 pixels mm^-1	θ_max = 68.3°, θ_min = 2.4°
ω scans	h = −21→21
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2021)	k = −7→8
T_min = 0.430, T_max = 0.811	l = −14→14
26037 measured reflections

Refinement top

Refinement on F²	Hydrogen site location: mixed
Least-squares matrix: full	H atoms treated by a mixture of independent and constrained refinement
R[F² > 2σ(F²)] = 0.030	w = 1/[σ²(F_o²) + (0.0388P)² + 0.4964P] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.077	(Δ/σ)_max = 0.001
S = 1.03	Δρ_max = 0.19 e Å⁻³
2903 reflections	Δρ_min = −0.23 e Å⁻³
235 parameters	Extinction correction: SHELXL-2018/3 (Sheldrick 2015b), Fc^*=kFc[1+0.001xFc²λ³/sin(2θ)]^-1/4
0 restraints	Extinction coefficient: 0.00065 (12)
Primary atom site location: dual

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Fe1	0.13324 (2)	0.51816 (4)	0.37179 (3)	0.03779 (12)
O1	0.34011 (9)	0.9984 (2)	0.20148 (12)	0.0539 (4)
O2	0.63811 (8)	0.9482 (2)	0.33674 (13)	0.0541 (4)
O3	0.64122 (7)	0.7776 (2)	0.50157 (12)	0.0505 (4)
C1	0.18754 (10)	0.7508 (3)	0.41518 (16)	0.0403 (4)
C2	0.19744 (11)	0.6262 (3)	0.50846 (17)	0.0462 (5)
H2	0.242327	0.581661	0.542240	0.055*
C3	0.12680 (12)	0.5827 (4)	0.54034 (19)	0.0552 (6)
H3	0.117584	0.505036	0.598942	0.066*
C4	0.07282 (12)	0.6772 (3)	0.4681 (2)	0.0548 (6)
H4	0.022098	0.672265	0.470739	0.066*
C5	0.10932 (11)	0.7802 (3)	0.39128 (19)	0.0482 (5)
H5	0.086600	0.854931	0.334498	0.058*
C6	0.16370 (14)	0.4412 (4)	0.2175 (2)	0.0619 (6)
H6	0.189860	0.510392	0.170188	0.074*
C7	0.08655 (13)	0.4338 (4)	0.2136 (2)	0.0617 (6)
H7	0.052880	0.496339	0.163045	0.074*
C8	0.06914 (14)	0.3154 (4)	0.2993 (2)	0.0682 (7)
H8	0.021998	0.286451	0.316285	0.082*
C9	0.13596 (16)	0.2485 (3)	0.3550 (2)	0.0735 (8)
H9	0.140583	0.166440	0.414985	0.088*
C10	0.19470 (14)	0.3268 (3)	0.3045 (2)	0.0671 (7)
H10	0.244749	0.306452	0.325195	0.081*
C11	0.24163 (10)	0.8275 (3)	0.34745 (16)	0.0392 (4)
H11	0.222317	0.894894	0.284415	0.047*
C12	0.31498 (10)	0.8150 (2)	0.36279 (15)	0.0356 (4)
C13	0.36171 (10)	0.9098 (3)	0.28627 (14)	0.0372 (4)
C14	0.43898 (9)	0.8793 (2)	0.33291 (13)	0.0328 (4)
C15	0.44114 (9)	0.7728 (2)	0.43030 (14)	0.0329 (4)
C16	0.36477 (10)	0.7180 (3)	0.45437 (16)	0.0380 (4)
H16A	0.3597 (11)	0.589 (3)	0.4451 (17)	0.042 (5)*
H16B	0.3549 (10)	0.749 (3)	0.5306 (18)	0.042 (5)*
C17	0.50295 (11)	0.9472 (2)	0.29216 (15)	0.0376 (4)
H17	0.501179	1.019449	0.227362	0.045*
C18	0.56760 (10)	0.8997 (3)	0.35413 (15)	0.0383 (4)
C19	0.56998 (10)	0.7958 (3)	0.45294 (15)	0.0375 (4)
C20	0.50818 (9)	0.7297 (3)	0.49407 (14)	0.0383 (4)
H20	0.510681	0.660452	0.560287	0.046*
C21	0.68600 (11)	0.8550 (3)	0.42183 (18)	0.0505 (5)
H21A	0.721497	0.936643	0.461401	0.061*
H21B	0.712730	0.762747	0.385922	0.061*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Fe1	0.03119 (17)	0.03412 (19)	0.04630 (19)	−0.00120 (12)	−0.00313 (12)	−0.00276 (12)
O1	0.0580 (9)	0.0560 (10)	0.0440 (8)	−0.0040 (7)	−0.0100 (7)	0.0183 (7)
O2	0.0456 (8)	0.0617 (10)	0.0561 (8)	−0.0160 (7)	0.0098 (7)	0.0019 (7)
O3	0.0370 (7)	0.0660 (10)	0.0471 (7)	−0.0043 (7)	−0.0020 (6)	−0.0002 (7)
C1	0.0372 (9)	0.0347 (10)	0.0469 (10)	−0.0016 (8)	−0.0042 (8)	−0.0072 (8)
C2	0.0402 (10)	0.0516 (13)	0.0448 (10)	−0.0053 (9)	−0.0041 (8)	−0.0021 (9)
C3	0.0531 (12)	0.0653 (15)	0.0481 (11)	−0.0121 (11)	0.0094 (9)	−0.0053 (11)
C4	0.0381 (10)	0.0572 (14)	0.0697 (14)	0.0000 (10)	0.0095 (9)	−0.0140 (11)
C5	0.0393 (10)	0.0375 (11)	0.0661 (13)	0.0047 (9)	−0.0011 (9)	−0.0072 (10)
C6	0.0684 (15)	0.0585 (15)	0.0598 (14)	0.0014 (13)	0.0119 (12)	−0.0167 (12)
C7	0.0614 (14)	0.0594 (15)	0.0588 (13)	0.0046 (12)	−0.0165 (11)	−0.0176 (12)
C8	0.0587 (14)	0.0595 (16)	0.0836 (18)	−0.0218 (12)	−0.0043 (12)	−0.0177 (14)
C9	0.102 (2)	0.0341 (13)	0.0796 (17)	−0.0004 (13)	−0.0090 (15)	−0.0036 (12)
C10	0.0582 (14)	0.0564 (15)	0.0838 (17)	0.0187 (12)	−0.0047 (12)	−0.0223 (13)
C11	0.0425 (10)	0.0318 (10)	0.0406 (9)	−0.0015 (8)	−0.0071 (8)	−0.0012 (8)
C12	0.0409 (10)	0.0289 (9)	0.0352 (9)	−0.0031 (8)	−0.0030 (7)	−0.0018 (7)
C13	0.0458 (10)	0.0311 (10)	0.0325 (9)	−0.0036 (8)	−0.0045 (7)	−0.0017 (8)
C14	0.0425 (9)	0.0275 (9)	0.0275 (8)	−0.0024 (7)	−0.0002 (7)	−0.0040 (7)
C15	0.0388 (9)	0.0290 (9)	0.0301 (8)	−0.0030 (7)	0.0008 (7)	−0.0025 (7)
C16	0.0389 (10)	0.0366 (11)	0.0379 (10)	−0.0021 (8)	0.0022 (8)	0.0054 (8)
C17	0.0507 (11)	0.0327 (10)	0.0294 (8)	−0.0078 (8)	0.0042 (8)	−0.0013 (7)
C18	0.0426 (10)	0.0363 (11)	0.0365 (9)	−0.0097 (8)	0.0067 (7)	−0.0072 (8)
C19	0.0373 (9)	0.0400 (11)	0.0340 (9)	−0.0024 (8)	−0.0016 (7)	−0.0080 (8)
C20	0.0442 (10)	0.0397 (11)	0.0303 (9)	−0.0010 (8)	0.0016 (7)	0.0021 (7)
C21	0.0399 (10)	0.0564 (14)	0.0552 (12)	−0.0092 (10)	0.0056 (9)	−0.0115 (10)

Geometric parameters (Å, º) top

Fe1—C1	2.0435 (19)	C6—C10	1.401 (4)
Fe1—C2	2.0397 (19)	C7—H7	0.9300
Fe1—C3	2.048 (2)	C7—C8	1.404 (4)
Fe1—C4	2.048 (2)	C8—H8	0.9300
Fe1—C5	2.034 (2)	C8—C9	1.408 (4)
Fe1—C6	2.033 (2)	C9—H9	0.9300
Fe1—C7	2.048 (2)	C9—C10	1.410 (4)
Fe1—C8	2.044 (2)	C10—H10	0.9300
Fe1—C9	2.035 (3)	C11—H11	0.9300
Fe1—C10	2.035 (2)	C11—C12	1.333 (3)
O1—C13	1.222 (2)	C12—C13	1.486 (3)
O2—C18	1.374 (2)	C12—C16	1.510 (2)
O2—C21	1.430 (3)	C13—C14	1.470 (2)
O3—C19	1.365 (2)	C14—C15	1.389 (2)
O3—C21	1.432 (2)	C14—C17	1.406 (2)
C1—C2	1.433 (3)	C15—C16	1.510 (2)
C1—C5	1.439 (3)	C15—C20	1.396 (2)
C1—C11	1.453 (3)	C16—H16A	0.98 (2)
C2—H2	0.9300	C16—H16B	0.96 (2)
C2—C3	1.420 (3)	C17—H17	0.9300
C3—H3	0.9300	C17—C18	1.359 (3)
C3—C4	1.414 (3)	C18—C19	1.392 (3)
C4—H4	0.9300	C19—C20	1.368 (3)
C4—C5	1.409 (3)	C20—H20	0.9300
C5—H5	0.9300	C21—H21A	0.9700
C6—H6	0.9300	C21—H21B	0.9700
C6—C7	1.404 (3)

H6···C21	2.256

C1—Fe1—C3	68.76 (9)	C1—C5—H5	125.6
C1—Fe1—C4	68.95 (8)	C4—C5—Fe1	70.34 (13)
C1—Fe1—C7	128.96 (10)	C4—C5—C1	108.78 (19)
C1—Fe1—C8	167.94 (10)	C4—C5—H5	125.6
C2—Fe1—C1	41.10 (8)	Fe1—C6—H6	125.5
C2—Fe1—C3	40.66 (8)	C7—C6—Fe1	70.47 (14)
C2—Fe1—C4	68.50 (9)	C7—C6—H6	125.7
C2—Fe1—C7	166.96 (10)	C10—C6—Fe1	69.93 (14)
C2—Fe1—C8	150.66 (10)	C10—C6—H6	125.7
C3—Fe1—C4	40.38 (9)	C10—C6—C7	108.6 (2)
C3—Fe1—C7	151.69 (10)	Fe1—C7—H7	126.5
C4—Fe1—C7	118.90 (10)	C6—C7—Fe1	69.29 (13)
C5—Fe1—C1	41.34 (7)	C6—C7—H7	126.0
C5—Fe1—C2	68.81 (9)	C8—C7—Fe1	69.77 (13)
C5—Fe1—C3	68.06 (10)	C8—C7—C6	108.0 (2)
C5—Fe1—C4	40.39 (9)	C8—C7—H7	126.0
C5—Fe1—C7	109.16 (10)	Fe1—C8—H8	125.8
C5—Fe1—C8	130.32 (10)	C7—C8—Fe1	70.10 (13)
C5—Fe1—C9	168.83 (10)	C7—C8—H8	126.2
C5—Fe1—C10	149.43 (11)	C7—C8—C9	107.6 (2)
C6—Fe1—C1	106.86 (9)	C9—C8—Fe1	69.49 (14)
C6—Fe1—C2	128.25 (9)	C9—C8—H8	126.2
C6—Fe1—C3	167.06 (10)	Fe1—C9—H9	126.0
C6—Fe1—C4	150.85 (10)	C8—C9—Fe1	70.13 (14)
C6—Fe1—C5	117.30 (10)	C8—C9—H9	125.8
C6—Fe1—C7	40.24 (10)	C8—C9—C10	108.4 (2)
C6—Fe1—C8	67.73 (11)	C10—C9—Fe1	69.71 (14)
C6—Fe1—C9	67.63 (12)	C10—C9—H9	125.8
C6—Fe1—C10	40.29 (10)	Fe1—C10—H10	125.7
C8—Fe1—C3	118.87 (10)	C6—C10—Fe1	69.78 (13)
C8—Fe1—C4	110.13 (10)	C6—C10—C9	107.3 (2)
C8—Fe1—C7	40.12 (10)	C6—C10—H10	126.3
C9—Fe1—C1	149.08 (10)	C9—C10—Fe1	69.75 (14)
C9—Fe1—C2	116.95 (10)	C9—C10—H10	126.3
C9—Fe1—C3	109.45 (11)	C1—C11—H11	115.4
C9—Fe1—C4	130.81 (11)	C12—C11—C1	129.22 (17)
C9—Fe1—C7	67.51 (11)	C12—C11—H11	115.4
C9—Fe1—C8	40.38 (10)	C11—C12—C13	121.40 (16)
C10—Fe1—C1	115.26 (10)	C11—C12—C16	129.99 (17)
C10—Fe1—C2	106.96 (9)	C13—C12—C16	108.57 (15)
C10—Fe1—C3	129.38 (11)	O1—C13—C12	126.58 (17)
C10—Fe1—C4	168.31 (11)	O1—C13—C14	126.35 (18)
C10—Fe1—C7	67.83 (10)	C14—C13—C12	107.06 (14)
C10—Fe1—C8	68.18 (11)	C15—C14—C13	109.28 (15)
C10—Fe1—C9	40.54 (11)	C15—C14—C17	122.70 (16)
C18—O2—C21	105.97 (15)	C17—C14—C13	128.00 (16)
C19—O3—C21	105.93 (15)	C14—C15—C16	111.69 (15)
C2—C1—Fe1	69.31 (11)	C14—C15—C20	120.87 (16)
C2—C1—C5	106.50 (18)	C20—C15—C16	127.43 (16)
C2—C1—C11	129.76 (17)	C12—C16—H16A	110.9 (12)
C5—C1—Fe1	68.97 (11)	C12—C16—H16B	112.3 (12)
C5—C1—C11	123.57 (18)	C15—C16—C12	103.25 (15)
C11—C1—Fe1	122.89 (13)	C15—C16—H16A	109.0 (12)
Fe1—C2—H2	126.1	C15—C16—H16B	112.4 (12)
C1—C2—Fe1	69.59 (10)	H16A—C16—H16B	108.8 (17)
C1—C2—H2	125.9	C14—C17—H17	122.4
C3—C2—Fe1	69.97 (12)	C18—C17—C14	115.29 (16)
C3—C2—C1	108.13 (18)	C18—C17—H17	122.4
C3—C2—H2	125.9	O2—C18—C19	109.30 (16)
Fe1—C3—H3	126.7	C17—C18—O2	128.41 (18)
C2—C3—Fe1	69.38 (12)	C17—C18—C19	122.22 (17)
C2—C3—H3	125.7	O3—C19—C18	109.92 (16)
C4—C3—Fe1	69.82 (13)	O3—C19—C20	126.91 (17)
C4—C3—C2	108.6 (2)	C20—C19—C18	123.14 (17)
C4—C3—H3	125.7	C15—C20—H20	122.1
Fe1—C4—H4	126.5	C19—C20—C15	115.75 (16)
C3—C4—Fe1	69.80 (13)	C19—C20—H20	122.1
C3—C4—H4	126.0	O2—C21—O3	107.69 (15)
C5—C4—Fe1	69.27 (12)	O2—C21—H21A	110.2
C5—C4—C3	108.03 (18)	O2—C21—H21B	110.2
C5—C4—H4	126.0	O3—C21—H21A	110.2
Fe1—C5—H5	125.9	O3—C21—H21B	110.2
C1—C5—Fe1	69.69 (11)	H21A—C21—H21B	108.5

Fe1—C1—C2—C3	−59.58 (15)	C8—C9—C10—C6	−0.3 (3)
Fe1—C1—C5—C4	59.68 (15)	C10—C6—C7—Fe1	59.74 (17)
Fe1—C1—C11—C12	−97.1 (2)	C10—C6—C7—C8	0.5 (3)
Fe1—C2—C3—C4	−58.99 (16)	C11—C1—C2—Fe1	−116.2 (2)
Fe1—C3—C4—C5	−58.90 (15)	C11—C1—C2—C3	−175.74 (19)
Fe1—C4—C5—C1	−59.28 (14)	C11—C1—C5—Fe1	116.30 (18)
Fe1—C6—C7—C8	−59.22 (17)	C11—C1—C5—C4	175.98 (18)
Fe1—C6—C10—C9	59.93 (17)	C11—C12—C13—O1	−3.7 (3)
Fe1—C7—C8—C9	−59.62 (17)	C11—C12—C13—C14	175.37 (17)
Fe1—C8—C9—C10	−59.40 (18)	C11—C12—C16—C15	−174.19 (19)
Fe1—C9—C10—C6	−59.95 (16)	C12—C13—C14—C15	0.5 (2)
O1—C13—C14—C15	179.56 (18)	C12—C13—C14—C17	−177.68 (17)
O1—C13—C14—C17	1.4 (3)	C13—C12—C16—C15	3.6 (2)
O2—C18—C19—O3	0.9 (2)	C13—C14—C15—C16	1.9 (2)
O2—C18—C19—C20	178.81 (18)	C13—C14—C15—C20	−177.39 (16)
O3—C19—C20—C15	177.61 (17)	C13—C14—C17—C18	178.63 (17)
C1—C2—C3—Fe1	59.34 (14)	C14—C15—C16—C12	−3.5 (2)
C1—C2—C3—C4	0.3 (3)	C14—C15—C20—C19	−1.2 (3)
C1—C11—C12—C13	−177.50 (18)	C14—C17—C18—O2	−178.51 (18)
C1—C11—C12—C16	0.1 (3)	C14—C17—C18—C19	−1.9 (3)
C2—C1—C5—Fe1	−59.43 (14)	C15—C14—C17—C18	0.7 (3)
C2—C1—C5—C4	0.3 (2)	C16—C12—C13—O1	178.25 (19)
C2—C1—C11—C12	−7.6 (3)	C16—C12—C13—C14	−2.7 (2)
C2—C3—C4—Fe1	58.72 (16)	C16—C15—C20—C19	179.56 (18)
C2—C3—C4—C5	−0.2 (3)	C17—C14—C15—C16	−179.78 (16)
C3—C4—C5—Fe1	59.23 (16)	C17—C14—C15—C20	0.9 (3)
C3—C4—C5—C1	0.0 (2)	C17—C18—C19—O3	−176.33 (17)
C5—C1—C2—Fe1	59.21 (13)	C17—C18—C19—C20	1.6 (3)
C5—C1—C2—C3	−0.4 (2)	C18—O2—C21—O3	−10.4 (2)
C5—C1—C11—C12	177.7 (2)	C18—C19—C20—C15	0.0 (3)
C6—C7—C8—Fe1	58.92 (17)	C19—O3—C21—O2	10.9 (2)
C6—C7—C8—C9	−0.7 (3)	C20—C15—C16—C12	175.81 (18)
C7—C6—C10—Fe1	−60.08 (17)	C21—O2—C18—C17	−177.1 (2)
C7—C6—C10—C9	−0.1 (3)	C21—O2—C18—C19	6.0 (2)
C7—C8—C9—Fe1	60.01 (17)	C21—O3—C19—C18	−7.3 (2)
C7—C8—C9—C10	0.6 (3)	C21—O3—C19—C20	174.85 (19)
C8—C9—C10—Fe1	59.66 (18)

Selected H···C/C···H, C···O/O···C, C—H···O, and H···H short-contact interactions (Å) top

C21···H6ⁱ	2.86	C2—H2···O1^iv	2.50
C21···O1ⁱⁱ	3.053 (3)	C17···H20^v	2.85
C21—H21B···O1ⁱⁱ	2.38	H17···H20^v	2.40
C11···H21Aⁱⁱⁱ	2.87

Symmetry codes: (i) 1 - x, 1/2 + y, 1/2 - z; (ii) 1 - x, -1/2 + y, 1/2 - z; (iii) 1 - x, 2 - y, 1 - z; (iv) x, 3/2 - y, 1/2 + z; (v) x, 3/2 - y, -1/2 + z.

Funding information

The authors acknowledge the facility of the Molecular Science Research Center (MSRC) in collaboration with the University of Puerto Rico for their assistance and instrumentation facilities. The Research Initiative for Scientific Enhancement (RISE) Program under grant No. 5R25GM061151–20 and the Puerto Rico NASA Space Grant Fellowship Program under grant No. 80NSSC20M0052 are acknowledged. The National Science Foundation grant No. 1626103 and the input of Amanda M. Alvarado-Torres, MS is also acknowledged.

References

Delgado-Rivera, S. M., Pérez-Ortiz, G. E., Molina-Villarino, A., Morales-Fontán, F., García-Santos, L. M., González-Albó, A. M., Guadalupe, A. R. & Montes-González, I. (2017). Inorg. Chim. Acta 468, 245–251. CAS Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Kealy, T. J. & Pauson, P. L. (1951). Nature 168, 1039–1040. CrossRef CAS Google Scholar
Kraatz, H. B., Lusztyk, J. & Enright, G. D. (1997). Inorg. Chem. 36, 2400–2405. CSD CrossRef PubMed CAS Web of Science Google Scholar
Menezes, J. C. J. M. D. S. (2017). RSC Adv. 7, 9357–9372. CrossRef CAS Google Scholar
Patil, S. A., Patil, R. & Patil, S. A. (2018). Eur. J. Med. Chem. 138, 182–198. CrossRef Google Scholar
Rigaku OD (2021). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Song, Y., Yan, K., Liu, P., Wu, W., Zhao, X., Thet, N., Wang, Y., Fan, Y., Xu, Z., James, T. D. & Jenkins, A. T. A. (2024). Sens. Actuators B Chem. 405, 135284. CSD CrossRef Google Scholar
Spackman, M. A. & Jayatilaka, D. (2009). CrystEngComm 11, 19–32. Web of Science CrossRef CAS Google Scholar
Spackman, M. A. & McKinnon, J. J. (2002). CrystEngComm 4, 378–392. Web of Science CrossRef CAS Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Tian, Y., Wu, W., Zhao, X., Wang, Y., Fan, Y. & Xu, Z. (2024). Sens. Actuators B Chem. 419, 136440. CSD CrossRef Google Scholar
Turek, M., Szczęsna, D., Koprowski, M. & Bałczewski, P. (2017). Beilstein J. Org. Chem. 13, 451–494. CrossRef CAS PubMed Google Scholar
Zubair, S., Asghar, F., Badshah, A., Lal, B., Hussain, R. A., Tabassum, S. & Tahir, M. N. (2019). J. Organomet. Chem. 879, 60–68. Web of Science CSD CrossRef CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
