Synthesis, structure and energy calculations of 4-{4-[(2,3-dioxoindol-1-yl)meth­yl]-1H-1,2,3-triazol-1-yl}butyl acetate

Sabir, S.; Mustaphi, N.E.H.; Ballo, D.; Blacque, O.; Hökelek, T.; Sebbar, N.K.

doi:10.1107/S2056989026006985

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 8| August 2026| Pages 913-918

https://doi.org/10.1107/S2056989026006985

Open

access

Synthesis, structure and energy calculations of 4-{4-[(2,3-dioxoindol-1-yl)methyl]-1H-1,2,3-triazol-1-yl}butyl acetate

Sanaa Sabir,^a Nour El Hoda Mustaphi,^a ^* Daouda Ballo,^b Olivier Blacque,^c Tuncer Hökelek ^d and Nada Kheira Sebbar ^a

^aLaboratory of Heterocyclic Organic Chemistry, Medicines Science Research Center, Pharmacochemistry Competence Center, Mohammed V University in Rabat, Faculty of Sciences, Av. Ibn Battouta, BP 1014, Rabat, Morocco, ^bLaboratory of Constitution and Reaction of Matter (LCRM), UFR SSMT, Félix Houphouët Boigny University, 22 B.P. 582 Abidjan 22, Republic of Côte d'Ivoire, ^cUniversity of Zurich, Department of Chemistry B, Winterthurerstrasse 190, 8057 Zurich, Switzerland, and ^dDepartment of Physics, Hacettepe University, 06800 Beytepe, Ankara, Türkiye
^*Correspondence e-mail: [email protected]

Edited by D. R. Manke, University of Massachusetts Dartmouth, USA (Received 12 May 2026; accepted 4 July 2026; online 16 July 2026)

The title compound, C₁₇H₁₈N₄O₄, consists of almost planar isatin and triazole rings inclined by 78.47 (5)°, as well as a butyl acetate moiety bonded to the N atom of the triazole ring. In the crystal, molecules link into a semicolon shape along the b-axis direction through bifurcated C—H⋯O hydrogen bonds. Aromatic π–π and C—H⋯π(ring) interactions also help to consolidate the crystal packing. The Hirshfeld surface analysis of the crystal structure indicates that the most important contributions for the crystal packing are from H⋯H (40.6%), H⋯O/O⋯H (26.6%), H⋯N/N⋯H (13.8%) and H⋯C/C⋯H (8.9%) interactions. The volume of the crystal voids and the percentage of free space in the unit cell were calculated to be 82.1 Å³ and 10.0%, respectively, showing that there is no large cavity in the crystal packing. Computational methods revealed C—H⋯O hydrogen-bonding energy of −11.6 kJ mol⁻¹. The evaluation of the electrostatic, dispersion and total energy frameworks indicates that the stabilization is dominated via the dispersion energy contributions in the crystal structure.

Keywords: crystal structure; hydrogen bond; π-stacking; isatin.

CCDC reference: 2570724

1. Chemical context

Isatins and their derivatives are versatile intermediates in organic synthesis owing to their structural diversity. In addition, they have attracted considerable attention because of the broad range of pharmacological activities exhibited by many of their derivatives (Melis et al., 2017 ). These compounds are associated with a wide range of biological activities, including antibacterial, antifungal, antiviral, antimicrobial, anticancer, anti-inflammatory, anticonvulsant, anti-COVID and antituberculosis activities (Song et al., 2020 ; Feng et al., 2010 ; Ghafil et al., 2019 ; Shagufta & Ahmad, 2021 ; Gowrivel Vijayakumar et al., 2023 ; Obafemi et al., 2021 ; Rasgania et al., 2023 ). Furthermore, nitrogen heterocycles, particularly the 1,2,3-triazole motif, are attracting increasing interest due to their medicinal properties. In this context, our laboratory has conducted several studies on the functionalization of the triazole nucleus and its integration with various heterocyclic systems (El Atrassi et al., 2024 ; Zouhair et al., 2023 ). Continuing our research on copper-catalyzed azide–alkyne cycloaddition reactions using click chemistry, we present herein the molecular and crystal structures, Hirshfeld surface analysis and intermolecular interaction energy calculations of the title compound, 4-{4-[(2,3-dioxoindol-1-yl)methyl]-1H-1,2,3-triazol-1-yl}butyl acetate, 3. It was obtained by treating 1-(prop-2-ynyl)isatin, 1. with 4-azidobutyl acetate, 2, in the presence of copper sulfate and sodium ascorbate as reducing agents, in a 1:1 water/ethanol mixture. After stirring for 20 h at room temperature, the reaction selectively leads to the 1,4-disubstituted triazole regioisomer (Scheme 1).

2. Structural commentary

The title compound consists of methylene-bridged triazole and isatin rings, and a butyl acetate moiety bonded to the N atom of the triazole ring (Fig. 1). The almost planar isatin A (C1–C6) and B (N1/C1/C6–C8) rings are oriented at a dihedral angle of 1.13 (5)°, where atoms O1 and O2 are 0.0229 (12) and −0.0687 (13) Å away from the best plane of ring B, respectively. Thus, they are almost coplanar with the corresponding ring plane. The almost planar isatin ring is inclined to the triazole ring, C (C10/C11/N2–N4), by 78.47 (5)°. Atoms C9 and C12 are 0.0007 (16) and −0.0022 (18) Å away from the best plane of ring C.

Figure 1
The title molecule with the atom-labelling scheme and 50% probability ellipsoids.

3. Supramolecular features

In the crystal, the molecules link into a semicolon shape along the b-axis direction through bifurcated C—H⋯O hydrogen bonds (Table 1 and Fig. 2). Aromatic π–π interactions with centroid-to-centroid distance, dihedral angle and slippage values of 3.6558 (10) Å, 1.13 (9)° and 1.62 Å, respectively, between isatin rings A and B, and C—H⋯π(ring) interactions (Table 1) also help to consolidate the crystal packing.

Table 1
Hydrogen-bond geometry (Å, °)

Cg2 is the centroid of the N2–N4/C10/C11 ring.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C3—H3⋯O2ⁱ	0.95	2.50	3.291 (2)	141
C9—H9B⋯Cg2ⁱⁱ	0.99	2.67	3.6005 (17)	162
Symmetry codes: (i) ; (ii) .

Figure 2
Packing viewed along the a-axis direction with C—H⋯O hydrogen bonds depicted by dashed lines.

4. Database survey

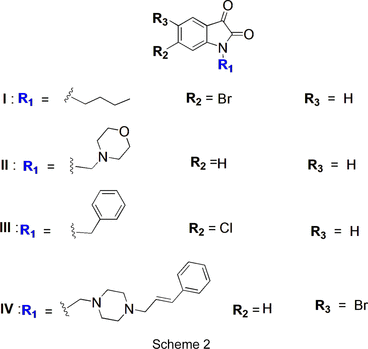

A search of the Cambridge Structural Database (CSD; Groom et al., 2016 ; updated to May 2026) using the search fragment isatin (see Scheme 2) revealed several structures closely related to the title compound, all containing an isatin (indoline-2,3-dione) core substituted at the N1 position with different alkyl or heterocyclic substituents (see Scheme 2). Among these, compound I (CSD entry 717335, refcode KOMREK; Ji et al., 2009 ), with R1 = C₄H₉, R2 = Br and R3 = H, represents a 5-bromo-substituted isatin derivative bearing a linear N-alkyl chain. Such derivatives are commonly reported in the literature and generally show a planar indoline-2,3-dione framework, with the N-alkyl substituent adopting an extended conformation to reduce steric interactions. Compound II (CSD entry 858493, refcode OCAYOI; Liu et al., 2011 ) is characterized by R1 = C₆H₁₃NO, R2 = H and R3 = H, and contains a heterocyclic morpholine moiety attached through an alkyl linker to the isatin N atom. Similar morpholine-containing derivatives are known to promote additional intermolecular contacts through weak C—H⋯O interactions, particularly involving the O atoms of the morpholine ring. In compound III (CSD entry 786667, refcode YUPSUY; Tang et al., 2010 ), with R1 = CH₂–C₆H₅, R2 = Cl and R3 = H, the isatin ring is substituted by a chloro group on the aromatic ring and connected to a benzyl fragment through the N atom. The presence of the aromatic substituent favours π–π stacking interactions, which may contribute significantly to the stabilization of the crystal packing, while compound IV (CSD entry 1437567, refcode OXIMEP; Bogdanov et al., 2016 ), with R1 = C₁₅H₂₂N₂, R2 = H and R3 = Br, exhibits a more extended structure, incorporating both a bromo-substituted isatin unit and a piperazine-based linker connected to an aryl fragment. Such flexible linkers often facilitate conformational adaptability and allow the formation of multiple weak intermolecular interactions, including C—H⋯O hydrogen bonds and aromatic interactions. These structural similarities support the relevance of previously reported isatin derivatives as reference systems and provide useful insight into the expected conformational behaviour and intermolecular interactions in the crystal structure of the title compound.

5. Hirshfeld surface analysis

The intermolecular interactions in the crystal were visualized by carrying out Hirshfeld surface (HS) analysis using CrystalExplorer (Version 17.5; Spackman et al., 2021 ). Fig. 3 shows the Hirshfeld surface in the crystal. The white surface indicates contacts with distances equal to the sum of the van der Waals radii and the red and blue colours indicate distances shorter (in close contact) or longer (distinct contacts) than the van der Waals radii, respectively. The red spots indicate their roles as the respective donor and/or acceptor atoms; they also appear as the blue and red regions corresponding to positive and negative potentials on the HS mapped over electrostatic potential as shown in Fig. 4. The blue and red regions indicate positive (hydrogen-bond donors) and negative (hydrogen-bond acceptors) electrostatic potentials. The overall two-dimensional fingerprint plot is shown in Fig. 5(a) and those delineated into various contact types are illustrated in Figs. 5(b)–(j). According to the fingerprint plots, H⋯H, H⋯O/O⋯H, H⋯N/N⋯H and H⋯C/C⋯H contacts make the most significant contributions to the HS, at 40.6, 26.6, 13.8 and 8.9%, respectively (Fig. 5).

Figure 3
View of the three-dimensional Hirshfeld surface of the title compound plotted over d_norm in the range from −0.17 to 1.29 a.u.

Figure 4
View of the three-dimensional Hirshfeld surface of the title compound plotted over electrostatic potential in the range from −0.05 to 0.05 a.u. using the STO-3 G basis set at the Hartree–Fock level of theory. Hydrogen-bond donors and acceptors are shown as blue and red regions around the atoms, corresponding to positive and negative potentials, respectively.

Figure 5
The two-dimensional fingerprint plots of the title compound, showing (a) all interactions, and delineated into (b) H⋯H, (c) H⋯O/O⋯H, (d) H⋯N/N⋯H, (e) H⋯C/C⋯H, (f) C⋯O/O⋯C, (g) C⋯C, (h) C⋯N/N⋯C, (i) N⋯O/O⋯N and (j) O⋯O interactions. The d_i and d_e values are the closest internal and external distances (in Å) from given points on the Hirshfeld surface contacts.

The strength of the crystal packing depends on the tight packing of the molecules, which results in insignificant voids. The volume of the crystal voids [Figs. 6(a) and 6(b)] and the percentage of free space in the unit cell were calculated as 82.11 Å³ and 9.96%, respectively.

Figure 6
Graphical view of voids in the crystal (a) along the a-axis direction and (b) along the b-axis direction.

6. Interaction energy calculations and energy frameworks

The intermolecular interaction energies were calculated using CE-B3LYP/6-31G(d,p) energy model available in CrystalExplorer (Version 17.5; Spackman et al., 2021), where a cluster of molecules is generated by applying crystallographic symmetry operations with respect to a selected central molecule within the radius of 3.8 Å by default. Hydrogen-bonding interaction energies (in kJ mol⁻¹) were calculated to be −4.9 (E_ele), −0.7 (E_pol), −11.3 (E_dis), 5.0 (E_rep) and −11.6 (E_tot) for C3—H3⋯O2 hydrogen-bonding interactions.

Energy frameworks combine the calculation of intermolecular interaction energies with a graphical representation of their magnitude, in which they were constructed for E_ele (red cylinders), E_dis (green cylinders) and E_tot (blue cylinders) [Figs. 7(a), 7(b) and 7(c)]. The evaluation of the electrostatic, dispersion and total energy frameworks indicates that the stabilization is dominated via the dispersion energy contributions in the crystal structure of the title compound.

Figure 7
The energy frameworks for a cluster of molecules of the title compound viewed down the a axis, showing the (a) electrostatic energy, (b) dispersion energy and (c) total energy diagrams. The cylindrical radius is proportional to the relative strength of the corresponding energies and they were adjusted to the same scale factor of 80 with a cut-off value of 5 kJ mol⁻¹ within 2 × 2 × 2 unit cells.

7. Synthesis and crystallization

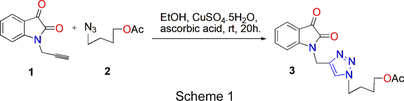

1-(Prop-2-ynyl)isatin, 1 (2.7 mmol), and 4-azidobutyl acetate, 2 (2.7 mmol), were dissolved in 10 ml of ethanol. To this solution, CuSO₄·5H₂O (1.62 mmol) and sodium ascorbate (2.7 mmol), previously dissolved in 10 ml of distilled water, were added. The reaction mixture was stirred at room temperature for 20 h. After completion of the reaction, the mixture was filtered and the solvent was removed under reduced pressure. The obtained residue was purified by column chromatography on silica gel using an ethyl acetate/hexane (8:2 v/v) mixture as the eluent. The resulting solid was filtered, washed with water, dried and recrystallized from ethanol solution to afford the title compound 3 in 85% yield.

¹H NMR (500 MHz, DMSO-d₆): δ (ppm) 8.13 (s, 1H, –CH_triazole), 7.60–7.07 (m, 4H, CH_ar), 4.91 (s, 2H, NCH₂), 4.29 (t, 2H, OCH₂), 3.92 (t, 2H, NCH₂), 1.93 (s, 3H, CH₃), 1.42–1.80 (m, 4H, –CH₂–CH₂–). ¹³C NMR (125 MHz, DMSO-d₆): δ (ppm) 183.65, 170.93 (C=O); 158.33, 150.69, 138.60 (Cq); 124.16 (–CH_triazole), 125.00, 123.89, 118.13, 111.70 (CH_ar), 63.63, 49.53, 35.60, 26.82, 25.63 (CH₂), 21.21 (CH₃).

8. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. C-bound H atoms were positioned geometrically (C—H = 0.95–0.99 Å). All were included as riding contributions with isotropic displacement parameters 1.2–1.5 times those of the attached atoms.

Table 2
Experimental details

Crystal data
Chemical formula	C₁₇H₁₈N₄O₄
M_r	342.35
Crystal system, space group	Triclinic, P $[\overline{1}]$
Temperature (K)	160
a, b, c (Å)	4.9945 (3), 5.6496 (2), 29.7750 (8)
α, β, γ (°)	92.618 (3), 91.094 (3), 100.609 (4)
V (Å³)	824.61 (6)
Z	2
Radiation type	Cu Kα
μ (mm⁻¹)	0.84
Crystal size (mm)	0.22 × 0.10 × 0.02

Data collection
Diffractometer	Agilent SuperNova Dual Source diffractometer with an Atlas detector
Absorption correction	Analytical [CrysAlis PRO (Rigaku OD, 2023 ) based on expressions derived by Clark & Reid (1995 )]
T_min, T_max	0.882, 0.981
No. of measured, independent and observed [I > 2σ(I)] reflections	17659, 3459, 3103
R_int	0.028
(sin θ/λ)_max (Å⁻¹)	0.631

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.049, 0.136, 1.04
No. of reflections	3459
No. of parameters	227
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.51, −0.27
Computer programs: CrysAlis PRO (Rigaku OD, 2023), SHELXT (Sheldrick, 2015a ), SHELXL (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Supporting information

CCDC reference: 2570724

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989026006985/yy2022sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989026006985/yy2022Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2056989026006985/yy2022Isup3.cdx

Supporting information file. DOI: https://doi.org/10.1107/S2056989026006985/yy2022Isup4.cml

checkCIF report

Computing details top

4-{4-[(2,3-Dioxoindolin-1-yl)methyl]-1H-1,2,3-triazol-1-yl}butyl acetate top

Crystal data top

C₁₇H₁₈N₄O₄	Z = 2
M_r = 342.35	F(000) = 360
Triclinic, P1	D_x = 1.379 Mg m⁻³
a = 4.9945 (3) Å	Cu Kα radiation, λ = 1.54184 Å
b = 5.6496 (2) Å	Cell parameters from 9479 reflections
c = 29.7750 (8) Å	θ = 2.9–76.1°
α = 92.618 (3)°	µ = 0.84 mm⁻¹
β = 91.094 (3)°	T = 160 K
γ = 100.609 (4)°	Plate, yellow
V = 824.61 (6) Å³	0.22 × 0.10 × 0.02 mm

Data collection top

Agilent SuperNova Dual Source diffractometer with an Atlas detector	3459 independent reflections
Radiation source: micro-focus sealed X-ray tube, SuperNova (Cu) X-ray Source	3103 reflections with I > 2σ(I)
Mirror monochromator	R_int = 0.028
Detector resolution: 10.3801 pixels mm^-1	θ_max = 76.6°, θ_min = 3.0°
ω scans	h = −6→5
Absorption correction: analytical [CrysAlis PRO (Rigaku OD, 2023) based on expressions derived by Clark & Reid (1995)]	k = −7→7
T_min = 0.882, T_max = 0.981	l = −36→37
17659 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.049	H-atom parameters constrained
wR(F²) = 0.136	w = 1/[σ²(F_o²) + (0.0668P)² + 0.4801P] where P = (F_o² + 2F_c²)/3
S = 1.04	(Δ/σ)_max < 0.001
3459 reflections	Δρ_max = 0.51 e Å⁻³
227 parameters	Δρ_min = −0.27 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	0.5941 (3)	0.8651 (3)	0.12378 (5)	0.0244 (3)
O1	0.8299 (3)	0.4135 (2)	0.06066 (4)	0.0359 (3)
N1	0.7712 (3)	0.7873 (2)	0.15507 (4)	0.0266 (3)
N2	0.5297 (3)	1.0272 (3)	0.25532 (5)	0.0336 (3)
C2	0.4401 (3)	1.0424 (3)	0.13060 (6)	0.0297 (3)
H2	0.444897	1.131064	0.158583	0.036*
O2	1.0351 (3)	0.4925 (2)	0.15571 (5)	0.0388 (3)
O3	−0.0057 (3)	−0.1044 (3)	0.41232 (5)	0.0487 (4)
N3	0.3379 (3)	0.9303 (3)	0.28220 (5)	0.0359 (3)
C3	0.2764 (3)	1.0851 (3)	0.09418 (7)	0.0355 (4)
H3	0.166825	1.205050	0.097685	0.043*
N4	0.3123 (3)	0.6905 (2)	0.27636 (5)	0.0292 (3)
C4	0.2700 (3)	0.9576 (3)	0.05335 (7)	0.0370 (4)
H4	0.158133	0.992594	0.029307	0.044*
O4	−0.1601 (4)	0.1441 (3)	0.46164 (6)	0.0576 (4)
C5	0.4249 (3)	0.7789 (3)	0.04694 (6)	0.0321 (4)
H5	0.420168	0.690571	0.018921	0.039*
C6	0.5866 (3)	0.7334 (3)	0.08273 (5)	0.0259 (3)
C7	0.7682 (3)	0.5599 (3)	0.08716 (6)	0.0274 (3)
C8	0.8814 (3)	0.6018 (3)	0.13693 (6)	0.0285 (3)
C9	0.8482 (3)	0.9034 (3)	0.19918 (5)	0.0305 (3)
H9A	0.894921	1.079947	0.196291	0.037*
H9B	1.012978	0.848797	0.210611	0.037*
C10	0.6267 (3)	0.8493 (3)	0.23255 (5)	0.0272 (3)
C11	0.4879 (3)	0.6326 (3)	0.24582 (6)	0.0299 (3)
H11	0.510637	0.475817	0.235690	0.036*
C12	0.1137 (4)	0.5298 (3)	0.30171 (6)	0.0357 (4)
H12A	0.017137	0.397264	0.281207	0.043*
H12B	−0.023027	0.620710	0.313763	0.043*
C13	0.2465 (4)	0.4238 (3)	0.34027 (6)	0.0338 (4)
H13A	0.325917	0.554284	0.362599	0.041*
H13B	0.395924	0.346606	0.328798	0.041*
C14	0.0386 (4)	0.2376 (4)	0.36290 (7)	0.0397 (4)
H14A	−0.093743	0.319560	0.378798	0.048*
H14B	−0.062856	0.122226	0.339769	0.048*
C15	0.1796 (5)	0.1022 (4)	0.39614 (7)	0.0445 (5)
H15A	0.334513	0.046181	0.381481	0.053*
H15B	0.253196	0.212855	0.422012	0.053*
C16	−0.1647 (5)	−0.0566 (4)	0.44583 (7)	0.0449 (5)
C17	−0.3463 (5)	−0.2781 (4)	0.46057 (7)	0.0504 (5)
H17A	−0.467339	−0.351486	0.435409	0.076*
H17B	−0.455711	−0.234972	0.485580	0.076*
H17C	−0.235198	−0.393172	0.470384	0.076*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0194 (7)	0.0250 (7)	0.0287 (7)	0.0025 (5)	0.0044 (5)	0.0078 (6)
O1	0.0359 (6)	0.0308 (6)	0.0413 (7)	0.0074 (5)	0.0049 (5)	−0.0033 (5)
N1	0.0258 (6)	0.0281 (7)	0.0265 (7)	0.0057 (5)	0.0009 (5)	0.0049 (5)
N2	0.0420 (8)	0.0249 (7)	0.0329 (7)	0.0035 (6)	0.0040 (6)	0.0014 (5)
C2	0.0266 (8)	0.0259 (8)	0.0375 (9)	0.0050 (6)	0.0086 (6)	0.0062 (6)
O2	0.0385 (7)	0.0322 (6)	0.0483 (8)	0.0126 (5)	−0.0077 (5)	0.0066 (5)
O3	0.0645 (9)	0.0399 (8)	0.0412 (8)	0.0051 (7)	0.0104 (7)	0.0101 (6)
N3	0.0454 (9)	0.0291 (7)	0.0329 (7)	0.0055 (6)	0.0057 (6)	0.0005 (6)
C3	0.0235 (8)	0.0314 (8)	0.0543 (11)	0.0083 (6)	0.0055 (7)	0.0145 (8)
N4	0.0349 (7)	0.0266 (7)	0.0259 (6)	0.0042 (5)	0.0004 (5)	0.0046 (5)
C4	0.0247 (8)	0.0420 (10)	0.0446 (10)	0.0042 (7)	−0.0040 (7)	0.0166 (8)
O4	0.0773 (11)	0.0380 (8)	0.0574 (10)	0.0079 (7)	0.0118 (8)	0.0064 (7)
C5	0.0254 (8)	0.0383 (9)	0.0313 (8)	0.0011 (6)	−0.0005 (6)	0.0068 (7)
C6	0.0212 (7)	0.0273 (7)	0.0292 (8)	0.0031 (6)	0.0037 (6)	0.0051 (6)
C7	0.0233 (7)	0.0252 (7)	0.0332 (8)	0.0025 (6)	0.0037 (6)	0.0044 (6)
C8	0.0242 (7)	0.0243 (7)	0.0366 (9)	0.0024 (6)	0.0020 (6)	0.0062 (6)
C9	0.0300 (8)	0.0312 (8)	0.0281 (8)	−0.0003 (6)	−0.0005 (6)	0.0032 (6)
C10	0.0310 (8)	0.0255 (7)	0.0244 (7)	0.0033 (6)	−0.0018 (6)	0.0027 (6)
C11	0.0346 (8)	0.0247 (8)	0.0306 (8)	0.0051 (6)	0.0024 (6)	0.0028 (6)
C12	0.0336 (9)	0.0386 (9)	0.0337 (9)	0.0008 (7)	0.0031 (7)	0.0110 (7)
C13	0.0402 (9)	0.0303 (8)	0.0301 (8)	0.0031 (7)	0.0020 (7)	0.0073 (6)
C14	0.0418 (10)	0.0397 (10)	0.0372 (9)	0.0033 (8)	0.0056 (8)	0.0121 (8)
C15	0.0518 (11)	0.0396 (10)	0.0426 (10)	0.0068 (8)	0.0079 (9)	0.0138 (8)
C16	0.0521 (12)	0.0447 (11)	0.0377 (10)	0.0063 (9)	0.0012 (8)	0.0109 (8)
C17	0.0651 (14)	0.0415 (11)	0.0403 (11)	−0.0035 (10)	0.0062 (9)	0.0097 (8)

Geometric parameters (Å, º) top

C1—N1	1.4115 (19)	C6—C7	1.461 (2)
C1—C2	1.381 (2)	C7—C8	1.568 (2)
C1—C6	1.398 (2)	C9—H9A	0.9900
O1—C7	1.202 (2)	C9—H9B	0.9900
N1—C8	1.366 (2)	C9—C10	1.500 (2)
N1—C9	1.453 (2)	C10—C11	1.370 (2)
N2—N3	1.317 (2)	C11—H11	0.9500
N2—C10	1.354 (2)	C12—H12A	0.9900
C2—H2	0.9500	C12—H12B	0.9900
C2—C3	1.402 (2)	C12—C13	1.516 (2)
O2—C8	1.213 (2)	C13—H13A	0.9900
O3—C15	1.457 (2)	C13—H13B	0.9900
O3—C16	1.335 (3)	C13—C14	1.526 (2)
N3—N4	1.340 (2)	C14—H14A	0.9900
C3—H3	0.9500	C14—H14B	0.9900
C3—C4	1.381 (3)	C14—C15	1.517 (3)
N4—C11	1.346 (2)	C15—H15A	0.9900
N4—C12	1.462 (2)	C15—H15B	0.9900
C4—H4	0.9500	C16—C17	1.493 (3)
C4—C5	1.389 (3)	C17—H17A	0.9800
O4—C16	1.204 (3)	C17—H17B	0.9800
C5—H5	0.9500	C17—H17C	0.9800
C5—C6	1.387 (2)

C2—C1—N1	127.42 (15)	N2—C10—C9	121.71 (14)
C2—C1—C6	121.84 (15)	N2—C10—C11	108.05 (15)
C6—C1—N1	110.73 (13)	C11—C10—C9	130.23 (15)
C1—N1—C9	124.78 (14)	N4—C11—C10	104.91 (14)
C8—N1—C1	111.05 (13)	N4—C11—H11	127.5
C8—N1—C9	123.92 (14)	C10—C11—H11	127.5
N3—N2—C10	109.17 (14)	N4—C12—H12A	109.2
C1—C2—H2	121.7	N4—C12—H12B	109.2
C1—C2—C3	116.69 (16)	N4—C12—C13	112.12 (14)
C3—C2—H2	121.7	H12A—C12—H12B	107.9
C16—O3—C15	115.84 (17)	C13—C12—H12A	109.2
N2—N3—N4	107.01 (14)	C13—C12—H12B	109.2
C2—C3—H3	119.1	C12—C13—H13A	109.5
C4—C3—C2	121.86 (16)	C12—C13—H13B	109.5
C4—C3—H3	119.1	C12—C13—C14	110.68 (15)
N3—N4—C11	110.85 (14)	H13A—C13—H13B	108.1
N3—N4—C12	120.49 (15)	C14—C13—H13A	109.5
C11—N4—C12	128.65 (15)	C14—C13—H13B	109.5
C3—C4—H4	119.5	C13—C14—H14A	109.5
C3—C4—C5	120.94 (16)	C13—C14—H14B	109.5
C5—C4—H4	119.5	H14A—C14—H14B	108.1
C4—C5—H5	121.0	C15—C14—C13	110.55 (16)
C6—C5—C4	117.91 (17)	C15—C14—H14A	109.5
C6—C5—H5	121.0	C15—C14—H14B	109.5
C1—C6—C7	107.76 (14)	O3—C15—C14	111.78 (17)
C5—C6—C1	120.76 (15)	O3—C15—H15A	109.3
C5—C6—C7	131.49 (16)	O3—C15—H15B	109.3
O1—C7—C6	131.43 (16)	C14—C15—H15A	109.3
O1—C7—C8	123.99 (15)	C14—C15—H15B	109.3
C6—C7—C8	104.58 (13)	H15A—C15—H15B	107.9
N1—C8—C7	105.85 (13)	O3—C16—C17	112.35 (19)
O2—C8—N1	126.76 (16)	O4—C16—O3	122.8 (2)
O2—C8—C7	127.39 (16)	O4—C16—C17	124.8 (2)
N1—C9—H9A	109.0	C16—C17—H17A	109.5
N1—C9—H9B	109.0	C16—C17—H17B	109.5
N1—C9—C10	112.76 (13)	C16—C17—H17C	109.5
H9A—C9—H9B	107.8	H17A—C17—H17B	109.5
C10—C9—H9A	109.0	H17A—C17—H17C	109.5
C10—C9—H9B	109.0	H17B—C17—H17C	109.5

C1—N1—C8—O2	−177.98 (15)	N3—N4—C12—C13	−102.89 (19)
C1—N1—C8—C7	1.98 (16)	C3—C4—C5—C6	−0.3 (2)
C1—N1—C9—C10	75.91 (19)	N4—C12—C13—C14	−174.10 (15)
C1—C2—C3—C4	−0.4 (2)	C4—C5—C6—C1	−0.4 (2)
C1—C6—C7—O1	−178.45 (17)	C4—C5—C6—C7	179.38 (16)
C1—C6—C7—C8	1.13 (16)	C5—C6—C7—O1	1.7 (3)
O1—C7—C8—N1	177.72 (15)	C5—C6—C7—C8	−178.69 (16)
O1—C7—C8—O2	−2.3 (3)	C6—C1—N1—C8	−1.35 (18)
N1—C1—C2—C3	−179.27 (15)	C6—C1—N1—C9	173.01 (13)
N1—C1—C6—C5	179.85 (13)	C6—C1—C2—C3	−0.3 (2)
N1—C1—C6—C7	0.00 (17)	C6—C7—C8—N1	−1.91 (16)
N1—C9—C10—N2	−124.59 (17)	C6—C7—C8—O2	178.06 (16)
N1—C9—C10—C11	55.1 (2)	C8—N1—C9—C10	−110.43 (17)
N2—N3—N4—C11	0.15 (19)	C9—N1—C8—O2	7.6 (3)
N2—N3—N4—C12	179.97 (14)	C9—N1—C8—C7	−172.43 (13)
N2—C10—C11—N4	−0.13 (18)	C9—C10—C11—N4	−179.89 (15)
C2—C1—N1—C8	177.70 (15)	C10—N2—N3—N4	−0.23 (19)
C2—C1—N1—C9	−7.9 (2)	C11—N4—C12—C13	76.9 (2)
C2—C1—C6—C5	0.7 (2)	C12—N4—C11—C10	−179.81 (15)
C2—C1—C6—C7	−179.11 (14)	C12—C13—C14—C15	170.55 (16)
C2—C3—C4—C5	0.7 (3)	C13—C14—C15—O3	−169.84 (16)
N3—N2—C10—C9	−179.99 (14)	C15—O3—C16—O4	1.0 (3)
N3—N2—C10—C11	0.23 (19)	C15—O3—C16—C17	−179.57 (17)
N3—N4—C11—C10	−0.01 (19)	C16—O3—C15—C14	−82.3 (2)

Hydrogen-bond geometry (Å, º) top

Cg2 is the centroid of the N2–N4/C10/C11 ring.

D—H···A	D—H	H···A	D···A	D—H···A
C3—H3···O2ⁱ	0.95	2.50	3.291 (2)	141
C9—H9B···Cg2ⁱⁱ	0.99	2.67	3.6005 (17)	162

Symmetry codes: (i) x−1, y+1, z; (ii) x+1, y, z.

Acknowledgements

TH is grateful to Hacettepe University Scientific Research Project Unit (grant No. 013 D04 602 004).

References

Bogdanov, A. V., Vazykhova, A. M., Khasiyatullina, N. R., Krivolapov, D. B., Dobrynin, A. B., Voloshina, A. D. & Mironov, V. F. (2016). Khim. Geterotsikl. Soedin. 52, 25 CAS Google Scholar
Clark, R. C. & Reid, J. S. (1995). Acta Cryst. A51, 887–897. CrossRef CAS Web of Science IUCr Journals Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
El Atrassi, Z., Benzekri, Z., Blacque, O., Hökelek, T., Mazzah, A., Cherkaoui, H. & Sebbar, N. K. (2024). J. Mol. Struct. 80, 1075–1080. CAS Google Scholar
Feng, L. S., Liu, M. L., Wang, B., Chai, Y., Hao, X. Q., Meng, S. & Guo, H. Y. (2010). Eur. J. Med. Chem. 45, 3407–3412. Web of Science CrossRef CAS PubMed Google Scholar
Ghafil, R. A. A., Obaid, N. H. & Aljamali, N. M. (2019). J. Adv. Res. Dyn. Control Syst. 11, 199–209. Google Scholar
Gowrivel Vijayakumar, B., Ramesh, D., Kumari, S., Maity, A., Pinnaka, A. K. & Kannan, T. (2023). Int. J. Biol. Macromol. 244, 125428. Web of Science CrossRef PubMed Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Ji, L., Fang, Q. & Fan, J. (2009). Acta Cryst. E65, o136. Web of Science CrossRef IUCr Journals Google Scholar
Liu, H., Fan, D., Wang, D. & Ou-yang, P.-K. (2011). Acta Cryst. E67, o3427. Web of Science CrossRef IUCr Journals Google Scholar
Melis, C., Meleddu, R., Angeli, A., Distinto, S., Bianco, G., Capasso, C., Cottiglia, F., Angius, R., Supuran, C. T. & Maccioni, E. (2017). J. Enzyme Inhib. Med. Chem. 32, 68–73. Web of Science CrossRef CAS PubMed Google Scholar
Obafemi, C. A., Adegbite, O. B., Fadare, O. A., Iwalewa, E. O., Omisore, N. O., Sanusi, K., Yilmaz, Y. & Ceylan, U. (2021). Heliyon 7, e05756. Web of Science CrossRef PubMed Google Scholar
Rasgania, J., Gavadia, R., Nimesh, S., Loveleen, L., Mor, S., Singh, D. & Jakhar, K. (2023). J. Mol. Struct. 1294, 136464. Web of Science CrossRef Google Scholar
Rigaku OD (2023). CrysAlis PRO. Rigaku Oxford Diffraction Ltd, Yarnton, England. Google Scholar
Shagufta & Ahmad, I. (2021). Eur. J. Med. Chem. 213, 113157. Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Song, F., Li, Z., Bian, Y., Huo, X., Fang, J., Shao, L. & Zhou, M. (2020). Arch. Pharm. 353, 2000143. Web of Science CrossRef Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Tang, Y., Zhang, J., Miao, Y. & Chen, G. (2010). Acta Cryst. E66, o1748. Web of Science CrossRef IUCr Journals Google Scholar
Zouhair, M., El Ghayati, L., El Monfalouti, H., Abchihi, H., Hökelek, T., Ahmed, M., Mague, J. T. & Sebbar, N. K. (2023). Acta Cryst. E79, 1179–1182. Web of Science CSD CrossRef IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 8| August 2026| Pages 913-918

https://doi.org/10.1107/S2056989026006985

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

research communications\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

Synthesis, structure and energy calculations of 4-{4-[(2,3-dioxoindol-1-yl)meth­yl]-1H-1,2,3-triazol-1-yl}butyl acetate

1. Chemical context

2. Structural commentary

3. Supra­molecular features

4. Database survey

5. Hirshfeld surface analysis

6. Inter­action energy calculations and energy frameworks

7. Synthesis and crystallization

8. Refinement

Supporting information

Acknowledgements

References

research communications

Synthesis, structure and energy calculations of 4-{4-[(2,3-dioxoindol-1-yl)methyl]-1H-1,2,3-triazol-1-yl}butyl acetate

3. Supramolecular features

6. Interaction energy calculations and energy frameworks
