A lanthanum complex with 3,4,5,6-tetra­bromophthalate as ligand

Hénaff, C.; Roisnel, T.; Blais, C.; Guillou, O.; Daiguebonne, C.

doi:10.1107/S2056989026008340

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 9| September 2026| Pages 1095-1099

https://doi.org/10.1107/S2056989026008340

Open

access

A lanthanum complex with 3,4,5,6-tetrabromophthalate as ligand

Christine Hénaff,^a ^* Thierry Roisnel,^b Chloé Blais,^a Olivier Guillou ^a,^c and Carole Daiguebonne ^a

^aUniv Rennes, INSA Rennes, CNRS UMR 6226 "Institut des Sciences Chimiques de Rennes", 35708 Rennes, France, ^bUniv Rennes, CNRS UMR 6226, "Institut des Sciences Chimiques de Rennes", 35042 Rennes, France, and ^cInstitut Universitaire de France, 1 rue Descartes, 75005 Paris, France
^*Correspondence e-mail: [email protected]

Edited by F. F. Ferreira, Universidade Federal do ABC, Brazil (Received 19 June 2026; accepted 12 August 2026; online 28 August 2026)

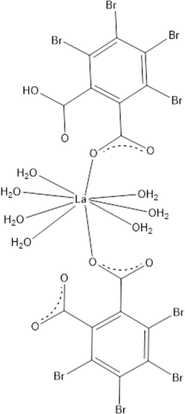

A lanthanum-based complex, heptaaqua(3,4,5,6-tetrabromobenzene-1,2-dicarboxylato)(3,4,5,6-tetrabromo-2-carboxybenzoato)lanthanum(III), [La(C₈Br₄O₄)(C₈HBr₄O₄)(H₂O)₇] or [La(tbpa)(Htbpa)(H₂O)₇], where H₂tbpa is 3,4,5,6-tetrabromophthalic acid, was prepared by microwave-assisted reaction between lanthanum chloride and 3,4,5,6-tetrabromobenzene-1,2-dicarboxylic or tetrabromophthalic acid in water. The La³⁺ is nine-coordinated by seven oxygen atoms from coordinated water molecules and two oxygen atoms from two different ligands in a slightly distorted D_3h spherical tricapped trigonal prismatic geometry. The crystal packing features a hydrogen-bonding network and Br⋯Br interactions.

Keywords: crystal structure; lanthanum; 3,4,5,6-tetrabromo-phthalate; complex; luminescent marker.

CCDC reference: 2430860

1. Chemical context

Tracking materials throughout their life cycle and across the supply chain is a major challenge, whether it is to combat counterfeiting or to accurately identify the nature of a material to ensure its correct recycling. Lanthanide coordination polymers have proved effective for marking materials in bulk as part of anti-counterfeiting efforts. They could also be relevant for marking plastics in bulk and so enable rigorous waste sorting. (Daiguebonne et al., 2025 ). Indeed, regardless of the recycling method (mechanical, chemical, or biochemical), the uniformity of waste batches is a key factor (Vollmer et al., 2020 ). While identification in the laboratory is relevant in the anti-counterfeiting field, it must be realized on sorting lines during the recycling process. This latter technological field is thus much more demanding than the former and requires highly efficient and easily identifiable markers. The quest for highly luminescent coordination compounds usable for marking plastics therefore remains an ongoing challenge. Our group has been conducting most of its research in this field for about 20 years. These works have shown that lanthanide coordination polymers based on halogeno phthalate ligands are very promising. Indeed, these non-toxic and inexpensive compounds can be prepared in high yields in water. The energies of their first excited triplet and singlet states are suitable (Latva et al., 1997 ; Steemers et al., 1995 ) for ensuring effective `antenna effects' (Weissman et al., 1942 ). Additionally, their adjacent carboxylate functions, which allow for rigid molecular motifs and prevent the presence of water molecules in the first coordination sphere of lanthanide ions, are known for being beneficial to strong luminescence (Bünzli et al., 2010 , 2015 ). Finally, halogen substituents, by establishing halogen⋯halogen interactions, contribute to keeping the molecular motifs spaced apart and avoiding π–π interactions.

Surprisingly, studies devoted to lanthanide coordination polymers based on phthalate or halogeno phthalate are fairly rare, and those devoted to the study of their luminescent properties are even rarer (Hénaff et al., 2026 ). To the best of our knowledge, only lanthanide coordination polymers based on dichlorophthalate or tetrachlorophthalate ligands have been studied in terms of their luminescent properties (Badiane et al., 2018 ; Blais et al., 2025 , 2026 ; Ngom, Chang et al., 2024 ). The studies revealed that these compounds exhibit excellent luminescence properties (Blais et al., 2022 ). However, the number, the nature and the position on the phenyl ring of the halogen atoms have clearly a strong influence on the luminescent properties of the compounds. Indeed, they influence the energies of the first excited triplet and singlet states (Clark et al., 1963 ), the strength of the halogen⋯halogen interactions (Fourmigué, 2009 ; Metrangolo, 2001 ; Cavallo et al., 2016 ) and the steric hindrance of the ligand (Daiguebonne et al., 2000 ). For these reasons, we undertook a systematic study of rare-earth coordination compounds based on halogeno-phthalate ligands. It was during this study that the complex [La(tbpa)(Htbpa)(H₂O)₇] was obtained. To the best of our knowledge, this is the first structurally characterized lanthanide coordination compound based on 3,4,5,6-tetrabromophthalate (Fig. 1) as ligand.

Figure 1
Schematic representation of 3,4,5,6-tetrabromobenzene-1,2-dicarboxylic or tetrabromophthalic acid (H₂tbpa).

2. Structural commentary

Microwave-assisted reaction in water between lanthanum chloride and 3,4,5,6-tetrabromo-benzene-1,2-dicarboxylic or tetrabromophthalic acid (hereafter denoted H₂tbpa) leads to a lanthanum complex with chemical formula [La(tbpa)(Htbpa)(H₂O)₇] (Fig. 2). There is one independent La³⁺ ion in this crystal structure. It is nine-coordinated by seven oxygen atoms from coordination water molecules and two oxygen atoms from two different ligands that form a slightly distorted D_3h spherical tricapped trigonal prism (see table in the supporting information) (Casanova et al., 2005 ; Alvarez et al., 2005 ). There are also two independent ligands in this crystal structure. One is fully deprotonated (type A) while the other one is singly protonated (type B). Both are μ₁(η₁) (Fig. 3). The high hydration rate of the lanthanide ion results from the bulky character of the ligand, which prevents it from saturating the coordination sphere of the lanthanum ion. Consequently, there are seven coordinated water molecules per lanthanide ion (Daiguebonne et al., 2000; Xi-Zhang et al., 1987 ). It is noticeable that there are no water molecules of crystallization in this crystal structure.

Figure 2
Projection view of the asymmetric unit of [La(tbpa)(Htbpa)(H₂O)₇] with the numbering scheme. Displacement ellipsoids are drawn at the 50% probability level.

Figure 3
Schematic representations of the neighbourhood of the La³⁺ ion in [La(tbpa)(Htbpa)(H₂O)₇] (left) and of the bulky character of the tbpa²⁻ ligand (right). The dotted line highlights the steric hindrance of the ligand.

3. Supramolecular features

The cohesion of the crystal packing is ensured by a hydrogen-bonding network (Table 1) and Br⋯Br interactions (Table 2). There are no π-π interactions in the crystal (shortest centroid–centroid distances are about 6.3 Å). As shown in Fig. 4, the bromine atoms face each other and Br⋯Br interactions keep the complexes far apart from one another in the c-axis direction. There are eight lanthanide ions closer than 10 Å, the distance above which intermetallic energy transfers are expected to be less efficient (Imbert et al., 2003 ) from a given lanthanide ion (Table 3 and Fig. 5). In the c-axis direction the shortest distances between closest lanthanide ions are all greater than 17 Å. In conclusion, the tbpa²⁻ ligand appears effective, thanks to the Br⋯Br interactions, at keeping the molecular motifs apart from one another. This is an advantage and helps to minimize intermetallic energy transfers. On the other hand, the steric hindrance caused by the bromine atoms is too great to allow the ligands to saturate the lanthanide ion's coordination sphere. This results in a high number of coordinated water molecules and, consequently, a high number of high-energy O—H vibrators in the vicinity of the rare earth, which is known for being detrimental to luminescence. To date, despite great synthetic efforts, we have not succeeded in preparing an isostructural compound with a luminescent rare-earth ion. It is thus not possible to experimentally evaluate the potential of this ligand for the preparation of highly luminescent compounds.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O2—H2A⋯O13	0.85 (1)	2.25 (1)	3.093 (6)	175 (6)
O2—H2B⋯O13^v	0.85 (1)	2.44 (5)	3.026 (6)	126 (5)
O2—H2B⋯O14^v	0.85 (1)	1.89 (1)	2.729 (6)	170 (5)
O3—H3A⋯O13^vi	0.85 (1)	1.88 (2)	2.701 (6)	163 (6)
O3—H3B⋯O12^vii	0.85 (1)	1.91 (2)	2.700 (6)	154 (5)
O4—H4A⋯O9^viii	0.85 (1)	2.00 (2)	2.794 (5)	155 (5)
O4—H4B⋯O12^vii	0.85 (1)	1.99 (2)	2.803 (5)	162 (5)
O5—H5A⋯O7^vi	0.85 (1)	2.06 (2)	2.881 (6)	161 (5)
O5—H5B⋯O11^viii	0.85 (1)	2.26 (4)	2.990 (6)	144 (5)
O6—H6A⋯O5^viii	0.85 (1)	2.01 (2)	2.830 (6)	163 (5)
O6—H6B⋯O9^viii	0.85 (1)	1.78 (1)	2.619 (6)	173 (7)
O7—H7A⋯O15^ix	0.85 (1)	2.07 (3)	2.835 (6)	149 (6)
O7—H7B⋯O11	0.85 (1)	1.97 (2)	2.806 (6)	166 (5)
O10—H10⋯O14^x	0.84	1.79	2.577 (6)	155
O15—H15B⋯O13^vi	0.85 (1)	1.84 (2)	2.661 (5)	165 (5)
Symmetry codes: (v) ; (vi) ; (vii) ; (viii) ; (ix) ; (x) .

Table 2
Selected interatomic distances (Å)

Br1⋯Br2	3.2865 (8)	Br3⋯Br3ⁱⁱⁱ	3.7378 (8)
Br1⋯Br8ⁱ	3.6115 (8)	Br4⋯Br5	3.5336 (7)
Br2⋯Br3	3.2929 (9)	Br5⋯Br6	3.2936 (9)
Br2⋯Br7ⁱⁱ	3.5480 (9)	Br6⋯Br7	3.2977 (10)
Br2⋯Br3ⁱⁱ	3.5688 (9)	Br7⋯Br8	3.2717 (9)
Br3⋯Br4	3.2808 (8)	Br7⋯Br8^iv	3.7295 (11)
Symmetry codes: (i) ; (ii) ; (iii) ; (iv) .

Table 3
Intermetallic distances (Å) shorter than 10Å

Atom 1	Atom 2	Symmetry	Distance
La1	La1	1 − x, 2 − y, 1 − z	6.1455 (4)
	La1	1 + x, y, z	6.2336 (4)
	La1	−1 + x, y, z	6.2336 (4)
	La1	1 − x, 1 − y, 1 − z	6.8083 (4)
	La1	2 − x, 2 − y, 1 − z	8.3989 (4)
	La1	−x, 2 − y, 1 − z	9.0945 (4)
	La1	2 − x, 1 − y, 1 − z	9.1469 (4)
	La1	−x, 1 − y, 1 − z	9.3142 (4)

Figure 4
Projection views along the a- (left) and b-axis (right) of the crystal packing of [La(tbpa)(Htbpa)(H₂O)₇]. Dotted lines represent the shortest Br⋯Br distances.

Figure 5
Perspective view along the a axis of [La(tbpa)(Htbpa)(H₂O)₇]. Hydrogen atoms are omitted for clarity. The shortest intermetallic distances along the a, b and c axes are indicated.

4. Database survey

A search of the Cambridge Structural Database was performed using ConQuest (Version 2026, CSD version 6.01, updated November 2025; Groom et al., 2016 ). For lanthanide coordination polymers based on the tetrachlorophthalate ligand, see: CSD refcodes GADCOG (Chen et al., 2016 ), TANDUK (Ma et al., 2017 ), XOYJII (Ngom, Chang et al., 2024), MUFMOT (Ngom, Blais et al., 2024 ) and QUWSIO (Blais et al., 2025). For a structural comparison between the crystal structures of phthalate and halogeno phthalate-based coordination polymers, see Hénaff et al. (2026).

5. Synthesis and crystallization

Lanthanum oxide (4 N) was purchased from Ampère. Hydrated lanthanum chloride [LaCl₃(H₂O)₆] was prepared according to established procedures (Desreux, 1989 ). 3,4,5,6-Tetrabromophthalic acid (H₂tbpa) (98.75%) was purchased from BDLpharm and used without further purification. 0.4 mmol (148.5 mg) of LaCl₃(H₂O)₆, 0.6 mmol (278.2 mg) of H₂tbpa, 1.2 mL of a solution of sodium hydroxide (1 mol L⁻¹) and 3.8 mL of deionized water were placed in a 10 mL sealed Pyrex test tube in a CEM Discover microwave oven and maintained for 30 min under stirring (T = 403 K; P = 2.5 bar). Single crystals suitable for X-ray diffraction analysis were obtained after slow evaporation of the supernatant solution extracted after the synthesis.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 4. The H atoms of the water molecules were located and refined using a mixed model with the AFIX 2 instruction. DFIX [O—H = 0.85 (1) Å] and DANG [H⋯H = 1.37 (1) Å] restraints were applied. The hydroxyl H atom was refined using AFIX 147. The isotropic displacement parameters for all O-bound H atoms were U_iso(H) = 1.2U_eq(O).

Table 4
Experimental details

Crystal data
Chemical formula	[La(C₈Br₄O₄)(C₈HBr₄O₄)(H₂O)₇]
M_r	1225.47
Crystal system, space group	Triclinic, P $[\overline{1}]$
Temperature (K)	150
a, b, c (Å)	6.2336 (6), 12.3400 (11), 19.1394 (19)
α, β, γ (°)	96.248 (4), 90.990 (4), 91.691 (4)
V (Å³)	1462.6 (2)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	12.46
Crystal size (mm)	0.54 × 0.13 × 0.07

Data collection
Diffractometer	D8 VENTURE Bruker AXS
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.245, 0.418
No. of measured, independent and observed [I > 2σ(I)] reflections	15668, 5917, 5164
R_int	0.038
(sin θ/λ)_max (Å⁻¹)	0.625

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.035, 0.115, 1.06
No. of reflections	5917
No. of parameters	374
No. of restraints	21
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	1.71, −1.46
Computer programs: APEX3 and SAINT (Bruker, 2015 ), SHELXT (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ), SXGRAPH (Farrugia, 1999 ), Mercury (Macrae et al., 2020 ) and CRYSCALC (T. Roisnel, local program, 2024).

Supporting information

CCDC reference: 2430860

Crystal structure: contains datablocks global, I. DOI: https://doi.org/10.1107/S2056989026008340/ee2031sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989026008340/ee2031Isup2.hkl

checkCIF report

Computing details top

Heptaaqua(3,4,5,6-tetrabromobenzene-1,2-dicarboxylato)(3,4,5,6-tetrabromo-2-carboxybenzoato)lanthanum(III), top

Crystal data top

[La(C₈Br₄O₄)(C₈HBr₄O₄)(H₂O)₇]	Z = 2
M_r = 1225.47	F(000) = 1136
Triclinic, P1	D_x = 2.783 Mg m⁻³
a = 6.2336 (6) Å	Mo Kα radiation, λ = 0.71073 Å
b = 12.3400 (11) Å	Cell parameters from 9977 reflections
c = 19.1394 (19) Å	θ = 2.6–27.5°
α = 96.248 (4)°	µ = 12.46 mm⁻¹
β = 90.990 (4)°	T = 150 K
γ = 91.691 (4)°	Board, colourless
V = 1462.6 (2) Å³	0.54 × 0.13 × 0.07 mm

Data collection top

D8 VENTURE Bruker AXS diffractometer	5917 independent reflections
Radiation source: Incoatec microfocus sealed tube	5164 reflections with I > 2σ(I)
Multilayer monochromator	R_int = 0.038
Detector resolution: 7.39 pixels mm^-1	θ_max = 26.4°, θ_min = 2.6°
rotation images scans	h = −7→7
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	k = −15→15
T_min = 0.245, T_max = 0.418	l = −23→23
15668 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.035	H atoms treated by a mixture of independent and constrained refinement
wR(F²) = 0.115	w = 1/[σ²(F_o²) + (0.0767P)²] where P = (F_o² + 2F_c²)/3
S = 1.06	(Δ/σ)_max = 0.001
5917 reflections	Δρ_max = 1.71 e Å⁻³
374 parameters	Δρ_min = −1.46 e Å⁻³
21 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Crystal structure was solved by dual-space algorithm using SHELXT program (Sheldrick, 2015) and then refined with full-matrix least-squares methods based on F2 (SHELXL). All non-Hydrogen atoms were refined with anisotropic atomic displacement parameters. The final refinement on F² with 6584 unique intensities and 320 parameters converged at ωR_F²=0.1096 (R_F=0.0349) for 5164 observed reflections with I>2σ(I). In the CHECKCIF procedure, no A-type meaningful alert has remained Refinement of F² against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F², conventional R-factors R are based on F, with F set to zero for negative F². The threshold expression of F² > 2sigma(F²) is used only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F² are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
La1	0.52218 (5)	0.75582 (2)	0.44897 (2)	0.00807 (11)
Br1	1.30712 (9)	0.29275 (4)	0.23795 (3)	0.01532 (15)
Br2	1.15318 (10)	0.33774 (5)	0.07884 (3)	0.02007 (16)
Br3	0.74303 (11)	0.49409 (5)	0.05785 (3)	0.02421 (17)
Br4	0.46824 (9)	0.58920 (5)	0.19457 (3)	0.01814 (15)
Br5	0.10228 (9)	0.80306 (4)	0.21605 (3)	0.01595 (15)
Br6	0.29127 (11)	0.77604 (5)	0.05568 (4)	0.02413 (17)
Br7	0.73350 (11)	0.91220 (5)	0.02153 (4)	0.02452 (17)
Br8	0.97681 (10)	1.07518 (5)	0.14639 (4)	0.02193 (16)
O1	0.6451 (6)	0.6247 (3)	0.3526 (2)	0.0142 (9)
O2	0.8468 (6)	0.6624 (3)	0.4899 (2)	0.0143 (8)
H2A	0.914 (8)	0.616 (4)	0.463 (2)	0.017*
H2B	0.907 (9)	0.666 (5)	0.5306 (13)	0.017*
O3	0.3388 (7)	0.5916 (3)	0.4919 (2)	0.0123 (8)
H3A	0.273 (9)	0.547 (4)	0.4612 (19)	0.015*
H3B	0.326 (10)	0.567 (4)	0.5313 (13)	0.015*
O4	0.5210 (6)	0.7546 (3)	0.5858 (2)	0.0131 (8)
H4A	0.572 (10)	0.804 (3)	0.617 (2)	0.016*
H4B	0.512 (10)	0.696 (2)	0.605 (3)	0.016*
O5	0.1924 (6)	0.8589 (3)	0.5052 (2)	0.0142 (8)
H5A	0.078 (5)	0.853 (5)	0.480 (2)	0.017*
H5B	0.157 (8)	0.861 (5)	0.5478 (9)	0.017*
O6	0.6957 (7)	0.9232 (3)	0.5158 (2)	0.0153 (9)
H6A	0.721 (11)	0.985 (2)	0.501 (3)	0.018*
H6B	0.678 (11)	0.934 (4)	0.5597 (8)	0.018*
O7	0.8708 (6)	0.8335 (3)	0.3942 (2)	0.0150 (9)
H7A	0.950 (9)	0.790 (3)	0.370 (3)	0.018*
H7B	0.864 (10)	0.891 (3)	0.373 (3)	0.018*
O8	0.4134 (6)	0.8735 (3)	0.3598 (2)	0.0159 (9)
O9	0.3261 (6)	1.0449 (3)	0.3470 (2)	0.0151 (9)
O10	0.7734 (7)	1.1778 (3)	0.2832 (2)	0.0168 (9)
H10	0.813852	1.215681	0.320490	0.025*
O11	0.8232 (6)	1.0385 (3)	0.3462 (2)	0.0147 (9)
O12	0.5791 (6)	0.4533 (3)	0.3754 (2)	0.0139 (8)
O13	1.0695 (6)	0.4820 (3)	0.3952 (2)	0.0155 (9)
O14	0.9943 (6)	0.3045 (3)	0.3754 (2)	0.0126 (8)
O15	0.1948 (6)	0.6794 (3)	0.3651 (2)	0.0130 (8)
H15A	0.240 (10)	0.686 (4)	0.3243 (14)	0.016*
H15B	0.157 (10)	0.6131 (16)	0.367 (3)	0.016*
C1	1.0096 (8)	0.3987 (4)	0.3559 (3)	0.0092 (11)
C2	0.9454 (9)	0.4158 (4)	0.2816 (3)	0.0092 (11)
C3	1.0610 (9)	0.3744 (4)	0.2242 (3)	0.0113 (11)
C4	1.0005 (9)	0.3963 (4)	0.1576 (3)	0.0144 (12)
C5	0.8214 (9)	0.4612 (4)	0.1480 (3)	0.0129 (11)
C6	0.7098 (9)	0.5039 (4)	0.2058 (3)	0.0126 (11)
C7	0.7696 (9)	0.4808 (4)	0.2736 (3)	0.0101 (11)
C8	0.6519 (8)	0.5225 (4)	0.3394 (3)	0.0121 (12)
C9	0.3958 (8)	0.9535 (4)	0.3245 (3)	0.0106 (11)
C10	0.4690 (9)	0.9412 (4)	0.2493 (3)	0.0125 (5)
C11	0.3619 (9)	0.8763 (4)	0.1949 (3)	0.0125 (5)
C12	0.4355 (9)	0.8674 (4)	0.1269 (3)	0.0125 (5)
C13	0.6226 (9)	0.9271 (4)	0.1119 (3)	0.0125 (5)
C14	0.7255 (9)	0.9954 (4)	0.1665 (3)	0.0125 (5)
C15	0.6521 (9)	1.0039 (4)	0.2334 (3)	0.0125 (5)
C16	0.7609 (9)	1.0747 (4)	0.2941 (3)	0.0109 (11)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
La1	0.00835 (17)	0.00649 (15)	0.00928 (19)	0.00016 (11)	0.00035 (12)	0.00048 (12)
Br1	0.0131 (3)	0.0155 (3)	0.0173 (3)	0.0043 (2)	0.0011 (2)	0.0000 (2)
Br2	0.0261 (3)	0.0211 (3)	0.0133 (3)	0.0064 (2)	0.0075 (3)	0.0005 (2)
Br3	0.0308 (4)	0.0331 (3)	0.0101 (3)	0.0107 (3)	0.0012 (3)	0.0059 (3)
Br4	0.0195 (3)	0.0194 (3)	0.0163 (3)	0.0087 (2)	−0.0011 (2)	0.0034 (2)
Br5	0.0141 (3)	0.0150 (3)	0.0184 (3)	−0.0033 (2)	−0.0028 (2)	0.0019 (2)
Br6	0.0313 (4)	0.0246 (3)	0.0142 (4)	−0.0064 (3)	−0.0047 (3)	−0.0048 (3)
Br7	0.0298 (4)	0.0292 (3)	0.0137 (4)	0.0022 (3)	0.0072 (3)	−0.0026 (3)
Br8	0.0239 (3)	0.0205 (3)	0.0208 (4)	−0.0069 (2)	0.0097 (3)	−0.0003 (3)
O1	0.016 (2)	0.0081 (17)	0.017 (2)	0.0038 (14)	0.0007 (17)	−0.0057 (16)
O2	0.017 (2)	0.022 (2)	0.005 (2)	0.0062 (16)	−0.0017 (17)	0.0027 (17)
O3	0.020 (2)	0.0102 (18)	0.007 (2)	−0.0027 (15)	0.0005 (17)	0.0023 (15)
O4	0.019 (2)	0.0090 (17)	0.010 (2)	−0.0020 (15)	−0.0033 (17)	0.0009 (16)
O5	0.0106 (19)	0.0183 (19)	0.013 (2)	−0.0006 (15)	0.0032 (17)	−0.0013 (17)
O6	0.026 (2)	0.0124 (18)	0.008 (2)	−0.0021 (16)	0.0027 (19)	0.0013 (16)
O7	0.016 (2)	0.0130 (18)	0.016 (2)	0.0015 (15)	0.0042 (18)	0.0014 (17)
O8	0.016 (2)	0.0117 (18)	0.021 (3)	0.0002 (15)	0.0028 (18)	0.0059 (17)
O9	0.019 (2)	0.0115 (18)	0.014 (2)	0.0028 (15)	0.0015 (18)	−0.0006 (16)
O10	0.022 (2)	0.0092 (18)	0.018 (3)	−0.0025 (15)	0.0006 (19)	−0.0005 (17)
O11	0.017 (2)	0.0141 (19)	0.012 (2)	−0.0035 (15)	−0.0027 (17)	0.0025 (17)
O12	0.018 (2)	0.0140 (18)	0.010 (2)	−0.0020 (15)	−0.0005 (17)	0.0030 (16)
O13	0.017 (2)	0.0088 (18)	0.020 (3)	−0.0020 (15)	−0.0025 (18)	0.0017 (16)
O14	0.017 (2)	0.0088 (17)	0.012 (2)	−0.0020 (14)	−0.0022 (17)	0.0021 (15)
O15	0.015 (2)	0.0085 (17)	0.014 (2)	−0.0040 (14)	−0.0011 (17)	−0.0018 (16)
C1	0.006 (2)	0.015 (3)	0.006 (3)	0.0026 (19)	0.002 (2)	−0.003 (2)
C2	0.015 (3)	0.007 (2)	0.005 (3)	−0.0017 (19)	0.001 (2)	−0.002 (2)
C3	0.013 (3)	0.008 (2)	0.013 (3)	0.0002 (19)	0.001 (2)	−0.003 (2)
C4	0.015 (3)	0.008 (2)	0.019 (3)	0.000 (2)	0.007 (2)	−0.003 (2)
C5	0.021 (3)	0.015 (3)	0.004 (3)	−0.003 (2)	0.000 (2)	0.003 (2)
C6	0.014 (3)	0.011 (2)	0.012 (3)	−0.001 (2)	−0.003 (2)	−0.002 (2)
C7	0.013 (3)	0.005 (2)	0.012 (3)	−0.0003 (18)	0.004 (2)	0.002 (2)
C8	0.008 (2)	0.010 (2)	0.018 (3)	0.0012 (19)	−0.003 (2)	0.000 (2)
C9	0.010 (3)	0.010 (2)	0.011 (3)	−0.0023 (19)	−0.004 (2)	−0.001 (2)
C10	0.0159 (11)	0.0098 (10)	0.0117 (14)	0.0017 (9)	0.0009 (9)	0.0012 (9)
C11	0.0159 (11)	0.0098 (10)	0.0117 (14)	0.0017 (9)	0.0009 (9)	0.0012 (9)
C12	0.0159 (11)	0.0098 (10)	0.0117 (14)	0.0017 (9)	0.0009 (9)	0.0012 (9)
C13	0.0159 (11)	0.0098 (10)	0.0117 (14)	0.0017 (9)	0.0009 (9)	0.0012 (9)
C14	0.0159 (11)	0.0098 (10)	0.0117 (14)	0.0017 (9)	0.0009 (9)	0.0012 (9)
C15	0.0159 (11)	0.0098 (10)	0.0117 (14)	0.0017 (9)	0.0009 (9)	0.0012 (9)
C16	0.014 (3)	0.013 (2)	0.005 (3)	−0.001 (2)	0.007 (2)	−0.001 (2)

Geometric parameters (Å, º) top

La1—O8	2.457 (4)	O7—H7A	0.851 (10)
La1—O1	2.466 (4)	O7—H7B	0.853 (10)
La1—O2	2.513 (4)	O8—C9	1.262 (7)
La1—O6	2.514 (4)	O9—C9	1.256 (7)
La1—O3	2.519 (4)	O10—C16	1.312 (6)
La1—O4	2.621 (4)	O10—H10	0.8400
La1—O7	2.629 (4)	O11—C16	1.199 (7)
La1—O5	2.633 (4)	O12—C8	1.236 (7)
La1—O15	2.660 (4)	O13—C1	1.249 (7)
Br1—C3	1.890 (5)	O14—C1	1.261 (7)
Br2—C4	1.886 (6)	O15—H15A	0.846 (10)
Br3—C5	1.876 (6)	O15—H15B	0.847 (10)
Br4—C6	1.885 (6)	C1—C2	1.509 (8)
Br5—C11	1.901 (6)	C2—C3	1.384 (8)
Br6—C12	1.871 (6)	C2—C7	1.393 (7)
Br7—C13	1.866 (6)	C3—C4	1.379 (9)
Br8—C14	1.893 (6)	C4—C5	1.414 (8)
O1—C8	1.261 (6)	C5—C6	1.380 (9)
O2—H2A	0.850 (10)	C6—C7	1.404 (8)
O2—H2B	0.853 (10)	C7—C8	1.518 (8)
O3—H3A	0.849 (10)	C9—C10	1.510 (8)
O3—H3B	0.848 (10)	C10—C11	1.392 (8)
O4—H4A	0.851 (10)	C10—C15	1.416 (8)
O4—H4B	0.848 (10)	C11—C12	1.382 (9)
O5—H5A	0.851 (10)	C12—C13	1.411 (8)
O5—H5B	0.848 (10)	C13—C14	1.403 (8)
O6—H6A	0.849 (10)	C14—C15	1.361 (9)
O6—H6B	0.847 (10)	C15—C16	1.513 (8)

Br1···Br2	3.2865 (8)	Br3···Br3ⁱⁱⁱ	3.7378 (8)
Br1···Br8ⁱ	3.6115 (8)	Br4···Br5	3.5336 (7)
Br2···Br3	3.2929 (9)	Br5···Br6	3.2936 (9)
Br2···Br7ⁱⁱ	3.5480 (9)	Br6···Br7	3.2977 (10)
Br2···Br3ⁱⁱ	3.5688 (9)	Br7···Br8	3.2717 (9)
Br3···Br4	3.2808 (8)	Br7···Br8^iv	3.7295 (11)

O8—La1—O1	88.06 (14)	H7A—O7—H7B	106.7 (17)
O8—La1—O2	140.46 (13)	C9—O8—La1	163.0 (4)
O1—La1—O2	70.66 (14)	C16—O10—H10	109.5
O8—La1—O6	87.13 (14)	La1—O15—H15A	104 (4)
O1—La1—O6	132.78 (13)	La1—O15—H15B	116 (4)
O2—La1—O6	84.11 (14)	H15A—O15—H15B	107.9 (17)
O8—La1—O3	131.38 (14)	O13—C1—O14	124.1 (5)
O1—La1—O3	84.75 (13)	O13—C1—C2	116.3 (5)
O2—La1—O3	80.80 (14)	O14—C1—C2	119.6 (5)
O6—La1—O3	130.72 (14)	C3—C2—C7	121.1 (5)
O8—La1—O4	139.16 (13)	C3—C2—C1	122.2 (5)
O1—La1—O4	132.78 (13)	C7—C2—C1	116.7 (5)
O2—La1—O4	69.60 (13)	C4—C3—C2	119.8 (5)
O6—La1—O4	66.05 (13)	C4—C3—Br1	120.5 (4)
O3—La1—O4	64.70 (13)	C2—C3—Br1	119.7 (5)
O8—La1—O7	71.72 (13)	C3—C4—C5	120.2 (5)
O1—La1—O7	69.98 (13)	C3—C4—Br2	120.2 (4)
O2—La1—O7	69.80 (13)	C5—C4—Br2	119.7 (5)
O6—La1—O7	63.94 (13)	C6—C5—C4	119.5 (6)
O3—La1—O7	146.03 (13)	C6—C5—Br3	120.2 (5)
O4—La1—O7	117.16 (13)	C4—C5—Br3	120.2 (4)
O8—La1—O5	76.26 (14)	C5—C6—C7	120.4 (5)
O1—La1—O5	145.94 (13)	C5—C6—Br4	120.5 (5)
O2—La1—O5	137.90 (14)	C7—C6—Br4	119.0 (4)
O6—La1—O5	77.17 (13)	C2—C7—C6	119.0 (5)
O3—La1—O5	83.49 (13)	C2—C7—C8	117.5 (5)
O4—La1—O5	68.36 (13)	C6—C7—C8	123.5 (5)
O7—La1—O5	129.93 (12)	O12—C8—O1	126.9 (6)
O8—La1—O15	64.43 (13)	O12—C8—C7	116.9 (5)
O1—La1—O15	69.18 (13)	O1—C8—C7	116.1 (5)
O2—La1—O15	130.61 (13)	O9—C9—O8	125.4 (6)
O6—La1—O15	145.15 (13)	O9—C9—C10	116.2 (5)
O3—La1—O15	68.11 (13)	O8—C9—C10	118.4 (5)
O4—La1—O15	123.20 (13)	C11—C10—C15	118.6 (6)
O7—La1—O15	119.62 (13)	C11—C10—C9	123.9 (5)
O5—La1—O15	76.78 (13)	C15—C10—C9	117.4 (5)
C8—O1—La1	137.1 (4)	C12—C11—C10	121.8 (5)
La1—O2—H2A	123 (4)	C12—C11—Br5	120.3 (4)
La1—O2—H2B	130 (4)	C10—C11—Br5	117.8 (5)
H2A—O2—H2B	107.0 (17)	C11—C12—C13	119.2 (5)
La1—O3—H3A	117 (3)	C11—C12—Br6	120.5 (4)
La1—O3—H3B	136 (3)	C13—C12—Br6	120.3 (5)
H3A—O3—H3B	107.7 (17)	C14—C13—C12	118.7 (6)
La1—O4—H4A	127 (4)	C14—C13—Br7	121.0 (4)
La1—O4—H4B	122 (4)	C12—C13—Br7	120.3 (4)
H4A—O4—H4B	107.4 (17)	C15—C14—C13	121.8 (5)
La1—O5—H5A	115 (4)	C15—C14—Br8	119.5 (4)
La1—O5—H5B	125 (4)	C13—C14—Br8	118.7 (4)
H5A—O5—H5B	107.5 (17)	C14—C15—C10	119.8 (5)
La1—O6—H6A	127 (4)	C14—C15—C16	123.5 (5)
La1—O6—H6B	119 (4)	C10—C15—C16	116.7 (5)
H6A—O6—H6B	107.8 (17)	O11—C16—O10	125.2 (5)
La1—O7—H7A	119 (4)	O11—C16—C15	122.4 (5)
La1—O7—H7B	119 (4)	O10—C16—C15	112.4 (5)

Symmetry codes: (i) x, y−1, z; (ii) −x+2, −y+1, −z; (iii) −x+1, −y+1, −z; (iv) −x+2, −y+2, −z.

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
O2—H2A···O13	0.85 (1)	2.25 (1)	3.093 (6)	175 (6)
O2—H2B···O13^v	0.85 (1)	2.44 (5)	3.026 (6)	126 (5)
O2—H2B···O14^v	0.85 (1)	1.89 (1)	2.729 (6)	170 (5)
O3—H3A···O13^vi	0.85 (1)	1.88 (2)	2.701 (6)	163 (6)
O3—H3B···O12^vii	0.85 (1)	1.91 (2)	2.700 (6)	154 (5)
O4—H4A···O9^viii	0.85 (1)	2.00 (2)	2.794 (5)	155 (5)
O4—H4B···O12^vii	0.85 (1)	1.99 (2)	2.803 (5)	162 (5)
O5—H5A···O7^vi	0.85 (1)	2.06 (2)	2.881 (6)	161 (5)
O5—H5B···O11^viii	0.85 (1)	2.26 (4)	2.990 (6)	144 (5)
O6—H6A···O5^viii	0.85 (1)	2.01 (2)	2.830 (6)	163 (5)
O6—H6B···O9^viii	0.85 (1)	1.78 (1)	2.619 (6)	173 (7)
O7—H7A···O15^ix	0.85 (1)	2.07 (3)	2.835 (6)	149 (6)
O7—H7B···O11	0.85 (1)	1.97 (2)	2.806 (6)	166 (5)
O10—H10···O14^x	0.84	1.79	2.577 (6)	155
O15—H15B···O13^vi	0.85 (1)	1.84 (2)	2.661 (5)	165 (5)

Symmetry codes: (v) −x+2, −y+1, −z+1; (vi) x−1, y, z; (vii) −x+1, −y+1, −z+1; (viii) −x+1, −y+2, −z+1; (ix) x+1, y, z; (x) x, y+1, z.

Intermetallic distances (Å) shorter than 10Å top

Atom 1	Atom 2	Symmetry	Distance
La1	La1	1-x, 2-y, 1-y	6.1455 (4)
	La1	1+x, y, z	6.2336 (4)
	La1	-1+x, y, z	6.2336 (4)
	La1	1-x, 1-y, 1-z	6.8083 (4)
	La1	2-x, 2-y, 1-z	8.3989 (4)
	La1	-x, 2-y, 1-z	9.0945 (4)
	La1	2-x, 1-y, 1-z	9.1469 (4)
	La1	-x, 1-y, 1-z	9.3142 (4)

Continuous Shape Measurements (CShM) for La(tbpa)(Htbpa)(H₂O)₇. The lower is the CShM value, the better is the agreement with the given coordination polyhedron top

[ML9]	EP-9	OPY-9	HBPY-9	JTC-9	JCCU-9	CCU-9	JCSAPR-9	TCTPR-9	JTDIC-9	HH-9	MFF-9
La	33.003	24.175	18.551	14.980	8.289	7.091	1.768	1.262	13.342	9.394	1.742

EP-9 ≡ D₉_h-Enneagon; OPY-9 ≡ C₈_v-Octagonal pyramid; HBPY-9 ≡ D₇_h-Heptagonal bipyramid; JTC-9 ≡ C₃_v-Johnson triangular cupola J3; JCCU-9 ≡ C₄_v-Capped cube J8; CCU-9 ≡ C₄_v-Spherical-relaxed capped cube; JCSAPR-9 ≡ C₄_v-Capped square antiprism J10; CSAPR-9 ≡ C₄_v-Spherical capped square antiprism; JTCTPR-9 ≡ D₃_h-Tricapped trigonal prism J51; TCTPR-9 ≡ D₃_h-Spherical tricapped trigonal prism; JTDIC-9 ≡ C₃_v-Tridiminished icosahedron J63; HH-9 ≡ C₂_v-Hula-hoop; MFF-9 ≡ C_s-Muffin.

Acknowledgements

The CDifX (Centre de Diffractométrie X) of ISCR is acknowledged for the X-ray diffraction data collection.

Funding information

Funding for this research was provided by: Région Bretagne (grant No. ARED-COH24014).

References

Alvarez, S., Alemany, P., Casanova, D., Cirera, J., Llunell, M. & Avnir, D. (2005). Coord. Chem. Rev. 249, 1693–1708. Web of Science CrossRef CAS Google Scholar
Badiane, A. M., Freslon, S., Daiguebonne, C., Suffren, Y., Bernot, K., Calvez, G., Costuas, K., Camara, M. & Guillou, O. (2018). Inorg. Chem. 57, 3399–3410. Web of Science CSD CrossRef CAS PubMed Google Scholar
Blais, C., Calvez, G., Suffren, Y., Daiguebonne, C., Paranthoen, C., Bazin, E., Freslon, S., Bernot, K. & Guillou, O. (2022). Inorg. Chem. 61, 19588–19596. CrossRef CAS PubMed Google Scholar
Blais, C., Chang, A., Hénaff, C., Daiguebonne, C., Yao, A., Gautier, R., Calvez, G., Suffren, Y., Bernot, K. & Guillou, O. (2026). Inorganic Chemistry Frontiers. In the press. https://doi.org/10.1039/d5qi02306h Google Scholar
Blais, C., Chang, A., Ngom, F., Daiguebonne, C., Suffren, Y., Yao, A., Gautier, R., Camara, M., Calvez, G., Bernot, K. & Guillou, O. (2025). Inorg. Chem. 64, 10194–10207. Web of Science CSD CrossRef CAS PubMed Google Scholar
Bruker (2015). APEX3 and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Bünzli, J. G. (2015). Coord. Chem. Rev. 293–294, 19–47. Google Scholar
Bünzli, J.-C. G. & Eliseeva, S. V. (2010). Lanthanide Luminescence edited by P. Hänninen & H. Härmä, pp. 1–45. Berlin, Heidelberg: Springer. Google Scholar
Casanova, D., Llunell, M., Alemany, P. & Alvarez, S. (2005). Chem. Eur. J. 11, 1479–1494. Web of Science CrossRef PubMed CAS Google Scholar
Cavallo, G., Metrangolo, P., Milani, R., Pilati, T., Priimagi, A., Resnati, G. & Terraneo, G. (2016). Chem. Rev. 116, 2478–2601. Web of Science CrossRef CAS PubMed Google Scholar
Chen, S.-C., Dai, A.-Q., Huang, K.-L., Zhang, Z.-H., Cui, A.-J., He, M.-Y. & Chen, Q. (2016). Dalton Trans. 45, 3577–3589. CrossRef CAS PubMed Google Scholar
Clark, D. T., Murrell, J. N. & Tedder, J. M. (1963). J. Chem. Soc. pp. 1250–1253. CrossRef Google Scholar
Daiguebonne, C., Blais, C., Bernot, K. & Guillou, O. (2025). Acc. Chem. Res. 58, 1801–1814. CrossRef CAS PubMed Google Scholar
Daiguebonne, C., Guillou, O., Gérault, Y. & Boubekeur, K. (2000). In Recent Research Development in Inorganic Chemistry edited by S. G. Pandalai, pp. 165–183. Trivandrum: Transworld Research Network. Google Scholar
Desreux, J. F. (1989). Lanthanide Probes in Life, Chemical and Earth Sciences: Theory and Practice edited by G. R. Choppin & J.-C. G. Bünzli Netherlands: Elsevier. Google Scholar
Farrugia, L. J. (1999). J. Appl. Cryst. 32, 837–838. CrossRef CAS IUCr Journals Google Scholar
Fourmigué, M. (2009). Curr. Opin. Solid State Mater. Sci. 13, 36–45. Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Hénaff, C., Blais, C., Chang, A., Bernot, K., Daiguebonne, C. & Guillou, O. (2026). J. Mol. Struct. 1349, 143600. Google Scholar
Imbert, D., Cantuel, M., Bünzli, J. G., Bernardinelli, G. & Piguet, C. (2003). J. Am. Chem. Soc. 125, 15698–15699. Web of Science CSD CrossRef PubMed CAS Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Latva, M., Takalo, H., Mukkala, V.-M., Matachescu, C., Rodríguez-Ubis, J. C. & Kankare, J. (1997). J. Lumin. 75, 149–169. CrossRef CAS Web of Science Google Scholar
Ma, F.-X., Zhao, D. & Zhang, R.-J. (2017). Z. Kristallogr. New Cryst. Struct. 232, 165–166. CrossRef CAS Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
Metrangolo, P. & Resnati, G. (2001). Chem. Eur. J. 7, 2511–2519. CrossRef PubMed CAS Google Scholar
Ngom, F., Blais, C., Badiane, I., Hénaff, C., Camara, M., Daiguebonne, C. & Guillou, O. (2024). CrystEngComm 27, 210–225. CrossRef Google Scholar
Ngom, F., Chang, A., Blais, C., Daiguebonne, C., Suffren, Y., Camara, M., Calvez, G., Bernot, K. & Guillou, O. (2024). Inorg. Chem. 63, 13048–13058. Web of Science CSD CrossRef CAS PubMed Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Steemers, F. J., Verboom, W., Reinhoudt, D. N., van der Tol, E. B. & Verhoeven, J. W. (1995). J. Am. Chem. Soc. 117, 9408–9414. CrossRef CAS Web of Science Google Scholar
Vollmer, I., Jenks, M. J. F., Roelands, M. C. P., White, R. J., van Harmelen, T., de Wild, P., van der Laan, G. P., Meirer, F., Keurentjes, J. T. F. & Weckhuysen, B. M. (2020). Angew. Chem. Int. Ed. 59, 15402–15423. Web of Science CrossRef CAS Google Scholar
Weissman, S. I. (1942). J. Chem. Phys. 10, 214–217. CrossRef CAS Google Scholar
Xi-Zhang, F., Ao-Ling, G., Ying-Ting, X., Xing-Fu, L. & Peng-Nian, S. (1987). Polyhedron 6, 1041–1048. Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
