Crystal structure, supramolecular and Hirshfeld surface analysis of piperazine-1,4-diium bis(2,5-dibromobenzoate)

Veerappan Subha,^a ^* Marimuthu Sathish ^b ^* and Thangavelu Balakrishnan ^b

^aPG and Research Department of Physics, Government Arts College (Autonomous and affiliated to Bharathidasan University, Tiruchirappalli), Thanthonimalai, Karur-639 005, Tamil Nadu, India, and ^bCrystal Growth Laboratory, PG and Research Department of Physics, Thanthai Periyar Government Arts and Science College (Autonomous and affiliated to Bharathidasan, University, Tiruchirappalli), Tiruchirappalli-620 023, Tamil Nadu, India
^*Correspondence e-mail: [email protected], [email protected]

Edited by G. Ferrence, Illinois State University, USA (Received 27 May 2025; accepted 4 August 2026; online 14 August 2026)

The title salt, C₄H₁₂N₂²⁺·2C₇H₃Br₂O₂⁻, crystallizes in the monoclinic space group P2₁/c with Z = 4. The asymmetric unit comprises one-half of a piperazine-1,4-diium dication, located about an inversion center, and one 2,5-dibromobenzoate anion. In the dication, both nitrogen atoms of the piperazine ring are protonated, while the 2,5-dibromobenzoic acid is deprotonated at the carboxyl group. The proton is transferred from the acid to the piperazine molecule, resulting in the formation of the ionic salt. Charge neutrality is achieved by the presence of one dication for every two monobasic 2,5-dibromobenzoate anions. The piperazine ring adopts a chair conformation. The cations and anions are linked via N—H⋯O and N—H⋯Br hydrogen bonds, in which the carboxylate O atoms and Br atoms act as acceptors. These interactions (N—H⋯O/Br), together with additional C—H⋯Br contacts, contribute to the cohesion of the crystal structure. The resulting supramolecular architecture is analyzed in detail. Hirshfeld surface (HS) analysis, supported by two-dimensional fingerprint plots, indicates that H⋯O/O⋯H (47.5%) and H⋯Br/Br⋯H (34.0%) contacts are the major contributors for the cation, whereas H⋯Br/Br⋯H (31.6%) and H⋯O/O⋯H (21.4%) interactions dominate for the anion.

Keywords: crystal structure; proton transfer; piperazine-1,4-diium cation; 2,5-dibromobenzoate; Hirshfeld surface analysis.

CCDC reference: 2578701

1. Chemical context

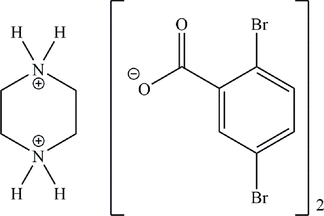

Piperazine is a six-membered heterocyclic aliphatic amine containing nitrogen atoms at the 1 and 4 positions, resulting in a symmetrical structure. These nitrogen atoms enable efficient hydrogen-bond formation, rendering piperazine a versatile organic base with high solubility in water and many organic solvents. Owing to these properties, piperazine exhibits significant biological relevance in pharmaceutical applications (Brito et al., 2019 ; Shaquiquzzaman et al., 2015 ) and is also widely utilized in industrial chemistry, making it a compound of considerable research interest. Furthermore, its ability to form stable supramolecular assemblies via non-covalent interactions has attracted attention in the fields of supramolecular chemistry and crystal engineering (Chen & Peng, 2008 , 2011 ; Wang et al., 2012 ; Priyanka et al., 2022 ).

A search of the Cambridge Structural Database (CSD, Version 5.45, update of June 2024; Groom et al., 2016 ; Ferrence et al., 2023 ) reveals 69 structures of protonated piperazine-1,4-diium salts with substituted benzoate anions, including chloro-, amino-, nitro-, hydroxy-, and polycarboxy derivatives. The crystal structures and supramolecular features of related piperazine-1,4-diium salts with various counter-anions have been reported previously (Allu et al., 2023 ; Roshini, & Jayalakshmi, 2023 ; Roy et al., 2023 ; Sun et al., 2023 ; Banik et al., 2016 ).

As part of our ongoing studies on piperazine-based systems, including the hydrated 2:1 adduct of piperazine-1,4-diium-3,5-dinitro-2-oxidobenzoate with piperazine (Subha et al., 2022a ), and 4-(2-methoxyphenyl)piperazine-1-ium 3,5-dinitrosalicylate (Subha et al., 2022b ), we report herein the crystal structure of piperazine-1,4-diium bis(2,5-dibromobenzoate). The study includes detailed structural characterization, analysis of intermolecular interactions, and HS analysis (Spackman & Jayatilaka, 2009 ) to explore the supramolecular architecture.

2. Structural commentary

The title salt (I) crystallizes in the monoclinic space group P2₁/c. The asymmetric unit comprises one-half of a piperazine-1,4-diium dication, located about an inversion center, and one 2,5-dibromobenzoate anion (Fig. 1). In the dication, both nitrogen atoms (N1 and its inversion-related equivalent) of the piperazine ring are protonated, while the 2,5-dibromobenzoic acid is deprotonated at the carboxyl group. Proton transfer from acid to piperazine molecule leads to the formation of the ionic salt. Charge neutrality is achieved by one dication for every two monobasic 2,5-dibromobenzoate anions in the crystal structure.

Figure 1
The molecular structure of the title molecular salt (I)

showing the atom-labeling scheme. Displacement ellipsoids are drawn at the 50% probability level. Symmetry code: (i) −x + 2, −y + 1, −z + 1).

The piperazine ring adopts a chair conformation, with puckering parameters Q = 0.575 (3) Å, θ = 0°, and φ = 0°. The geometric parameters, including bond lengths, bond angles, and torsion angles, for both dication and 2,5-dibromobenzoate anion are comparable to those reported for related structures.

In the crystal, the piperazine-1,4-diium cation and two 2,5-dibromobenzoate anions are connected via N1—H1A⋯O1 hydrogen bonding, complemented by additional C—H⋯Br interactions (Table 1), contributing to the cohesion of the crystal structure.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1A⋯O1	0.87 (2)	1.79 (2)	2.655 (3)	178 (4)
C9—H9A⋯O2	0.97	2.67	3.440 (4)	136
C6—H6⋯Br2ⁱ	0.93	2.98	3.855 (3)	157
C8—H8A⋯Br2ⁱⁱ	0.97	3.07	3.661 (3)	121
C8—H8B⋯Br1ⁱⁱⁱ	0.97	3.00	3.967 (3)	173
C9—H9A⋯Br1^iv	0.97	3.00	3.655 (3)	126
C9—H9B⋯Br2ⁱⁱ	0.97	3.10	3.781 (3)	128
N1—H1B⋯O2^v	0.86 (2)	1.93 (2)	2.755 (3)	160 (3)
N1—H1B⋯Br1^v	0.86 (2)	3.06 (3)	3.598 (2)	123 (3)
Symmetry codes: (i) ; (ii) ; (iii) ; (iv) $[x, -y+{\script{3\over 2}}, z-{\script{1\over 2}}]$ ; (v) $[-x+2, y-{\script{1\over 2}}, -z+{\script{3\over 2}}]$ .

3. Supramolecular features

Both O atoms of the carboxylate group and Br atoms act as hydrogen-bond acceptors in a series of N—H⋯O, N—H⋯Br, and C—H⋯Br interactions within the crystal structure (Table 1). The carboxylate O atoms (O1 and O2) form hydrogen bonds with the protonated N atoms of the piperazine-1,4-diium dication via N1—H1A⋯O1 and N1—H1B⋯O2^v [2.655 (3) Å and 2.755 (3) Å, respectively; symmetry code: (v) −x + 2, y − $[{1\over 2}]$ , −z + $[{3\over 2}]$ ]).

Each piperazine-1,4-diium cation is linked to four neighbouring anions through N—H⋯O, C—H⋯O/Br interactions [N1—H1A⋯O1, N1—H1B⋯O2^v, C9—H9A⋯O2 and C9—H9A⋯Br1^iv; symmetry code: (iv) x, −y + $[{3\over 2}]$ , z − $[{1\over 2}]$ ], generating a molecular double layer parallel to the bc plane (Fig. 2).

Figure 2
Part of the crystal structure of (I)

, showing the piperazine-1,4-diium cation linked to four neighboring anions via N1—H1A⋯O1, N1—H1B⋯O2, C9—H9A⋯O2, and C9—H9A⋯Br1 hydrogen bonds, forming a molecular double layer parallel to the bc plane. Symmetry codes as in Table 1.

Two neighbouring anions are further connected via a C6—H6⋯Br2ⁱ hydrogen bond [symmetry code: (i) −x + 1, −y + 1, −z + 1], forming a centrosymmetric R₂²(8) ring motif. In addition, adjacent motifs are linked through short C2=O2⋯Br1(−x + 2, −y + 1, −z + 2) contacts [3.3183 (2) Å], resulting in the formation of a molecular chain lying in the ac plane (Fig. 3).

Figure 3
Part of the crystal structure of (I)

, showing a molecular chain formed via C6—H6⋯Br2 and C=O⋯Br interactions, viewed down the b axis. Symmetry codes as in Table 1.

The two-dimensional molecular layers are constructed through the combined N—H⋯O, C—H⋯O/Br interactions [N1—H1A⋯O1, C9—H9A⋯O2, C6—H6⋯Br, and C8—H8B⋯Br1] together with C2=O2⋯Br1 contacts, extending parallel to the ac plane (Fig. 4). These layers are further interconnected by additional N—H⋯O/Br, and C—H⋯O/Br interactions [C8—H8A⋯Br2ⁱⁱ, C9—H9A⋯Br1^iv, C9—H9B⋯Br2ⁱⁱ, N1—H1B⋯O2ⁱ; N1—H1B⋯Br1^v], as well as a C—Br⋯π interaction involving the phenyl ring centroid [C5—Br2⋯Cg1(1 − x, − $[{1\over 2}]$ + y, $[{1\over 2}]$ − z) = 3.8107 (13) Å], leading to the formation of a three-dimensional supramolecular framework.

Figure 4
Part of the crystal structure of (I)

, showing a two-dimensional molecular layer formed via N1—H1A⋯O1, C9—H9A⋯O2, C6—H6⋯Br2, C8—H8B⋯Br1, and C=O⋯Br1 interactions, viewed down the b axis.

4. Hirshfeld surface analysis

Hirshfeld surfaces (HS) and two-dimensional fingerprint plots (2D-FP) were generated using Crystal Explorer 17.5 (Turner et al., 2017 ) for both the cation and the anion of the title salt. These analyses enable visualization and quantification of intermolecular interactions within the crystal packing (McKinnon et al., 1998 , 2004 , 2007 ; Spackman & Jayatilaka, 2009; Spackman & McKinnon, 2002 ). The HS mapped over d_e (based on the distance from the surface to the nearest external atom) and d_i (distance from the nearest internal atom to the surface), facilitates identification of close contacts and their relative contributions. Variations in colors and intensities on the HS indicate short (red) and long (blue) contacts, highlight the significance of specific intermolecular interactions (Venkatesan et al., 2015 , 2016a ,b ). The decomposed 2D-FP plots provide a quantitative breakdown of individual contact contributions.

The HS mapped over d_norm in the range −0.75 to 1.1425 a.u. is shown (front and back) for both the dication and anion in Fig. 5a,b. Prominent bright-red spots correspond to strong hydrogen-bonding interactions, notably N1—H1A⋯O1 and N1—H1B⋯O2. Weaker red regions are associated with C—H⋯Br interactions, such as C6—H6⋯Br2 and C8—H8B⋯Br1. The C7=O2⋯Br1 contact is also visible as a weak red spot, suggesting a weak non-covalent interaction. The shape-index (SI) surfaces (Fig. 5c,d) do not display complementary red and blue triangular patterns over the aromatic rings, confirming the absence of π–π stacking interactions in the crystal structure.

Figure 5
Hirshfeld surface of the cation and anion in the title salt shown in two orientations, mapped with (a) and (b) d_norm and (c) and (d) shape-index (SI).

The full and decomposed 2D-FP plots for the dication are shown in Fig. 6 , with the corresponding percentage contributions summarized in Fig. 8. The dominant intermolecular contacts for the dication are H⋯O/O⋯H interactions, contributing 47.5% and appearing as a sharp spike at d_e + d_i = 1.6 Å. The next major contribution arises from H⋯Br/Br⋯H contacts (34.0%), represented by a weak spike around d_e + d_i = 3.0 Å. Minor contributions include H⋯C/C⋯H (10.7%) and H⋯H (7.8%) contacts.

Figure 6
The full and decomposed two-dimensional fingerprint plots for the cation in the title salt (I)

, showing the relative contributions of the respective reciprocal contacts.

Figure 7
The full and decomposed two-dimensional fingerprint plots for the anion in the title salt (I)

, showing the relative contributions of the respective reciprocal contacts.

Figure 8
Pie charts showing the relative contributions of various intermolecular contacts to the Hirshfeld surfaces of the cation and anion in the title salt (I)

In contrast, the anion (Fig. 7) is dominated by H⋯Br/Br⋯H interactions (31.6%), which appear as an asymmetric wing-like pattern at d_e + d_i = 2.9 Å. The contribution of H⋯O/O⋯H contacts is 21.4%, and these still appear as sharp spikes near d_e + d_i = 1.6 Å. This reduction is compensated by significant contributions from H⋯H (16.6%), H⋯C/C⋯H (15.4%), Br⋯O/O⋯Br (4.7%), and C⋯Br/Br⋯C (6.8%) interactions. These contacts arise from the involvement of Br atom in interactions such as C7=O2⋯Br1 and C5—Br2⋯Cg1, which are absent in the cation (where Cg1 is the centroid of the C1–C6 ring). The C⋯C contacts contribute only 3.1% in the anion and are negligible in the cation, confirming the absence of π–π interactions, in agreement with the shape-index analysis. Furthermore, the lack of significant features beyond d_e + d_i = 2.4 Å suggests that H⋯H interactions play only a minor role in consolidating the crystal structure. The contributions of various interactions in the cation and anion are compared in Fig. 8.

5. Database survey

A search of the Cambridge Structural Database (CSD, Version 5.45, update of June 2024; Groom et al., 2016) using Conquest (Bruno et al., 2002 ) for piperazine-1,4-diium salts with substituted benzoic acids, including chloro-, amino-, nitro-, hydroxy-, and polycarboxy benzoic acids was performed. In particular, the crystal structures of piperazinediium bis(2/3/4-chlorobenzoate) (CSD refcodes ALOQIC, ALOQOI, ALOQUO; Chen & Peng 2011), piperazinediium bis(2-aminobenzoate) (ALORAV; Chen & Peng 2011); piperazinediium bis(4-aminobenzoate) (HEZTAI and HEZTAI01, Moulton et al., 2007 ; Chen & Peng 2011) have been reported, and like the title compound, contain the piperazinediium ion.

6. Synthesis and crystallization

A 250 mL round-bottom flask was charged with piperazine (1 g, 11.6 mmol) and 2,5-dibromobenzoic acid (6.5 g, 23.2 mmol) in a 1:2 molar ratio. The mixture was dissolved in 50 mL of methanol at room temperature and stirred continuously for 6 h. The resulting homogeneous solution was filtered using Whatman filter paper and left undisturbed in a dust-free environment to evaporate slowly at room temperature. After 10 days, red block-like crystals, with m.p. 458 K, suitable for single-crystal X-ray diffraction were obtained.

7. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. The N-bound H atoms were located in a difference-Fourier map and refined with restrained N—H and H⋯H distances. C-bound H atoms were positioned geometrically (0.93–0.97 Å) and refined as riding with U_iso(H) = 1.2U_eq(C).

Table 2
Experimental details

Crystal data
Chemical formula	0.5C₄H₁₂N₂²⁺·C₇H₃Br₂O₂⁻
M_r	322.99
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	298
a, b, c (Å)	11.7467 (5), 7.9755 (3), 11.3340 (4)
β (°)	101.052 (1)
V (Å³)	1042.14 (7)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	7.75
Crystal size (mm)	0.23 × 0.20 × 0.15

Data collection
Diffractometer	Bruker D8 VENTURE diffractometer equipped with PHOTON II detector
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.462, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	28846, 2565, 2133
R_int	0.056
(sin θ/λ)_max (Å⁻¹)	0.667

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.033, 0.073, 1.07
No. of reflections	2565
No. of parameters	135
No. of restraints	3
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.93, −0.75
Computer programs: APEX4, SAINT and XPREP (Bruker, 2021 ), SHELXT (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ), ORTEP-3 for Windows (Farrugia, 2012 ), PLATON (Spek, 2020 ) and Mercury (Macrae et al., 2020 ).

Supporting information

CCDC reference: 2578701

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S205698902600798X/ej2013sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S205698902600798X/ej2013Isup3.hkl

Supporting information file. DOI: https://doi.org/10.1107/S205698902600798X/ej2013Isup3.cml

checkCIF report

Computing details top

Piperazine-1,4-diium bis (2,5-dibromobenzoate) top

Crystal data top

0.5C₄H₁₂N₂²⁺·C₇H₃Br₂O₂⁻	F(000) = 624
M_r = 322.99	D_x = 2.059 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 11.7467 (5) Å	Cell parameters from 9898 reflections
b = 7.9755 (3) Å	θ = 3.1–27.9°
c = 11.3340 (4) Å	µ = 7.75 mm⁻¹
β = 101.052 (1)°	T = 298 K
V = 1042.14 (7) Å³	Block, colourless
Z = 4	0.23 × 0.20 × 0.15 mm

Data collection top

Bruker D8 VENTURE diffractometer equipped with PHOTON II detector	2133 reflections with I > 2σ(I)
Radiation source: fine-focus sealed tube	R_int = 0.056
ω and phi scans	θ_max = 28.3°, θ_min = 3.4°
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	h = −15→15
T_min = 0.462, T_max = 0.746	k = −10→10
28846 measured reflections	l = −15→15
2565 independent reflections

Refinement top

Refinement on F²	3 restraints
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.033	H atoms treated by a mixture of independent and constrained refinement
wR(F²) = 0.073	w = 1/[σ²(F_o²) + (0.0208P)² + 1.9785P] where P = (F_o² + 2F_c²)/3
S = 1.07	(Δ/σ)_max = 0.001
2565 reflections	Δρ_max = 0.93 e Å⁻³
135 parameters	Δρ_min = −0.75 e Å⁻³

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	0.7131 (2)	0.5605 (3)	0.7922 (2)	0.0246 (5)
C2	0.6993 (3)	0.5879 (4)	0.9100 (2)	0.0275 (6)
C3	0.5922 (3)	0.6344 (4)	0.9357 (3)	0.0359 (7)
H3	0.584948	0.651873	1.015030	0.043*
C4	0.4973 (3)	0.6545 (4)	0.8449 (3)	0.0365 (7)
H4	0.426181	0.687138	0.861885	0.044*
C5	0.5096 (2)	0.6255 (4)	0.7280 (3)	0.0306 (6)
C6	0.6150 (2)	0.5787 (4)	0.7012 (3)	0.0275 (6)
H6	0.620851	0.559147	0.621684	0.033*
C7	0.8252 (2)	0.5091 (4)	0.7527 (2)	0.0263 (6)
C8	1.0922 (3)	0.4660 (4)	0.6006 (3)	0.0312 (6)
H8A	1.155531	0.435851	0.561002	0.037*
H8B	1.120077	0.459490	0.686723	0.037*
C9	1.0533 (3)	0.6428 (4)	0.5665 (3)	0.0308 (6)
H9A	0.994383	0.676443	0.611181	0.037*
H9B	1.118506	0.718859	0.587074	0.037*
N1	0.9947 (2)	0.3469 (3)	0.5648 (2)	0.0278 (5)
O1	0.81248 (19)	0.4115 (3)	0.6644 (2)	0.0428 (6)
O2	0.91953 (18)	0.5667 (3)	0.8059 (2)	0.0386 (5)
Br1	0.82116 (3)	0.54666 (5)	1.04365 (3)	0.04140 (11)
Br2	0.37973 (3)	0.64277 (5)	0.60002 (3)	0.04320 (11)
H1A	0.936 (2)	0.367 (4)	0.599 (3)	0.049 (11)*
H1B	1.021 (3)	0.249 (3)	0.588 (3)	0.044 (10)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0252 (13)	0.0234 (13)	0.0270 (13)	−0.0029 (10)	0.0095 (10)	−0.0019 (11)
C2	0.0349 (15)	0.0261 (14)	0.0226 (12)	−0.0049 (11)	0.0081 (11)	−0.0014 (11)
C3	0.0446 (18)	0.0386 (18)	0.0296 (15)	−0.0032 (14)	0.0198 (13)	−0.0064 (13)
C4	0.0317 (15)	0.0417 (18)	0.0409 (17)	0.0007 (13)	0.0193 (13)	−0.0041 (14)
C5	0.0256 (14)	0.0322 (16)	0.0350 (15)	−0.0008 (12)	0.0082 (12)	−0.0010 (13)
C6	0.0286 (14)	0.0318 (15)	0.0240 (13)	−0.0006 (11)	0.0097 (11)	−0.0026 (11)
C7	0.0280 (14)	0.0286 (14)	0.0236 (12)	0.0003 (11)	0.0081 (11)	0.0003 (11)
C8	0.0263 (14)	0.0376 (17)	0.0284 (14)	0.0014 (12)	0.0018 (11)	0.0021 (13)
C9	0.0307 (14)	0.0325 (15)	0.0298 (14)	0.0005 (12)	0.0075 (11)	−0.0036 (12)
N1	0.0275 (12)	0.0295 (13)	0.0290 (12)	0.0058 (10)	0.0117 (10)	0.0042 (10)
O1	0.0286 (11)	0.0612 (15)	0.0404 (12)	−0.0026 (10)	0.0111 (9)	−0.0251 (12)
O2	0.0274 (11)	0.0489 (14)	0.0395 (12)	−0.0045 (10)	0.0063 (9)	−0.0148 (11)
Br1	0.0485 (2)	0.0501 (2)	0.02394 (15)	−0.00516 (15)	0.00278 (12)	0.00032 (14)
Br2	0.02605 (16)	0.0556 (2)	0.0469 (2)	0.00428 (14)	0.00450 (13)	−0.00056 (16)

Geometric parameters (Å, º) top

C1—C2	1.392 (4)	C7—O2	1.243 (4)
C1—C6	1.399 (4)	C7—O1	1.254 (4)
C1—C7	1.526 (4)	C8—N1	1.484 (4)
C2—C3	1.395 (4)	C8—C9	1.510 (4)
C2—Br1	1.903 (3)	C8—H8A	0.9700
C3—C4	1.374 (5)	C8—H8B	0.9700
C3—H3	0.9300	C9—N1ⁱ	1.488 (4)
C4—C5	1.379 (4)	C9—H9A	0.9700
C4—H4	0.9300	C9—H9B	0.9700
C5—C6	1.382 (4)	N1—H1A	0.870 (18)
C5—Br2	1.897 (3)	N1—H1B	0.864 (17)
C6—H6	0.9300

C2—C1—C6	117.4 (3)	O1—C7—C1	115.0 (2)
C2—C1—C7	126.1 (3)	N1—C8—C9	110.4 (2)
C6—C1—C7	116.5 (2)	N1—C8—H8A	109.6
C1—C2—C3	121.2 (3)	C9—C8—H8A	109.6
C1—C2—Br1	121.9 (2)	N1—C8—H8B	109.6
C3—C2—Br1	116.8 (2)	C9—C8—H8B	109.6
C4—C3—C2	120.6 (3)	H8A—C8—H8B	108.1
C4—C3—H3	119.7	N1ⁱ—C9—C8	110.2 (2)
C2—C3—H3	119.7	N1ⁱ—C9—H9A	109.6
C3—C4—C5	118.7 (3)	C8—C9—H9A	109.6
C3—C4—H4	120.6	N1ⁱ—C9—H9B	109.6
C5—C4—H4	120.6	C8—C9—H9B	109.6
C4—C5—C6	121.3 (3)	H9A—C9—H9B	108.1
C4—C5—Br2	120.3 (2)	C8—N1—C9ⁱ	111.2 (2)
C6—C5—Br2	118.3 (2)	C8—N1—H1A	113 (3)
C5—C6—C1	120.8 (3)	C9ⁱ—N1—H1A	105 (3)
C5—C6—H6	119.6	C8—N1—H1B	107 (3)
C1—C6—H6	119.6	C9ⁱ—N1—H1B	113 (3)
O2—C7—O1	125.1 (3)	H1A—N1—H1B	107 (2)
O2—C7—C1	119.8 (3)

C6—C1—C2—C3	−1.0 (4)	Br2—C5—C6—C1	−178.6 (2)
C7—C1—C2—C3	−179.9 (3)	C2—C1—C6—C5	1.3 (4)
C6—C1—C2—Br1	173.8 (2)	C7—C1—C6—C5	−179.8 (3)
C7—C1—C2—Br1	−5.0 (4)	C2—C1—C7—O2	−37.1 (4)
C1—C2—C3—C4	−0.1 (5)	C6—C1—C7—O2	144.1 (3)
Br1—C2—C3—C4	−175.2 (3)	C2—C1—C7—O1	144.3 (3)
C2—C3—C4—C5	1.0 (5)	C6—C1—C7—O1	−34.5 (4)
C3—C4—C5—C6	−0.7 (5)	N1—C8—C9—N1ⁱ	−56.7 (3)
C3—C4—C5—Br2	177.4 (2)	C9—C8—N1—C9ⁱ	57.4 (3)
C4—C5—C6—C1	−0.4 (5)

Symmetry code: (i) −x+2, −y+1, −z+1.

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
N1—H1A···O1	0.87 (2)	1.79 (2)	2.655 (3)	178 (4)
C9—H9A···O2	0.97	2.67	3.440 (4)	136
C6—H6···Br2ⁱⁱ	0.93	2.98	3.855 (3)	157
C8—H8A···Br2ⁱⁱⁱ	0.97	3.07	3.661 (3)	121
C8—H8B···Br1^iv	0.97	3.00	3.967 (3)	173
C9—H9A···Br1^v	0.97	3.00	3.655 (3)	126
C9—H9B···Br2ⁱⁱⁱ	0.97	3.10	3.781 (3)	128
N1—H1B···O2^vi	0.86 (2)	1.93 (2)	2.755 (3)	160 (3)
N1—H1B···Br1^vi	0.86 (2)	3.06 (3)	3.598 (2)	123 (3)

Symmetry codes: (ii) −x+1, −y+1, −z+1; (iii) x+1, y, z; (iv) −x+2, −y+1, −z+2; (v) x, −y+3/2, z−1/2; (vi) −x+2, y−1/2, −z+3/2.

References

Allu, S., An, J.-H., Park, B. J. & Kim, W.-S. (2023). Cryst. Growth Des. 23, 7231–7242. Web of Science CrossRef CAS Google Scholar
Banik, M., Gopi, S. P., Ganguly, S. & Desiraju, G. R. (2016). Cryst. Growth Des. 16, 5418–5428. Web of Science CSD CrossRef CAS Google Scholar
Brito, A. F., Moreira, L. K. S., Menegatti, R. & Costa, E. A. (2019). Fundam. Clin. Pharmacol. 33, 13–24. Web of Science CrossRef CAS PubMed Google Scholar
Bruker (2021). APEX4 SAINT and XPREP. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Bruno, I. J., Cole, J. C., Edgington, P. R., Kessler, M., Macrae, C. F., McCabe, P., Pearson, J. & Taylor, R. (2002). Acta Cryst. B58, 389–397. Web of Science CrossRef CAS IUCr Journals Google Scholar
Chen, Z.-Y. & Peng, M.-X. (2008). Chin. J. Chem. 26, 1555–1560. Web of Science CrossRef CAS Google Scholar
Chen, Z.-Y. & Peng, M.-X. (2011). J. Chem. Crystallogr. 41, 137–142. Web of Science CrossRef CAS Google Scholar
Farrugia, L. J. (2012). J. Appl. Cryst. 45, 849–854. Web of Science CrossRef CAS IUCr Journals Google Scholar
Ferrence, G. M., Tovee, C. A., Holgate, S. J. W., Johnson, N. T., Lightfoot, M. P., Nowakowska-Orzechowska, K. L. & Ward, S. C. (2023). IUCrJ 10, 6–15. Web of Science CrossRef CAS PubMed IUCr Journals Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
McKinnon, J. J., Jayatilaka, D. & Spackman, M. A. (2007). Chem. Commun. pp. 3814–3816. Web of Science CrossRef Google Scholar
McKinnon, J. J., Mitchell, A. S. & Spackman, M. A. (1998). Chem. Eur. J. 4, 2136–2141. CrossRef CAS Google Scholar
McKinnon, J. J., Spackman, M. A. & Mitchell, A. S. (2004). Acta Cryst. B60, 627–668. Web of Science CrossRef CAS IUCr Journals Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
Moulton, B., Luisi, B. S., Fonari, M. S., Basok, S. S., Ganin, E. V. & Kravtsov, V. C. (2007). New J. Chem. 31, 561–568. Web of Science CrossRef CAS Google Scholar
Priyanka, P., Jayanna, B. K., Divakara, T. R., Suresha, G. P., Vinaya, Basavaraju, Y. B., Yathirajan, H. S., Parkin, S. R. & Chęcińska, L. (2022). Crystals 12, 1807. Web of Science CrossRef Google Scholar
Roshini, S. R. A. & Jayalakshmi, D. (2023). Opt. Mater. 146, 114577. Web of Science CrossRef Google Scholar
Roy, P., Chakraborty, S., Pandey, N., Kumari, N., Chougule, S., Chatterjee, A., Chatterjee, K., Mandal, P., Gorain, B., Dhotre, A. V., Bansal, A. K. & Ghosh, A. (2023). Mol. Pharm. 20, 5226–5239. Web of Science CrossRef CAS PubMed Google Scholar
Shaquiquzzaman, M., Verma, G., Marella, A., Akhter, M., Akhtar, W., Khan, M. F., Tasneem, S. & Alam, M. M. (2015). Eur. J. Med. Chem. 102, 487–529. Web of Science CrossRef CAS PubMed Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spackman, M. A. & Jayatilaka, D. (2009). CrystEngComm 11, 19–32. Web of Science CrossRef CAS Google Scholar
Spackman, M. A. & McKinnon, J. J. (2002). CrystEngComm 4, 378–392. Web of Science CrossRef CAS Google Scholar
Spek, A. L. (2020). Acta Cryst. E76, 1–11. Web of Science CrossRef IUCr Journals Google Scholar
Subha, V., Seethalakshmi, T., Balakrishnan, T., Percino, M. J. & Venkatesan, P. (2022a). Acta Cryst. E78, 198–202. Web of Science CrossRef IUCr Journals Google Scholar
Subha, V., Seethalakshmi, T., Balakrishnan, T., Percino, M. J. & Venkatesan, P. (2022b). Acta Cryst. E78, 774–778. Web of Science CrossRef IUCr Journals Google Scholar
Sun, R., Braun, D. E., Casali, L., Braga, D. & Grepioni, F. (2023). Cryst. Growth Des. 23, 1874–1887. Web of Science CrossRef CAS PubMed Google Scholar
Turner, M., McKinnon, J., Wolff, S., Grimwood, D., Spackman, P., Jayatilaka, D. & Spackman, M. (2017). CrystalExplorer17.5. University of Western Australia. Google Scholar
Venkatesan, P., Rajakannan, V., Venkataramanan, N. S., Ilangovan, A., Sundius, T. & Thamotharan, S. (2016a). J. Mol. Struct. 1119, 259–268. Web of Science CrossRef CAS Google Scholar
Venkatesan, P., Thamotharan, S., Ilangovan, A., Liang, H. & Sundius, T. (2016b). Spectrochim. Acta A Mol. Biomol. Spectrosc. 153, 625–636. Web of Science CrossRef CAS PubMed Google Scholar
Venkatesan, P., Thamotharan, S., Kumar, R. G. & Ilangovan, A. (2015). CrystEngComm 17, 904–915. Web of Science CrossRef CAS Google Scholar
Wang, L., Zhao, L., Xu, L., Chen, R. & Yang, Y. (2012). CrystEngComm 14, 6998–7008. Web of Science CrossRef CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
