Structures of bimetallic Fe^III–Fe^III and trimetallic Fe^III–K–Fe^III complexes incorporating the deprotonated ligand N,N′-bis(2-hydroxy-3-methoxybenzylidene)-1,2-phenylenediamine

Mariama Thiam,^a ^* Ngoné Diouf,^a James Orton,^b Cheikh Ndoye,^a Amadou Gueye,^a Ousmane Diouf,^a Ibrahima Elhadji Thiam,^a Mohamed Gaye ^a and Simon Coles ^b

^aDépartement de Chimie, Faculté des Sciences et Techniques, Université Cheikh Anta Diop, Dakar, Senegal, and ^bUK National Crystallography Service, School of Chemistry, Faculty of Engineering and Physical Sciences, University of Southampton, Southampton SO17 1BJ, United Kingdom
^*Correspondence e-mail: [email protected]

Edited by W. T. A. Harrison, University of Aberdeen, United Kingdom (Received 20 August 2026; accepted 17 September 2026; online 22 September 2026)

The title compounds μ-oxido-bis[(2-{[2-(3-methoxy-2-oxidobenzylideneamino)phenylimino]methyl}-6-methoxyphenolato)iron(III)] pentahydrate, [Fe₂(C₂₂H₁₈N₂O₄]·5H₂O or {[(Fe^III(L)](μ₂-O)[Fe^III(L)]}·5H₂O (2), and dichloridobis(μ-2-{[2-(3-methoxy-2-oxidobenzylideneamino)phenylimino]methyl}-6-methoxyphenolato)diiron(III)potassium(I) nitrate, [KFe₂(C₂₂H₁₈N₂O₄)₂Cl₂]NO₃ or {[(Fe^III(L)(Cl)](K)[Fe^III(L)(Cl)]}·NO₃ (3), were formed from the reaction of the metallo-ligand [Fe^II(L)]·(H₂O) (H₂L is 2-{[2-(2-hydroxy-3-methoxybenzylideneamino)phenylimino]methyl}-6-methoxyphenol, C₂₂H₂₀N₂O₄) with yttrium acetate and potassium nitrate, respectively. In complex 2, the Fe^III ions, which presumably arise through aerial oxidation from Fe^II, have a distorted square-pyramidal environment and are bridged by a μ₂ oxo oxygen atom with an Fe—O—Fe angle of 137.97 (5)°. In complex (3) the environment around the Fe^III ions is a distorted square pyramid. All four phenoxo oxygen atoms link the Fe^III ions to a potassium atom (site symmetry 2), yielding two four-membered Fe/O/K/O rings. The K⁺ ion is linked also to four methoxy oxygen atoms.

Keywords: iron; potassium; complex; crystal structure; square pyramidal.

CCDC references: 2588878; 2588877

1. Chemical context

Metalloligands are widely used precursors to prepare homopolynuclear and heteropolynuclear complexes. The resulting compounds, with properties such as molecular magnetism (Braun et al., 2024 ), biomedicine (Sun et al., 2024 ), catalysis (Moree et al., 2024 ) or luminescence (Shanmugavel et al., 2024 ; Yazhini et al., 2024 ) have been reported in the literature. The insertion of diamagnetic species such as alkali metal ions can give valuable information on the magneto-structural relationship of these compounds (Mason et al., 2010 ). Access to these polynuclear compounds incorporating ns ions and 3d ions with different oxidation states, e.g., sodium or potassium and iron(II, III) is a challenge from a synthetic point of view (Pinkert et al., 2013 ). Chemists are increasingly interested in the design and synthesis of heteropolynuclear complexes of d- and s-block metals (e.g., Thiam et al., 2023 ). Indeed, the ligands used have two compartments of different sizes and the 3d element occupies the smaller cavity (Haba et al., 2020a ,b ; Sarr et al., 2018a ,b ). Various s-, p-, d- or f-type elements can occupy, in a second step, the larger cavity to form a dinuclear complex. The use of s-block elements in coordination chemistry has developed in recent years given their presence in biomolecular recognition (Kaczmarek et al., 2018 ).

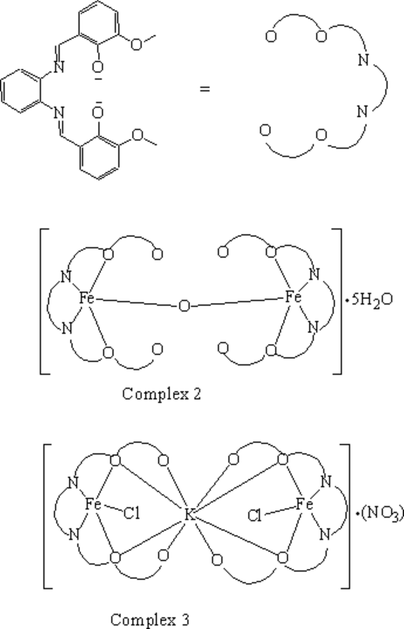

Our synthetic approach is to use an iron(II)-based metalloligand [Fe^II(L)]·(H₂O) synthesized from the reaction of the bi-compartmentalized Schiff ligand H₂L (C₂₂H₂₀N₂O₄) derived from o-vanillin and 1,2-diaminobenzene with FeCl₂ under aerobic conditions (the composition [Fe^III(L)Cl]·(H₂O) is also possible, if the iron is oxidised by atmospheric oxygen during the synthesis). In this paper, we describe the synthesis, characterisation and structure of a homodinuclear complex {[(Fe(L)](μ₂-O)[Fe(L)]}·5H₂O (2) and a d/s/d heterotrinuclear complex formulated as {[(Fe(L)(Cl)](K)[Fe(L)(Cl)]}·NO₃ (3).

2. Structural commentary

Complex 2 displays a molecular structure (Fig. 1) constructed from two [Fe^III(L)Cl] entities bridged by a μ₂-O^2– ion, giving rise to a dinuclear neutral complex. The asymmetric unit contains two di-deprotonated tetradentate ligand molecules, two pentacoordinated Fe^III ions, one O^2– ion acting in μ₂- mode and five uncoordinated water molecules. The Fe^III was presumably formed by aerial oxidation. The arrangement of the ligand donor atoms leads to the formation of an ‘internal chamber' defined by an N₂O₂ donor set and an outer chamber defined by O₂O′₂. The iron atoms are located in the smaller cavity (N₂O₂) and the larger cavity (O₂O′₂) is empty. Each iron atom is pentacoordinated by two azomethine nitrogen atoms and two phenolate oxygen atoms and are bridged by one dianionic oxygen atom. The environment around the iron atom can be described using the Addison et al. (1984 ) τ parameter: when τ = 0, the geometry is a pyramid with a perfect square base; τ = 1 indicates a perfect (regular) trigonal bipyramidal geometry. The τ values of the Fe1 and the Fe2 atoms in 2 are, respectively, 0.002 and 0.208, which are indicative of a distorted square pyramidal around each iron atom. The distortion is greater around the Fe2 atom. The basal planes are defined by the atoms N1/N2/O2/O3 for Fe1 and N3/N4/O6/O7 for Fe2. The pyramids share one vertex occupied by the bridging oxygen atom O9 that is on the axial positions of the two square pyramids and the Fe1—O9—Fe2 bond angle is 137.97 (5) °. The cis angle values, for both Fe atoms, are in the range 76.28 (4)–93.50 (4)°, while the trans angles are in the range 140.16 (4)–152.65 (4)°. These values deviate substantially from the ideal values of 90 and 180° expected for perfect square pyramidal geometry. Upon coordination, each ligand molecule forms one five membered chelate ring and two six-membered rings. The atoms defining the five and the six membered rings are close to coplanar with r.m.s. deviations of 0.122 Å (Fe1/N1/C8/C13/N2), 0.086 Å (Fe1/O3/C20/C15/C14/N2), 0.112 Å (Fe1/N1/C7/C6/C1/O2) and 0.144 Å (Fe2/N3/C30/C35/N4), 0.120 Å (Fe2/O6/C23/C28/C29/N3) and 0.038 Å (Fe2/O7/C42/C37/C36/N4). Around Fe1 the mean plane of the five membered ring forms dihedral angles of 18.053 (3) and 16.825 (4)° with the mean planes of the six-membered rings. The six-membered rings form a dihedral angle of 27.896 (2)°. For Fe2 the mean plane of the five membered ring form dihedral angles of 19.527 (4) and 20.966 (3)° with the mean planes of the six-membered rings while the six-membered rings form a dihedral angle of 37.448 (2)°. The Fe1⋯Fe2 separation via the oxo bridge is 3.3350 (4) Å. The Fe—N distances (Table 1) are comparable to the values reported for similar complexes (e.g., Jana et al., 2012 ). The Fe—O_p (p = phenoxo) distances are shorter the the distances Fe—O_b (b = bridge). These values are comparable to the values reported for similar complexes (Strauss et al., 1987 ; Jana et al., 2012).

Table 1
Selected bond lengths (Å) for 2

Fe1—N1	2.1035 (10)	Fe2—N3	2.1232 (10)
Fe1—N2	2.0893 (10)	Fe2—N4	2.1036 (10)
Fe1—O2	1.9373 (9)	Fe2—O6	1.9374 (8)
Fe1—O3	1.9262 (9)	Fe2—O7	1.9246 (9)
Fe1—O9	1.7835 (9)	Fe2—O9	1.7893 (8)

Figure 1
The molecular structure of 2 with 50% probability ellipsoids.

The asymmetric unit of 3 contains a di-deprotonated L^2– ligand molecule, an Fe^III cation, a K⁺ cation (site symmetry 2), an iron-bonded chloride anion and a free (uncoordinated) nitrate anion (Fig. 2). The complete complex is generated by crystallographic twofold symmetry. In the structure of the trinuclear complex, each of the Fe atoms is linked to the K atom by two phenoxo oxygen atoms. The Fe^III ion, which occupies the smaller inner pocket of the ligand, is coordinated in a square pyramidal geometry with a basal plane formed by two azomethine nitrogen atoms and two phenoxo oxygen atoms. The apical position is occupied by a chloride ion. The cissoid angles around the iron atom, which are in the range 77.94 (3)–89.74 (3)°, deviate significantly from the ideal values of 90°. The diagonal basal angles which are, respectively, N1—Fe1—O3 = 146.34 (3)° and N2—Fe1—O1 = 150.97 (3)° deviate from the ideal values of 180°. These values are comparable to those reported for similar complexes (Haba et al., 2020a,b). The Fe1 atom is significantly displaced from the plane defined by the N₂O₂ site, the out-of-plane distance being 0.418 (3) Å. In the basal planes of the square pyramid, the Fe—O_p distances are the smallest (Table 2) while the Fe—N_i (i = imino) bond distances are the longest. The Fe1—Cl1 distance is comparable to the values reported for similar complexes (Safo et al., 2010 ; Awasabisah et al., 2015 ; Senge, 2005 ). The potassium ion (site symmetry 2), which occupies the larger open site O₂O′₂ of the ligand, is ligated to two phenoxo oxygen atoms and two methoxy oxygen atoms per ligand molecule. Thus, by symmetry, the potassium cation is situated in a distorted KO₈ polyhedron site made up by four μ₂-bridging phenolate oxygen atoms and four methoxy oxygen atoms from two ligand molecules. The K—O_p bond distances are the shortest distances (Fig. 2, Table 2) while the K1—O_m (m = methoxy) are the longest. These distances are shorter than those reported for a complex in which iron and potassium ions are bridged by a cyano group (Huang et al., 2019 ). The C1–C6 phenyl group in 3 is almost coplanar with the C16–C21 phenyl ring and is slightly twisted from the second phenyl ring with methoxy group with dihedral angle values of 0.386 (6)° and 5.515 (5)°, respectively. The phenyl rings bearing methoxy groups form a dihedral angle of 5.552 (5)°. The potassium ion is sandwiched between the iron atoms with Fe1⋯K1 = 3.7246 (2) Å and Fe1⋯K1⋯Fe1ⁱ = 178.44 (9)° [symmetry code: (i) 1 − x, y, $[{1\over 2}]$ − z], this distance being slightly longer than those found in a similar heteronuclear Fe/K complex (Purdy & Butcher, 2014 ). The O atoms of the nitrate counter-ion are disordered over two orientations rotated by ∼120°.

Table 2
Selected bond lengths (Å) for 3

Fe1—Cl1	2.2285 (3)	K1—O1	2.7476 (7)
Fe1—N1	2.0705 (8)	K1—O2	2.7900 (8)
Fe1—N2	2.0848 (8)	K1—O3	2.7497 (8)
Fe1—O1	1.9010 (7)	K1—O4	2.7890 (8)
Fe1—O3	1.8980 (7)

Figure 2
The molecular structure of 3 with 50% probability ellipsoids.

3. Supramolecular features

In the extended structure of 2, numerous O—H⋯O hydrogen bonds are observed (Fig. 3, Table 3). These are made possible by the presence of the free (uncoordinated) water molecules, which link the complex entities. Projection down the [101] direction reveals the resulting three-dimensional supramolecular framework (Fig. 4).

Table 3
Hydrogen-bond geometry (Å, °) for 2

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C7—H7⋯O10ⁱ	0.95	2.60	3.5233 (16)	165
C36—H36⋯O14ⁱⁱ	0.95	2.45	3.3930 (17)	172
C44—H44B⋯O11ⁱⁱⁱ	0.98	2.58	3.4643 (19)	151
O10—H10A⋯O1	0.87	2.21	2.9342 (15)	140
O10—H10A⋯O2	0.87	2.28	3.0393 (14)	146
O10—H10B⋯O3	0.87	2.42	3.1432 (14)	141
O10—H10B⋯O4	0.87	2.28	3.0579 (15)	148
O11—H11A⋯O3	0.87	2.11	2.9635 (15)	169
O11—H11B⋯O1	0.87	2.48	3.2974 (16)	157
O11—H11B⋯O2	0.87	2.52	3.0582 (15)	121
O12—H12A⋯O10	0.87	2.00	2.8520 (19)	167
O12—H12B⋯O11	0.87	2.23	2.9457 (19)	139
O13—H13A⋯O5	0.87	2.11	2.8255 (14)	139
O13—H13A⋯O6	0.87	2.27	3.0237 (13)	145
O13—H13B⋯O7	0.87	2.30	3.0580 (14)	146
O13—H13B⋯O8	0.87	2.08	2.8108 (14)	141
O14—H14A⋯O12^iv	0.87	1.99	2.8457 (17)	167
O14—H14B⋯O13	0.87	2.01	2.8683 (18)	167
Symmetry codes: (i) $[x, -y+{\script{1\over 2}}, z-{\script{1\over 2}}]$ ; (ii) ; (iii) ; (iv) .

Figure 3
A fragment of the extended structure of 2 showing hydrogen bonds as dashed lines.

Figure 4
The packing of 2 viewed down [101]. H atoms not involved in hydrogen bonds are omitted for clarity.

Examination of the supramolecular network of complex 3 reveals six weak hydrogen bonds (Table 4). The nitrate and chloride ions act as bridges between neighbouring complex molecules via C—H⋯O and C—H⋯Cl hydrogen bonds (Fig. 5). These interactions ensure the cohesion of a three-dimensional network which, when projected down [101], appears as pseudo layers (Fig. 6).

Table 4
Hydrogen-bond geometry (Å, °) for 3

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C3—H3⋯O5ⁱ	0.95	2.28	3.221 (2)	170
C6—H6⋯Cl1ⁱⁱ	0.95	2.81	3.7493 (10)	170
C7—H7⋯Cl1ⁱⁱ	0.95	2.88	3.6840 (9)	143
C15—H15⋯O6ⁱⁱⁱ	0.95	2.38	3.2611 (19)	155
C19—H19⋯Cl1^iv	0.95	2.70	3.5639 (11)	151
C22—H22A⋯O7^v	0.98	2.41	2.908 (2)	111
Symmetry codes: (i) $[x-{\script{1\over 2}}, y-{\script{1\over 2}}, z]$ ; (ii) ; (iii) ; (iv) $[-x+{\script{1\over 2}}, y-{\script{1\over 2}}, -z+{\script{1\over 2}}]$ ; (v) $[-x+1, y, -z+{\script{1\over 2}}]$ .

Figure 5
A fragment of the extended structure of 3 showing hydrogen bonds as dashed lines.

Figure 6
The packing of 3 viewed down [101]. H atoms not involved in hydrogen bonds are omitted for clarity.

4. Database survey

A search of the Cambridge Structural Database (CSD, version 5.46; February 2025 update; Groom et al., 2016 ), carried out on 1 April 2026, for complexes displaying a coordination motif similar to that of 2 and 3 returned eleven hits with the following CSD refcodes: AGASOR (Nabei et al., 2008 ), AGASOR01 (Nabei et al., 2008), BEHJEF (Jana et al., 2012), BEHJIJ (Jana et al., 2012), KESLAZ (Elemo et al., 2022 ), WEHGAT (Bhattacharya et al., 2012 ), WEHGEX (Bhattacharya et al., 2012), XATYAW (Haba et al., 2020a,b), XOFRES (Raj et al., 2019 ), XOFRIW (Raj et al., 2019), and XOFROC (Raj et al., 2019). These compounds exhibit a range of nuclearities, including mononuclear species (e.g., BEHJEF, KESLAZ, and XOFRIW) and dinuclear species (e.g., BEHJIJ and XOFRES), the latter frequently featuring μ-oxo bridges between Fe^III centres. In addition, polymeric chain structures are observed for AGASOR and AGASOR01, whereas heterometallic systems incorporating vanadium are reported for WEHGAT and WEHGEX. Despite this structural diversity, all of these compounds share a common tetradentate N,N,O,O coordination motif.

5. Synthesis and crystallization

[Fe^III(L)Cl]·(H₂O) 1. In a round-bottomed flask, the ligand (H₂L) (10 mmol, 0.374 g) was dissolved in 5 ml of acetonitrile. A solution of FeCl₂·4H₂O (10 mmol, 0.199 g) in 5 ml of methanol was added. After two h under reflux, the brown precipitate was recovered by filtration, washed with ether (2 × 10 ml) and dried in air.

Yield: 80%. Elemental analysis found (calculated) (%): C, 58.92 (58.95); H, 4.48 (4.50); N, 6.22 (2.25). IR (ν, cm⁻¹): 3343 (ν_O—H), 1627 (ν_C=N), 1236 (ν_C–OPh), 1201, (ν_C–OMe), 851 (δH₂O). Conductance (S cm² mol⁻¹): 7.00.

{[(Fe^III(L)](μ₂-O)[Fe^III(L)]}·5H₂O 2. To a solution of (1) (0.25 mmol, 0.1234 g) in 5 ml of N,N-dimethylformamide (DMF) was added a solution of Y(CH₃CO₂)₃ (0.25 mmol, 0.0665 g) in 5 ml of ethanol. The mixture was refluxed for two h. On cooling, a black precipitate appeared, which was recovered by filtration. The filtrate was left for slow evaporation. On standing for two weeks, black crystals of (2) suitable for X-ray diffraction were isolated. Yield: 69%. Elemental analysis found (calculated) (%): C, 54.68 (54.64); H, 4.80 (4.76); N, 5.80 (5.78); Cl, 6.87 (6.84). IR (ν, cm⁻¹): 1601 (ν_C=N), 1239 (ν_C–OPh), 1196 (ν_C–OMe). Conductance (S cm² mol⁻¹): 6.80.

{[(Fe^III(L)(Cl)](K)[Fe^III(L)(Cl)]}·NO₃ 3. To a solution of (1) (0.25 mmol, 0.1234 g) in 5 ml of DMF was added a solution of KNO₃ (0.25 mmol, 0.0225 g) in 5 ml of ethanol. The mixture was refluxed for two h. On cooling, a black precipitate was recovered by filtration. The filtrate was left for slow evaporation. On standing for two weeks, black crystals of (3) suitable for X-ray diffraction were isolated. Yield: 58%. Elemental analysis found (calculated) (%): C, 51.18 (51.15); H, 3.51 (3.49); N, 6.78 (6.75); Cl, 6.87 (6.84). IR (ν, cm⁻¹): 1600 (ν_C=N), 1201 (ν_C-OPh), 1105 (ν_C-OMe). Conductance (S cm² mol⁻¹): 61.0.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 5. The C-bound H atoms were positioned geometrically (0.95–0.98 Å) and refined as riding with U_iso(H) = 1.2U_eq(C). The other H atoms were located in difference maps and refined as riding with U_iso(H) = 1.2U_eq(N) or 1.5U_eq(O).

Table 5
Experimental details

	2	3
Crystal data
Chemical formula	[Fe₂(C₂₂H₁₈N₂O₄)₂O]·5H₂O	[KFe₂(C₂₂H₁₈N₂O₄)₂Cl₂]NO₃
M_r	966.55	1032.48
Crystal system, space group	Monoclinic, P2₁/c	Monoclinic, C2/c
Temperature (K)	100	100
a, b, c (Å)	13.6001 (4), 22.9342 (5), 14.8502 (5)	17.5443 (8), 10.0392 (5), 24.4944 (13)
β (°)	113.199 (4)	103.438 (5)
V (Å³)	4257.4 (2)	4196.1 (4)
Z	4	4
Radiation type	Mo Kα	Mo Kα
μ (mm⁻¹)	0.76	0.99
Crystal size (mm)	0.14 × 0.13 × 0.02	0.22 × 0.12 × 0.06

Data collection
Diffractometer	Rigaku FRE+	Rigaku FRE+
Absorption correction	Analytical (CrysAlis PRO; Rigaku OD, 2024 )	Analytical (CrysAlis PRO; Rigaku OD, 2024)
T_min, T_max	0.915, 0.985	0.888, 0.952
No. of measured, independent and observed [I > 2σ(I)] reflections	99080, 20596, 15233	59339, 10162, 8768
R_int	0.049	0.028
(sin θ/λ)_max (Å⁻¹)	0.833	0.833

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.044, 0.119, 1.04	0.031, 0.087, 1.04
No. of reflections	20596	10162
No. of parameters	596	314
H-atom treatment	H-atom parameters constrained	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.70, −0.66	0.57, −0.32
Computer programs: CrysAlis PRO (Rigaku OD, 2024), SHELXT2018/2 (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Supporting information

CCDC references: 2588878; 2588877

Crystal structure: contains datablocks 3, 2. DOI: https://doi.org/10.1107/S2056989026009734/hb8251sup1.cif

Structure factors: contains datablock 3. DOI: https://doi.org/10.1107/S2056989026009734/hb82513sup2.hkl

Structure factors: contains datablock 2. DOI: https://doi.org/10.1107/S2056989026009734/hb82512sup3.hkl

checkCIF report

Computing details top

Dichloridobis(µ-2-{[2-(3-methoxy-2-oxidobenzylideneamino)phenylimino]methyl}-6-methoxyphenolato)diiron(III)potassium(I) nitrate (3) top

Crystal data top

[KFe₂(C₂₂H₁₈N₂O₄)₂Cl₂]NO₃	F(000) = 2112
M_r = 1032.48	D_x = 1.634 Mg m⁻³
Monoclinic, C2/c	Mo Kα radiation, λ = 0.71075 Å
a = 17.5443 (8) Å	Cell parameters from 6255 reflections
b = 10.0392 (5) Å	θ = 2.4–38.0°
c = 24.4944 (13) Å	µ = 0.99 mm⁻¹
β = 103.438 (5)°	T = 100 K
V = 4196.1 (4) Å³	(cut) irregular block, dark-red
Z = 4	0.22 × 0.12 × 0.06 mm

Data collection top

Rigaku FRE+ diffractometer	8768 reflections with I > 2σ(I)
Detector resolution: 10 pixels mm^-1	R_int = 0.028
profile data from ω–scans	θ_max = 36.3°, θ_min = 1.7°
Absorption correction: analytical (CrysAlisPro; Rigaku OD, 2024)	h = −29→29
T_min = 0.888, T_max = 0.952	k = −16→16
59339 measured reflections	l = −40→40
10162 independent reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.031	H-atom parameters constrained
wR(F²) = 0.087	w = 1/[σ²(F_o²) + (0.050P)² + 1.8043P] where P = (F_o² + 2F_c²)/3
S = 1.04	(Δ/σ)_max = 0.001
10162 reflections	Δρ_max = 0.57 e Å⁻³
314 parameters	Δρ_min = −0.32 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq	Occ. (<1)
C1	0.50193 (5)	0.24785 (9)	0.51306 (4)	0.01710 (13)
C2	0.44651 (5)	0.14641 (9)	0.49579 (4)	0.01895 (14)
C3	0.41983 (6)	0.07184 (10)	0.53609 (5)	0.02564 (18)
H3	0.382175	0.003222	0.524806	0.031*
C4	0.44890 (7)	0.09925 (11)	0.59237 (5)	0.0285 (2)
H4	0.431973	0.047444	0.619790	0.034*
C5	0.50242 (7)	0.20127 (10)	0.60941 (4)	0.02561 (18)
H5	0.520826	0.220049	0.648257	0.031*
C6	0.52919 (6)	0.27592 (9)	0.57017 (4)	0.02096 (15)
H6	0.565848	0.345765	0.581977	0.025*
C7	0.58541 (5)	0.39691 (9)	0.48030 (4)	0.01716 (13)
H7	0.613315	0.403463	0.518398	0.021*
C8	0.61348 (5)	0.47516 (8)	0.43993 (4)	0.01674 (13)
C9	0.58326 (5)	0.46279 (8)	0.38173 (4)	0.01670 (13)
C10	0.61495 (5)	0.54446 (9)	0.34517 (4)	0.01898 (14)
C11	0.67262 (6)	0.63660 (9)	0.36649 (4)	0.02232 (16)
H11	0.692316	0.692528	0.341650	0.027*
C12	0.70231 (6)	0.64806 (10)	0.42471 (5)	0.02456 (17)
H12	0.742020	0.711618	0.439103	0.029*
C13	0.67411 (5)	0.56770 (9)	0.46086 (4)	0.02173 (16)
H13	0.695403	0.574201	0.500138	0.026*
C14	0.60618 (7)	0.61086 (12)	0.25021 (5)	0.0291 (2)
H14A	0.662778	0.603632	0.253535	0.044*
H14B	0.593072	0.702596	0.258218	0.044*
H14C	0.578244	0.586882	0.212015	0.044*
C15	0.37662 (5)	0.03054 (9)	0.41536 (5)	0.02230 (16)
H15	0.360109	−0.028962	0.440487	0.027*
C16	0.34971 (5)	0.00534 (9)	0.35632 (5)	0.02312 (17)
C17	0.37616 (5)	0.07742 (9)	0.31471 (4)	0.02150 (16)
C18	0.34533 (5)	0.04398 (9)	0.25756 (5)	0.02402 (17)
C19	0.29085 (6)	−0.05724 (10)	0.24331 (5)	0.0287 (2)
H19	0.270229	−0.078458	0.204915	0.034*
C20	0.26583 (6)	−0.12884 (10)	0.28516 (5)	0.0317 (2)
H20	0.228562	−0.198452	0.274915	0.038*
C21	0.29477 (6)	−0.09903 (10)	0.34067 (5)	0.0285 (2)
H21	0.277917	−0.148565	0.368758	0.034*
C22	0.32925 (7)	0.11073 (13)	0.16200 (5)	0.0328 (2)
H22A	0.350967	0.173913	0.139136	0.049*
H22B	0.274081	0.132198	0.159616	0.049*
H22C	0.333272	0.020085	0.148094	0.049*
Cl1	0.34951 (2)	0.41749 (2)	0.38730 (2)	0.02194 (5)
Fe1	0.45267 (2)	0.28570 (2)	0.39054 (2)	0.01585 (3)
K1	0.500000	0.29194 (3)	0.250000	0.02250 (5)
N1	0.52506 (4)	0.31785 (7)	0.46914 (3)	0.01594 (11)
N2	0.42196 (4)	0.12888 (7)	0.43695 (3)	0.01895 (13)
N3	0.7457 (13)	0.2407 (17)	0.5001 (11)	0.0190 (12)	0.5
O5	0.80190 (10)	0.32155 (18)	0.51234 (10)	0.0389 (4)	0.5
O6	0.70583 (11)	0.21995 (18)	0.53603 (8)	0.0349 (4)	0.5
O7	0.73006 (15)	0.1847 (2)	0.45496 (8)	0.0451 (5)	0.5
O1	0.52741 (4)	0.37741 (7)	0.35940 (3)	0.02128 (12)
O2	0.58350 (4)	0.52265 (8)	0.28938 (3)	0.02515 (14)
O3	0.42868 (4)	0.17378 (7)	0.32638 (3)	0.02267 (13)
O4	0.37251 (4)	0.11956 (8)	0.21957 (3)	0.02677 (14)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0157 (3)	0.0154 (3)	0.0206 (3)	0.0017 (2)	0.0051 (3)	0.0021 (3)
C2	0.0158 (3)	0.0153 (3)	0.0265 (4)	0.0013 (3)	0.0065 (3)	0.0023 (3)
C3	0.0224 (4)	0.0214 (4)	0.0360 (5)	−0.0009 (3)	0.0125 (4)	0.0058 (3)
C4	0.0283 (5)	0.0284 (5)	0.0335 (5)	0.0027 (4)	0.0165 (4)	0.0083 (4)
C5	0.0290 (4)	0.0264 (4)	0.0244 (4)	0.0060 (3)	0.0121 (4)	0.0041 (3)
C6	0.0232 (4)	0.0200 (4)	0.0203 (4)	0.0017 (3)	0.0063 (3)	0.0007 (3)
C7	0.0157 (3)	0.0171 (3)	0.0185 (3)	−0.0012 (2)	0.0034 (3)	−0.0017 (3)
C8	0.0141 (3)	0.0155 (3)	0.0208 (3)	−0.0018 (2)	0.0044 (3)	−0.0018 (3)
C9	0.0136 (3)	0.0157 (3)	0.0210 (3)	−0.0010 (2)	0.0045 (3)	−0.0005 (3)
C10	0.0164 (3)	0.0186 (3)	0.0229 (4)	−0.0005 (3)	0.0067 (3)	0.0014 (3)
C11	0.0192 (3)	0.0194 (4)	0.0304 (4)	−0.0028 (3)	0.0100 (3)	0.0009 (3)
C12	0.0213 (4)	0.0210 (4)	0.0325 (5)	−0.0076 (3)	0.0086 (3)	−0.0037 (3)
C13	0.0195 (3)	0.0206 (4)	0.0249 (4)	−0.0065 (3)	0.0049 (3)	−0.0048 (3)
C14	0.0331 (5)	0.0290 (5)	0.0279 (5)	−0.0012 (4)	0.0123 (4)	0.0082 (4)
C15	0.0159 (3)	0.0138 (3)	0.0353 (5)	−0.0008 (3)	0.0021 (3)	0.0011 (3)
C16	0.0159 (3)	0.0134 (3)	0.0365 (5)	−0.0004 (3)	−0.0012 (3)	−0.0023 (3)
C17	0.0145 (3)	0.0152 (3)	0.0320 (4)	0.0007 (3)	−0.0002 (3)	−0.0063 (3)
C18	0.0175 (3)	0.0180 (4)	0.0333 (5)	0.0028 (3)	−0.0007 (3)	−0.0073 (3)
C19	0.0222 (4)	0.0194 (4)	0.0382 (5)	0.0006 (3)	−0.0061 (4)	−0.0083 (4)
C20	0.0237 (4)	0.0179 (4)	0.0463 (6)	−0.0037 (3)	−0.0064 (4)	−0.0043 (4)
C21	0.0201 (4)	0.0159 (4)	0.0445 (6)	−0.0030 (3)	−0.0027 (4)	−0.0017 (4)
C22	0.0277 (5)	0.0418 (6)	0.0285 (5)	−0.0015 (4)	0.0054 (4)	−0.0173 (4)
Cl1	0.02003 (9)	0.02151 (9)	0.02147 (9)	0.00524 (7)	−0.00090 (7)	−0.00103 (7)
Fe1	0.01339 (5)	0.01431 (5)	0.01887 (6)	−0.00220 (4)	0.00173 (4)	−0.00074 (4)
K1	0.02232 (12)	0.02485 (13)	0.01974 (11)	0.000	0.00370 (9)	0.000
N1	0.0141 (3)	0.0148 (3)	0.0185 (3)	−0.0004 (2)	0.0027 (2)	0.0008 (2)
N2	0.0143 (3)	0.0141 (3)	0.0275 (4)	−0.0006 (2)	0.0029 (2)	0.0001 (2)
N3	0.019 (4)	0.015 (4)	0.0219 (5)	0.000 (2)	0.002 (2)	0.003 (3)
O5	0.0257 (8)	0.0244 (7)	0.0633 (13)	−0.0068 (7)	0.0041 (8)	0.0092 (8)
O6	0.0318 (8)	0.0357 (9)	0.0428 (10)	0.0080 (6)	0.0203 (7)	0.0171 (7)
O7	0.0592 (13)	0.0449 (10)	0.0240 (8)	0.0127 (10)	−0.0048 (8)	−0.0069 (7)
O1	0.0194 (3)	0.0242 (3)	0.0193 (3)	−0.0085 (2)	0.0027 (2)	−0.0004 (2)
O2	0.0263 (3)	0.0291 (3)	0.0204 (3)	−0.0065 (3)	0.0060 (2)	0.0042 (3)
O3	0.0193 (3)	0.0214 (3)	0.0271 (3)	−0.0056 (2)	0.0049 (2)	−0.0073 (2)
O4	0.0210 (3)	0.0279 (3)	0.0292 (4)	−0.0006 (3)	0.0012 (3)	−0.0088 (3)

Geometric parameters (Å, º) top

C1—C2	1.4038 (12)	C16—C17	1.4132 (15)
C1—C6	1.3979 (13)	C16—C21	1.4149 (13)
C1—N1	1.4208 (11)	C17—C18	1.4188 (14)
C2—C3	1.4032 (13)	C17—O3	1.3206 (11)
C2—N2	1.4159 (13)	C18—C19	1.3831 (14)
C3—H3	0.9500	C18—O4	1.3694 (14)
C3—C4	1.3818 (17)	C19—H19	0.9500
C4—H4	0.9500	C19—C20	1.4034 (18)
C4—C5	1.3866 (16)	C20—H20	0.9500
C5—H5	0.9500	C20—C21	1.3694 (17)
C5—C6	1.3840 (14)	C21—H21	0.9500
C6—H6	0.9500	C22—H22A	0.9800
C7—H7	0.9500	C22—H22B	0.9800
C7—C8	1.4365 (12)	C22—H22C	0.9800
C7—N1	1.3005 (11)	C22—O4	1.4404 (14)
C8—C9	1.4063 (12)	Fe1—Cl1	2.2285 (3)
C8—C13	1.4156 (12)	Fe1—K1	3.7246 (2)
C9—C10	1.4194 (12)	Fe1—N1	2.0705 (8)
C9—O1	1.3209 (10)	Fe1—N2	2.0848 (8)
C10—C11	1.3807 (13)	Fe1—O1	1.9010 (7)
C10—O2	1.3674 (12)	Fe1—O3	1.8980 (7)
C11—H11	0.9500	K1—O1ⁱ	2.7476 (7)
C11—C12	1.4048 (15)	K1—O1	2.7476 (7)
C12—H12	0.9500	K1—O2ⁱ	2.7900 (8)
C12—C13	1.3722 (14)	K1—O2	2.7900 (8)
C13—H13	0.9500	K1—O3	2.7497 (8)
C14—H14A	0.9800	K1—O3ⁱ	2.7497 (8)
C14—H14B	0.9800	K1—O4	2.7890 (8)
C14—H14C	0.9800	K1—O4ⁱ	2.7889 (8)
C14—O2	1.4284 (12)	N3—O5	1.258 (15)
C15—H15	0.9500	N3—O6	1.26 (2)
C15—C16	1.4356 (15)	N3—O7	1.21 (2)
C15—N2	1.3006 (12)

C2—C1—N1	115.48 (8)	H22B—C22—H22C	109.5
C6—C1—C2	119.99 (8)	O4—C22—H22A	109.5
C6—C1—N1	124.51 (8)	O4—C22—H22B	109.5
C1—C2—N2	115.00 (8)	O4—C22—H22C	109.5
C3—C2—C1	119.73 (9)	Cl1—Fe1—K1	108.107 (8)
C3—C2—N2	125.27 (9)	N1—Fe1—Cl1	104.96 (2)
C2—C3—H3	120.3	N1—Fe1—K1	129.53 (2)
C4—C3—C2	119.31 (9)	N1—Fe1—N2	77.94 (3)
C4—C3—H3	120.3	N2—Fe1—Cl1	99.03 (2)
C3—C4—H4	119.5	N2—Fe1—K1	131.16 (2)
C3—C4—C5	120.96 (9)	O1—Fe1—Cl1	109.17 (2)
C5—C4—H4	119.5	O1—Fe1—K1	45.44 (2)
C4—C5—H5	119.8	O1—Fe1—N1	88.07 (3)
C6—C5—C4	120.42 (10)	O1—Fe1—N2	150.97 (3)
C6—C5—H5	119.8	O3—Fe1—Cl1	107.46 (2)
C1—C6—H6	120.2	O3—Fe1—K1	45.48 (2)
C5—C6—C1	119.56 (9)	O3—Fe1—N1	146.34 (3)
C5—C6—H6	120.2	O3—Fe1—N2	88.21 (3)
C8—C7—H7	117.2	O3—Fe1—O1	89.74 (3)
N1—C7—H7	117.2	O1ⁱ—K1—O1	143.60 (3)
N1—C7—C8	125.57 (8)	O1ⁱ—K1—O2	92.10 (2)
C9—C8—C7	122.73 (7)	O1—K1—O2ⁱ	92.11 (2)
C9—C8—C13	119.97 (8)	O1ⁱ—K1—O2ⁱ	56.27 (2)
C13—C8—C7	117.30 (8)	O1—K1—O2	56.27 (2)
C8—C9—C10	118.55 (8)	O1ⁱ—K1—O3ⁱ	58.36 (2)
O1—C9—C8	123.07 (8)	O1ⁱ—K1—O3	142.57 (2)
O1—C9—C10	118.37 (8)	O1—K1—O3ⁱ	142.57 (2)
C11—C10—C9	120.56 (8)	O1—K1—O3	58.36 (2)
O2—C10—C9	114.32 (8)	O1ⁱ—K1—O4	89.16 (2)
O2—C10—C11	125.12 (8)	O1—K1—O4ⁱ	89.17 (2)
C10—C11—H11	119.8	O1—K1—O4	113.71 (2)
C10—C11—C12	120.34 (9)	O1ⁱ—K1—O4ⁱ	113.71 (2)
C12—C11—H11	119.8	O2—K1—O2ⁱ	67.77 (3)
C11—C12—H12	119.9	O3—K1—O2ⁱ	107.94 (2)
C13—C12—C11	120.17 (9)	O3ⁱ—K1—O2ⁱ	114.10 (2)
C13—C12—H12	119.9	O3ⁱ—K1—O2	107.93 (2)
C8—C13—H13	119.8	O3—K1—O2	114.10 (2)
C12—C13—C8	120.37 (9)	O3ⁱ—K1—O3	128.89 (3)
C12—C13—H13	119.8	O3—K1—O4	56.68 (2)
H14A—C14—H14B	109.5	O3ⁱ—K1—O4	90.80 (2)
H14A—C14—H14C	109.5	O3ⁱ—K1—O4ⁱ	56.67 (2)
H14B—C14—H14C	109.5	O3—K1—O4ⁱ	90.80 (2)
O2—C14—H14A	109.5	O4—K1—O2	158.68 (2)
O2—C14—H14B	109.5	O4ⁱ—K1—O2	95.66 (2)
O2—C14—H14C	109.5	O4ⁱ—K1—O2ⁱ	158.68 (2)
C16—C15—H15	117.6	O4—K1—O2ⁱ	95.66 (2)
N2—C15—H15	117.6	O4ⁱ—K1—O4	103.29 (3)
N2—C15—C16	124.78 (9)	C1—N1—Fe1	113.93 (5)
C17—C16—C15	123.36 (8)	C7—N1—C1	120.30 (8)
C17—C16—C21	120.07 (10)	C7—N1—Fe1	125.74 (6)
C21—C16—C15	116.56 (10)	C2—N2—Fe1	113.90 (6)
C16—C17—C18	118.46 (8)	C15—N2—C2	121.40 (8)
O3—C17—C16	123.27 (9)	C15—N2—Fe1	124.24 (7)
O3—C17—C18	118.27 (9)	O5—N3—O6	118.1 (19)
C19—C18—C17	120.37 (10)	O7—N3—O5	121.1 (18)
O4—C18—C17	115.23 (8)	O7—N3—O6	120.9 (12)
O4—C18—C19	124.40 (10)	C9—O1—Fe1	131.50 (6)
C18—C19—H19	119.8	C9—O1—K1	123.46 (5)
C18—C19—C20	120.47 (10)	Fe1—O1—K1	105.03 (3)
C20—C19—H19	119.8	C10—O2—C14	117.47 (8)
C19—C20—H20	119.8	C10—O2—K1	122.41 (5)
C21—C20—C19	120.44 (9)	C14—O2—K1	119.23 (6)
C21—C20—H20	119.8	C17—O3—Fe1	128.48 (7)
C16—C21—H21	119.9	C17—O3—K1	125.01 (6)
C20—C21—C16	120.19 (11)	Fe1—O3—K1	105.04 (3)
C20—C21—H21	119.9	C18—O4—C22	116.34 (9)
H22A—C22—H22B	109.5	C18—O4—K1	123.13 (6)
H22A—C22—H22C	109.5	C22—O4—K1	120.48 (7)

C1—C2—C3—C4	−0.26 (14)	C16—C15—N2—Fe1	8.87 (13)
C1—C2—N2—C15	173.39 (8)	C16—C17—C18—C19	−0.20 (13)
C1—C2—N2—Fe1	−14.17 (9)	C16—C17—C18—O4	178.84 (8)
C2—C1—C6—C5	1.35 (13)	C16—C17—O3—Fe1	−25.98 (13)
C2—C1—N1—C7	−167.93 (8)	C16—C17—O3—K1	169.98 (6)
C2—C1—N1—Fe1	14.15 (9)	C17—C16—C21—C20	−1.32 (15)
C2—C3—C4—C5	1.61 (16)	C17—C18—C19—C20	−0.49 (15)
C3—C2—N2—C15	−6.72 (14)	C17—C18—O4—C22	−165.44 (8)
C3—C2—N2—Fe1	165.73 (7)	C17—C18—O4—K1	11.77 (11)
C3—C4—C5—C6	−1.49 (16)	C18—C17—O3—Fe1	154.58 (7)
C4—C5—C6—C1	−0.01 (15)	C18—C17—O3—K1	−9.47 (11)
C6—C1—C2—C3	−1.22 (13)	C18—C19—C20—C21	0.28 (16)
C6—C1—C2—N2	178.68 (8)	C19—C18—O4—C22	13.56 (14)
C6—C1—N1—C7	13.54 (13)	C19—C18—O4—K1	−169.23 (7)
C6—C1—N1—Fe1	−164.39 (7)	C19—C20—C21—C16	0.62 (16)
C7—C8—C9—C10	−179.90 (8)	C21—C16—C17—C18	1.10 (13)
C7—C8—C9—O1	−0.81 (13)	C21—C16—C17—O3	−178.35 (9)
C7—C8—C13—C12	−178.34 (9)	Cl1—Fe1—O3—C17	−68.02 (8)
C8—C7—N1—C1	−178.51 (8)	Cl1—Fe1—O3—K1	98.49 (2)
C8—C7—N1—Fe1	−0.85 (13)	K1—Fe1—O3—C17	−166.52 (10)
C8—C9—C10—C11	−1.82 (13)	N1—C1—C2—C3	−179.82 (8)
C8—C9—C10—O2	178.20 (8)	N1—C1—C2—N2	0.08 (11)
C8—C9—O1—Fe1	19.15 (13)	N1—C1—C6—C5	179.82 (8)
C8—C9—O1—K1	−159.48 (6)	N1—C7—C8—C9	−7.64 (14)
C9—C8—C13—C12	1.69 (14)	N1—C7—C8—C13	172.39 (9)
C9—C10—C11—C12	1.83 (14)	N1—Fe1—O3—C17	95.79 (9)
C9—C10—O2—C14	173.29 (8)	N1—Fe1—O3—K1	−97.69 (5)
C9—C10—O2—K1	−17.59 (10)	N2—C2—C3—C4	179.85 (9)
C10—C9—O1—Fe1	−161.76 (7)	N2—C15—C16—C17	6.75 (15)
C10—C9—O1—K1	19.61 (11)	N2—C15—C16—C21	−174.19 (9)
C10—C11—C12—C13	−0.05 (15)	N2—Fe1—O3—C17	30.88 (8)
C11—C10—O2—C14	−6.70 (14)	N2—Fe1—O3—K1	−162.60 (3)
C11—C10—O2—K1	162.42 (7)	O1—C9—C10—C11	179.05 (8)
C11—C12—C13—C8	−1.71 (15)	O1—C9—C10—O2	−0.94 (12)
C13—C8—C9—C10	0.07 (12)	O1—Fe1—O3—C17	−178.07 (8)
C13—C8—C9—O1	179.16 (8)	O1—Fe1—O3—K1	−11.56 (3)
C15—C16—C17—C18	−179.87 (8)	O2—C10—C11—C12	−178.18 (9)
C15—C16—C17—O3	0.69 (14)	O3—C17—C18—C19	179.27 (9)
C15—C16—C21—C20	179.58 (9)	O3—C17—C18—O4	−1.69 (12)
C16—C15—N2—C2	−179.48 (8)	O4—C18—C19—C20	−179.44 (9)

Symmetry code: (i) −x+1, y, −z+1/2.

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
C3—H3···O5ⁱⁱ	0.95	2.28	3.221 (2)	170
C6—H6···Cl1ⁱⁱⁱ	0.95	2.81	3.7493 (10)	170
C7—H7···Cl1ⁱⁱⁱ	0.95	2.88	3.6840 (9)	143
C15—H15···O6^iv	0.95	2.38	3.2611 (19)	155
C19—H19···Cl1^v	0.95	2.70	3.5639 (11)	151
C22—H22A···O7ⁱ	0.98	2.41	2.908 (2)	111

Symmetry codes: (i) −x+1, y, −z+1/2; (ii) x−1/2, y−1/2, z; (iii) −x+1, −y+1, −z+1; (iv) −x+1, −y, −z+1; (v) −x+1/2, y−1/2, −z+1/2.

µ-Oxido-bis[(2-{[2-(3-methoxy-2-oxidobenzylideneamino)phenylimino]methyl}-6-methoxyphenolato)iron(III)] pentahydrate, (2) top

Crystal data top

[Fe₂(C₂₂H₁₈N₂O₄)₂O]·5H₂O	F(000) = 2008
M_r = 966.55	D_x = 1.508 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71075 Å
a = 13.6001 (4) Å	Cell parameters from 11083 reflections
b = 22.9342 (5) Å	θ = 1.7–37.9°
c = 14.8502 (5) Å	µ = 0.76 mm⁻¹
β = 113.199 (4)°	T = 100 K
V = 4257.4 (2) Å³	(cut) lath, dark-red
Z = 4	0.14 × 0.13 × 0.02 mm

Data collection top

Rigaku FRE+ diffractometer	15233 reflections with I > 2σ(I)
Detector resolution: 10 pixels mm^-1	R_int = 0.049
profile data from ω–scans	θ_max = 36.3°, θ_min = 1.6°
Absorption correction: analytical (CrysAlisPro; Rigaku OD, 2024)	h = −22→22
T_min = 0.915, T_max = 0.985	k = −38→38
99080 measured reflections	l = −24→24
20596 independent reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.044	H-atom parameters constrained
wR(F²) = 0.119	w = 1/[σ²(F_o²) + (0.0651P)² + 0.4018P] where P = (F_o² + 2F_c²)/3
S = 1.04	(Δ/σ)_max = 0.001
20596 reflections	Δρ_max = 0.70 e Å⁻³
596 parameters	Δρ_min = −0.66 e Å⁻³
0 restraints

Special details top

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	1.08876 (9)	0.26717 (5)	0.67740 (8)	0.01280 (19)
C2	1.16248 (10)	0.24855 (5)	0.77116 (9)	0.0143 (2)
C3	1.21656 (10)	0.19627 (6)	0.78313 (9)	0.0168 (2)
H3	1.265479	0.184681	0.846347	0.020*
C4	1.19921 (11)	0.16026 (6)	0.70187 (10)	0.0181 (2)
H4	1.236234	0.124227	0.710186	0.022*
C5	1.12871 (11)	0.17703 (6)	0.61019 (9)	0.0172 (2)
H5	1.116761	0.152104	0.555782	0.021*
C6	1.07372 (10)	0.23083 (5)	0.59571 (9)	0.01344 (19)
C7	1.01093 (10)	0.24828 (5)	0.49648 (9)	0.0143 (2)
H7	1.006415	0.221706	0.445933	0.017*
C8	0.90690 (9)	0.31284 (5)	0.37006 (8)	0.01228 (19)
C9	0.89805 (10)	0.27744 (6)	0.29048 (9)	0.0158 (2)
H9	0.929948	0.239845	0.301535	0.019*
C10	0.84288 (11)	0.29712 (6)	0.19561 (9)	0.0177 (2)
H10	0.838676	0.273414	0.141756	0.021*
C11	0.79343 (11)	0.35170 (6)	0.17892 (9)	0.0180 (2)
H11	0.753453	0.364358	0.113722	0.022*
C12	0.80232 (10)	0.38753 (6)	0.25697 (9)	0.0165 (2)
H12	0.768362	0.424589	0.245216	0.020*
C13	0.86130 (9)	0.36908 (5)	0.35292 (8)	0.01261 (19)
C14	0.86585 (9)	0.45908 (5)	0.43142 (8)	0.01299 (19)
H14	0.842477	0.476080	0.368075	0.016*
C15	0.88340 (9)	0.49758 (5)	0.51263 (9)	0.01227 (19)
C16	0.85687 (10)	0.55718 (5)	0.49079 (9)	0.0149 (2)
H16	0.828358	0.569966	0.424586	0.018*
C17	0.87220 (10)	0.59651 (5)	0.56485 (10)	0.0171 (2)
H17	0.853918	0.636313	0.549479	0.020*
C18	0.91454 (10)	0.57844 (6)	0.66279 (10)	0.0179 (2)
H18	0.924599	0.605938	0.713507	0.021*
C19	0.94174 (10)	0.52068 (5)	0.68585 (9)	0.0159 (2)
C20	0.92776 (9)	0.47886 (5)	0.61106 (9)	0.01308 (19)
C21	1.24369 (11)	0.27202 (6)	0.94121 (9)	0.0186 (2)
H21A	1.315565	0.264844	0.943232	0.028*
H21B	1.217041	0.236589	0.960896	0.028*
H21C	1.246519	0.303823	0.986232	0.028*
C22	0.99273 (16)	0.53626 (7)	0.85697 (11)	0.0332 (4)
H22A	1.024290	0.515325	0.919384	0.050*
H22B	0.921502	0.550476	0.847949	0.050*
H22C	1.038435	0.569379	0.857384	0.050*
C23	0.52840 (9)	0.25172 (5)	0.44578 (8)	0.01176 (18)
C24	0.46778 (9)	0.22290 (5)	0.35609 (8)	0.01268 (19)
C25	0.43012 (11)	0.16688 (6)	0.35462 (9)	0.0172 (2)
H25	0.390311	0.148472	0.293762	0.021*
C26	0.45041 (12)	0.13691 (6)	0.44277 (10)	0.0194 (2)
H26	0.425375	0.098106	0.441344	0.023*
C27	0.50633 (11)	0.16367 (6)	0.53081 (9)	0.0169 (2)
H27	0.518748	0.143494	0.590172	0.020*
C28	0.54589 (9)	0.22136 (5)	0.53402 (8)	0.01287 (19)
C29	0.59648 (9)	0.24760 (5)	0.62881 (8)	0.01302 (19)
H29	0.599779	0.225325	0.683861	0.016*
C30	0.68372 (9)	0.32289 (5)	0.74144 (8)	0.01303 (19)
C31	0.70575 (10)	0.29133 (6)	0.82799 (9)	0.0170 (2)
H31	0.688947	0.250992	0.825223	0.020*
C32	0.75210 (11)	0.31921 (7)	0.91752 (9)	0.0213 (3)
H32	0.766979	0.297903	0.976298	0.026*
C33	0.77717 (12)	0.37847 (7)	0.92208 (9)	0.0236 (3)
H33	0.809004	0.397159	0.983975	0.028*
C34	0.75600 (11)	0.41032 (6)	0.83700 (9)	0.0197 (2)
H34	0.773706	0.450562	0.840548	0.024*
C35	0.70840 (10)	0.38273 (5)	0.74597 (8)	0.0142 (2)
C36	0.66511 (9)	0.46648 (5)	0.64641 (9)	0.0137 (2)
H36	0.669278	0.486802	0.703553	0.016*
C37	0.63824 (9)	0.49964 (5)	0.55805 (9)	0.01299 (19)
C38	0.61599 (10)	0.55999 (5)	0.56164 (10)	0.0161 (2)
H38	0.620872	0.576832	0.621696	0.019*
C39	0.58763 (10)	0.59411 (5)	0.47960 (10)	0.0173 (2)
H39	0.572358	0.634290	0.482858	0.021*
C40	0.58109 (10)	0.56966 (5)	0.39037 (10)	0.0165 (2)
H40	0.561737	0.593468	0.333634	0.020*
C41	0.60270 (9)	0.51128 (5)	0.38511 (9)	0.0138 (2)
C42	0.62963 (9)	0.47407 (5)	0.46857 (9)	0.01229 (19)
C43	0.38309 (10)	0.23312 (6)	0.18210 (9)	0.0171 (2)
H43A	0.372500	0.262585	0.131329	0.026*
H43B	0.313892	0.222924	0.183858	0.026*
H43C	0.415559	0.198218	0.167304	0.026*
C44	0.57068 (12)	0.51586 (6)	0.21474 (10)	0.0216 (3)
H44A	0.567734	0.489983	0.161224	0.032*
H44B	0.623386	0.546720	0.223027	0.032*
H44C	0.500134	0.533374	0.199164	0.032*
Fe1	0.92344 (2)	0.35310 (2)	0.56529 (2)	0.01038 (4)
Fe2	0.66903 (2)	0.35162 (2)	0.54108 (2)	0.00972 (4)
N1	0.95992 (8)	0.29733 (4)	0.47026 (7)	0.01231 (17)
N2	0.87934 (8)	0.40288 (4)	0.43754 (7)	0.01174 (17)
N3	0.63825 (8)	0.29959 (4)	0.64536 (7)	0.01168 (16)
N4	0.68429 (8)	0.41050 (4)	0.65444 (7)	0.01255 (17)
O1	1.17380 (8)	0.28770 (4)	0.84418 (6)	0.01919 (18)
O2	1.04159 (7)	0.31752 (4)	0.67200 (6)	0.01700 (17)
O3	0.95949 (8)	0.42490 (4)	0.63837 (6)	0.01651 (17)
O4	0.98394 (9)	0.49786 (4)	0.77871 (7)	0.0236 (2)
O5	0.45184 (7)	0.25582 (4)	0.27481 (6)	0.01544 (16)
O6	0.56115 (7)	0.30521 (4)	0.44185 (6)	0.01348 (15)
O7	0.64462 (7)	0.41871 (4)	0.45718 (6)	0.01361 (15)
O8	0.60097 (8)	0.48307 (4)	0.30340 (7)	0.01774 (17)
O9	0.79937 (7)	0.32477 (4)	0.56055 (6)	0.01312 (15)
O10	1.01072 (10)	0.37077 (5)	0.84647 (8)	0.0260 (2)
H10A	1.033811	0.344794	0.816773	0.039*
H10B	0.989409	0.399583	0.805018	0.039*
O11	1.19078 (9)	0.42012 (6)	0.76496 (9)	0.0321 (3)
H11A	1.124104	0.426667	0.727741	0.048*
H11B	1.194509	0.382485	0.773752	0.048*
O12	1.19790 (12)	0.43386 (7)	0.96466 (9)	0.0438 (3)
H12A	1.135376	0.418501	0.932145	0.066*
H12B	1.221847	0.442892	0.920136	0.066*
O13	0.51035 (11)	0.37150 (5)	0.25280 (8)	0.0295 (3)
H13A	0.502313	0.343602	0.288940	0.044*
H13B	0.552296	0.396394	0.294381	0.044*
O14	0.33696 (10)	0.45164 (5)	0.16404 (9)	0.0301 (2)
H14A	0.303822	0.446857	0.101121	0.045*
H14B	0.385680	0.424467	0.182002	0.045*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0127 (4)	0.0134 (5)	0.0128 (5)	0.0020 (4)	0.0055 (4)	0.0002 (4)
C2	0.0140 (5)	0.0171 (5)	0.0122 (5)	0.0019 (4)	0.0054 (4)	0.0004 (4)
C3	0.0170 (5)	0.0182 (5)	0.0163 (5)	0.0034 (4)	0.0076 (4)	0.0042 (4)
C4	0.0218 (6)	0.0149 (5)	0.0203 (6)	0.0039 (4)	0.0112 (5)	0.0034 (4)
C5	0.0227 (6)	0.0135 (5)	0.0180 (5)	0.0035 (4)	0.0108 (5)	0.0008 (4)
C6	0.0145 (5)	0.0142 (5)	0.0129 (5)	0.0009 (4)	0.0069 (4)	0.0002 (4)
C7	0.0170 (5)	0.0137 (5)	0.0137 (5)	−0.0001 (4)	0.0076 (4)	−0.0012 (4)
C8	0.0134 (4)	0.0145 (5)	0.0099 (4)	−0.0012 (4)	0.0055 (4)	−0.0012 (4)
C9	0.0180 (5)	0.0165 (5)	0.0134 (5)	−0.0001 (4)	0.0067 (4)	−0.0029 (4)
C10	0.0204 (6)	0.0214 (6)	0.0110 (5)	−0.0031 (4)	0.0059 (4)	−0.0036 (4)
C11	0.0194 (5)	0.0224 (6)	0.0105 (5)	−0.0018 (4)	0.0042 (4)	−0.0001 (4)
C12	0.0188 (5)	0.0175 (5)	0.0117 (5)	−0.0003 (4)	0.0045 (4)	0.0004 (4)
C13	0.0132 (5)	0.0146 (5)	0.0106 (4)	−0.0016 (4)	0.0053 (4)	−0.0016 (4)
C14	0.0124 (4)	0.0146 (5)	0.0125 (5)	0.0000 (4)	0.0054 (4)	0.0006 (4)
C15	0.0111 (4)	0.0125 (5)	0.0142 (5)	−0.0008 (4)	0.0060 (4)	−0.0013 (4)
C16	0.0138 (5)	0.0137 (5)	0.0182 (5)	0.0001 (4)	0.0076 (4)	0.0007 (4)
C17	0.0171 (5)	0.0133 (5)	0.0225 (6)	0.0003 (4)	0.0095 (5)	−0.0010 (4)
C18	0.0188 (5)	0.0156 (5)	0.0203 (6)	0.0000 (4)	0.0089 (5)	−0.0041 (4)
C19	0.0165 (5)	0.0153 (5)	0.0148 (5)	0.0000 (4)	0.0051 (4)	−0.0037 (4)
C20	0.0123 (4)	0.0122 (5)	0.0149 (5)	−0.0004 (4)	0.0055 (4)	−0.0019 (4)
C21	0.0178 (5)	0.0251 (6)	0.0114 (5)	0.0030 (5)	0.0040 (4)	0.0026 (4)
C22	0.0543 (11)	0.0246 (7)	0.0157 (6)	0.0062 (7)	0.0085 (7)	−0.0060 (5)
C23	0.0125 (4)	0.0116 (4)	0.0118 (4)	−0.0001 (4)	0.0055 (4)	−0.0001 (4)
C24	0.0153 (5)	0.0124 (5)	0.0114 (4)	−0.0004 (4)	0.0064 (4)	−0.0009 (4)
C25	0.0226 (6)	0.0138 (5)	0.0157 (5)	−0.0038 (4)	0.0082 (4)	−0.0026 (4)
C26	0.0280 (6)	0.0132 (5)	0.0179 (5)	−0.0043 (4)	0.0100 (5)	−0.0011 (4)
C27	0.0234 (6)	0.0136 (5)	0.0147 (5)	−0.0017 (4)	0.0088 (4)	0.0017 (4)
C28	0.0145 (5)	0.0132 (5)	0.0116 (4)	−0.0002 (4)	0.0058 (4)	0.0002 (4)
C29	0.0141 (5)	0.0143 (5)	0.0111 (4)	0.0013 (4)	0.0055 (4)	0.0026 (4)
C30	0.0124 (4)	0.0177 (5)	0.0095 (4)	0.0008 (4)	0.0049 (4)	0.0002 (4)
C31	0.0177 (5)	0.0229 (6)	0.0113 (5)	0.0005 (4)	0.0067 (4)	0.0024 (4)
C32	0.0237 (6)	0.0307 (7)	0.0092 (5)	−0.0010 (5)	0.0062 (4)	0.0017 (5)
C33	0.0274 (7)	0.0312 (7)	0.0106 (5)	−0.0046 (6)	0.0055 (5)	−0.0031 (5)
C34	0.0232 (6)	0.0222 (6)	0.0123 (5)	−0.0044 (5)	0.0054 (4)	−0.0033 (4)
C35	0.0140 (5)	0.0185 (5)	0.0105 (4)	0.0002 (4)	0.0053 (4)	−0.0003 (4)
C36	0.0131 (5)	0.0153 (5)	0.0135 (5)	−0.0014 (4)	0.0061 (4)	−0.0026 (4)
C37	0.0115 (4)	0.0125 (5)	0.0154 (5)	−0.0009 (4)	0.0057 (4)	−0.0017 (4)
C38	0.0146 (5)	0.0134 (5)	0.0212 (6)	−0.0012 (4)	0.0081 (4)	−0.0036 (4)
C39	0.0151 (5)	0.0123 (5)	0.0250 (6)	−0.0006 (4)	0.0085 (5)	−0.0011 (4)
C40	0.0152 (5)	0.0131 (5)	0.0216 (6)	0.0006 (4)	0.0075 (4)	0.0039 (4)
C41	0.0135 (5)	0.0127 (5)	0.0157 (5)	−0.0010 (4)	0.0062 (4)	0.0010 (4)
C42	0.0112 (4)	0.0111 (5)	0.0150 (5)	−0.0006 (3)	0.0057 (4)	0.0005 (4)
C43	0.0179 (5)	0.0214 (6)	0.0106 (5)	−0.0021 (4)	0.0042 (4)	−0.0030 (4)
C44	0.0274 (7)	0.0201 (6)	0.0177 (6)	−0.0007 (5)	0.0095 (5)	0.0065 (5)
Fe1	0.01062 (7)	0.01160 (7)	0.00918 (7)	0.00124 (5)	0.00416 (5)	−0.00053 (5)
Fe2	0.01054 (7)	0.01061 (7)	0.00868 (7)	−0.00008 (5)	0.00452 (5)	0.00020 (5)
N1	0.0128 (4)	0.0142 (4)	0.0109 (4)	0.0003 (3)	0.0056 (3)	−0.0008 (3)
N2	0.0119 (4)	0.0137 (4)	0.0099 (4)	−0.0004 (3)	0.0046 (3)	−0.0015 (3)
N3	0.0117 (4)	0.0147 (4)	0.0091 (4)	−0.0003 (3)	0.0045 (3)	−0.0001 (3)
N4	0.0130 (4)	0.0142 (4)	0.0108 (4)	−0.0005 (3)	0.0050 (3)	−0.0007 (3)
O1	0.0199 (4)	0.0220 (5)	0.0120 (4)	0.0066 (3)	0.0023 (3)	−0.0010 (3)
O2	0.0167 (4)	0.0185 (4)	0.0124 (4)	0.0071 (3)	0.0021 (3)	−0.0019 (3)
O3	0.0212 (4)	0.0133 (4)	0.0125 (4)	0.0016 (3)	0.0039 (3)	−0.0011 (3)
O4	0.0348 (6)	0.0193 (5)	0.0120 (4)	0.0060 (4)	0.0042 (4)	−0.0036 (3)
O5	0.0195 (4)	0.0157 (4)	0.0092 (3)	−0.0034 (3)	0.0037 (3)	−0.0003 (3)
O6	0.0165 (4)	0.0121 (4)	0.0108 (3)	−0.0029 (3)	0.0043 (3)	0.0008 (3)
O7	0.0183 (4)	0.0111 (4)	0.0130 (4)	0.0019 (3)	0.0077 (3)	0.0009 (3)
O8	0.0267 (5)	0.0136 (4)	0.0138 (4)	0.0006 (3)	0.0089 (3)	0.0034 (3)
O9	0.0125 (4)	0.0141 (4)	0.0141 (4)	0.0020 (3)	0.0067 (3)	0.0027 (3)
O10	0.0333 (6)	0.0250 (5)	0.0253 (5)	0.0070 (4)	0.0174 (5)	0.0052 (4)
O11	0.0225 (5)	0.0417 (7)	0.0297 (6)	−0.0074 (5)	0.0078 (5)	0.0043 (5)
O12	0.0428 (8)	0.0570 (9)	0.0246 (6)	−0.0005 (7)	0.0058 (6)	0.0004 (6)
O13	0.0514 (7)	0.0186 (5)	0.0158 (4)	−0.0107 (5)	0.0103 (5)	−0.0012 (4)
O14	0.0358 (6)	0.0269 (6)	0.0267 (5)	−0.0038 (5)	0.0116 (5)	−0.0049 (4)

Geometric parameters (Å, º) top

C1—C2	1.4235 (16)	C27—C28	1.4219 (17)
C1—C6	1.4187 (16)	C28—C29	1.4332 (16)
C1—O2	1.3080 (14)	C29—H29	0.9500
C2—C3	1.3810 (17)	C29—N3	1.3017 (16)
C2—O1	1.3690 (15)	C30—C31	1.4008 (17)
C3—H3	0.9500	C30—C35	1.4081 (18)
C3—C4	1.4035 (19)	C30—N3	1.4173 (15)
C4—H4	0.9500	C31—H31	0.9500
C4—C5	1.3756 (18)	C31—C32	1.3833 (18)
C5—H5	0.9500	C32—H32	0.9500
C5—C6	1.4147 (17)	C32—C33	1.396 (2)
C6—C7	1.4385 (17)	C33—H33	0.9500
C7—H7	0.9500	C33—C34	1.3878 (19)
C7—N1	1.2983 (16)	C34—H34	0.9500
C8—C9	1.3994 (16)	C34—C35	1.3991 (17)
C8—C13	1.4102 (17)	C35—N4	1.4175 (15)
C8—N1	1.4196 (15)	C36—H36	0.9500
C9—H9	0.9500	C36—C37	1.4339 (17)
C9—C10	1.3851 (17)	C36—N4	1.3061 (16)
C10—H10	0.9500	C37—C38	1.4221 (17)
C10—C11	1.3961 (19)	C37—C42	1.4144 (17)
C11—H11	0.9500	C38—H38	0.9500
C11—C12	1.3867 (18)	C38—C39	1.3694 (18)
C12—H12	0.9500	C39—H39	0.9500
C12—C13	1.3972 (16)	C39—C40	1.4090 (19)
C13—N2	1.4132 (15)	C40—H40	0.9500
C14—H14	0.9500	C40—C41	1.3798 (17)
C14—C15	1.4367 (16)	C41—C42	1.4285 (17)
C14—N2	1.3000 (16)	C41—O8	1.3671 (15)
C15—C16	1.4184 (17)	C42—O7	1.3075 (14)
C15—C20	1.4107 (17)	C43—H43A	0.9800
C16—H16	0.9500	C43—H43B	0.9800
C16—C17	1.3733 (18)	C43—H43C	0.9800
C17—H17	0.9500	C43—O5	1.4236 (14)
C17—C18	1.3996 (19)	C44—H44A	0.9800
C18—H18	0.9500	C44—H44B	0.9800
C18—C19	1.3817 (18)	C44—H44C	0.9800
C19—C20	1.4224 (17)	C44—O8	1.4288 (15)
C19—O4	1.3716 (16)	Fe1—N1	2.1035 (10)
C20—O3	1.3208 (15)	Fe1—N2	2.0893 (10)
C21—H21A	0.9800	Fe1—O2	1.9373 (9)
C21—H21B	0.9800	Fe1—O3	1.9262 (9)
C21—H21C	0.9800	Fe1—O9	1.7835 (9)
C21—O1	1.4248 (15)	Fe2—N3	2.1232 (10)
C22—H22A	0.9800	Fe2—N4	2.1036 (10)
C22—H22B	0.9800	Fe2—O6	1.9374 (8)
C22—H22C	0.9800	Fe2—O7	1.9246 (9)
C22—O4	1.4252 (17)	Fe2—O9	1.7893 (8)
C23—C24	1.4231 (16)	O10—H10A	0.8701
C23—C28	1.4187 (16)	O10—H10B	0.8712
C23—O6	1.3143 (14)	O11—H11A	0.8692
C24—C25	1.3801 (17)	O11—H11B	0.8713
C24—O5	1.3667 (14)	O12—H12A	0.8699
C25—H25	0.9500	O12—H12B	0.8693
C25—C26	1.4064 (18)	O13—H13A	0.8693
C26—H26	0.9500	O13—H13B	0.8689
C26—C27	1.3715 (18)	O14—H14A	0.8697
C27—H27	0.9500	O14—H14B	0.8713

C6—C1—C2	117.96 (11)	C35—C30—N3	114.64 (10)
O2—C1—C2	117.67 (10)	C30—C31—H31	120.2
O2—C1—C6	124.34 (10)	C32—C31—C30	119.66 (13)
C3—C2—C1	121.37 (11)	C32—C31—H31	120.2
O1—C2—C1	113.20 (10)	C31—C32—H32	119.8
O1—C2—C3	125.42 (11)	C31—C32—C33	120.44 (12)
C2—C3—H3	120.0	C33—C32—H32	119.8
C2—C3—C4	119.98 (11)	C32—C33—H33	119.7
C4—C3—H3	120.0	C34—C33—C32	120.60 (12)
C3—C4—H4	119.9	C34—C33—H33	119.7
C5—C4—C3	120.13 (12)	C33—C34—H34	120.2
C5—C4—H4	119.9	C33—C34—C35	119.52 (13)
C4—C5—H5	119.5	C35—C34—H34	120.2
C4—C5—C6	121.00 (12)	C30—C35—N4	115.56 (10)
C6—C5—H5	119.5	C34—C35—C30	119.85 (11)
C1—C6—C7	122.68 (11)	C34—C35—N4	124.57 (11)
C5—C6—C1	119.53 (11)	C37—C36—H36	117.5
C5—C6—C7	117.61 (11)	N4—C36—H36	117.5
C6—C7—H7	117.3	N4—C36—C37	125.07 (11)
N1—C7—C6	125.44 (11)	C38—C37—C36	117.59 (11)
N1—C7—H7	117.3	C42—C37—C36	122.47 (10)
C9—C8—C13	119.53 (10)	C42—C37—C38	119.90 (11)
C9—C8—N1	125.39 (11)	C37—C38—H38	119.6
C13—C8—N1	115.09 (10)	C39—C38—C37	120.82 (12)
C8—C9—H9	119.9	C39—C38—H38	119.6
C10—C9—C8	120.12 (12)	C38—C39—H39	120.0
C10—C9—H9	119.9	C38—C39—C40	120.04 (12)
C9—C10—H10	119.9	C40—C39—H39	120.0
C9—C10—C11	120.19 (12)	C39—C40—H40	119.9
C11—C10—H10	119.9	C41—C40—C39	120.23 (12)
C10—C11—H11	119.8	C41—C40—H40	119.9
C12—C11—C10	120.37 (11)	C40—C41—C42	121.20 (11)
C12—C11—H11	119.8	O8—C41—C40	125.45 (11)
C11—C12—H12	120.0	O8—C41—C42	113.35 (10)
C11—C12—C13	119.93 (12)	C37—C42—C41	117.75 (10)
C13—C12—H12	120.0	O7—C42—C37	124.38 (11)
C8—C13—N2	115.54 (10)	O7—C42—C41	117.87 (11)
C12—C13—C8	119.74 (11)	H43A—C43—H43B	109.5
C12—C13—N2	124.71 (11)	H43A—C43—H43C	109.5
C15—C14—H14	117.3	H43B—C43—H43C	109.5
N2—C14—H14	117.3	O5—C43—H43A	109.5
N2—C14—C15	125.35 (11)	O5—C43—H43B	109.5
C16—C15—C14	117.21 (11)	O5—C43—H43C	109.5
C20—C15—C14	122.99 (10)	H44A—C44—H44B	109.5
C20—C15—C16	119.78 (11)	H44A—C44—H44C	109.5
C15—C16—H16	119.8	H44B—C44—H44C	109.5
C17—C16—C15	120.34 (12)	O8—C44—H44A	109.5
C17—C16—H16	119.8	O8—C44—H44B	109.5
C16—C17—H17	119.7	O8—C44—H44C	109.5
C16—C17—C18	120.55 (12)	N2—Fe1—N1	77.43 (4)
C18—C17—H17	119.7	O2—Fe1—N1	87.35 (4)
C17—C18—H18	119.9	O2—Fe1—N2	145.27 (4)
C19—C18—C17	120.12 (12)	O3—Fe1—N1	145.37 (4)
C19—C18—H18	119.9	O3—Fe1—N2	87.87 (4)
C18—C19—C20	120.83 (12)	O3—Fe1—O2	87.38 (4)
O4—C19—C18	125.46 (11)	O9—Fe1—N1	102.80 (4)
O4—C19—C20	113.71 (11)	O9—Fe1—N2	103.56 (4)
C15—C20—C19	118.36 (11)	O9—Fe1—O2	110.23 (4)
O3—C20—C15	123.91 (11)	O9—Fe1—O3	111.13 (4)
O3—C20—C19	117.71 (11)	N4—Fe2—N3	76.28 (4)
H21A—C21—H21B	109.5	O6—Fe2—N3	86.45 (4)
H21A—C21—H21C	109.5	O6—Fe2—N4	140.16 (4)
H21B—C21—H21C	109.5	O7—Fe2—N3	152.65 (4)
O1—C21—H21A	109.5	O7—Fe2—N4	86.70 (4)
O1—C21—H21B	109.5	O7—Fe2—O6	93.50 (4)
O1—C21—H21C	109.5	O9—Fe2—N3	98.98 (4)
H22A—C22—H22B	109.5	O9—Fe2—N4	108.21 (4)
H22A—C22—H22C	109.5	O9—Fe2—O6	109.82 (4)
H22B—C22—H22C	109.5	O9—Fe2—O7	106.68 (4)
O4—C22—H22A	109.5	C7—N1—C8	121.48 (10)
O4—C22—H22B	109.5	C7—N1—Fe1	124.40 (8)
O4—C22—H22C	109.5	C8—N1—Fe1	113.22 (7)
C28—C23—C24	117.46 (10)	C13—N2—Fe1	113.26 (8)
O6—C23—C24	118.26 (10)	C14—N2—C13	120.76 (10)
O6—C23—C28	124.23 (10)	C14—N2—Fe1	125.96 (8)
C25—C24—C23	121.45 (11)	C29—N3—C30	121.35 (10)
O5—C24—C23	113.70 (10)	C29—N3—Fe2	125.02 (8)
O5—C24—C25	124.86 (11)	C30—N3—Fe2	112.90 (7)
C24—C25—H25	119.8	C35—N4—Fe2	113.05 (8)
C24—C25—C26	120.31 (11)	C36—N4—C35	119.45 (10)
C26—C25—H25	119.8	C36—N4—Fe2	127.21 (8)
C25—C26—H26	120.0	C2—O1—C21	117.22 (10)
C27—C26—C25	120.02 (12)	C1—O2—Fe1	130.60 (8)
C27—C26—H26	120.0	C20—O3—Fe1	130.40 (8)
C26—C27—H27	119.7	C19—O4—C22	116.84 (11)
C26—C27—C28	120.58 (11)	C24—O5—C43	117.86 (10)
C28—C27—H27	119.7	C23—O6—Fe2	130.35 (7)
C23—C28—C27	120.14 (11)	C42—O7—Fe2	133.51 (8)
C23—C28—C29	122.82 (11)	C41—O8—C44	117.82 (10)
C27—C28—C29	116.91 (10)	Fe1—O9—Fe2	137.97 (5)
C28—C29—H29	117.5	H10A—O10—H10B	104.3
N3—C29—C28	125.10 (11)	H11A—O11—H11B	104.5
N3—C29—H29	117.5	H12A—O12—H12B	104.6
C31—C30—C35	119.93 (11)	H13A—O13—H13B	104.6
C31—C30—N3	125.43 (11)	H14A—O14—H14B	104.4

C1—C2—C3—C4	−0.1 (2)	C28—C29—N3—Fe2	−12.57 (17)
C1—C2—O1—C21	178.19 (11)	C30—C31—C32—C33	−0.1 (2)
C1—C6—C7—N1	−1.6 (2)	C30—C35—N4—C36	154.03 (11)
C2—C1—C6—C5	2.23 (18)	C30—C35—N4—Fe2	−20.17 (13)
C2—C1—C6—C7	−172.67 (12)	C31—C30—C35—C34	0.74 (18)
C2—C1—O2—Fe1	−169.87 (9)	C31—C30—C35—N4	179.21 (11)
C2—C3—C4—C5	0.2 (2)	C31—C30—N3—C29	11.48 (18)
C3—C2—O1—C21	−2.89 (19)	C31—C30—N3—Fe2	−159.20 (10)
C3—C4—C5—C6	0.9 (2)	C31—C32—C33—C34	0.0 (2)
C4—C5—C6—C1	−2.1 (2)	C32—C33—C34—C35	0.5 (2)
C4—C5—C6—C7	173.03 (12)	C33—C34—C35—C30	−0.8 (2)
C5—C6—C7—N1	−176.54 (12)	C33—C34—C35—N4	−179.16 (13)
C6—C1—C2—C3	−1.17 (18)	C34—C35—N4—C36	−27.58 (18)
C6—C1—C2—O1	177.79 (11)	C34—C35—N4—Fe2	158.22 (11)
C6—C1—O2—Fe1	12.13 (19)	C35—C30—C31—C32	−0.26 (19)
C6—C7—N1—C8	174.88 (11)	C35—C30—N3—C29	−169.33 (11)
C6—C7—N1—Fe1	−16.72 (18)	C35—C30—N3—Fe2	19.99 (12)
C8—C9—C10—C11	−1.7 (2)	C36—C37—C38—C39	−178.65 (11)
C8—C13—N2—C14	162.34 (11)	C36—C37—C42—C41	−179.83 (11)
C8—C13—N2—Fe1	−19.29 (13)	C36—C37—C42—O7	0.22 (19)
C9—C8—C13—C12	3.85 (18)	C37—C36—N4—C35	−179.01 (11)
C9—C8—C13—N2	−176.60 (11)	C37—C36—N4—Fe2	−5.72 (18)
C9—C8—N1—C7	3.76 (18)	C37—C38—C39—C40	−0.56 (19)
C9—C8—N1—Fe1	−165.84 (10)	C37—C42—O7—Fe2	6.29 (18)
C9—C10—C11—C12	2.3 (2)	C38—C37—C42—C41	2.55 (17)
C10—C11—C12—C13	0.2 (2)	C38—C37—C42—O7	−177.41 (11)
C11—C12—C13—C8	−3.25 (19)	C38—C39—C40—C41	0.30 (19)
C11—C12—C13—N2	177.25 (12)	C39—C40—C41—C42	1.44 (18)
C12—C13—N2—C14	−18.13 (18)	C39—C40—C41—O8	−178.67 (12)
C12—C13—N2—Fe1	160.24 (10)	C40—C41—C42—C37	−2.84 (17)
C13—C8—C9—C10	−1.37 (18)	C40—C41—C42—O7	177.12 (11)
C13—C8—N1—C7	−175.78 (11)	C40—C41—O8—C44	−2.36 (18)
C13—C8—N1—Fe1	14.62 (13)	C41—C42—O7—Fe2	−173.67 (8)
C14—C15—C16—C17	−179.59 (11)	C42—C37—C38—C39	−0.91 (18)
C14—C15—C20—C19	179.96 (11)	C42—C41—O8—C44	177.53 (11)
C14—C15—C20—O3	1.53 (18)	N1—C8—C9—C10	179.10 (12)
C15—C14—N2—C13	−179.02 (11)	N1—C8—C13—C12	−176.57 (11)
C15—C14—N2—Fe1	2.83 (17)	N1—C8—C13—N2	2.98 (15)
C15—C16—C17—C18	0.26 (19)	N1—Fe1—O9—Fe2	−129.67 (7)
C15—C20—O3—Fe1	−19.60 (18)	N2—C14—C15—C16	−175.49 (11)
C16—C15—C20—C19	1.76 (17)	N2—C14—C15—C20	6.27 (19)
C16—C15—C20—O3	−176.67 (11)	N2—Fe1—O9—Fe2	−49.74 (8)
C16—C17—C18—C19	0.2 (2)	N3—C30—C31—C32	178.89 (12)
C17—C18—C19—C20	0.3 (2)	N3—C30—C35—C34	−178.50 (11)
C17—C18—C19—O4	179.85 (13)	N3—C30—C35—N4	−0.02 (15)
C18—C19—C20—C15	−1.27 (18)	N3—Fe2—O9—Fe1	−141.18 (7)
C18—C19—C20—O3	177.26 (12)	N4—C36—C37—C38	177.73 (12)
C18—C19—O4—C22	5.0 (2)	N4—C36—C37—C42	0.06 (19)
C19—C20—O3—Fe1	161.96 (9)	N4—Fe2—O9—Fe1	−62.77 (8)
C20—C15—C16—C17	−1.28 (18)	O1—C2—C3—C4	−178.89 (12)
C20—C19—O4—C22	−175.42 (13)	O2—C1—C2—C3	−179.31 (12)
C23—C24—C25—C26	0.5 (2)	O2—C1—C2—O1	−0.35 (17)
C23—C24—O5—C43	−173.78 (11)	O2—C1—C6—C5	−179.77 (12)
C23—C28—C29—N3	−5.11 (19)	O2—C1—C6—C7	5.33 (19)
C24—C23—C28—C27	1.92 (17)	O2—Fe1—O9—Fe2	138.43 (7)
C24—C23—C28—C29	−173.76 (11)	O3—Fe1—O9—Fe2	43.26 (8)
C24—C23—O6—Fe2	−164.34 (8)	O4—C19—C20—C15	179.11 (11)
C24—C25—C26—C27	1.1 (2)	O4—C19—C20—O3	−2.36 (17)
C25—C24—O5—C43	6.24 (18)	O5—C24—C25—C26	−179.53 (12)
C25—C26—C27—C28	−1.1 (2)	O6—C23—C24—C25	−179.54 (12)
C26—C27—C28—C23	−0.4 (2)	O6—C23—C24—O5	0.47 (16)
C26—C27—C28—C29	175.50 (13)	O6—C23—C28—C27	179.34 (12)
C27—C28—C29—N3	179.08 (12)	O6—C23—C28—C29	3.66 (19)
C28—C23—C24—C25	−1.96 (18)	O6—Fe2—O9—Fe1	129.37 (7)
C28—C23—C24—O5	178.06 (10)	O7—Fe2—O9—Fe1	29.25 (8)
C28—C23—O6—Fe2	18.26 (18)	O8—C41—C42—C37	177.26 (10)
C28—C29—N3—C30	177.92 (11)	O8—C41—C42—O7	−2.78 (16)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
C7—H7···O10ⁱ	0.95	2.60	3.5233 (16)	165
C36—H36···O14ⁱⁱ	0.95	2.45	3.3930 (17)	172
C44—H44B···O11ⁱⁱⁱ	0.98	2.58	3.4643 (19)	151
O10—H10A···O1	0.87	2.21	2.9342 (15)	140
O10—H10A···O2	0.87	2.28	3.0393 (14)	146
O10—H10B···O3	0.87	2.42	3.1432 (14)	141
O10—H10B···O4	0.87	2.28	3.0579 (15)	148
O11—H11A···O3	0.87	2.11	2.9635 (15)	169
O11—H11B···O1	0.87	2.48	3.2974 (16)	157
O11—H11B···O2	0.87	2.52	3.0582 (15)	121
O12—H12A···O10	0.87	2.00	2.8520 (19)	167
O12—H12B···O11	0.87	2.23	2.9457 (19)	139
O13—H13A···O5	0.87	2.11	2.8255 (14)	139
O13—H13A···O6	0.87	2.27	3.0237 (13)	145
O13—H13B···O7	0.87	2.30	3.0580 (14)	146
O13—H13B···O8	0.87	2.08	2.8108 (14)	141
O14—H14A···O12^iv	0.87	1.99	2.8457 (17)	167
O14—H14B···O13	0.87	2.01	2.8683 (18)	167

Symmetry codes: (i) x, −y+1/2, z−1/2; (ii) −x+1, −y+1, −z+1; (iii) −x+2, −y+1, −z+1; (iv) x−1, y, z−1.

Acknowledgements

The authors are grateful to the FAIRE programme provided by the Cambridge Crystallographic Data Centre (CCDC) for the opportunity to use the Cambridge Structural Database (CSD) and associated software.

References

Addison, A. W., Rao, T. N., Reedijk, J., van Rijn, J. & Verschoor, G. C. (1984). J. Chem. Soc. Dalton Trans. pp. 1349–1356. CSD CrossRef Web of Science Google Scholar
Awasabisah, D., Powell, D. R. & Richter-Addo, G. B. (2015). Acta Cryst. E71, m42–m43. CSD CrossRef IUCr Journals Google Scholar
Bhattacharya, K., Maity, M., Mondal, D., Endo, A. & Chaudhury, M. (2012). Inorg. Chem. 51, 7454–7456. CrossRef CAS PubMed Google Scholar
Braun, J., Powell, A. K. & Unterreiner, A.-N. (2024). Chem. Eur. J. 30, e202400977. CrossRef PubMed Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Elemo, F., Sani, T. & Thomas, M. (2022). Transition. Met. Chem. 47, 265–274. CrossRef CAS Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Haba, P., Moustapha Sow, M., Sarr, M., Elhadji Thiam, I., Diaw, M. & Lamine Gaye, M. (2020). Sci. J. Chem. 8, 20–27. CrossRef CAS Google Scholar
Haba, P., Moustapha Sow, M., Sarr, M., Elhadji Thiam, I., Diaw, M., Retailleau, P. & Lamine Gaye, M. (2020). Sci. J. Chem. 8, 113–118. CrossRef CAS Google Scholar
Huang, T., Wang, H. & Zhao, J. (2019). Acta Cryst. E75, 1914–1918. CrossRef IUCr Journals Google Scholar
Jana, S., Chatterjee, S. & Chattopadhyay, S. (2012). Polyhedron 48, 189–198. CrossRef CAS Google Scholar
Kaczmarek, M. T., Zabiszak, M., Nowak, M. & Jastrzab, R. (2018). Coord. Chem. Rev. 370, 42–54. Web of Science CrossRef CAS Google Scholar
Mason, K., Gass, I. A., Parsons, S., Collins, A., White, F. J., Slawin, A. M. Z., Brechin, E. K. & Tasker, P. A. (2010). Dalton Trans. 39, 2727–2734. CrossRef CAS PubMed Google Scholar
Moree, L. K., Faulkner, L. A. V. & Crowley, J. D. (2024). Chem. Soc. Rev. 53, 25–46. CrossRef CAS PubMed Google Scholar
Nabei, A., Kuroda-Sowa, T., Okubo, T., Maekawa, M. & Munakata, M. (2008). Inorg. Chim. Acta 361, 3489–3493. CrossRef CAS Google Scholar
Pinkert, D., Demeshko, S., Schax, F., Braun, B., Meyer, F. & Limberg, C. (2013). Angew. Chem. Int. Ed. 52, 5155–5158. CrossRef CAS Google Scholar
Purdy, A. P. & Butcher, R. J. (2014). Acta Cryst. E70, m32–m33. CrossRef IUCr Journals Google Scholar
Raj, M. V. N., Bhar, K., Jain, S., Rana, M., Khan, T. A. & Sharma, A. K. (2019). Transition. Met. Chem. 44, 615–626. CrossRef CAS Google Scholar
Rigaku OD (2024). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Safo, M. K., Buentello, K. E., Oliver, A. G. & Scheidt, W. R. (2010). Acta Cryst. E66, m733. Web of Science CrossRef IUCr Journals Google Scholar
Sarr, M., Diop, M., Thiam, E. I., Gaye, M., Barry, A. H., Orton, J. B. & Coles, S. J. (2018). Acta Cryst. E74, 1862–1866. Web of Science CSD CrossRef IUCr Journals Google Scholar
Sarr, M., Diop, M., Thiam, I. E., Gaye, M., Barry, A. H., Alvarez, N. & Ellena, J. (2018). Eur. J. Chem. 9, 67–73. CrossRef Google Scholar
Senge, M. O. (2005). Acta Cryst. E61, m399–m400. Web of Science CrossRef CAS IUCr Journals Google Scholar
Shanmugavel, A., Rene, E. R., Balakrishnan, S. P., Krishnakumar, N. & Jose, S. P. (2024). Environ. Res. 260, 119544. CrossRef PubMed Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Strauss, S. H., Pawlik, M. J., Skowyra, J., Kennedy, J. R., Anderson, O. P., Spartalian, K. & Dye, J. L. (1987). Inorg. Chem. 26, 724–730. CrossRef CAS Web of Science Google Scholar
Sun, Y., Ma, J., Ahmad, F., Xiao, Y., Guan, J., Shu, T. & Zhang, X. (2024). Biosensors 14, 117. CrossRef PubMed Google Scholar
Thiam, M., Seck, T. M., Seck, G. A., Thiam, I. E., Diouf, O., Retailleau, P. & Gaye, M. (2023). Earthline J. Chem. Sci. pp. 153–166. CrossRef Google Scholar
Yazhini, C., Mathew, G., Anpo, M., Maurin, G., Choi, W. & Neppolian, B. (2024). Adv. Opt. Mater. 12, 2301625. CrossRef Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 10| October 2026|

https://doi.org/10.1107/S2056989026009734

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

research communications\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

Structures of bimetallic FeIII–FeIII and trimetallic FeIII–K–FeIII complexes incorporating the deprotonated ligand N,N′-bis­­(2-hy­dr­oxy-3-meth­oxy­ben­zyl­­idene)-1,2-phenyl­enedi­amine

1. Chemical context

2. Structural commentary

3. Supra­molecular features

4. Database survey

5. Synthesis and crystallization

6. Refinement

Supporting information

Acknowledgements

References

research communications

Structures of bimetallic Fe^III–Fe^III and trimetallic Fe^III–K–Fe^III complexes incorporating the deprotonated ligand N,N′-bis(2-hydroxy-3-methoxybenzylidene)-1,2-phenylenediamine

3. Supramolecular features
