![[Figure 2]](bus5002fig2mag.jpg)
|
|
Figure 2

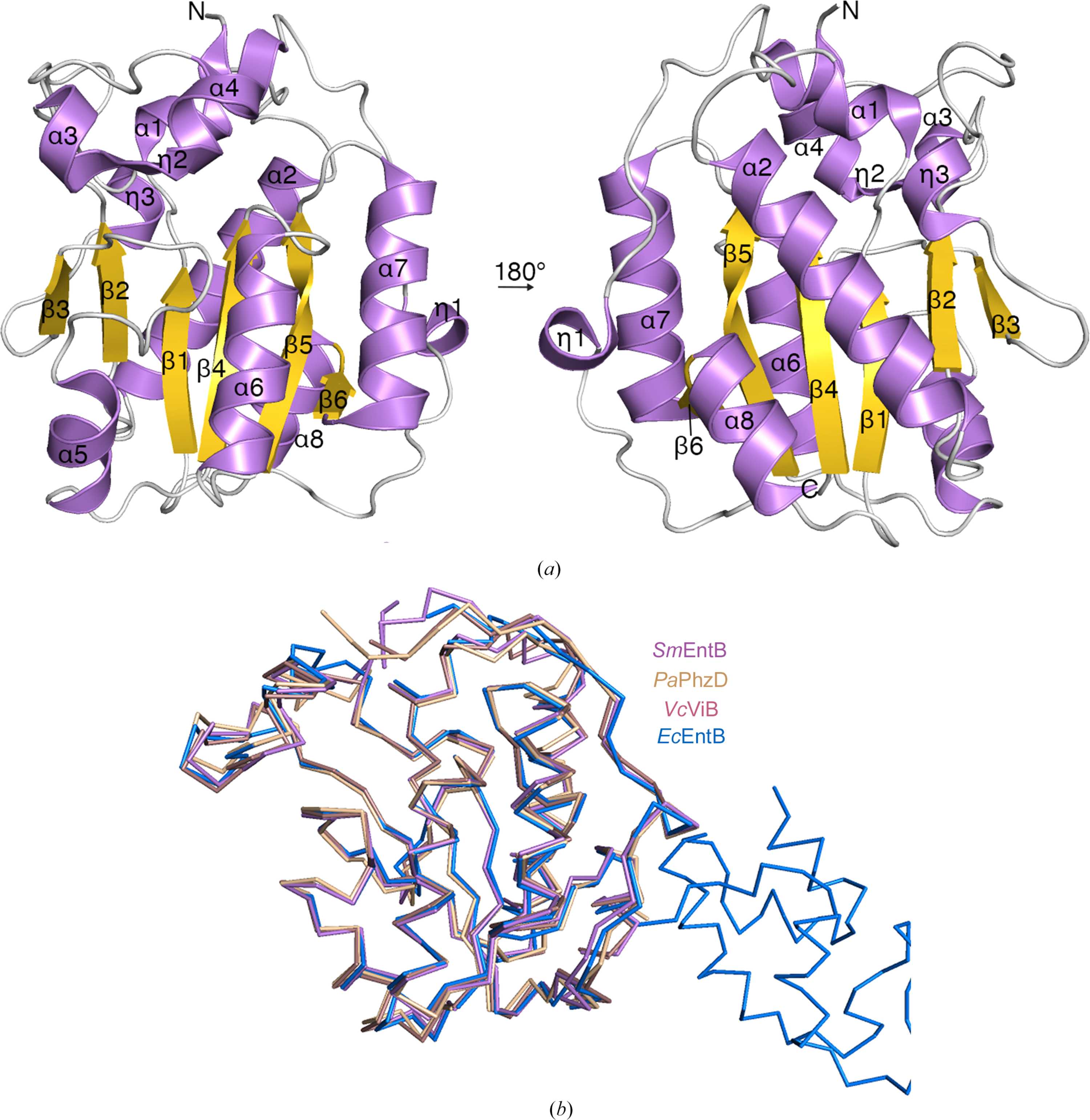

Structure of the S. maltophilia EntB protein. (a) The overall structure of S. maltophilia EntB, depicted as a cartoon. Secondary-structural elements are labeled and α-helices are colored lilac, β-strands gold and loops light gray. The image on the left was rotated 180° towards the viewer, resulting in the image on the right. The N- and C-termini are labeled. (b) Structural overlay of the carbon backbones of S. maltophilia EntB (SmEntB; PDB entry 7l6j, lilac), P. aeruginosa PhzD (PaPhzD; PDB entry 1nf9, wheat), V. cholerae VibB (VcVibB; PDB entry 3tg2, light brown) and E. coli EntB (EcEntB; PDB entry 2fq1, blue). |
