![[Figure 1]](oq5003fig1mag.jpg)
|
|

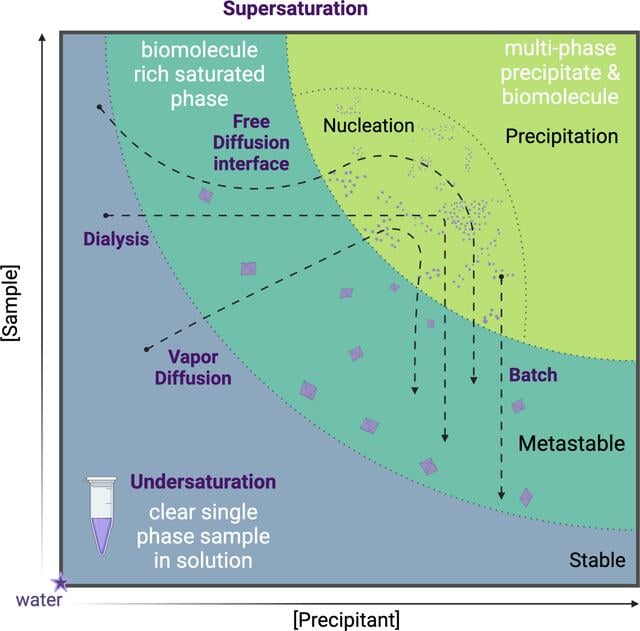

Figure 1
A phase diagram for biomolecular crystallization, with the sample concentration on the y axis and crystallization precipitant (cocktail) on the x axis. Different methods of crystallization can be utilized to assist biomolecular crystal nucleation, followed by stabilization in the metastable zone suitable for structural studies. |
![[Figure 1]](oq5003fig1.jpg)
