Figure 1

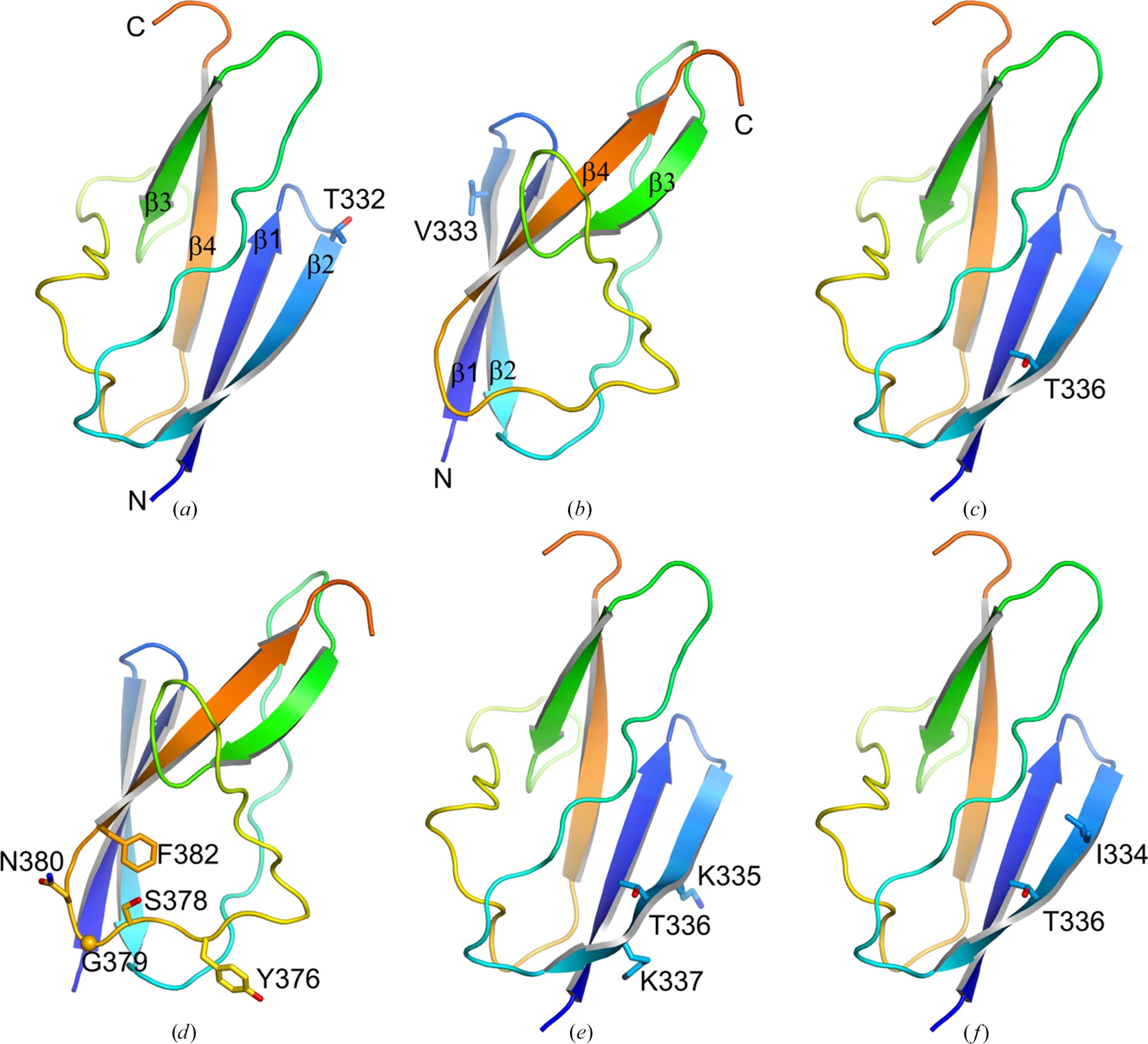

Locations of the mutations in the six InlB392 variants. Only the B repeat (residues 321–392) is shown as a cartoon. N- and C-termini and secondary-structure elements are labeled in (a) and (b). Mutated residues are shown as sticks (Gly as a Cα sphere). (a), (c), (e) and (f) share the same orientation; (b) and (d) show a different view. (a) T332E. (b) V333E. (c) T336Y. (d) Variant A (Y376K, S378P, G379T, N380K, F382I). (e) Variant C (K335S, T336K, K337E). (f) Variant D (I334K, T336L).

Journal logoSTRUCTURAL BIOLOGY
COMMUNICATIONS
ISSN: 2053-230X
Volume 82| Part 1| January 2026| Pages 4-13
https://doi.org/10.1107/S2053230X25010416
