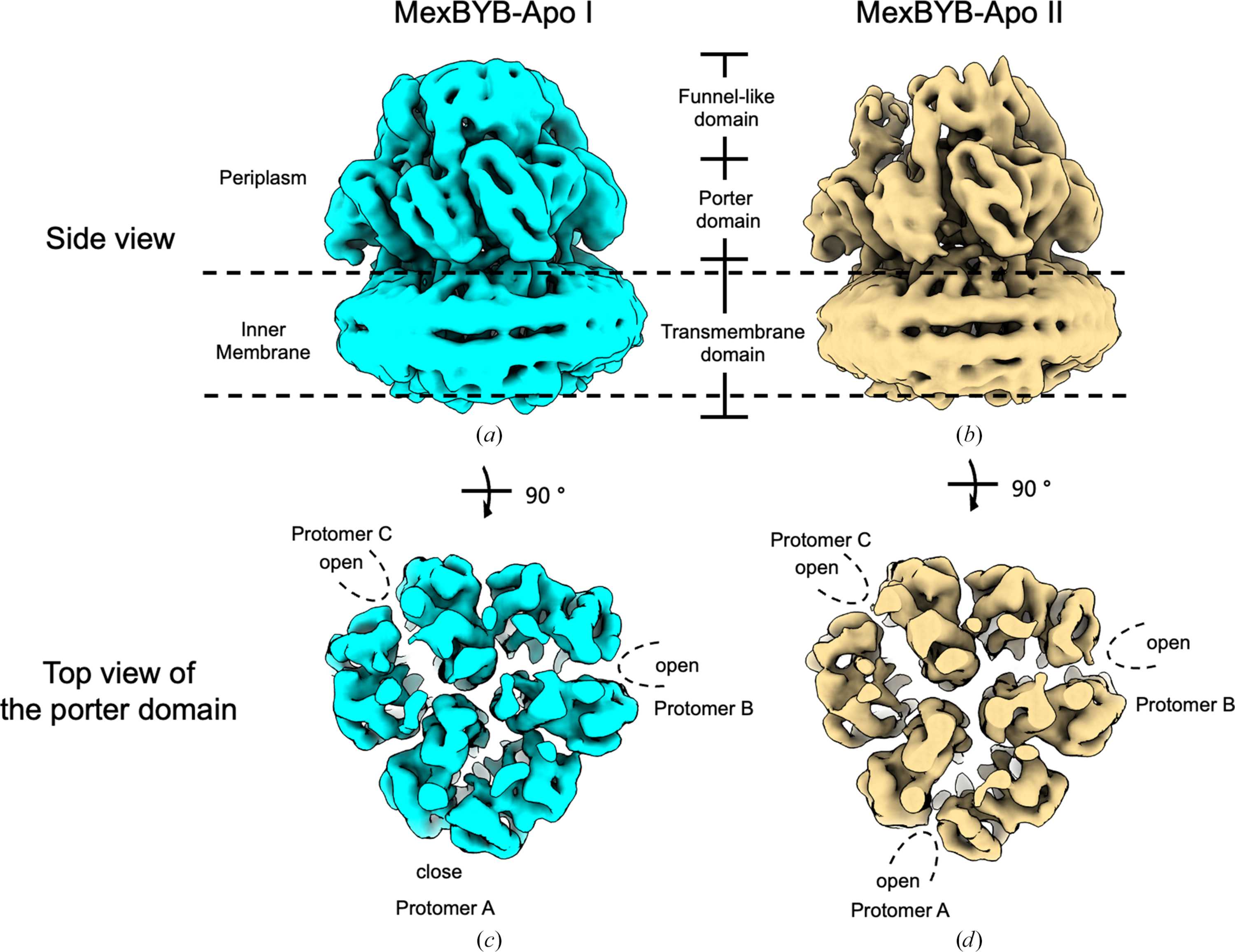

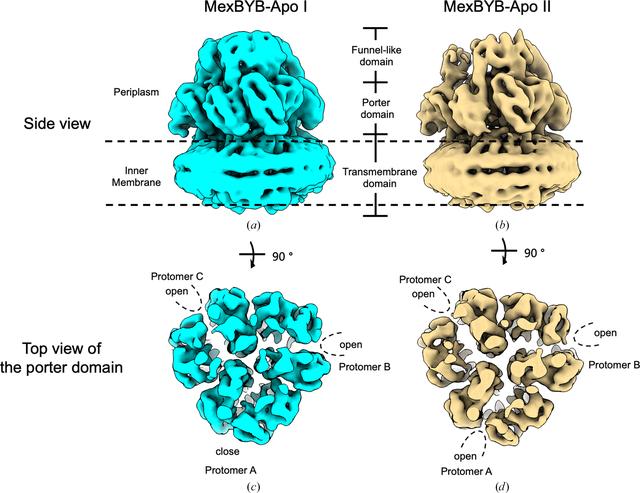

Cryo-EM density maps of MexBYB-Apo. (a) Side view of MexBYB-Apo I density in the asymmetric conformation at an overall resolution of 4.72 Å. (b) Side view of MexBYB-Apo II density in the symmetry-like conformation at 5.82 Å resolution. (c) Top view of the porter domain of MexBYB-Apo density in the asymmetric conformation. (d) Top view of the porter domain of MexBYB-Apo II density in the symmetry-like conformation. The approximate boundary of the inner membrane-embedded part of MexBYB-Apo is indicated by dashed lines. The dimensions of the densities corresponding to the TM, porter and FL domains are indicated in (a) and (b). The open clefts between PC1 and PC2 are indicated by dashed lines. |
