Figure 3

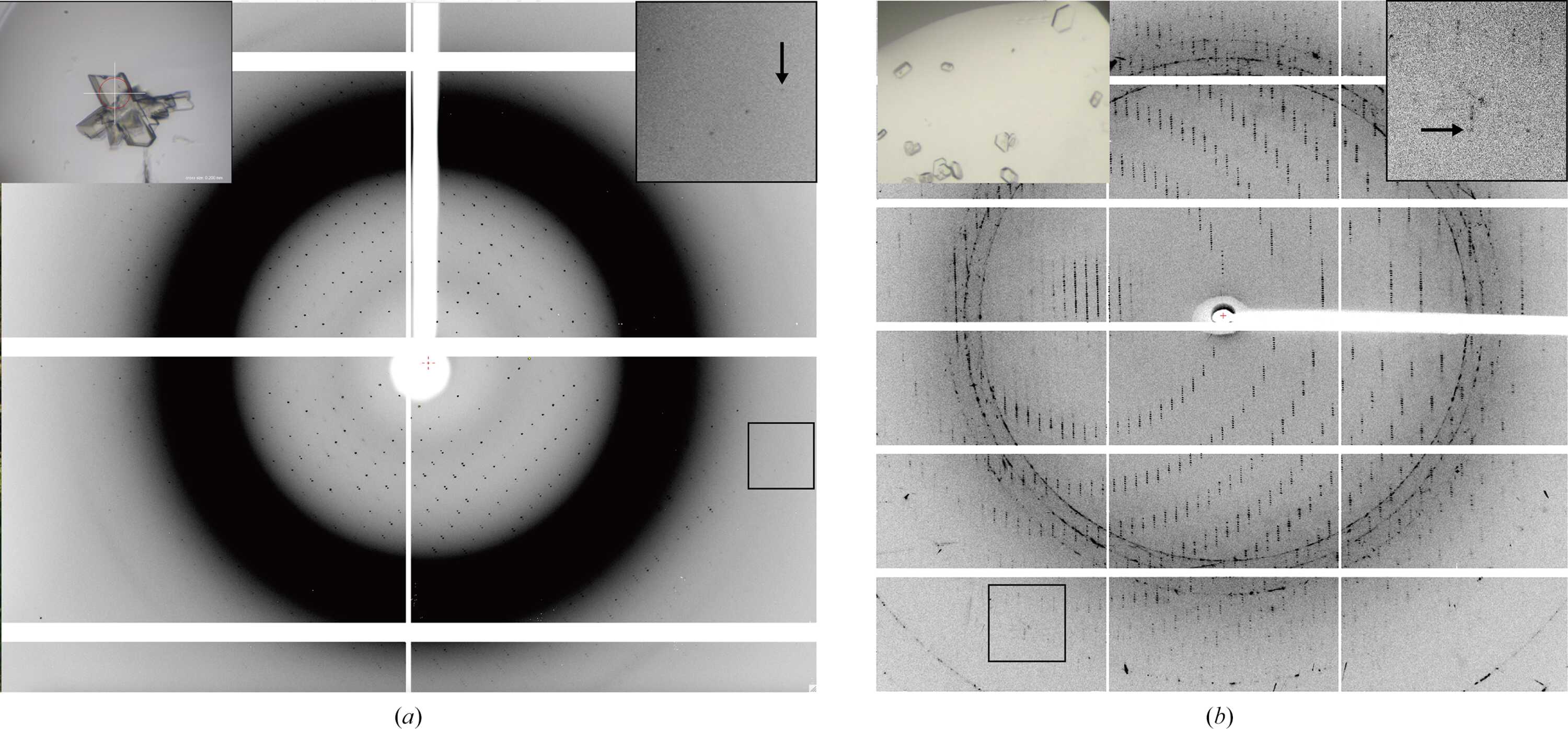

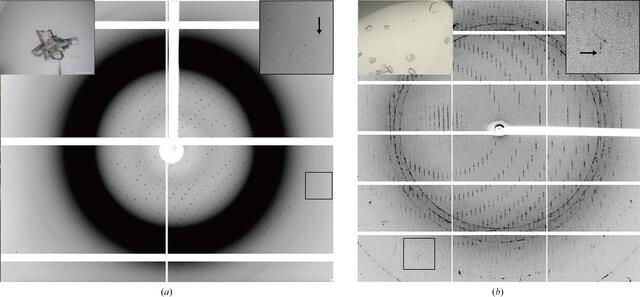

X-ray diffraction images of Mb-P′-1 crystals. (a) A representative diffraction image obtained from an in situ diffraction experiment; the highest resolution reflections extend to 3.5 Å resolution (arrow). (b) Diffraction image collected from the crystal used for structure determination and refinement, showing reflections to 2.57 Å resolution (arrow). For each panel, a photograph of the corresponding crystal is shown in the upper left inset and an enlarged view around the highest resolution reflections is shown on the right. The enlarged region is indicated by a black box on the diffraction image.
