![[Figure 4]](ada5001fig4mag.jpg)
|
|
Figure 4

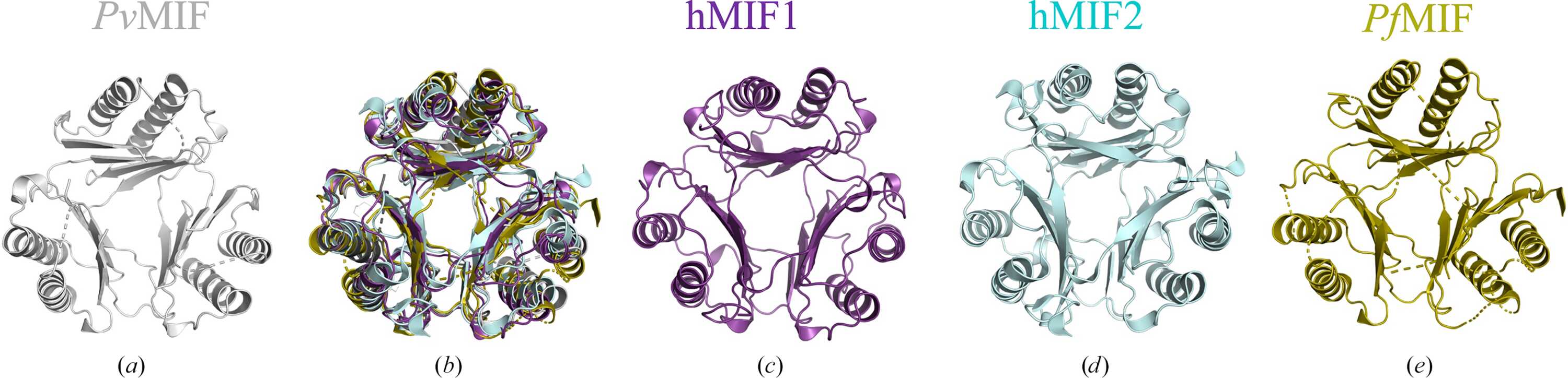

(a) Cartoon representation of the biological unit of PvMIF (gray) reveals a prototypical MIF trimer. (b) Superposed trimers of PvMIF (PDB entry 9b0m, gray) with human MIF1 (hMIF1; PDB entry 1mif, purple), human MIF2 (hMIF2; PDB entry 3ker, cyan) and PfMIF (PDB entry 4p7m, yellow). The prototypical MIF trimers of (c) hMIF1 (PDB entry 1mif, purple; Sun et al., 1996  ), (d) hMIF2 (PDB entry 3ker, cyan; Rajasekaran et al., 2014) and (e) PfMIF (PDB entry 4p7m) are shown. Proteins were aligned with PyMOL (DeLano, 2002). |
