view article

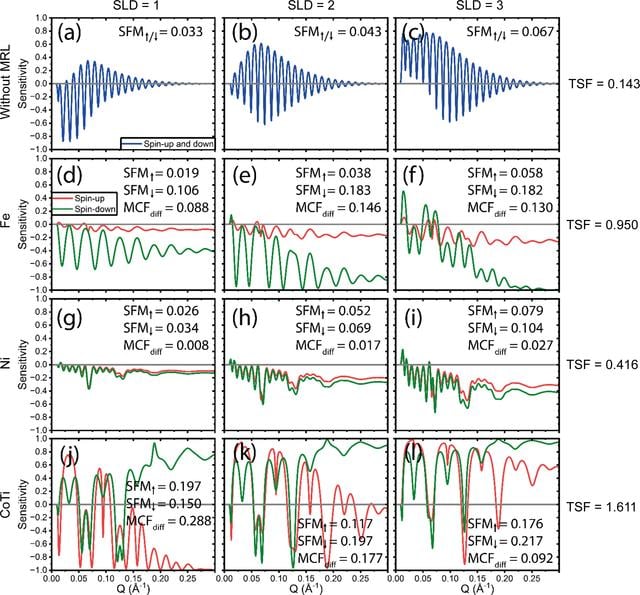

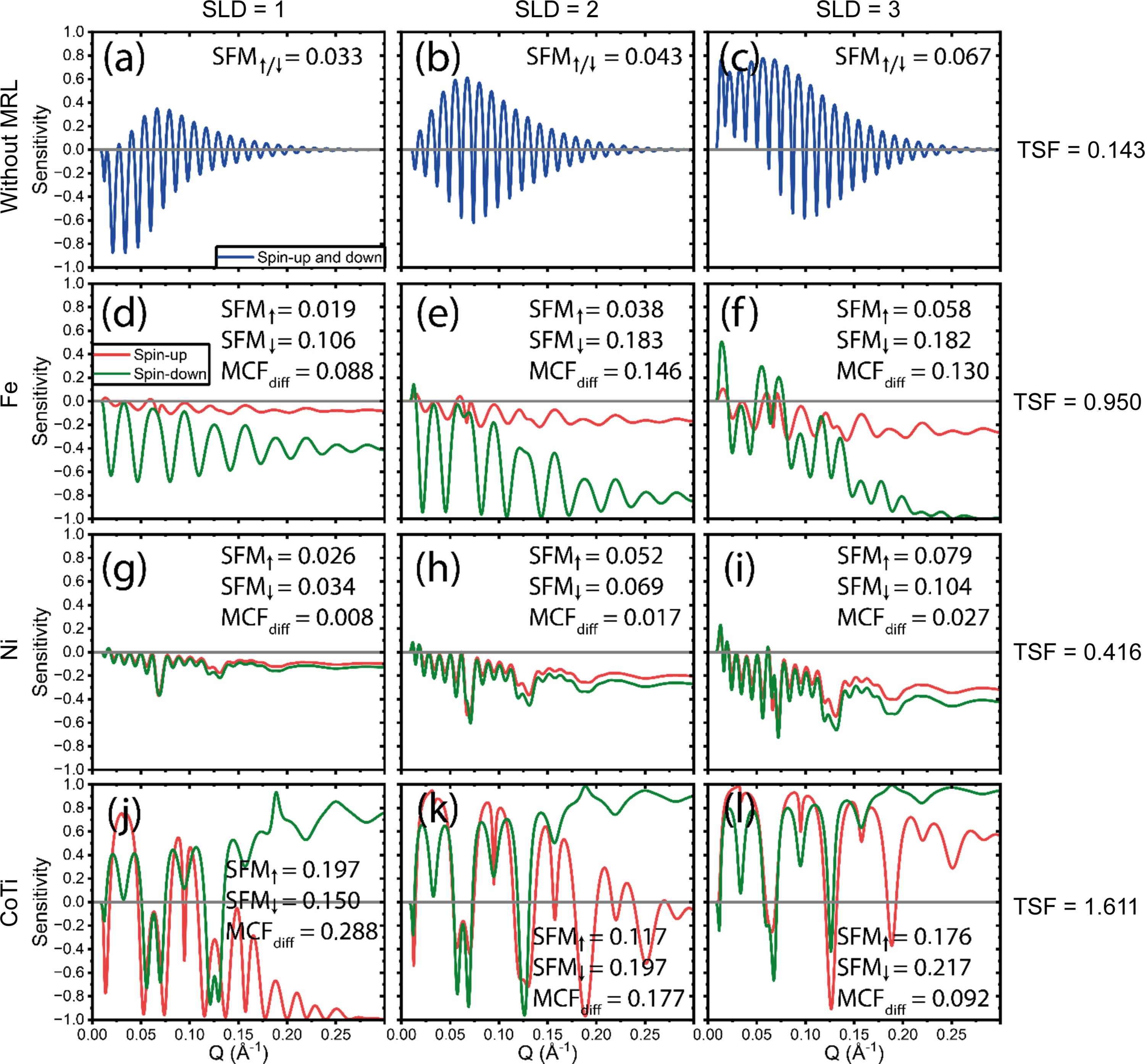

Figure 2
Sensitivity as a function of Q for `normal' SOIs with SLDs of 1, 2 and 3 × 10−6 Å−2. (a)–(c) The sensitivity with no MRL. (d)–(f), (g)–(i) and (j)–(l) The Fe, Ni and CoTi MRLs, respectively. The total sensitivity TSF for each row is shown on the far right. Note that the plots with no MRL are calculated for either spin-up or spin-down and thus for non-polarized neutrons should be multiplied by a factor of 2 for comparison.
