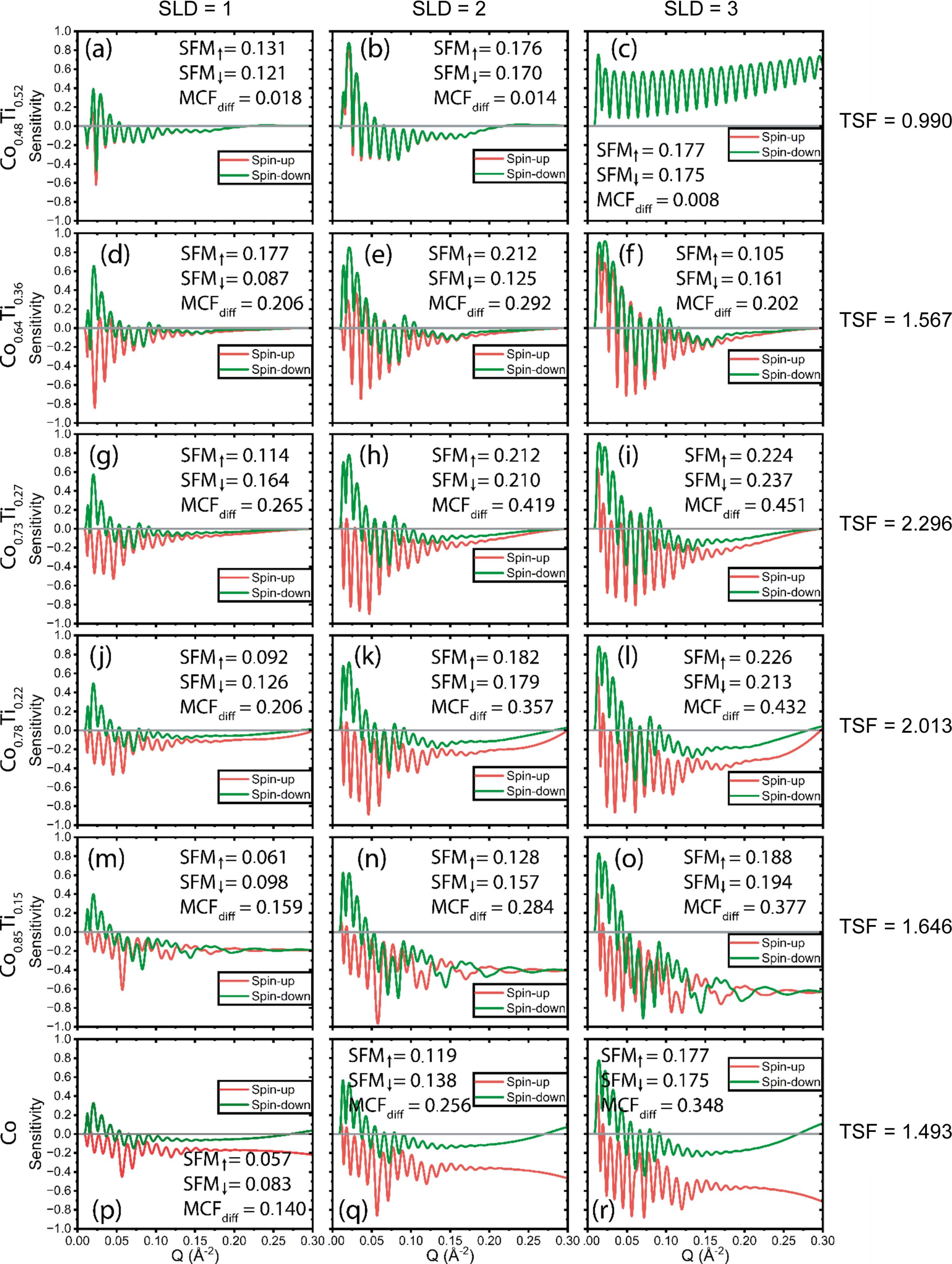

Figure 8
Sensitivity as a function of Q for `normal' SOIs with SLDs of 1, 2 and 3 × 10−6 Å−2. (a)–(c), (d)–(f), (g)–(i), (j)–(l), (m)–(o) and (p)–(r) Sensitivity for six different CoTi MRLs, namely Co0.48Ti0.52, Co0.64Ti0.36, Co0.73Ti0.27, Co0.78Ti0.22, Co0.85Ti0.15 and Co, respectively. The total sensitivity TSF for each row is shown on the far right. All simulations include a capping layer of Al2O3 between the MRL and SOI.
