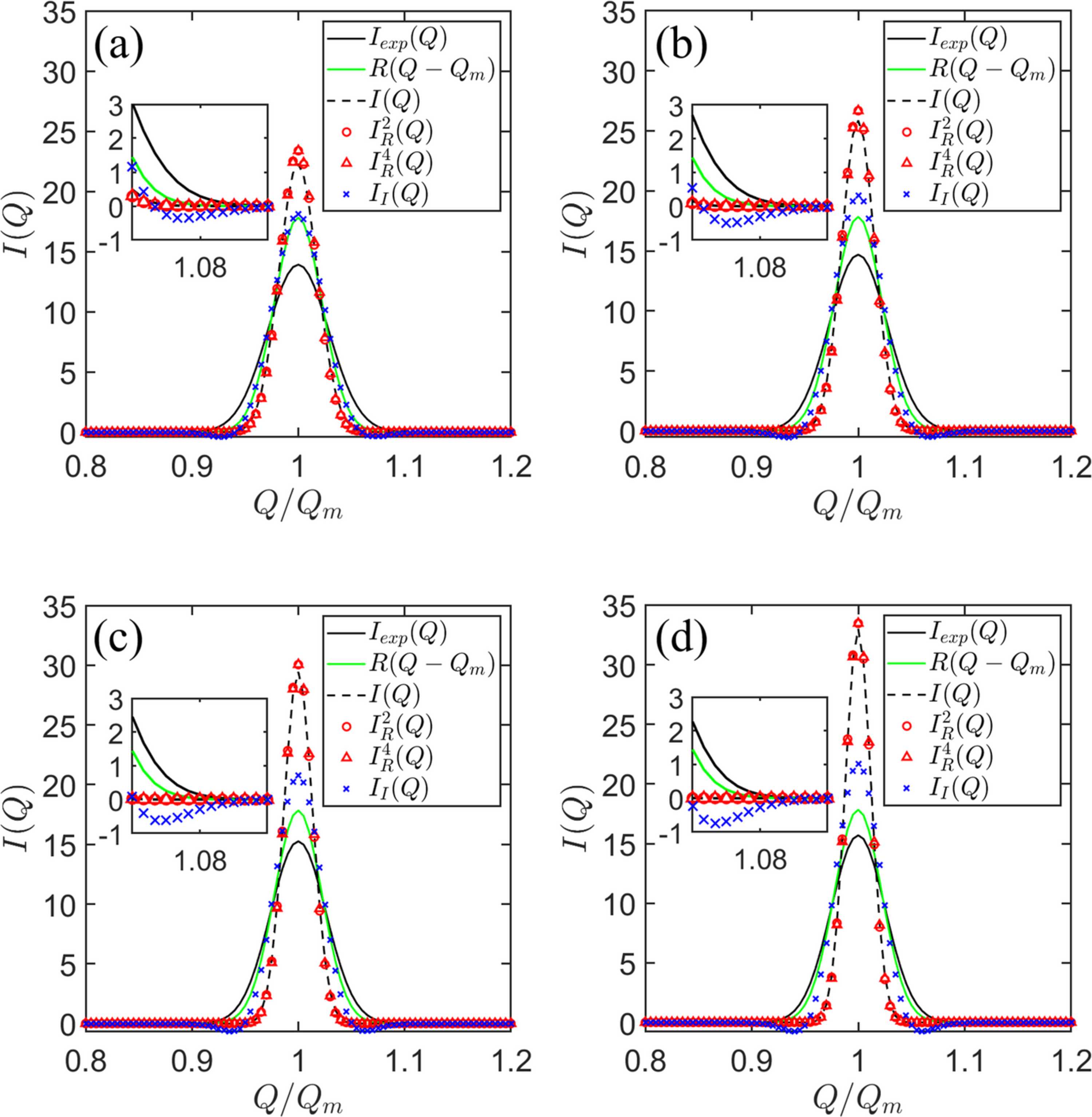

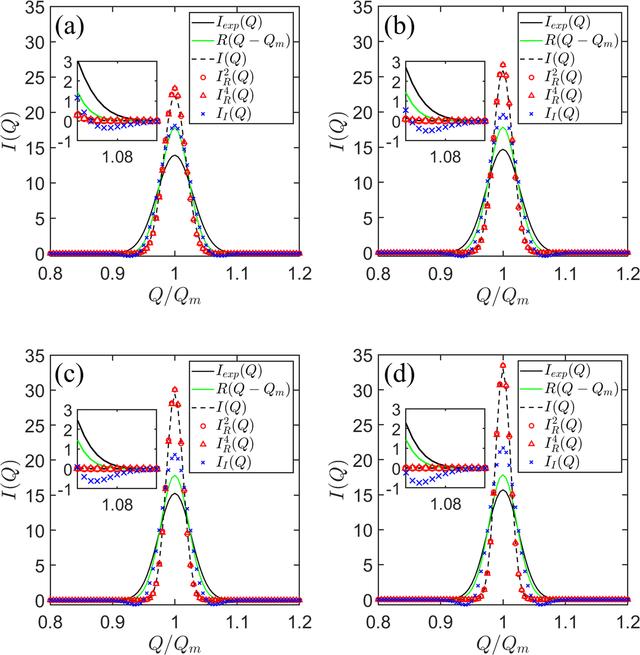

Figure 3
A comparison of various scattering intensities: smeared [I_{\rm exp}(Q)] (depicted by black curves), resolution function (green curves), resolution-free scattering intensity I(Q) (shown as black dashed curves), and desmeared intensities IR2(Q) (indicated by red circles) and IR4(Q) (represented by red triangles), using central moment values extracted in Fig. 2[link]. IR2(Q) and IR4(Q) denote the reconstructed scattering intensities using the maximum entropy approach with two- and four-term central moments. Additionally, II(Q) (marked as blue crosses) represents the reconstructed scattering intensity obtained from our previously reported desmeared algorithm (Huang et al., 2023BB2). The insets in panels (a)–(d) show magnified views of the scattering profiles near the inter-particle correlation peaks, providing visual evidence of artificial oscillation behavior.
