Figure 1

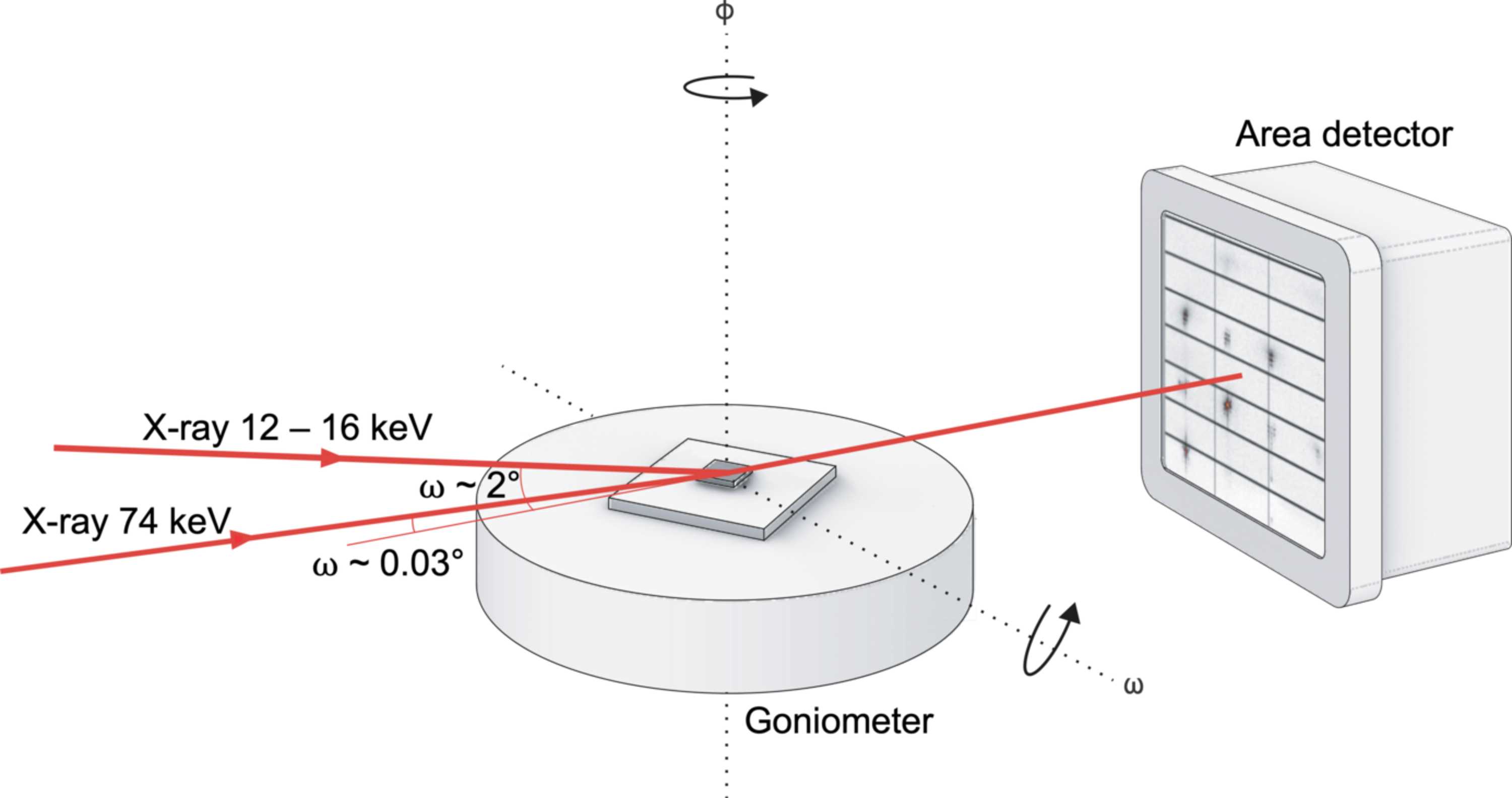

Schematic diagram of the ME-GID setup on the BM01 beamline at ESRF and the HE-GID setup on the P07 beamline at PETRA III, DESY. The ϕ axis is horizontal on BM01 and vertical on P07. |
Open
access
access|
|
|
Figure 1
Schematic diagram of the ME-GID setup on the BM01 beamline at ESRF and the HE-GID setup on the P07 beamline at PETRA III, DESY. The ϕ axis is horizontal on BM01 and vertical on P07. |
