Figure 10

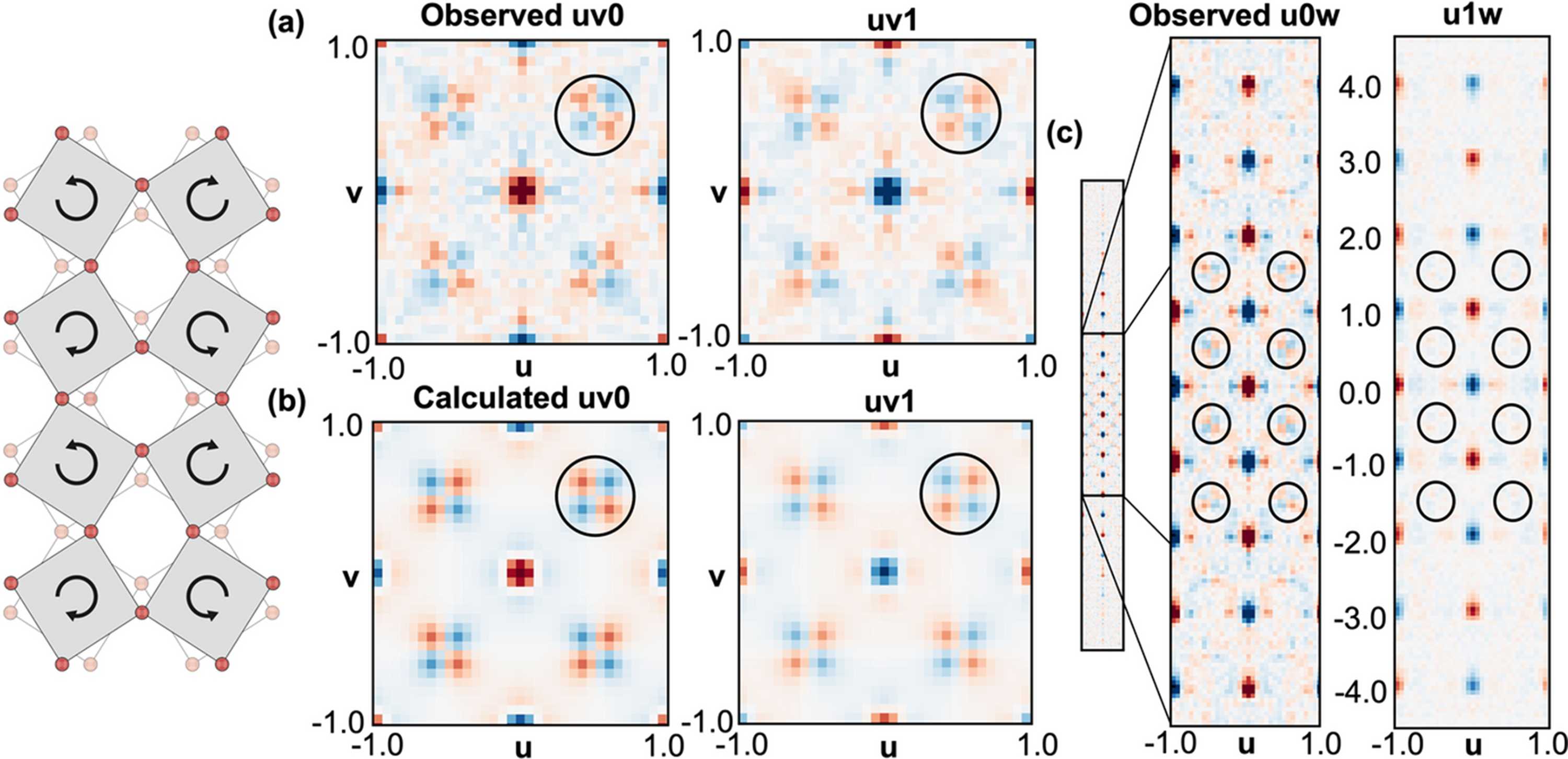

(a) Observed out-of-plane 3D-ΔPDF of the extracted half-integer streaks. (b) Refined 3D-ΔPDF of the a0a0c− tilt pattern of oxygen octahedra viewed along the out-of-plane direction illustrated in the model on the left. (c) Observed 3D-ΔPDF of the extracted half-integer streaks in the u0w and u1w layers. Note that the encircled features are not covered by the a0a0c− model. In the 3D-ΔPDF map, red colors denote positive and blue colors negative 3D-ΔPDF values. Positive 3D-ΔPDF values mean that the probability of finding scattering densities separated by the corresponding vector is higher than in the average structure (= positive correlation), whereas negative values imply lower probability (= negative correlation).
