![[Figure 2]](gue5004fig2mag.jpg)
|
|

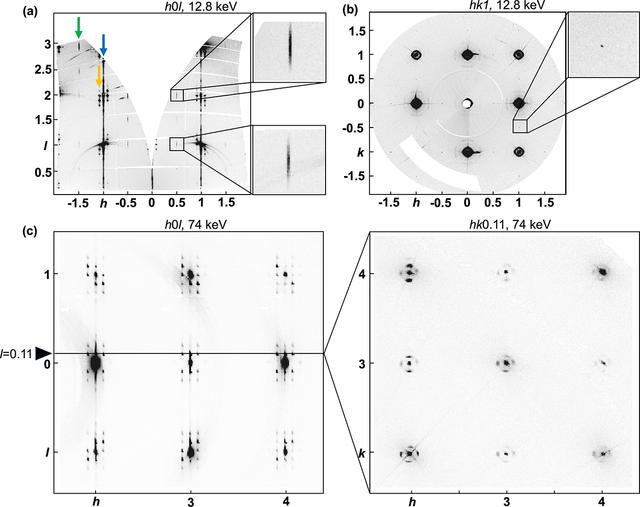

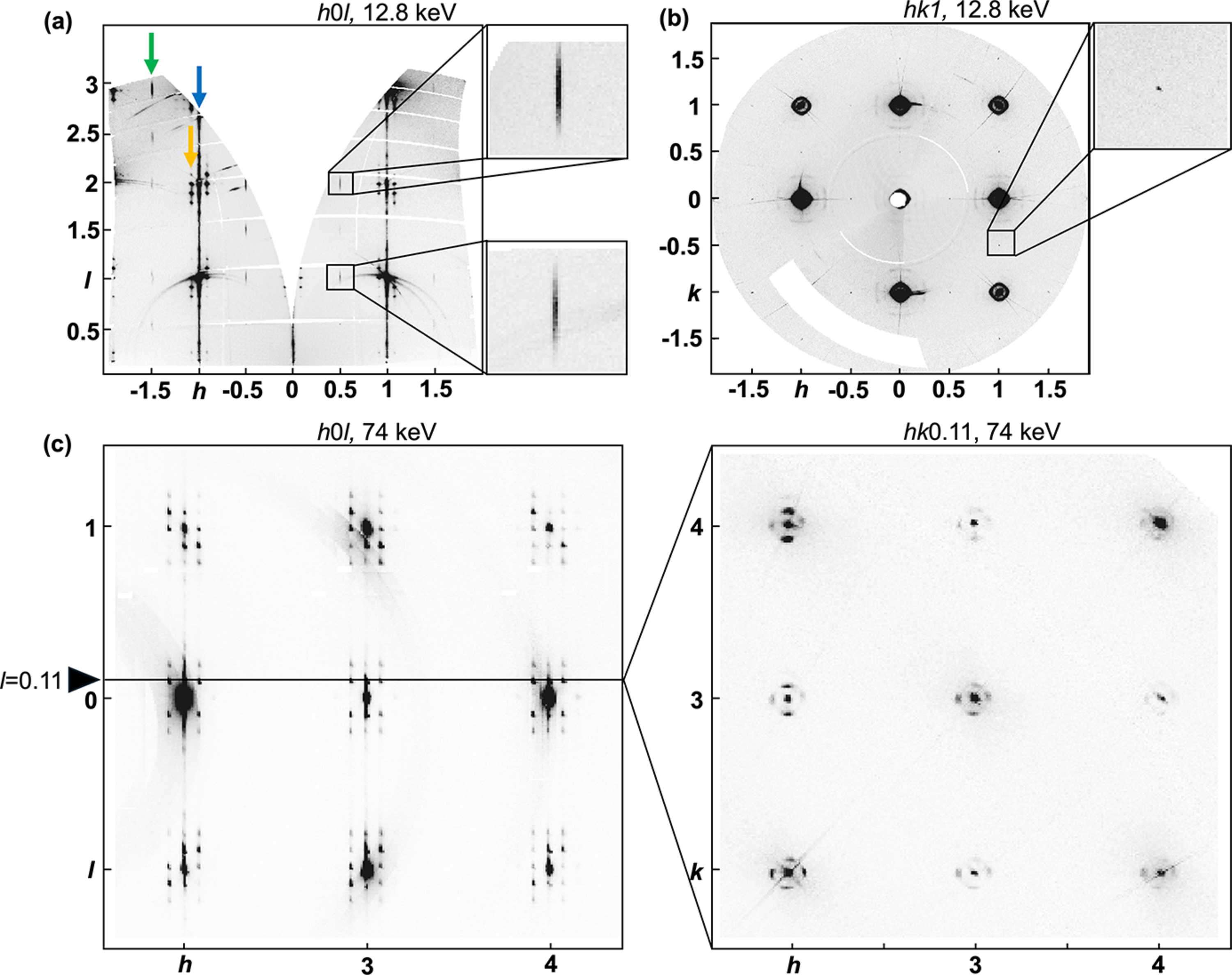

Figure 2
Reconstruction of (a) h0l and (b) hk1 layers, which were collected with an X-ray energy of 12.8 keV at an incident angle of 2° and an SDD of 241 mm. In panel (a), the crystal truncation rods (CTRs) are visible at each integer h, marked by the blue arrow. The insets show the sharp streaks oriented along c*, observed at every half-integer h as indicated by the green arrow. Additionally, satellite peaks near the CTRs are noted with the yellow arrow. In panel (b), diffuse rings are shown around the CTRs and the inset shows the cross section of the half-integer streaks from panel (a) with adjusted gray contrast to enhance visual clarity. (c) Reconstruction of the h0l reciprocal-space layer on the left, where the satellite peaks around the CTRs in every integer k are cross sections of the strongly modulated diffuse rings shown in the hk0.11 layer on the right. Both reciprocal-space layers were collected at an SDD of 850 mm with an X-ray energy of 74 keV. |
![[Figure 2]](gue5004fig2.jpg)
